KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado
(0908-1308)
W/O(PRE-COLLISION SYSTEM)

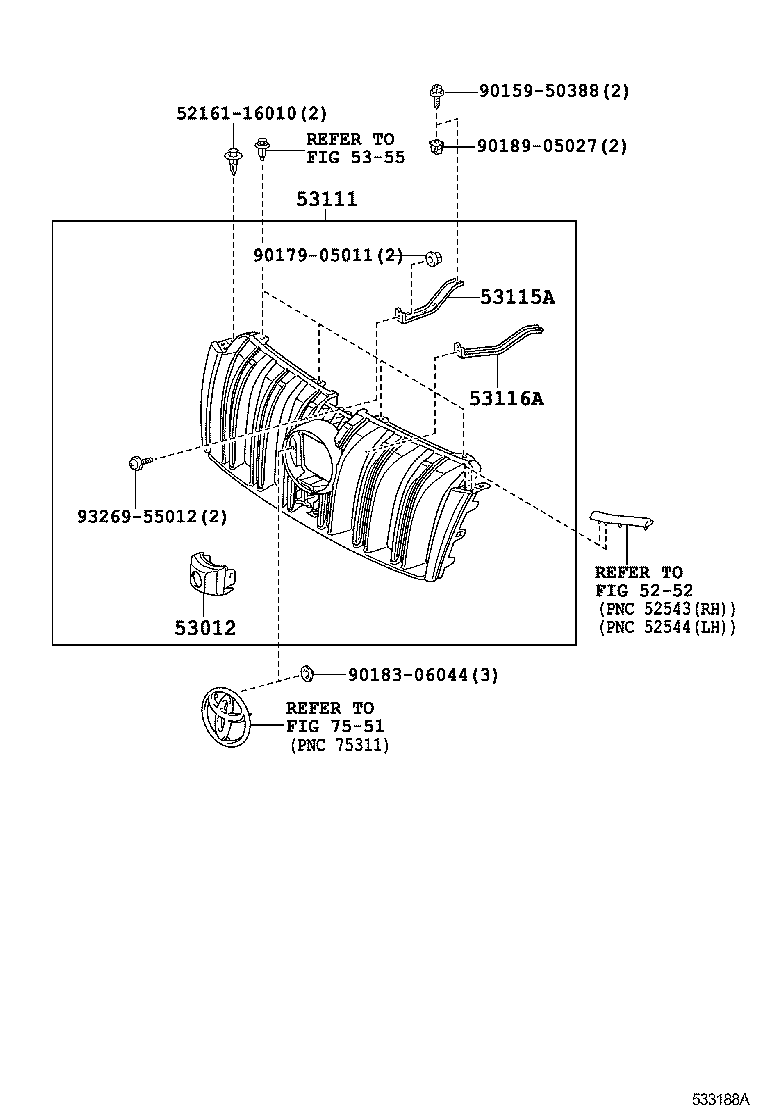

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53012 - GARNISH SUB-ASSY, RADIATOR GRILLE, CENTER | ||||
| 53142-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60660 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 NO PAINT REQ. |
1 | ||
| 53101-60670 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60670 |
GRJ150..5FC;KDJ150..GEN;GRJ150..LHD..6F;KDJ150..5FC..GCC PLATED,TX-L PACKAGE |
1 | ||
| 53101-60670 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60680 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60690 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60700 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60700 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60680 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60690 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60661 |
GRJ150,KDJ150,LJ150,TRJ15# NO PAINT REQ. |
1 | ||
| 53101-60681 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60671 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60681 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60671 |
GRJ150,KDJ150 PLATED,TX-L PACKAGE |
1 | ||
| 53101-60671 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60691 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60691 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60701 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60701 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90159-50388 | ||||
| 90179-05011 | ||||
| 90189-05027 | ||||
| 93269-55012 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 7551 | ||||
(0908-1308)
W(PRE-COLLISION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53012 - GARNISH SUB-ASSY, RADIATOR GRILLE, CENTER | ||||
| 53142-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53142-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60660 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 NO PAINT REQ. |
1 | ||
| 53101-60670 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60670 |
GRJ150..5FC;KDJ150..GEN;GRJ150..LHD..6F;KDJ150..5FC..GCC PLATED,TX-L PACKAGE |
1 | ||
| 53101-60670 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60680 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60690 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60700 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60700 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60680 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60690 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60661 |
GRJ150,KDJ150,LJ150,TRJ15# NO PAINT REQ. |
1 | ||
| 53101-60681 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60671 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60681 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 53101-60671 |
GRJ150,KDJ150 PLATED,TX-L PACKAGE |
1 | ||
| 53101-60671 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 53101-60691 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60691 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN PLATED,VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53101-60701 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 53101-60701 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PLATED,VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90159-50388 | ||||
| 90179-05011 | ||||
| 90183-06044 | ||||
| 90189-05027 | ||||
| 93269-55012 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 7551 | ||||
(1708- )
W/O(MILLIMETER WAVE RADAR SENSOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50346 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90189-05027 | ||||
| 90189-05050 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8606 | ||||
(1708- )
W(MILLIMETER WAVE RADAR SENSOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50346 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90179-06362 | ||||
| 90182-06009 | ||||
| 90189-05027 | ||||
| 90189-05050 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8606 | ||||
