KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado

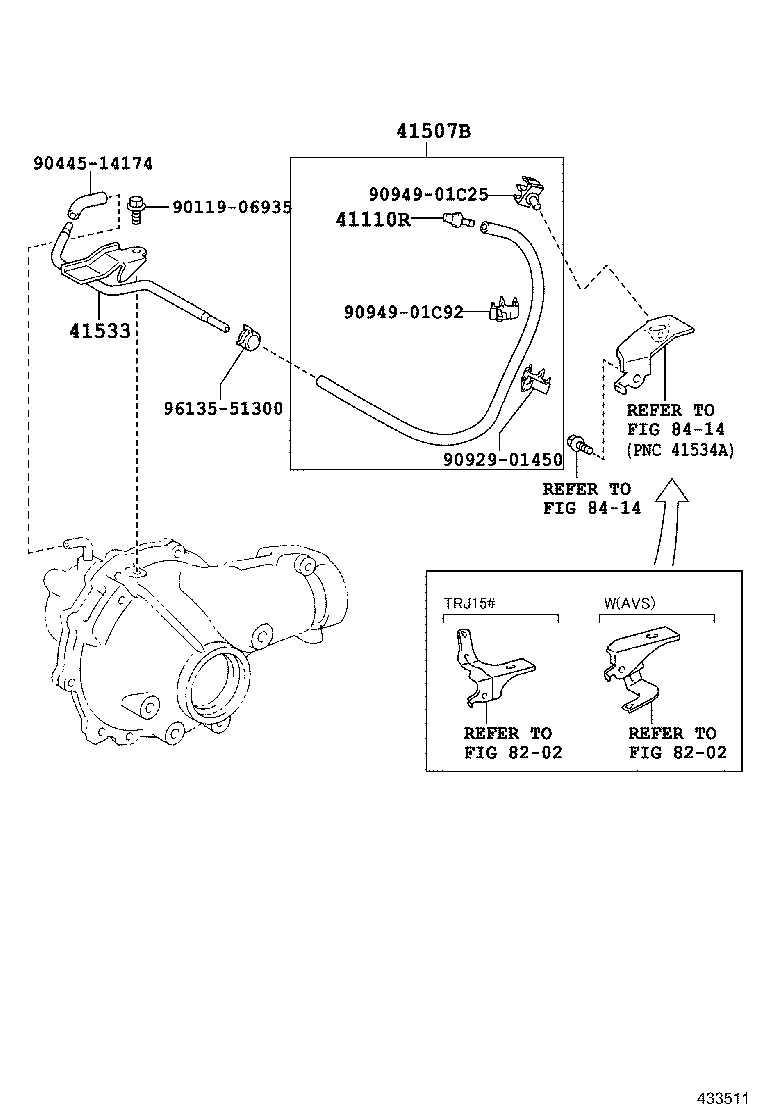

ILLUST NO. 2 OF 2(0908- )GRJ150,KDJ150,LJ150,TRJ15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03136 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60220 |
TRJ150..LHD;LJ150,TRJ155;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-60030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90119-06935 | ||||
| 90445-14174 | ||||
| 90929-01450 | ||||
| 90949-01C25 | ||||
| 90949-01C92 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-35010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-35160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-3D430 |
GRJ150..6F;KDJ150..ARL,GEN;KDJ150..5FC..GCC *FGR=43:11=3.909 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-18032 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 90341-18066 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-24014 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 90430-24003 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-08004 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41111D - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-10391 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 *10-1.25PX24.5-18 |
10 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-80195 |
GRJ150..6F;KDJ150..ARL,GEN;KDJ150..5FC..GCC *FGR=43:11=3.909 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90177-22003 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30067 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-35087 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35111 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.76 |
1 | ||
| 90564-35114 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.85 |
1 | ||
| 90564-35109 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.70 |
1 | ||
| 90564-35110 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.73 |
1 | ||
| 90564-35116 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.91 |
1 | ||
| 90564-35119 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.00 |
1 | ||
| 90564-35118 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.97 |
1 | ||
| 90564-35123 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.09 |
1 | ||
| 90564-35113 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.82 |
1 | ||
| 90564-35125 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.15 |
1 | ||
| 90564-35120 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.03 |
1 | ||
| 90564-35112 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.79 |
1 | ||
| 90564-35117 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.94 |
1 | ||
| 90564-35121 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.06 |
1 | ||
| 90564-35128 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.24 |
1 | ||
| 90564-35127 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.21 |
1 | ||
| 90564-35131 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.33 |
1 | ||
| 90564-35115 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=1.88 |
1 | ||
| 90564-35129 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.27 |
1 | ||
| 90564-35126 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.18 |
1 | ||
| 90564-35124 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.12 |
1 | ||
| 90564-35130 |
GRJ150,KDJ150,LJ150,TRJ15# OD=52,T=2.30 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
10 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-35040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41304F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41337-35050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41304L - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90363-43001 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 INNER |
1 | ||
| 90520-75002 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 OUTER |
1 | ||
| 41304M - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||||
| 90520-41014 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 INNER |
1 | ||
| 90520-75002 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 OUTER |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-35090 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155..4FC,5F,6F |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-53001 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-53001 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50130 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.78,LH |
1 | ||
| 90564-50136 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.96,LH |
1 | ||
| 90564-50126 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.66,LH |
1 | ||
| 90564-50124 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60,LH |
1 | ||
| 90564-50128 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.72,LH |
1 | ||
| 90564-50138 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.02,LH |
1 | ||
| 90564-50132 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.84,LH |
1 | ||
| 90564-50156 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.66,RH |
1 | ||
| 90564-50134 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90,LH |
1 | ||
| 90564-50154 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60,RH |
1 | ||
| 90564-50170 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.08,RH |
1 | ||
| 90564-50162 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.84,RH |
1 | ||
| 90564-50160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.78,RH |
1 | ||
| 90564-50140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.08,LH |
1 | ||
| 90564-50168 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.02,RH |
1 | ||
| 90564-50188 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70,LH |
1 | ||
| 90564-50187 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.68,LH |
1 | ||
| 90564-50158 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.72,RH |
1 | ||
| 90564-50184 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.58,LH |
1 | ||
| 90564-50186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.64,LH |
1 | ||
| 90564-50190 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.76,LH |
1 | ||
| 90564-50166 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.96,RH |
1 | ||
| 90564-50189 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.74,LH |
1 | ||
| 90564-50164 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90,RH |
1 | ||
| 90564-50191 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80,LH |
1 | ||
| 90564-50185 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.62,LH |
1 | ||
| 90564-50142 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.14,LH |
1 | ||
| 90564-50193 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.86,LH |
1 | ||
| 90564-50194 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.88,LH |
1 | ||
| 90564-50198 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.00,LH |
1 | ||
| 90564-50172 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.14,RH |
1 | ||
| 90564-50195 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.92,LH |
1 | ||
| 90564-50196 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.94,LH |
1 | ||
| 90564-50201 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.10,LH |
1 | ||
| 90564-50204 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.58,RH |
1 | ||
| 90564-50205 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.62,RH |
1 | ||
| 90564-50192 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.82,LH |
1 | ||
| 90564-50210 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.76,RH |
1 | ||
| 90564-50199 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.04,LH |
1 | ||
| 90564-50209 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.74,RH |
1 | ||
| 90564-50206 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.64,RH |
1 | ||
| 90564-50202 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.12,LH |
1 | ||
| 90564-50213 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.86,RH |
1 | ||
| 90564-50216 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.94,RH |
1 | ||
| 90564-50217 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.98,RH |
1 | ||
| 90564-50207 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.68,RH |
1 | ||
| 90564-50212 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.82,RH |
1 | ||
| 90564-50208 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70,RH |
1 | ||
| 90564-50197 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.98,LH |
1 | ||
| 90564-50200 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.06,LH |
1 | ||
| 90564-50211 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80,RH |
1 | ||
| 90564-50218 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.00,RH |
1 | ||
| 90564-50214 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.88,RH |
1 | ||
| 90564-50215 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.92,RH |
1 | ||
| 90564-50226 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.48,RH |
1 | ||
| 90564-50220 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.06,RH |
1 | ||
| 90564-50223 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.16,RH |
1 | ||
| 90564-50203 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.16,LH |
1 | ||
| 90564-50219 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.04,RH |
1 | ||
| 90564-50221 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.10,RH |
1 | ||
| 90564-50222 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.12,RH |
1 | ||
| 90564-50230 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.56,RH |
1 | ||
| 90564-50237 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.30,LH |
1 | ||
| 90564-50228 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.52,RH |
1 | ||
| 90564-50231 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.18,LH |
1 | ||
| 90564-50234 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.24,LH |
1 | ||
| 90564-50233 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.22,LH |
1 | ||
| 90564-50229 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.54,RH |
1 | ||
| 90564-50224 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.44,RH |
1 | ||
| 90564-50236 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.28,LH |
1 | ||
| 90564-50227 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.50,RH |
1 | ||
| 90564-50235 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.26,LH |
1 | ||
| 90564-50232 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.20,LH |
1 | ||
| 90564-50225 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.46,RH |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50130 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.78,LH |
1 | ||
| 90564-50136 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.96,LH |
1 | ||
| 90564-50126 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.66,LH |
1 | ||
| 90564-50124 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60,LH |
1 | ||
| 90564-50128 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.72,LH |
1 | ||
| 90564-50138 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.02,LH |
1 | ||
| 90564-50132 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.84,LH |
1 | ||
| 90564-50156 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.66,RH |
1 | ||
| 90564-50134 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90,LH |
1 | ||
| 90564-50154 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60,RH |
1 | ||
| 90564-50170 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.08,RH |
1 | ||
| 90564-50162 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.84,RH |
1 | ||
| 90564-50160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.78,RH |
1 | ||
| 90564-50140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.08,LH |
1 | ||
| 90564-50168 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.02,RH |
1 | ||
| 90564-50188 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70,LH |
1 | ||
| 90564-50187 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.68,LH |
1 | ||
| 90564-50158 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.72,RH |
1 | ||
| 90564-50184 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.58,LH |
1 | ||
| 90564-50186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.64,LH |
1 | ||
| 90564-50190 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.76,LH |
1 | ||
| 90564-50166 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.96,RH |
1 | ||
| 90564-50189 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.74,LH |
1 | ||
| 90564-50164 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90,RH |
1 | ||
| 90564-50191 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80,LH |
1 | ||
| 90564-50185 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.62,LH |
1 | ||
| 90564-50142 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.14,LH |
1 | ||
| 90564-50193 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.86,LH |
1 | ||
| 90564-50194 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.88,LH |
1 | ||
| 90564-50198 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.00,LH |
1 | ||
| 90564-50172 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.14,RH |
1 | ||
| 90564-50195 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.92,LH |
1 | ||
| 90564-50196 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.94,LH |
1 | ||
| 90564-50201 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.10,LH |
1 | ||
| 90564-50204 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.58,RH |
1 | ||
| 90564-50205 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.62,RH |
1 | ||
| 90564-50192 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.82,LH |
1 | ||
| 90564-50210 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.76,RH |
1 | ||
| 90564-50199 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.04,LH |
1 | ||
| 90564-50209 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.74,RH |
1 | ||
| 90564-50206 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.64,RH |
1 | ||
| 90564-50202 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.12,LH |
1 | ||
| 90564-50213 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.86,RH |
1 | ||
| 90564-50216 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.94,RH |
1 | ||
| 90564-50217 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.98,RH |
1 | ||
| 90564-50207 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.68,RH |
1 | ||
| 90564-50212 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.82,RH |
1 | ||
| 90564-50208 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70,RH |
1 | ||
| 90564-50197 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.98,LH |
1 | ||
| 90564-50200 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.06,LH |
1 | ||
| 90564-50211 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80,RH |
1 | ||
| 90564-50218 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.00,RH |
1 | ||
| 90564-50214 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.88,RH |
1 | ||
| 90564-50215 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.92,RH |
1 | ||
| 90564-50226 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.48,RH |
1 | ||
| 90564-50220 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.06,RH |
1 | ||
| 90564-50223 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.16,RH |
1 | ||
| 90564-50203 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.16,LH |
1 | ||
| 90564-50219 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.04,RH |
1 | ||
| 90564-50221 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.10,RH |
1 | ||
| 90564-50222 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.12,RH |
1 | ||
| 90564-50230 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.56,RH |
1 | ||
| 90564-50237 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.30,LH |
1 | ||
| 90564-50228 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.52,RH |
1 | ||
| 90564-50231 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.18,LH |
1 | ||
| 90564-50234 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.24,LH |
1 | ||
| 90564-50233 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.22,LH |
1 | ||
| 90564-50229 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.54,RH |
1 | ||
| 90564-50224 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.44,RH |
1 | ||
| 90564-50236 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.28,LH |
1 | ||
| 90564-50227 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.50,RH |
1 | ||
| 90564-50235 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.26,LH |
1 | ||
| 90564-50232 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=2.20,LH |
1 | ||
| 90564-50225 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.46,RH |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41321-35050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-35020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-34030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60 |
2 | ||
| 41361-34010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.50 |
2 | ||
| 41361-34020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.55 |
2 | ||
| 41361-34050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70 |
2 | ||
| 41361-34040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.65 |
2 | ||
| 41361-34060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.75 |
2 | ||
| 41361-34070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80 |
2 | ||
| 41361-34080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.85 |
2 | ||
| 41361-34090 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-34030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.60 |
2 | ||
| 41361-34010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.50 |
2 | ||
| 41361-34020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.55 |
2 | ||
| 41361-34050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.70 |
2 | ||
| 41361-34040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.65 |
2 | ||
| 41361-34060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.75 |
2 | ||
| 41361-34070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.80 |
2 | ||
| 41361-34080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.85 |
2 | ||
| 41361-34090 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 T=1.90 |
2 | ||
| 41435A - BOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING) | ||||
| 90107-12003 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 *12-1.25PX24-16.5 |
4 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60030 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 41655 - NUT, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41655-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-60100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LH |
1 | ||
| 52380-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 RH |
1 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-60100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LH |
1 | ||
| 52380-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 RH |
1 | ||
| 52380E - SUPPORT ASSY, DIFFERENTIAL | ||||
| 52380-60120 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 90105-12272 | ||||
| 90105-14090 | ||||
| 90105-14171 | ||||
| 90119-14137 | ||||
| 90179-14063 | ||||
| 91511-80820 | ||||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12272 | ||||
| 90105-14090 | ||||
| 90105-14171 | ||||
| 90119-14137 | ||||
| 90179-14063 | ||||
| 91511-80820 | ||||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 2 OF 2(1708- )GRJ150,KDJ150,LJ150,TRJ15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06935 | ||||
| 90445-14174 | ||||
| 90929-01450 | ||||
| 90949-01C25 | ||||
| 90949-01C92 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
