KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado

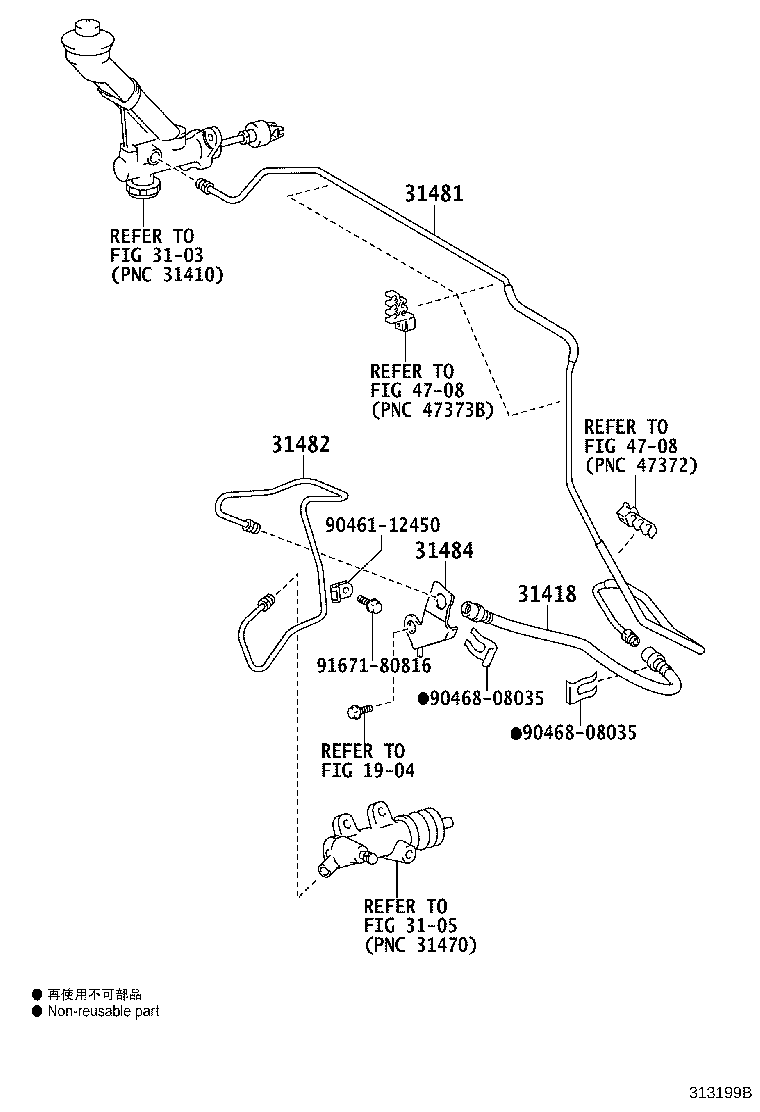

ILLUST NO. 2 OF 2(0908- )KDJ150..RHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02D37 |
TRJ150..LHD..5F;KDJ150,LJ150..MTM..(ARL,GEN) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60B10 |
KDJ150,LJ150..RHD..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60250 |
KDJ150..6F..(ARL,GEN) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60400 |
KDJ150..6F..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90461-12450 | ||||
| 90468-08035 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||

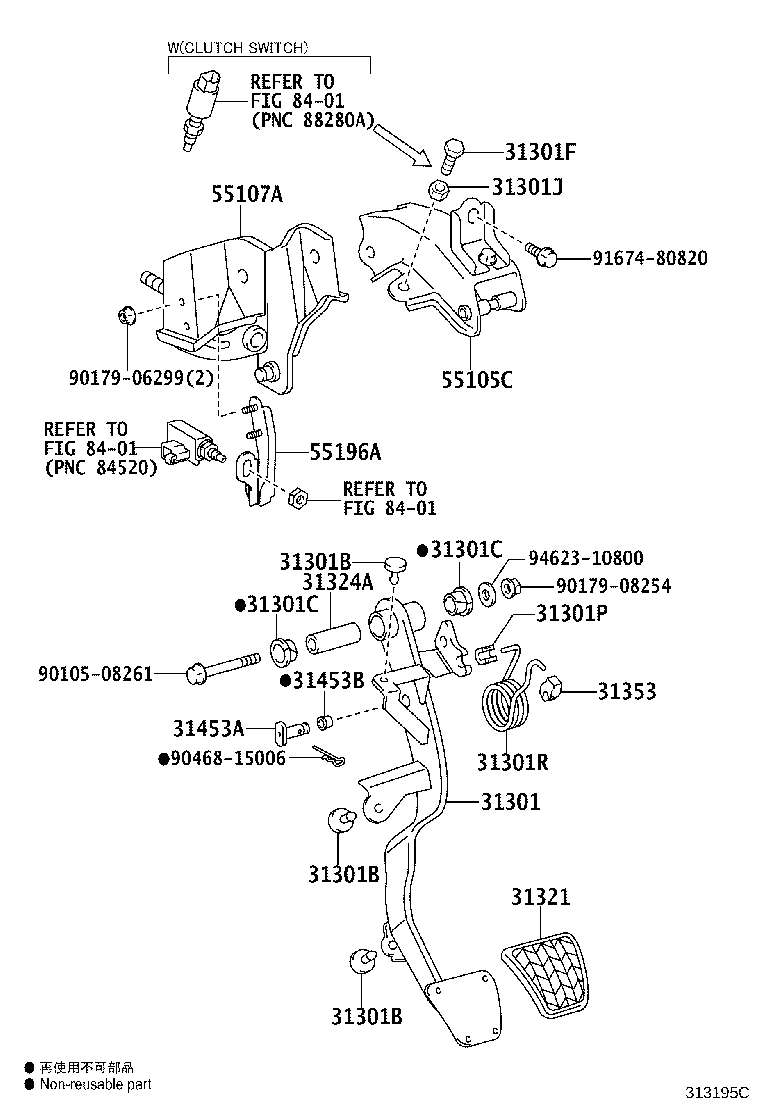

ILLUST NO. 1 OF 2(0908- )RHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60310 |
GRJ150,KDJ150..RHD..6F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03127 |
GRJ150,KDJ150,LJ150..RHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-08160 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-T0002 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) L=31.9 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
TRJ150..LHD..5F;GRJ150,LJ150..MTM;KDJ150..6F..(ARL,GEN) |
1 | ||
| 55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE | ||||
| 55105-60020 |
GRJ150,KDJ150,LJ150..RHD..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60280 |
GRJ150,KDJ150,LJ150..RHD..MTM |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-60060 |
GRJ150,KDJ150,LJ150..RHD..MTM |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90468-15006 | ||||
| 91674-80820 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

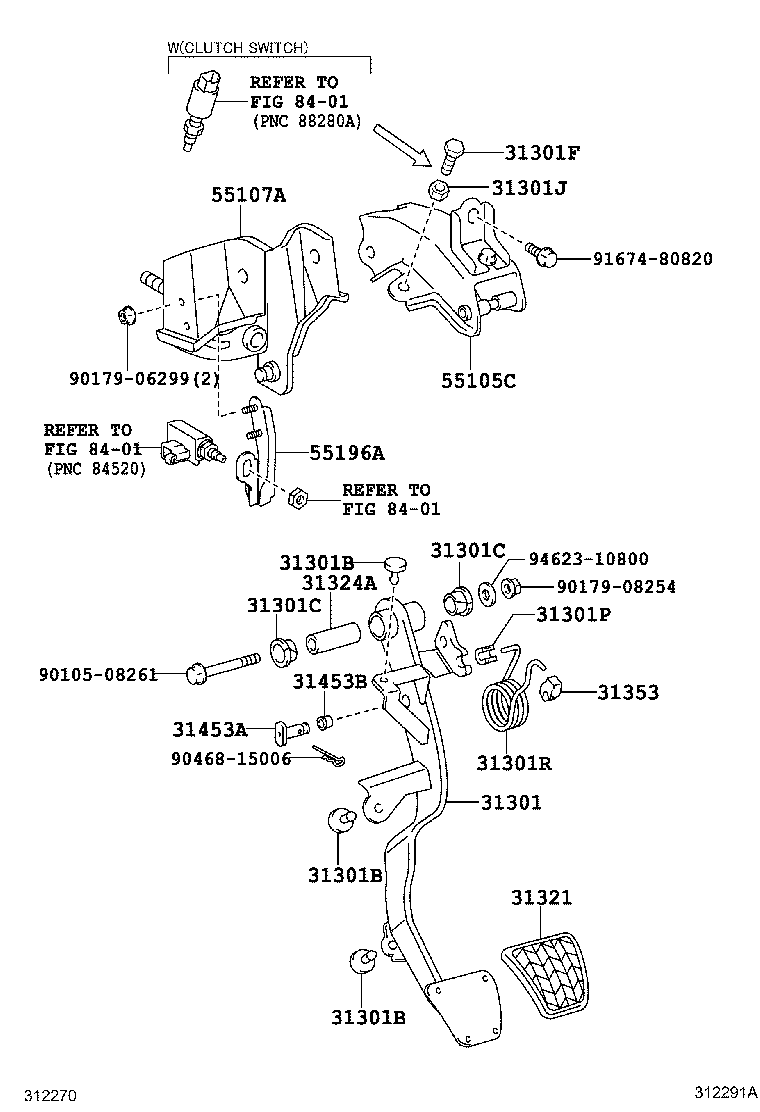

ILLUST NO. 1 OF 2(1708- )RHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08261 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90468-15006 | ||||
| 91674-80820 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1708- )KDJ150..RHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-12450 | ||||
| 90468-08035 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
