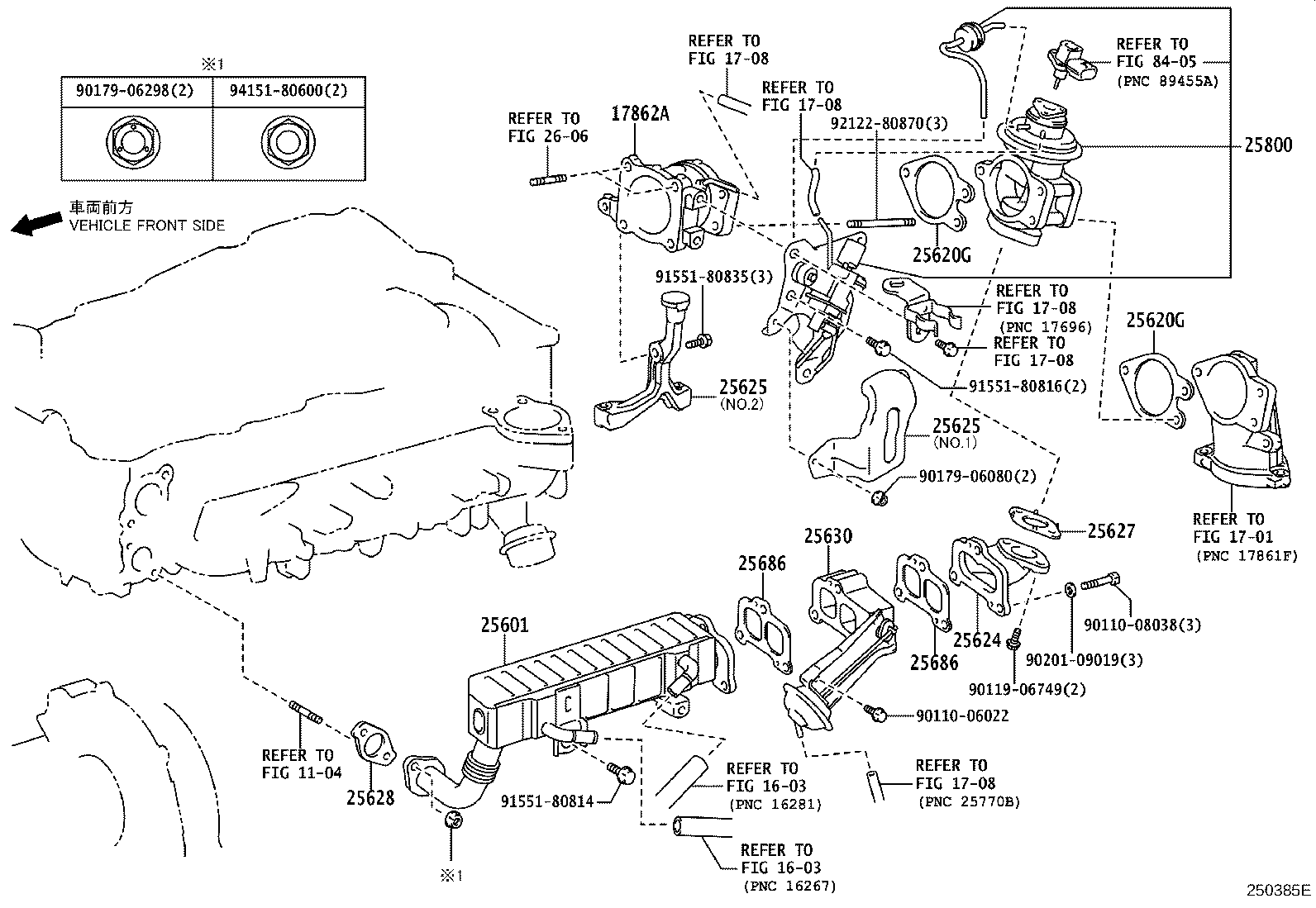

KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado
(0908- )1KDFTV..GEN
FOR EURO 4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17862A - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-30100 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25601-30100 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25601-30080 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25601-0L020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
2 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
2 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25611-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.1 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.2 |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.1 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.2 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 25686-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 25686-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| Common parts | ||||
| 90110-06022 | ||||
| 90110-08038 | ||||
| 90119-06749 | ||||
| 90179-06080 | ||||
| 90179-06298 | ||||
| 90201-09019 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80835 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||

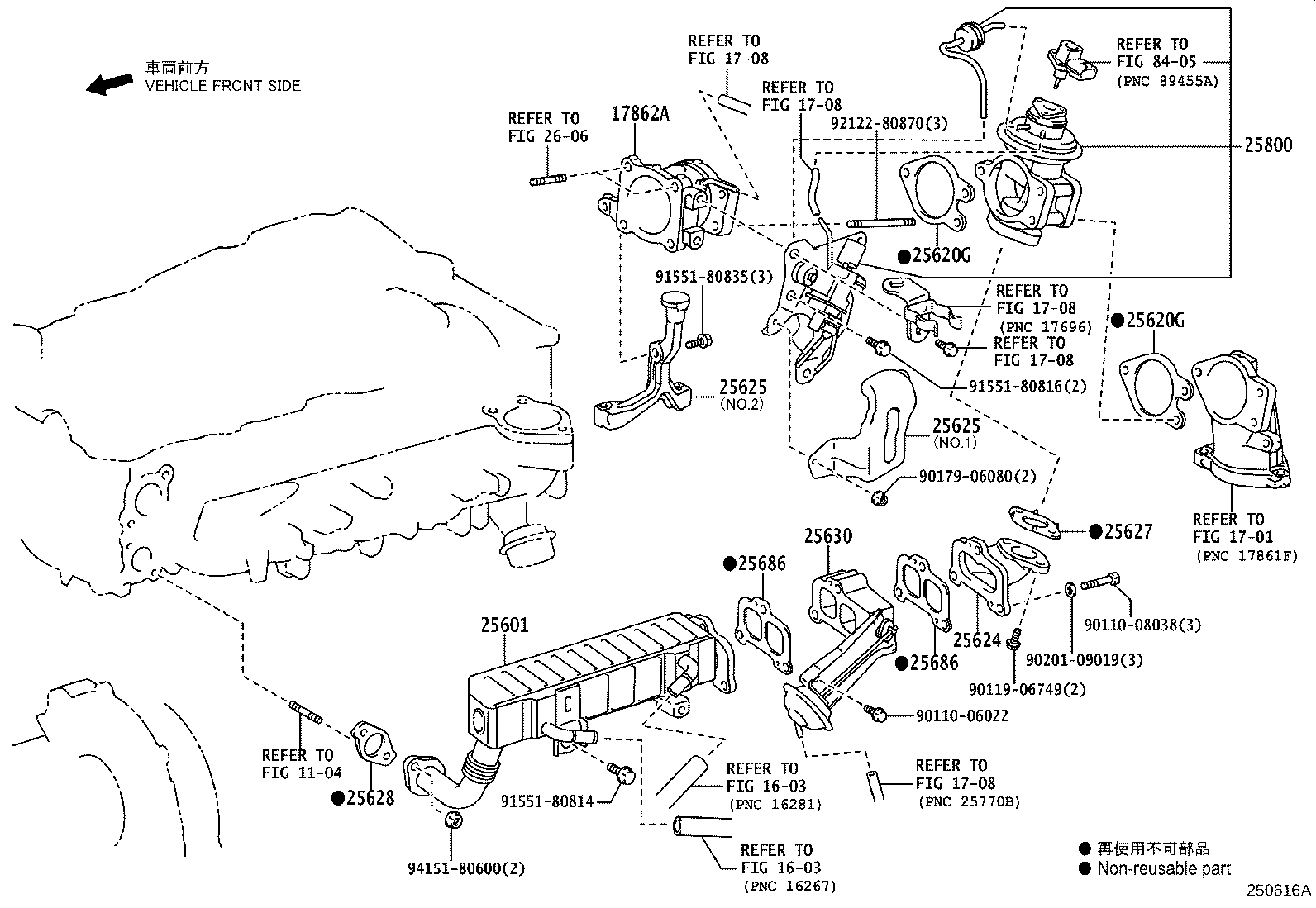

(0908- )1KDFTV..GEN ; (1308-1408)1KDFTV..GCC
FOR EURO 2,3 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17862A - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-30100 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25601-30100 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25601-30080 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25601-0L020 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
2 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
2 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
2 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.1 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.2 |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.1 |
1 | ||
| 25862-30030 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.1 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY,NO.2 |
1 | ||
| 26175-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY,NO.2 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25627-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25628-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25628-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 25800-30190 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| Common parts | ||||
| 90119-06749 | ||||
| 90179-06080 | ||||
| 90179-06298 | ||||
| 91551-80816 | ||||
| 91551-80835 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
(1708- )1KDFTV..GEN
FOR EURO 4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90110-06022 | ||||
| 90110-08038 | ||||
| 90119-06749 | ||||
| 90179-06080 | ||||
| 90201-09019 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80835 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
(1708- )1KDFTV
FOR EURO 2,3 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06749 | ||||
| 90179-06080 | ||||
| 91551-80816 | ||||
| 91551-80835 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
