KDJ150R-GKFEY (2009)
Toyota Land Cruiser Prado

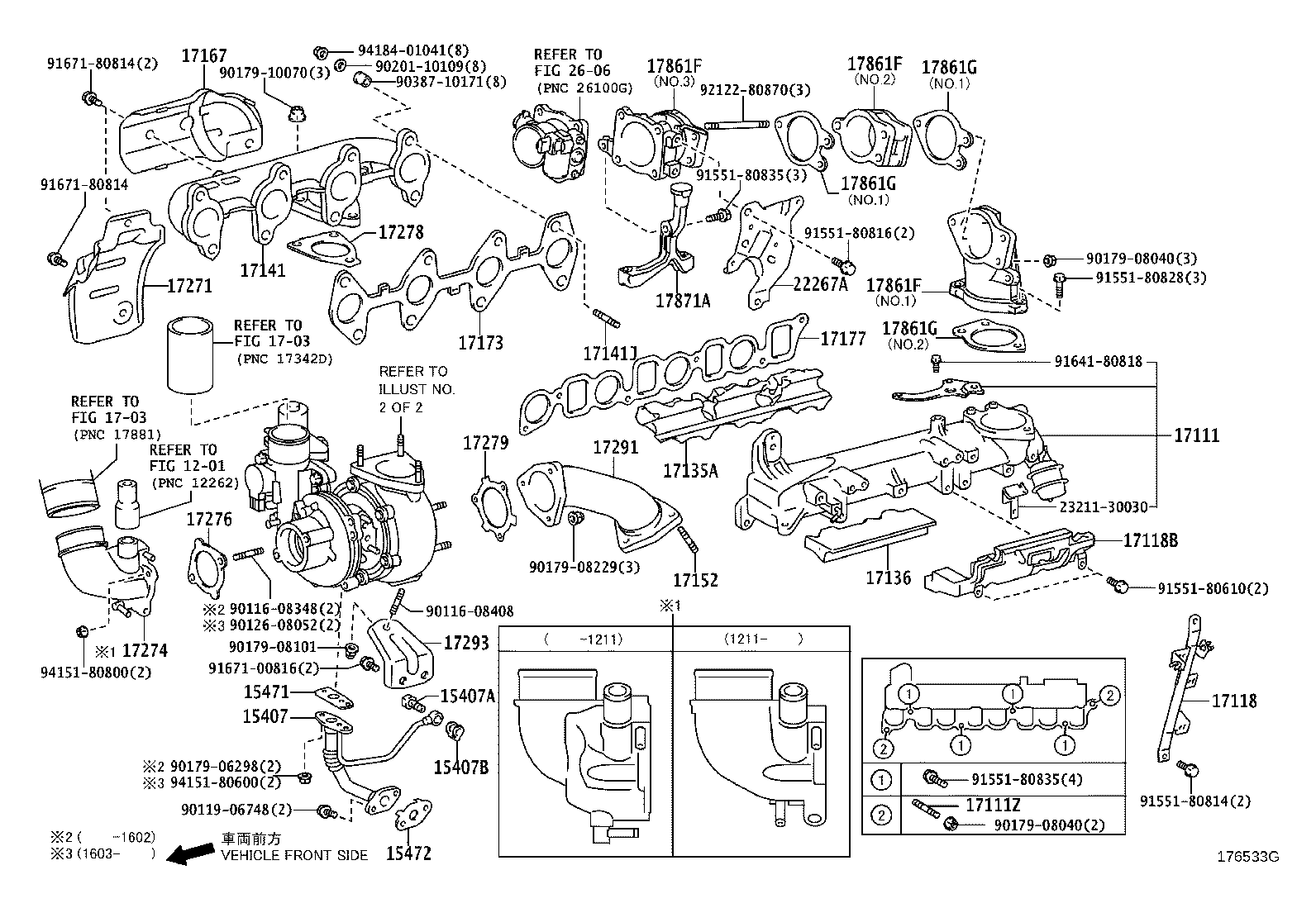

ILLUST NO. 1 OF 2(0908- )1KDFTV..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-67010 |
1KDFTV..KDJ150 |
1 | ||
| 15472-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30090 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30140 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17118B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30060 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
8 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30130 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17274-30131 |
1KDFTV..KDJ150 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30091 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30040 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-30090 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.3 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30010 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-30090 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.3 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30010 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-30090 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.3 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30010 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 26175-30010 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 22267A - BRACKET, THROTTLE BODY | ||||
| 22267-30030 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| Common parts | ||||
| 23211-30030 | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80828 | ||||
| 91551-80835 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2606 | ||||
ILLUST NO. 1 OF 2(0908- )1KDFTV..GEN ; (1308- )1KDFTV..GCC
FOR EURO 2-4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-67010 |
1KDFTV..KDJ150 |
1 | ||
| 15472-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30090 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30140 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17118B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30060 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10034 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
8 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-30020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30011 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30130 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17274-30131 |
1KDFTV..KDJ150 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30091 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17291-30221 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30040 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-30090 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
1 | ||
| 17862-30020 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.3 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 17862-30010 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 17861-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 3 CONFORMITY |
1 | ||
| 26171-30030 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
1 | ||
| 26171-30050 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 2 CONFORMITY |
1 | ||
| Common parts | ||||
| 23211-30030 | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80828 | ||||
| 91551-80835 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2501 | ||||

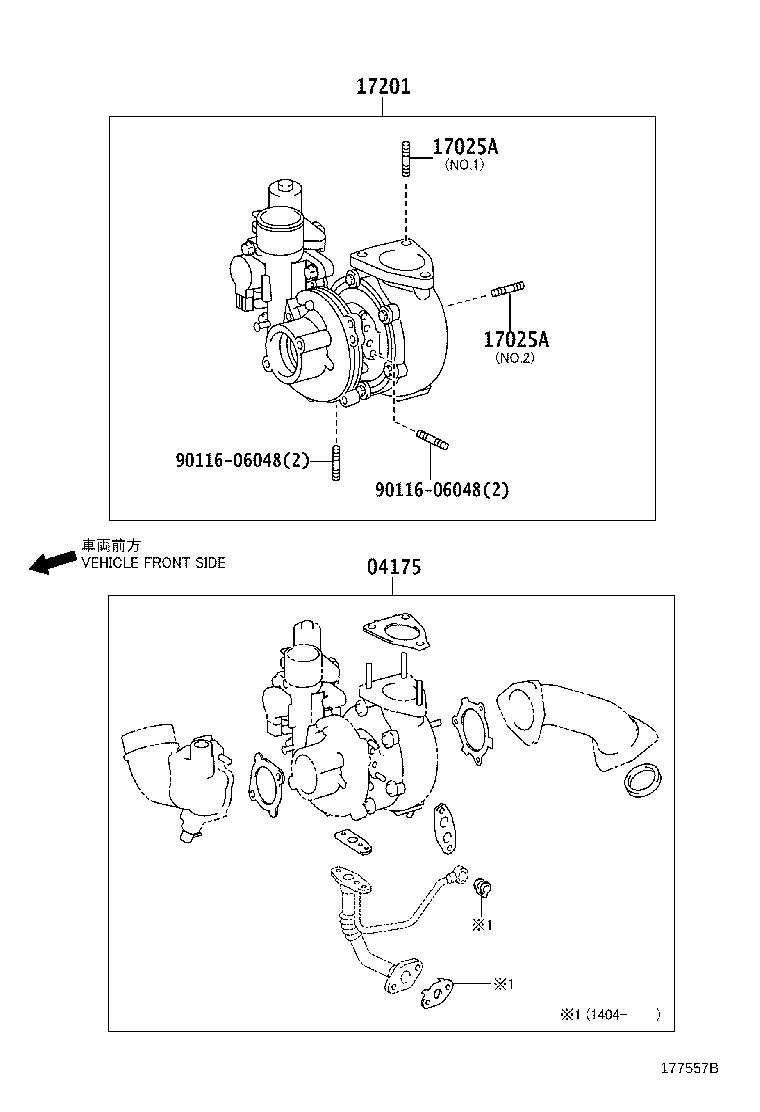

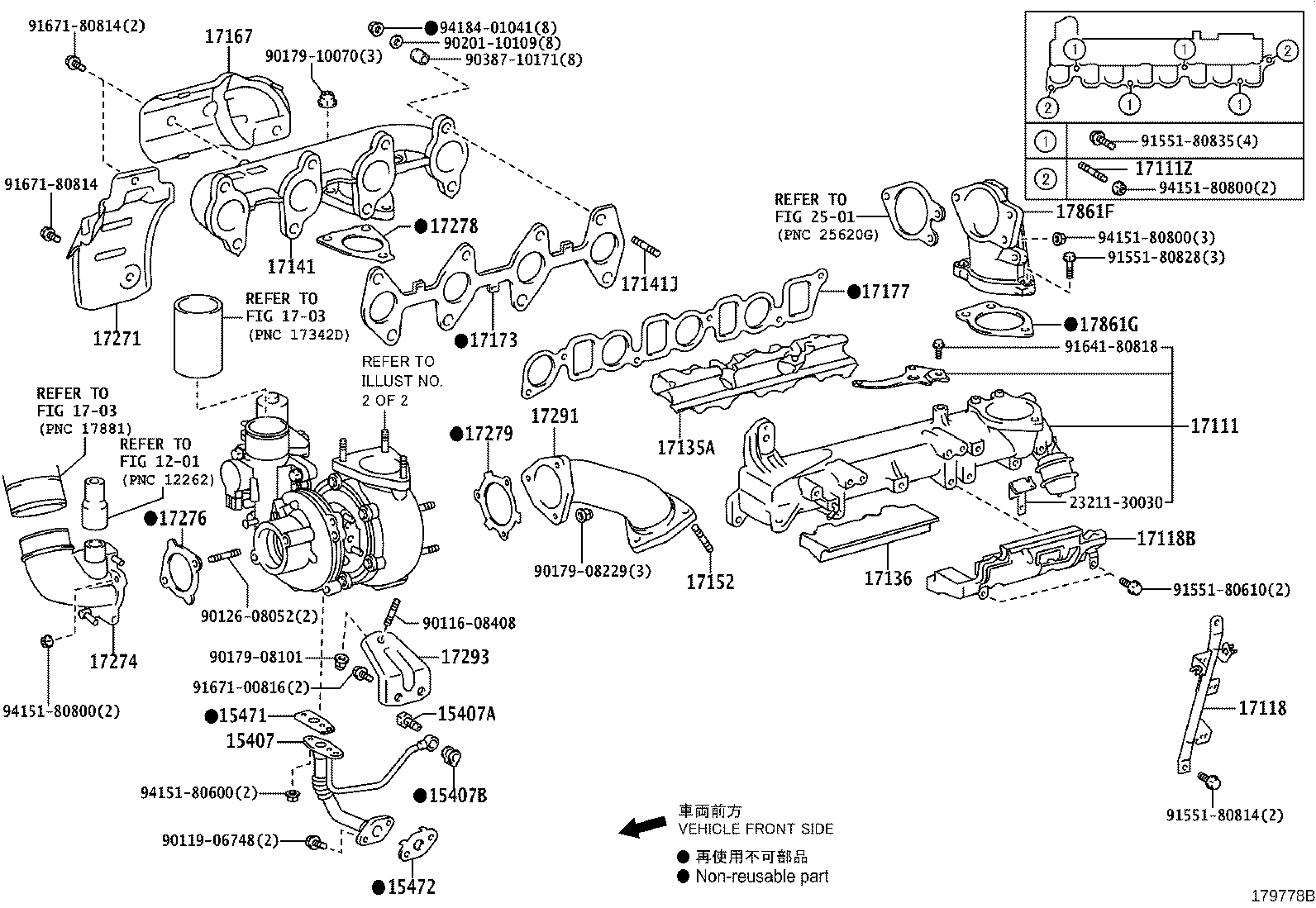

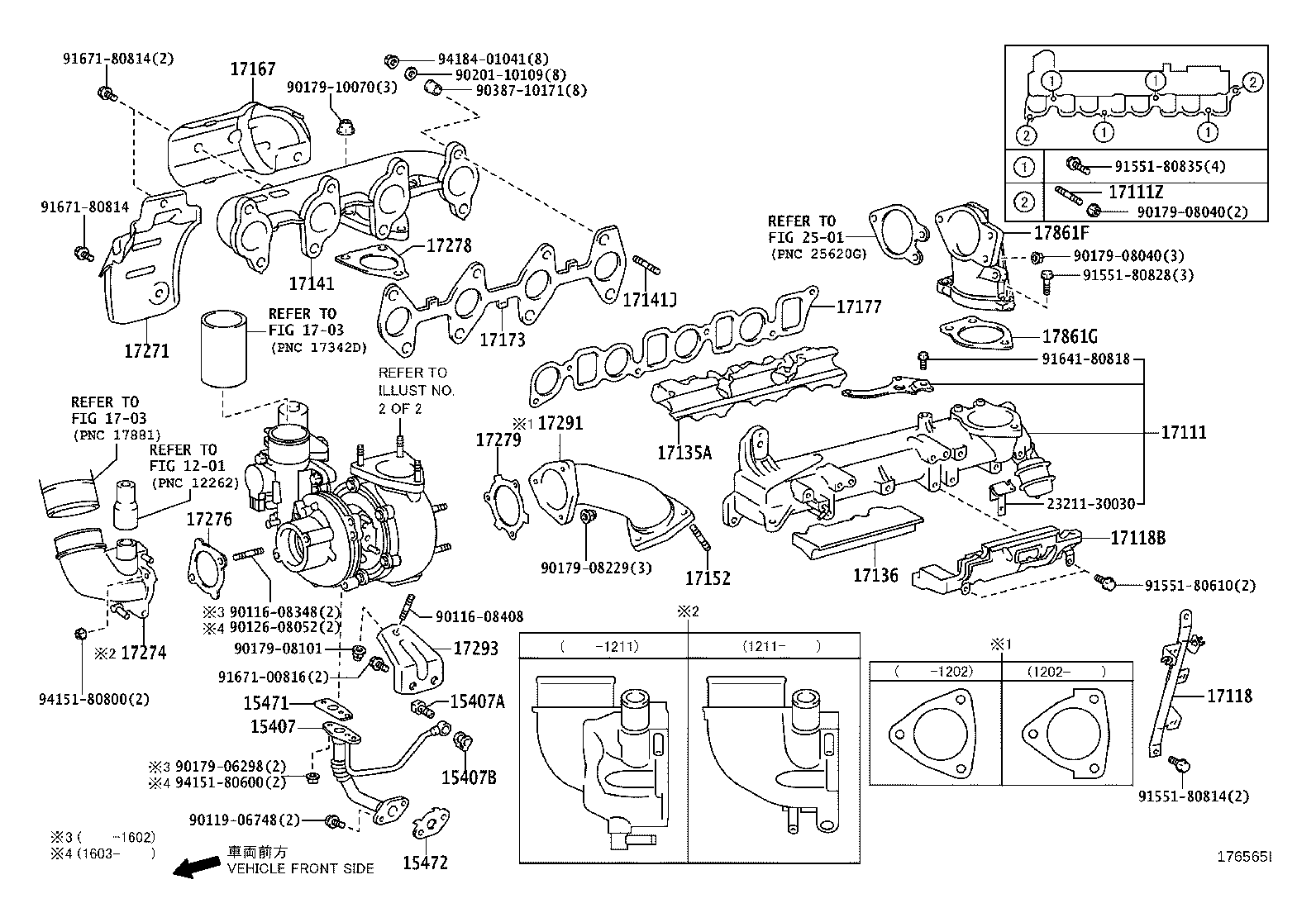

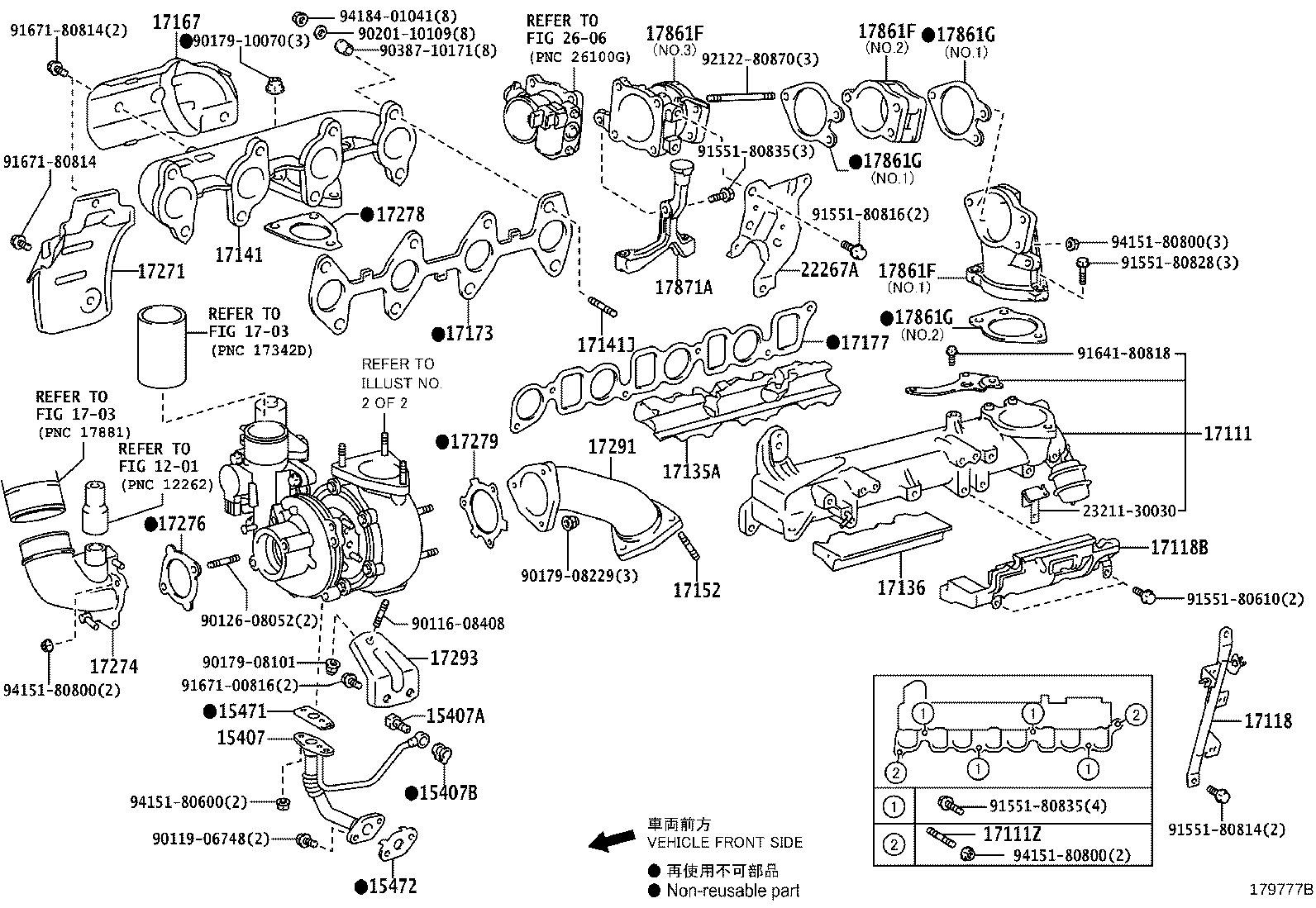

ILLUST NO. 2 OF 2(0908- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30210 |
1KDFTV..KDJ150 |
1 | ||
| 04175-30041 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90126-08009 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
3 | ||
| 90116-10175 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
3 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90126-08009 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
3 | ||
| 90116-10175 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
3 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30160 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
ILLUST NO. 1 OF 2(1708- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23211-30030 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80828 | ||||
| 91551-80835 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2606 | ||||
ILLUST NO. 1 OF 2(1708- )1KDFTV
FOR EURO 2-4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23211-30030 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80828 | ||||
| 91551-80835 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2501 | ||||
ILLUST NO. 2 OF 2(1708- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06048 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
