KDJ150R-GKFEY (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

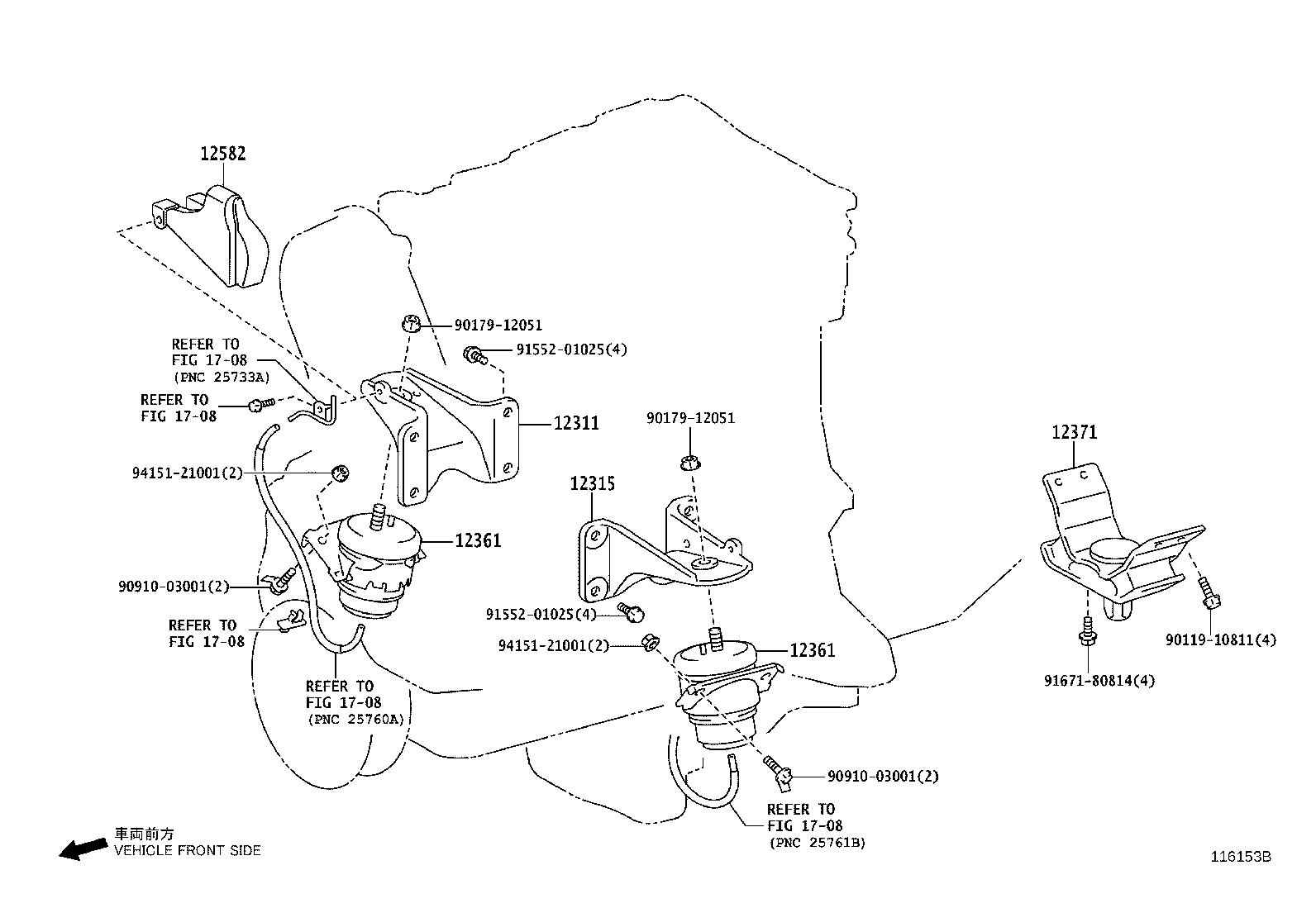

(0908- )1KDFTV

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12582 1708 1708 1708 1708 1708 9011910811 9017912051 9017912051 9091003001 9091003001 9155201025 9155201025 9167180814 9415121001 9415121001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30061

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-30061

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-30140

1KDFTV..KDJ150

 2
12361-30141

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
12361-30120

1KDFTV..KDJ150

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-30140

1KDFTV..KDJ150

 2
12361-30141

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
12361-30120

1KDFTV..KDJ150

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-30080

1KDFTV..KDJ150..6F..(ARL,GEN)

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-30050

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
Common parts
90119-10811
90179-12051
90910-03001
91552-01025
91671-80814
94151-21001
Linked diagrams
1708

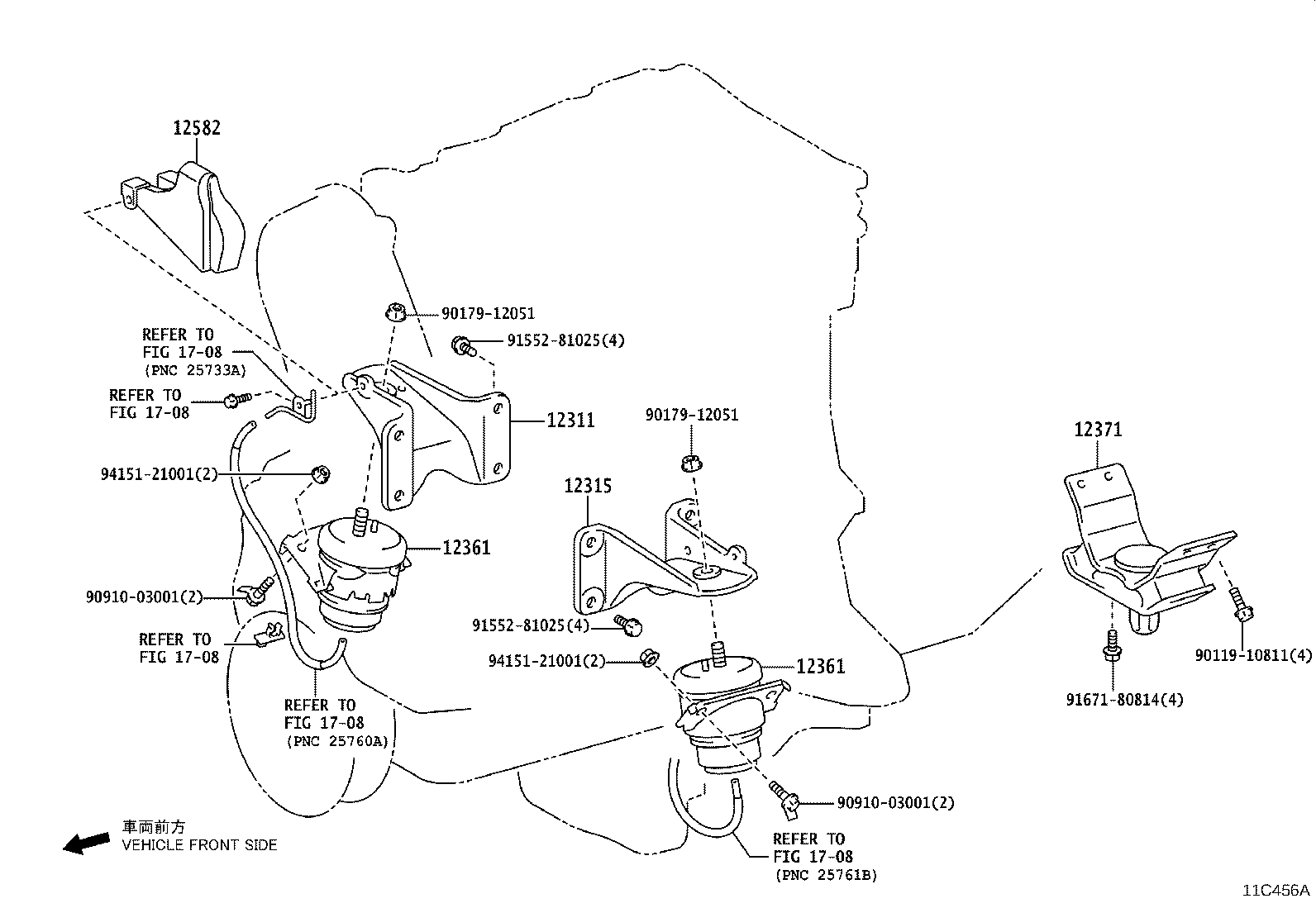

(1708- )1KDFTV

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12582 1708 1708 1708 1708 1708 9011910811 9017912051 9017912051 9091003001 9091003001 9155281025 9155281025 9167180814 9415121001 9415121001
Part # Description Qty Price
Common parts
90119-10811
90179-12051
90910-03001
91552-81025
91671-80814
94151-21001
Linked diagrams
1708
