8603 - NAVIGATION & FRONT MONITOR DISPLAY

KDJ150R-GKAEYQ (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015

Engine 1KDFTV

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

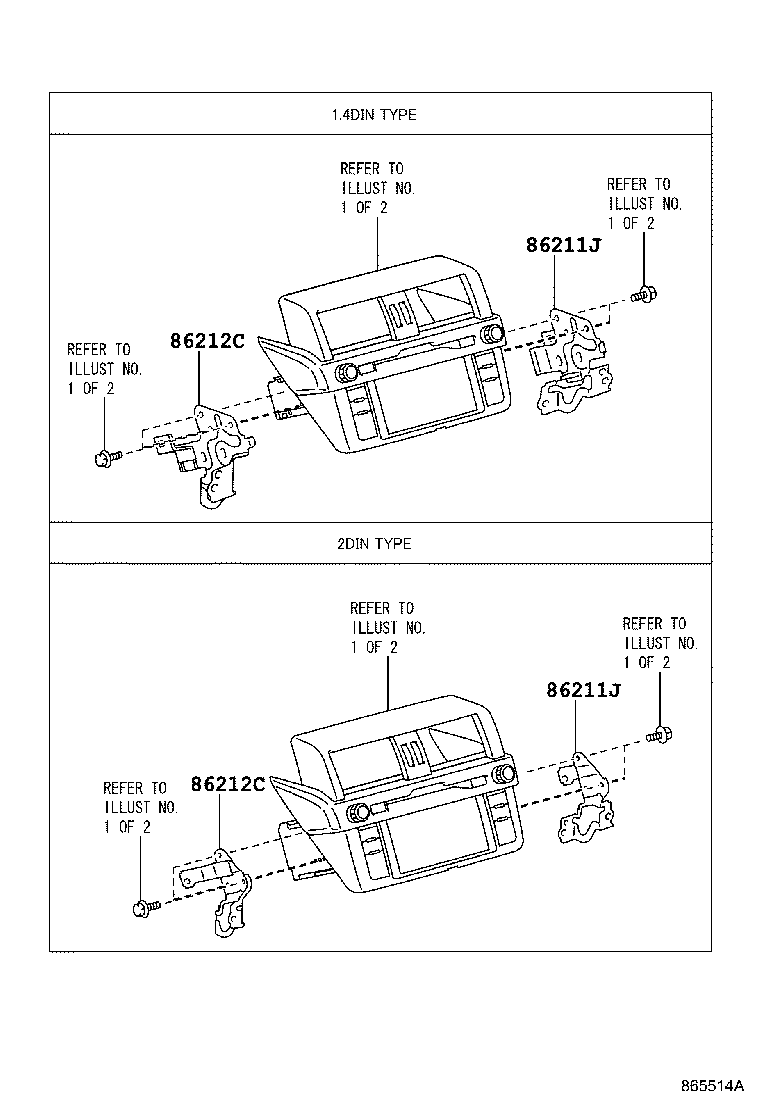

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

RECEIVER BRACKET

Part #	Description	Period	Qty
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86211-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86211-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86211-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86211-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86211-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86211-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86211-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86211-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86212-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86212-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86212-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86212-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1

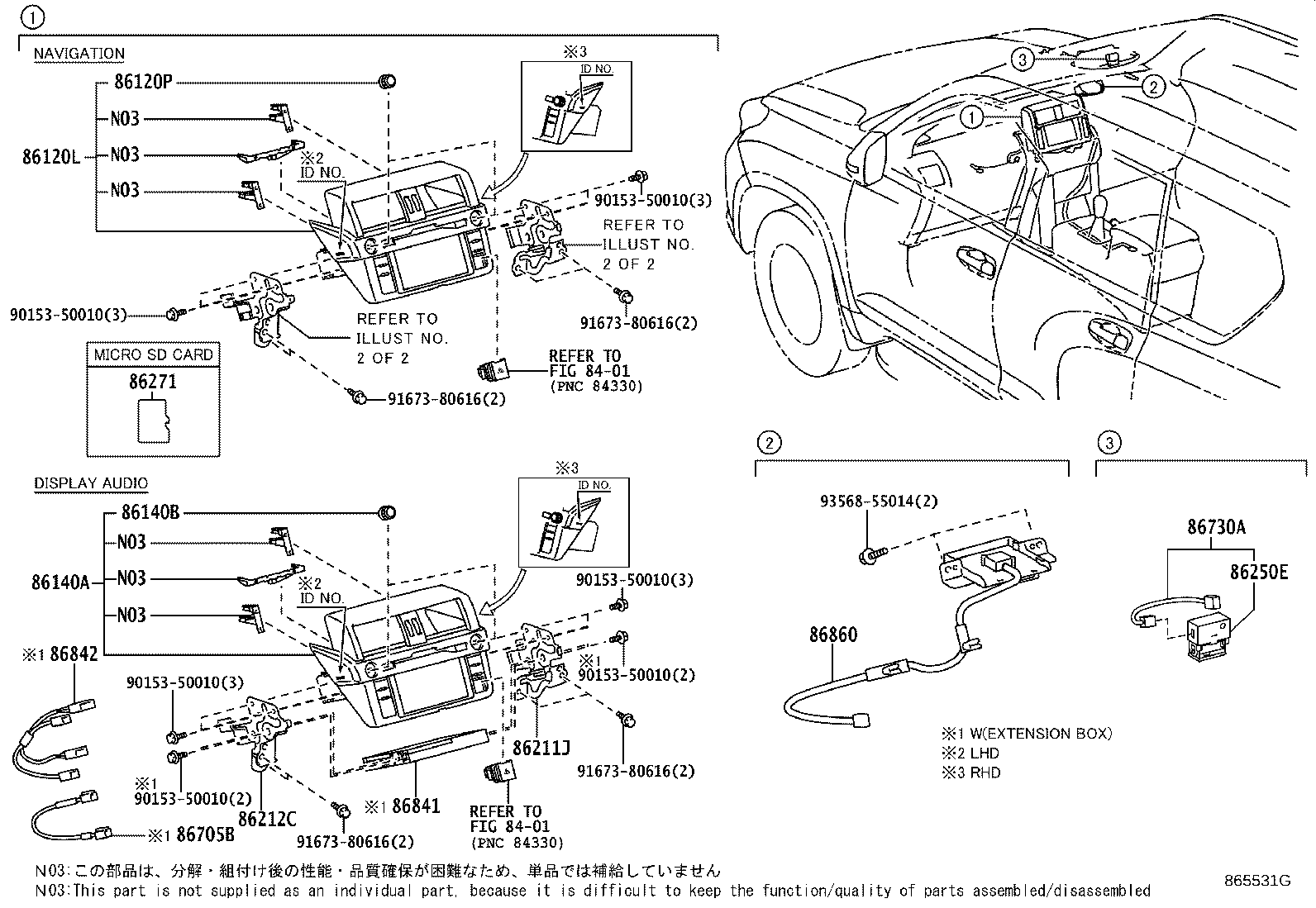

ILLUST NO. 1 OF 2(1308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86804-60A70	KDJ150..5FC..ARL FUJITSU TEN,ID100262,SPECIAL EDITION	01/2015 - 03/2015	1
86804-60A70	GRJ150,KDJ150..5FC..ARL FUJITSU TEN,ID100262,AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90010-24175	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	2
90010-24175	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	2
90010-24175	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	2
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-60180	GRJ150,KDJ150..ARL FUJITSU TEN,ID100265,AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86140-60160	GRJ150,KDJ150..5FC..ARL FUJITSU TEN,ID100264,VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86140-60160	GRJ150,KDJ150..5FC..ARL FUJITSU TEN,ID100264,VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-24175	GRJ150,KDJ150..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	2
90010-24175	TRJ150..GCC;GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	2
90010-24175	GRJ150;KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86211-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86211-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86211-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86211-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-60390	GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86212-60390	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86212-60390	GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,TRJ15#..4FC,5F,5FC AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86212-60390	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020	KDJ150..5FC..ARL VX PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86250-52020	KDJ150..5FC..ARL VX-L PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86250-52020	KDJ150..5FC..ARL VX PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86250-52020	KDJ150..5FC..ARL VX-L PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86250-52020	GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86271 - DISC, DISC PLAYER
86271-60171	GRJ150,KDJ150..ARL AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP	08/2009 - 08/2010	1
86271-0E170	KDJ150..5FC..ARL SPECIAL PACKAGE	05/2014 - 07/2014	1
86271-0E170	GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 08/2014	1
86271-0E171	KDJ150..5FC..ARL SPECIAL EDITION	01/2015 - 03/2015	1
86271-0E171	GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	09/2014 - 06/2015	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-20060	KDJ150..ARL;GRJ150..6F..ARL AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP	08/2009 - 10/2011	1
86730-20060	KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER	08/2009 - 08/2013	1
86730-20060	GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER	08/2009 - 08/2013	1
86730-20060	GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
86730-20060	KDJ150..5FC..ARL VX-L PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86730-20060	KDJ150..5FC..ARL VX PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86730-20060	KDJ150..5FC..ARL VX PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86730-20060	KDJ150..5FC..ARL VX-L PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86860 - ANTENNA ASSY, NAVIGATION
86860-60160	KDJ150..ARL;GRJ150..6F..ARL AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP	08/2009 - 10/2011	1
86860-60270	GRJ150,KDJ150..5FC..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER	08/2013 - 06/2015	1
86860-60270	GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER	08/2013 - 06/2015	1
86860-60270	GRJ150,KDJ150..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER	08/2013 - 06/2015	1
Common parts
90153-50010
91673-80616
93568-55014
Linked diagrams
8401

(1708-2008)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90153-50010
91673-80616
93568-55014
