KDJ150R-GKAEYQ (2013)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF10(0908-1506)KDJ150
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 83530-60010 |
KDJ150 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
KDJ150..5FC |
1 | ||
| 84540-71010 |
KDJ150..5FC (J) |
1 | ||
| 84540-04010 |
KDJ150..5FC (L) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60080 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 89491-60080 |
KDJ150 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 89493-60010 |
KDJ150 |
1 | ||
| Common parts | ||||
| 90119-08C62 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 91621-B0616 | ||||

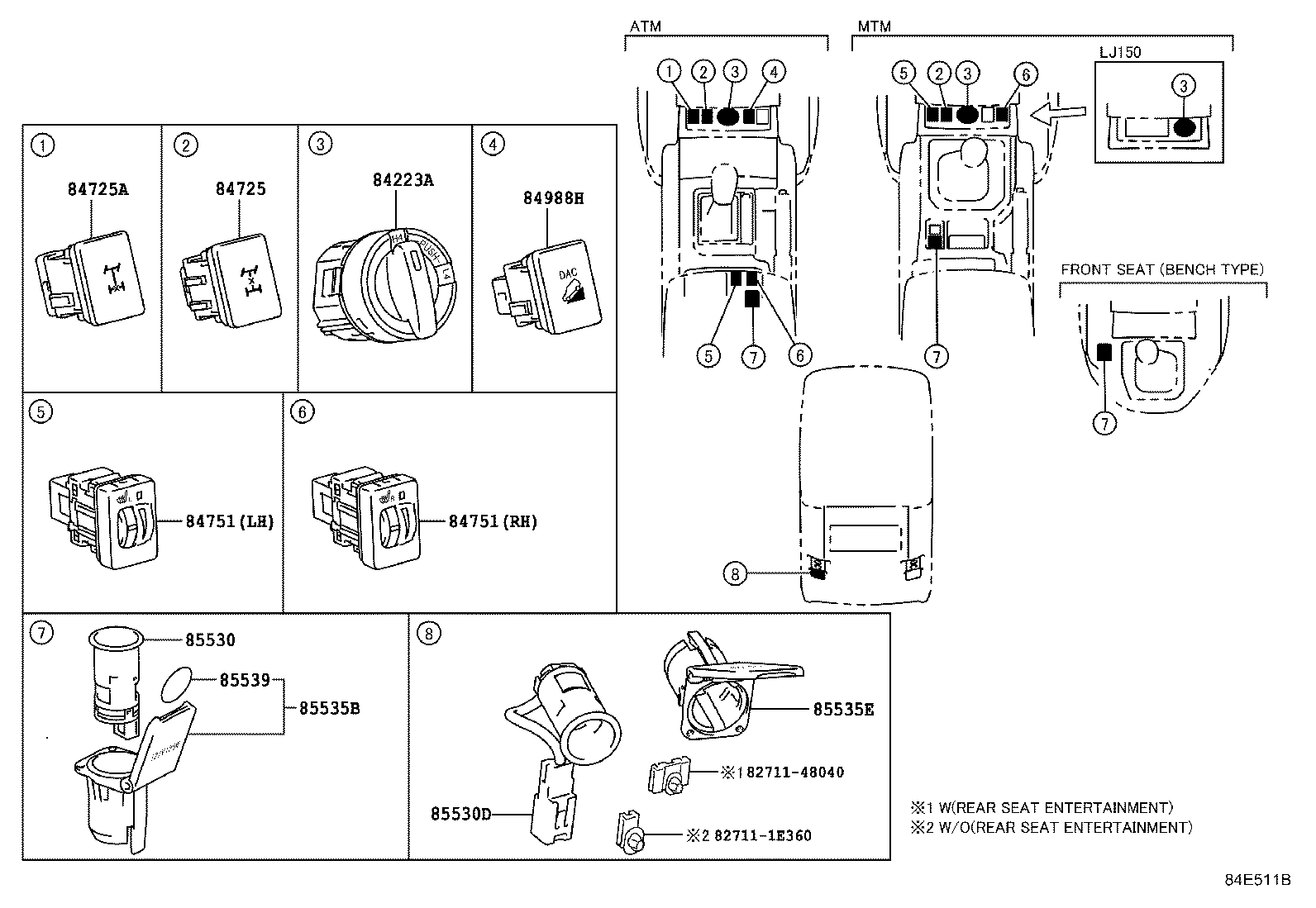

ILLUST NO. 6 OF10(1308- )RHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60020 |
GRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 84223-60020 |
GRJ150,KDJ150 |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60170 |
GRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 84725-60170 |
GRJ150,KDJ150 |
1 | ||
| 84725-60170 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) *351 |
1 | ||
| 84725-60171 |
GRJ150,KDJ150 |
1 | ||
| 84725-60171 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) *351 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84223-60040 |
GRJ150,KDJ150..5FC W(VSC & CRAWL CONTROL & TERRAIN SELECT) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60250 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60171 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60250 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60240 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60250 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60170 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60170 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60180 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60180 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60171 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,RH |
1 | ||
| 84751-60171 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,RH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
GRJ150,KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LH |
1 | ||
| 84751-60181 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84751-60181 |
GRJ150,KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&*351&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LH |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-48080 |
GRJ150,KDJ150..5FC |
1 | ||
| 84988-48080 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) *351 |
1 | ||
| 84988-48080 |
GRJ150,KDJ150..5FC |
1 | ||
| 84988-48081 |
GRJ150,KDJ150..5FC |
1 | ||
| 84988-48081 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) *351 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85530-42010 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL SPECIAL PACKAGE |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL SPECIAL EDITION |
1 | ||
| 85530-60140 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85530-60150 |
GRJ150,KDJ150..ARL,GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL LEATHER PACKAGE(STEERING & SHIFT KNOB)&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL VX-L COLOR LEATHER + COSM.PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL LEATHER SEAT PACKAGE&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLEFLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85530-60150 |
KDJ150..5FC..ARL VX COLOR LEATHER + COSM.PACK&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85535-33060 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 85535-50020 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85539-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82711-48040 | ||||
ILLUST NO. 5 OF10(1308- )RHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55936E - SWITCH, CENTER CLUSTER MODULE | ||||
| 55936-60010 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) VX-L PACKAGE&*351 |
1 | ||
| 55936-60020 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) VX PACKAGE&*351 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-33051 |
GRJ150,KDJ150,LJ150,TRJ15# HEADLAMP CLEANER-WITH |
1 | ||
| 84150-33050 |
GRJ150,KDJ150,LJ150,TRJ15# HEADLAMP CLEANER-WITH |
1 | ||
| 84150-33050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 HEAD LAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
KDJ150..ARL;KDJ150..5FC..GCC;GRJ150,TRJ15#..ARL,GCC |
1 | ||
| 84152-52100 |
GRJ150,KDJ150,TRJ15#..ARL,GCC |
1 | ||
| 84152-52101 |
GRJ150,KDJ150,TRJ15#..ARL,GCC |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-60020 |
GRJ150,KDJ150..5FC VX-L PACKAGE |
1 | ||
| 84170-60020 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE |
1 | ||
| 84170-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE |
1 | ||
| 84170-60020 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN VX PACKAGE |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60290 |
GRJ150,KDJ150..ARL VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150,LJ150,TRJ150..RHD |
1 | ||
| 83160-60010 |
GRJ150,KDJ150,LJ150,TRJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..ARL VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER |
1 | ||
| 84332-60400 |
KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 83160-60040 |
GRJ150,KDJ150,LJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60310 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 83160-60050 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84332-60401 |
KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60290 |
GRJ150,KDJ150..ARL VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150,LJ150,TRJ150..RHD |
1 | ||
| 83160-60010 |
GRJ150,KDJ150,LJ150,TRJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..ARL VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60290 |
GRJ150,KDJ150..RHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD CHANGER+BLUETOOTH+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER |
1 | ||
| 84332-60400 |
KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60310 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 83160-60040 |
GRJ150,KDJ150,LJ150..RHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60310 |
KDJ150..RHD..6F..GEN;GRJ150,KDJ150..RHD..5FC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60400 |
GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 83160-60050 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84332-60401 |
KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..5FC..ARL AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60401 |
GRJ150,KDJ150..RHD AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60070 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 84453-60070 |
KDJ150 |
1 | ||
| 84453-60071 |
KDJ150 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-60020 |
GRJ150,KDJ150,TRJ15#..ATM |
1 | ||
| 84721-60021 |
GRJ150,KDJ150,TRJ15#..ATM |
1 | ||
| 84721-60020 |
GRJ150,KDJ150,TRJ15#..ATM |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
GRJ150,KDJ150..5FC..(ARL,GCC) PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 84770-50010 |
GRJ150,KDJ150..5FC..(ARL,GCC) PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60170 |
KDJ150,TRJ15#;GRJ150,LJ150..GEN |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84870-60160 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84870-60160 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84870-60160 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 84870-60160 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..5FC VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84870-60160 |
KDJ150..ARL;GRJ150..6F..ARL TX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84870-60170 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 84870-60160 |
GRJ150..GEN;KDJ150..6F..GEN;KDJ150,TRJ150..4FC,5F,5FC VX PACKAGE |
1 | ||
| 84870-60160 |
KDJ150..5FC..(ARL,GCC) VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 84870-60160 |
KDJ150,TRJ15#;GRJ150,LJ150..GEN TX-L PACKAGE |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60030 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84975-60010 |
KDJ150..5FC..ARL VX PACKAGE |
1 | ||
| 84975-60010 |
KDJ150..5FC..ARL VX-L PACKAGE |
1 | ||
| 84975-60011 |
KDJ150..5FC..ARL VX-L PACKAGE |
1 | ||
| 84975-60011 |
KDJ150..5FC..ARL VX PACKAGE |
1 | ||
| 84975-60031 |
GRJ150,KDJ150,LJ150..RHD |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48071 |
GRJ150,KDJ150,TRJ15# |
1 | ||
| 84988-48070 |
TRJ150..LHD;GRJ150,TRJ155;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 84988-48070 |
GRJ150,KDJ150,TRJ15# |
1 | ||
| 86452E - PANEL, CENTER CLUSTER MODULE | ||||
| 86452-60010 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) VX-L PACKAGE&*351 |
1 | ||
| 86452-60010 |
KDJ150..GCC;KDJ150..RHD..5FC;GRJ150..5FC..(ARL,GCC) VX PACKAGE&*351 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30060 |
GRJ150,KDJ150 |
1 | ||
| 89611-30063 |
GRJ150,TRJ155;KDJ150..ARL,GEN |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 3 OF10(1308-1506)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 90987-02025 |
1KDFTV,5LE..KDJ150,LJ150 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 90987-02025 |
1KDFTV,5LE..KDJ150,LJ150 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
1 | ||
| 28610-27010 |
1KDFTV,5LE..KDJ150,LJ150 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02027 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60090 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82602-60090 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82616-58010 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60060 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82620-60060 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60070 |
KDJ150,LJ150 |
1 | ||
| 82641-60070 |
KDJ150,LJ150 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
GRJ150,KDJ150..ARL HEADLAMP-LED |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
GRJ150,KDJ150..ARL |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82660-0H070 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60370 |
LJ150;KDJ150..RHD |
1 | ||
| 82662-60640 |
KDJ150,LJ150 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-60380 |
KDJ150..RHD |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-60610 |
KDJ150..ARL,GEN;GRJ150,TRJ150..LHD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60080 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82663-60080 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-60100 |
KDJ150..RHD |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-60140 |
KDJ150..RHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60040 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82741-60040 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-60030 |
KDJ150..RHD |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-60030 |
KDJ150..RHD |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82824-41010 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE&VX COLOR LEATHER + COSM.PACK&FRONT SEAT-POWER(DRIVER & PASSENGER)&REARSEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..ARL VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE&LEATHER SEAT PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE&LEATHER SEAT PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..ARL VX-L PACKAGE&LEATHER SEAT PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE&VX COLOR LEATHER + COSM.PACK&FRONT SEAT-POWER(DRIVER & PASSENGER)&REARSEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 90987-02027 |
KDJ150..6F..GEN;GRJ150,TRJ150..GEN;KDJ150..5FC..(ARL,GEN) VX PACKAGE |
1 | ||
| 90987-02027 |
GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR) |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX-L PACKAGE&BACK MONITOR-WITH & W(GUIDE & MULTI TERRAIN MONITOR) |
1 | ||
| 90987-02027 |
KDJ150..ARL,GEN;GRJ150,LJ150,TRJ150..GEN TX-L PACKAGE |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 90987-02027 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 90987-02027 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90987-02025 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90987-02025 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 90987-02028 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
KDJ150;GRJ150..ARL |
1 | ||
| 90987-02027 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90987-02027 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC FUEL TANK-WITH(SUB TANK) |
1 | ||
| 90987-02027 |
KDJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 90987-02027 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GRJ150..6F..GCC;GRJ150,KDJ150..5FC..(ARL,GCC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..ARL;KDJ150..5FC..GCC;GRJ150,TRJ150..ARL,GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..RHD..5FC;KDJ150,TRJ150..GCC;KDJ150..RHD..6F..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..RHD;KDJ150,TRJ15#..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..RHD;KDJ150,TRJ150..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150,TRJ150..ARL,GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..ARL;KDJ150..5FC..GCC;GRJ150,TRJ150..ARL,GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..ARL;KDJ150..5FC..GCC;GRJ150,TRJ15#..ARL,GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
KDJ150..ARL TX-L PACKAGE |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE |
1 | ||
| 90987-02027 |
KDJ150..ARL TX-L PACKAGE |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX PACKAGE |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX-L PACKAGE |
1 | ||
| 90987-02027 |
KDJ150..5FC..ARL VX-L PACKAGE |
1 | ||
| Common parts | ||||
| 82712-60850 | ||||
| 82715-60Z70 | ||||
| 82715-6A630 | ||||
| 90119-06830 | ||||
| 90179-06306 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
