KDJ150R-GKAEYQ (2013)
Toyota Land Cruiser Prado

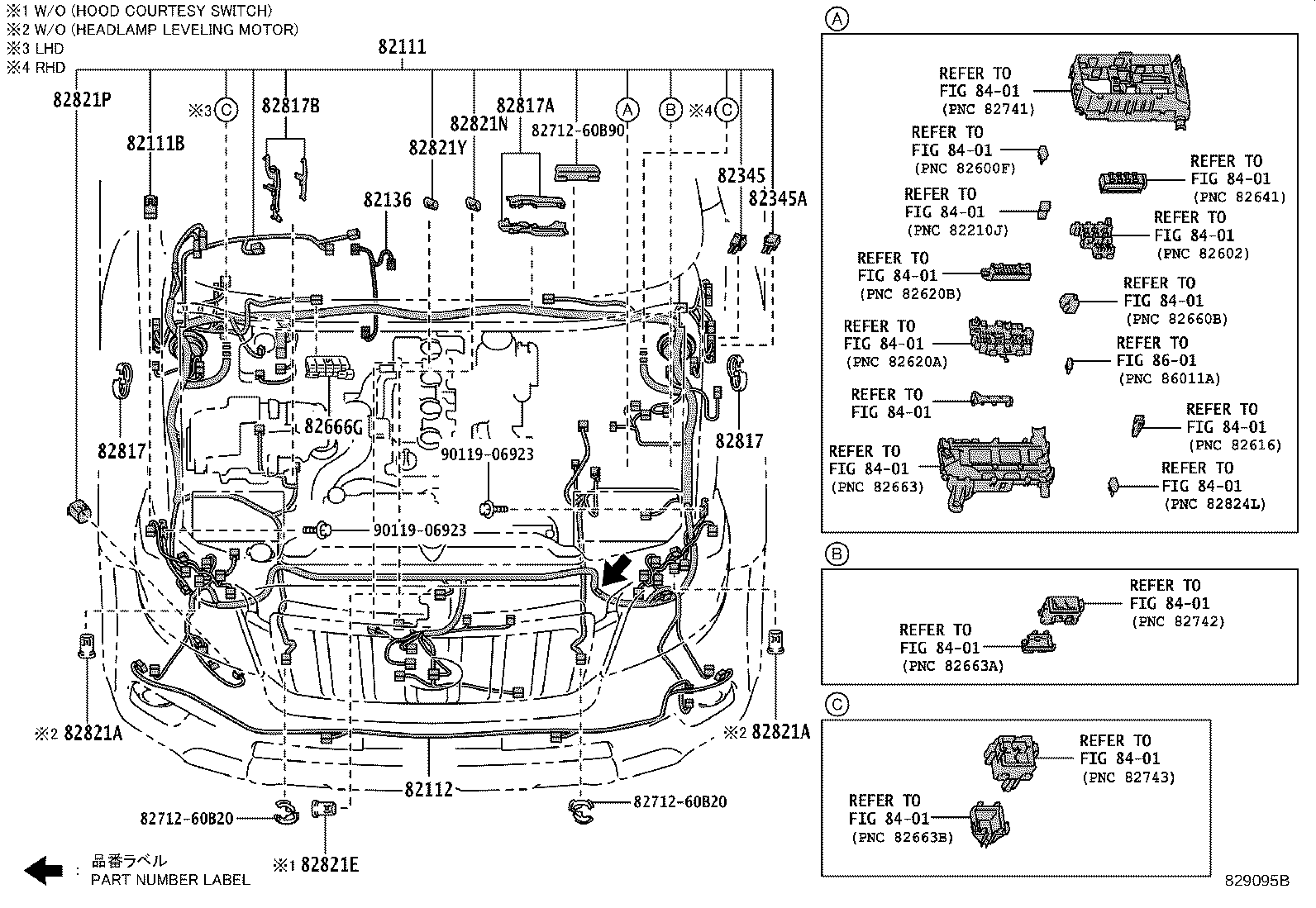

ILLUST NO. 1 OF13(1308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60D70 |
KDJ150..5FC..ARL SPECIAL EDITION |
1 | ||
| 82111-60F00 |
KDJ150..RHD VX-L PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82111-60E80 |
KDJ150..RHD |
1 | ||
| 82111-60E90 |
KDJ150..RHD VX PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82111-60D70 |
KDJ150..5FC..ARL SPECIAL PACKAGE |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL VX PACKAGE&LEATHER SEAT PACKAGE&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82111-6AJ00 |
KDJ150..RHD |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL VX PACKAGE&LEATHER SEAT PACKAGE&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL TX-L PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL TX-L PACKAGE&LEATHER SEAT PACKAGE&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL VX PACKAGE&VX COLOR LEATHER + COSM.PACK&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82111-6AJ10 |
KDJ150..5FC..ARL VX PACKAGE&VX COLOR LEATHER + COSM.PACK&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
1 | ||
| 82111-6AJ20 |
KDJ150..5FC..ARL VX-L PACKAGE&LEATHER SEAT PACKAGE&*351&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82111-6AJ20 |
KDJ150..5FC..ARL VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&*351&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82111B - CONDENSER | ||||
| 90980-04083 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60810 |
GRJ150,KDJ150,LJ150,TRJ15# FRONT FOG LAMP-WITH |
1 | ||
| 82112-60820 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82112-60680 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
2 | ||
| 82817-32840 |
GRJ150,KDJ150,LJ150,TRJ15# |
3 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
2 | ||
| 82817-32840 |
GRJ150,KDJ150,LJ150,TRJ15# |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60P70 |
KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 82817-60P70 |
KDJ150 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-60K80 |
GRJ150,KDJ150..5FC..ARL VX-L PACKAGE&VX-L COLOR LEATHER + COSM.PACKAGE&*351&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82817-60K80 |
GRJ150,KDJ150..5FC..ARL VX-L PACKAGE&LEATHER SEAT PACKAGE&*351&HEADLAMP-LED&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60150 |
KDJ150;GRJ150,LJ150,TRJ15#..GCC,GEN |
1 | ||
| 82821-60150 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-12400 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50560 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-71080 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 82712-60B20 | ||||
| 82712-60B90 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
