KDJ150R-GKAEYQ (2013)
Toyota Land Cruiser Prado

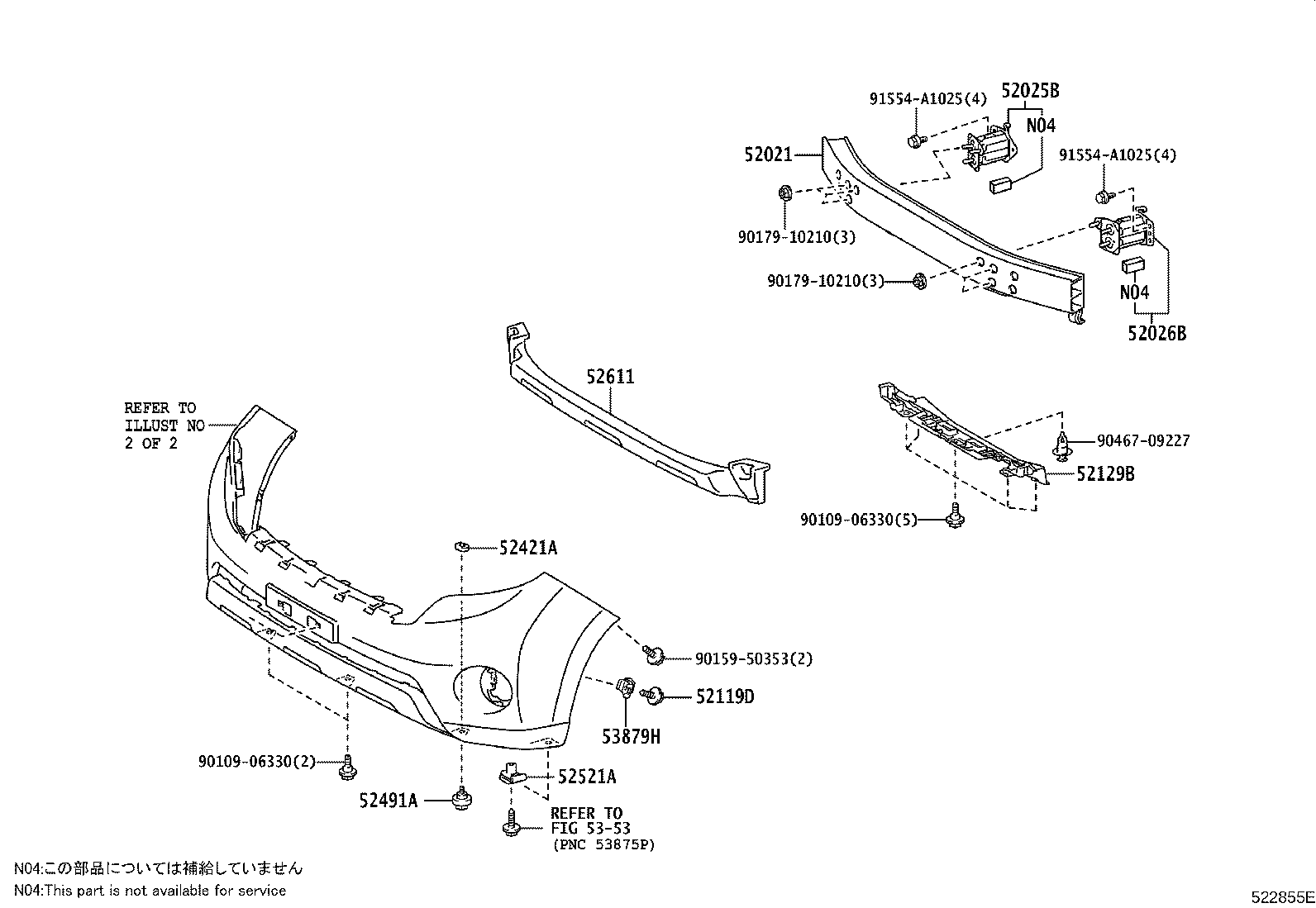

ILLUST NO. 1 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52021-60230 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-60050 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52025-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52026-60050 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60603 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90159-60603 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52129-60040 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60191 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 52421-60191 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 52491A - BOLT, BUMPER PAD | ||||
| 52491-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 52491-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05138 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 90467-05138 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52611-60120 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 53879-58010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90159-50353 | ||||
| 90179-10210 | ||||
| 90467-09227 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5353 | ||||

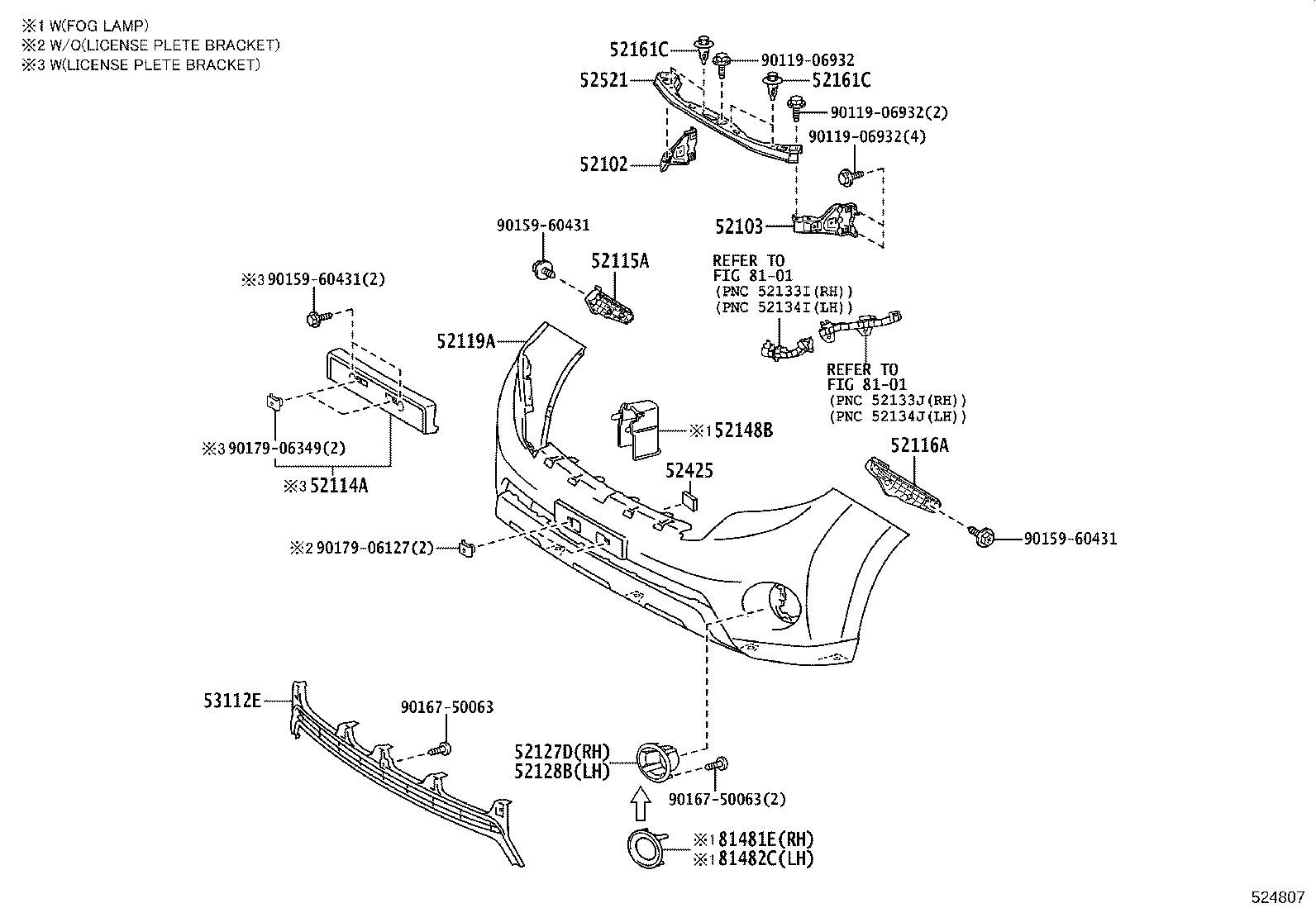

ILLUST NO. 2 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-60260 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52102-60270 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-60250 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52103-60270 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60160 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52115-60200 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60240 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52116-60200 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-6A929 |
GRJ150,KDJ150..ARL PAINT REQ.,HEAD LAMP CLEANER-WITH |
1 | ||
| 52119-6A927 |
GRJ150,KDJ150..ARL PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52119-6A929 |
GRJ150,KDJ150..ARL PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-6A931 |
GRJ150,KDJ150..ARL PAINT REQ. |
1 | ||
| 52119-6B927 |
GRJ150,KDJ150..ARL PAINT REQ. |
1 | ||
| 52119-6B928 |
GRJ150,KDJ150..ARL PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-6B928 |
GRJ150,KDJ150..ARL PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-6B929 |
GRJ150,KDJ150..5FC..ARL PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60160 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52127-60080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52128-60090 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52148B - STOPPER, FR BUMPER REINFORCEMENT, RH | ||||
| 52148-35120 |
GRJ150,KDJ150,LJ150,TRJ15# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52148-35120 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52148-35120 |
GRJ150,KDJ150,LJ150,TRJ15# FRONT FOG LAMP-WITH |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
6 | ||
| 52161-16010 |
GRJ150,KDJ150,LJ150,TRJ15# |
4 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
6 | ||
| 52161-16010 |
GRJ150,KDJ150,LJ150,TRJ15# |
4 | ||
| 52425 - CUSHION, FRONT BUMPER | ||||
| 52462-52040 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52521-60150 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-60090 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 NO PAINT REQ. |
1 | ||
| 53112-60200 |
GRJ150,KDJ150,LJ150,TRJ15# NO PAINT REQ. |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52127-60170 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52127-60170 |
GRJ150,KDJ150,LJ150,TRJ15# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52127-60170 |
GRJ150,KDJ150,LJ150,TRJ15# FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-60160 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..GEN HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52128-60160 |
GRJ150,KDJ150,LJ150,TRJ15# FRONT FOG LAMP-WITH |
1 | ||
| 52128-60160 |
GRJ150,KDJ150,LJ150,TRJ15# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90119-06932 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8101 | ||||
