KDJ150R-GKAEYQ (2013)

Toyota Land Cruiser Prado

Production Aug 2013 - Jun 2015
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

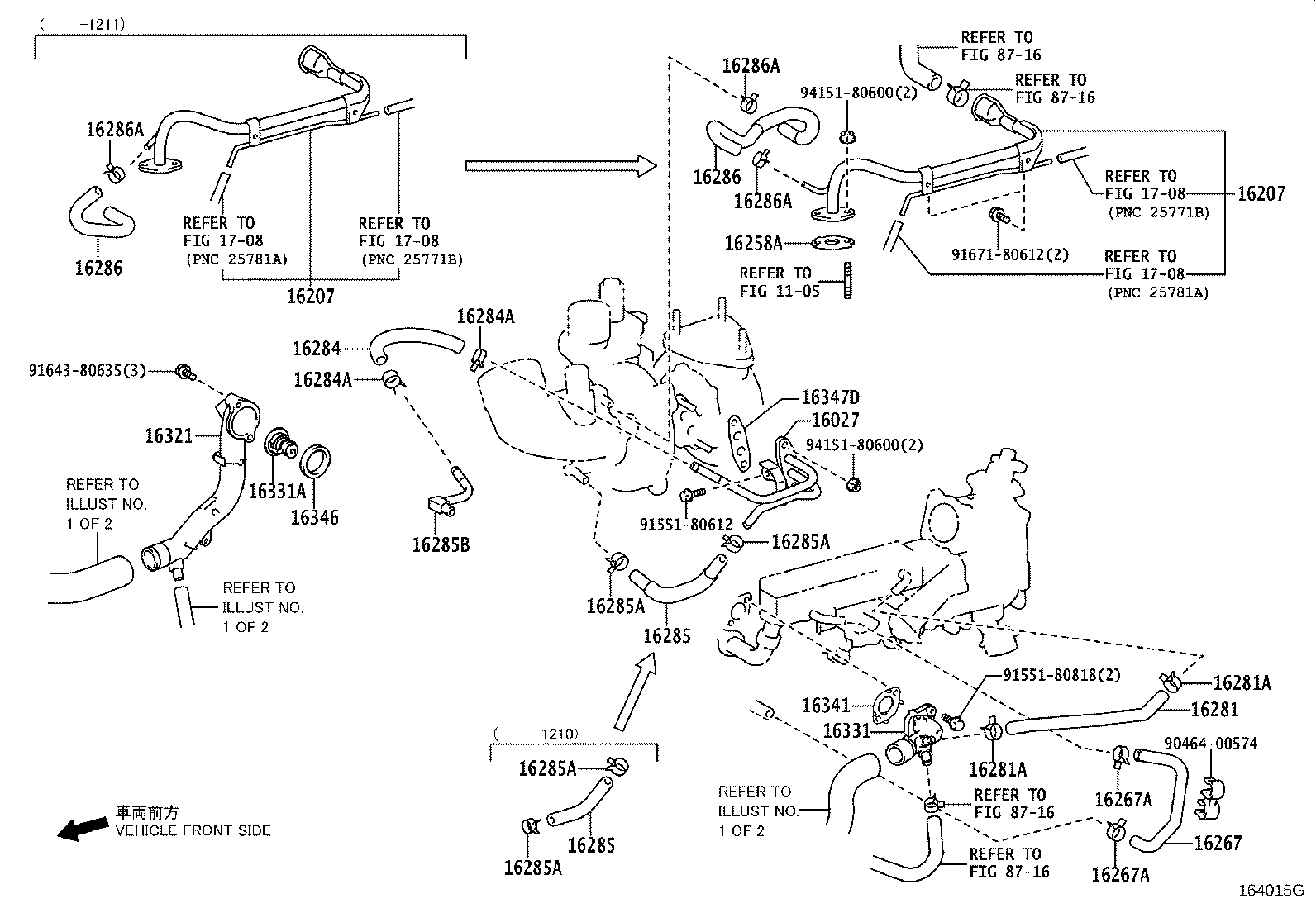

ILLUST NO. 2 OF 2(0908-1506)1KDFTV..ARL

Click highlighted areas on diagram

diagram 1105 16027 16207 16207 16258A 16267 16267A 16267A 16281 16281A 16281A 16284 16284A 16284A 16285 16285 16285A 16285A 16285A 16285A 16285B 16286 16286 16286A 16286A 16286A 16321 16331 16331A 16341 16346 16347D 1708 1708 1708 1708 8716 8716 8716 8716 9046400574 9155180612 9155180818 9164380635 9167180612 9415180600 9415180600
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-30110

1KDFTV..KDJ150

 1
16027-30110

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30130

1KDFTV..KDJ150

 1
16207-30131

1KDFTV..KDJ150

 1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30130

1KDFTV..KDJ150

 1
16207-30131

1KDFTV..KDJ150

 1
16258A - GASKET(FOR HEATER RETURN)
16258-67010

1KDFTV..KDJ150

 1
16258-67010

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-30090

1KDFTV..KDJ150..ARL

 1
16267-30090

1KDFTV..KDJ150..ARL

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDJ150..ARL

 2
90467-19022

1KDFTV..KDJ150..ARL

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDJ150..ARL

 2
90467-19022

1KDFTV..KDJ150..ARL

 2
16281 - HOSE, WATER BY-PASS, NO.4
16281-30060

1KDFTV..KDJ150..ARL

 1
16281-30060

1KDFTV..KDJ150..ARL

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KDJ150..ARL

 2
90467-19022

1KDFTV..KDJ150..ARL

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KDJ150..ARL

 2
90467-19022

1KDFTV..KDJ150..ARL

 2
16284 - HOSE, TURBO WATER, NO.1
16284-30070

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16284-30070

1KDFTV..KDJ150

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13128

1KDFTV..KDJ150

 2
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13128

1KDFTV..KDJ150

 2
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
16285 - HOSE, TURBO WATER, NO.2
16285-30070

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16285-30071

1KDFTV..KDJ150

 1
16285 - HOSE, TURBO WATER, NO.2
16285-30070

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16285-30071

1KDFTV..KDJ150

 1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16285B - UNION(FOR TURBO WATER HOSE NO.2)
90405-08029

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
90405-08029

1KDFTV..KDJ150

 1
16286 - HOSE, TURBO WATER, NO.3
16286-30050

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16286-30051

1KDFTV..KDJ150

 1
16286 - HOSE, TURBO WATER, NO.3
16286-30050

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16286-30051

1KDFTV..KDJ150

 1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13128

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
90467-13128

1KDFTV..KDJ150

 2
16321 - INLET, WATER
16321-30033

1KDFTV..KDJ150

 1
16321-30080

1KDFTV..KDJ150

 1
16331 - OUTLET, WATER
16304-30010

1KDFTV..KDJ150..ARL

 1
16304-30010

1KDFTV..KDJ150..ARL

 1
16331A - THERMOSTAT
90916-03118

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

*WAX 82-95

 1
90916-03118

1KDFTV..KDJ150

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-30020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16341-30020

1KDFTV..KDJ150

 1
16346 - GASKET, THERMOSTAT
16346-67010

1KDFTV..KDJ150

 1
16346-0K010

1KDFTV..KDJ150

 1
16347D - GASKET, WATER BY-PASS
16347-30010

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
16347-30010

1KDFTV..KDJ150

 1
Common parts
90464-00574
91551-80612
91551-80818
91643-80635
91671-80612
94151-80600
Linked diagrams
1105
1708
8716
