KDJ150L-GKFEYV (2009)
Toyota Land Cruiser Prado
Production
Aug 2009
-
Oct 2011
Engine
1KDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )KDJ150..GCC

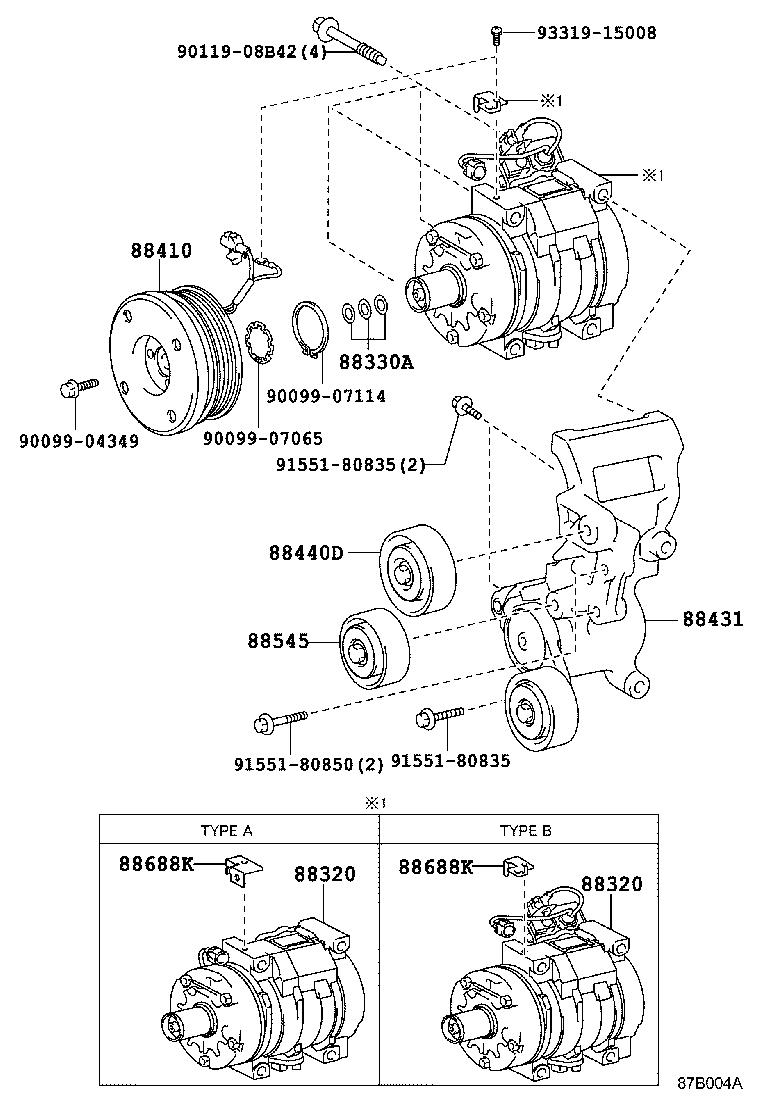

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A450 |
KDJ150..GCC AIR CONDITIONER-DUAL(AUTO),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A440 |
KDJ150..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A450 |
KDJ150..GCC AIR CONDITIONER-DUAL(MANUAL),TYPE B:REFER ILLUST. |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A450 |
KDJ150..GCC AIR CONDITIONER-DUAL(AUTO),TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A440 |
KDJ150..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88320-6A450 |
KDJ150..GCC AIR CONDITIONER-DUAL(MANUAL),TYPE B:REFER ILLUST. |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-6A180 |
KDJ150..6F..GCC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 16620-30010 |
KDJ150..6F..GCC |
1 | ||
| 88440D - PULLEY ASSY, IDLE NO.2 | ||||
| 88440-35101 |
KDJ150..6F..GCC |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35130 |
KDJ150..6F..GCC |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-37320 |
KDJ150..GCC TYPE B:REFER ILLUST. |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-37320 |
KDJ150..GCC TYPE B:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 91551-80835 | ||||
| 91551-80850 | ||||
| 93319-15008 | ||||
