KDJ150L-GKFEYV (2009)
Toyota Land Cruiser Prado
ILLUST NO. 8 OF10(0908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B2 |
KDJ150..6F..GCC MD.GRAY,TRIM10 |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050A0 |
KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050C0 |
KDJ150..6F..GCC BLACK,TRIM11 |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B2 |
KDJ150..6F..GCC MD.GRAY,TRIM10 |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050A0 |
KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050C0 |
KDJ150..6F..GCC BLACK,TRIM11 |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B2 |
KDJ150..6F..GCC MD.GRAY,TRIM10 |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050A0 |
KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050C0 |
KDJ150..6F..GCC BLACK,TRIM11 |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B2 |
KDJ150..6F..GCC MD.GRAY,TRIM10 |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050A0 |
KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60050C0 |
KDJ150..6F..GCC BLACK,TRIM11 |
1 | ||
| 84920-60090A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84920-60090C0 |
GRJ150,KDJ150..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60180C0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60170A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60180C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60180A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60170A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60180C0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60170A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60180C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60170C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60180A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60170A0 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60180A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60160A0 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60190A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190A0 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60190A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60160A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60160A0 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84921-60190A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190A0 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60190A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60190C0 |
GRJ150,KDJ150..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,RH |
1 | ||
| 84921-60160A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160A0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60160C0 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,LH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60160 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 84922-60160 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 84922-60160 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-60050 |
KDJ150..6F..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 84922-60180 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 84922-60180 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&VX WOODY LE.PACK.+VX COSM&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60031 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715-60030 |
GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60031 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| 89715-60030 |
GRJ150,KDJ150 REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
2 | ||
| Common parts | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7151 | ||||

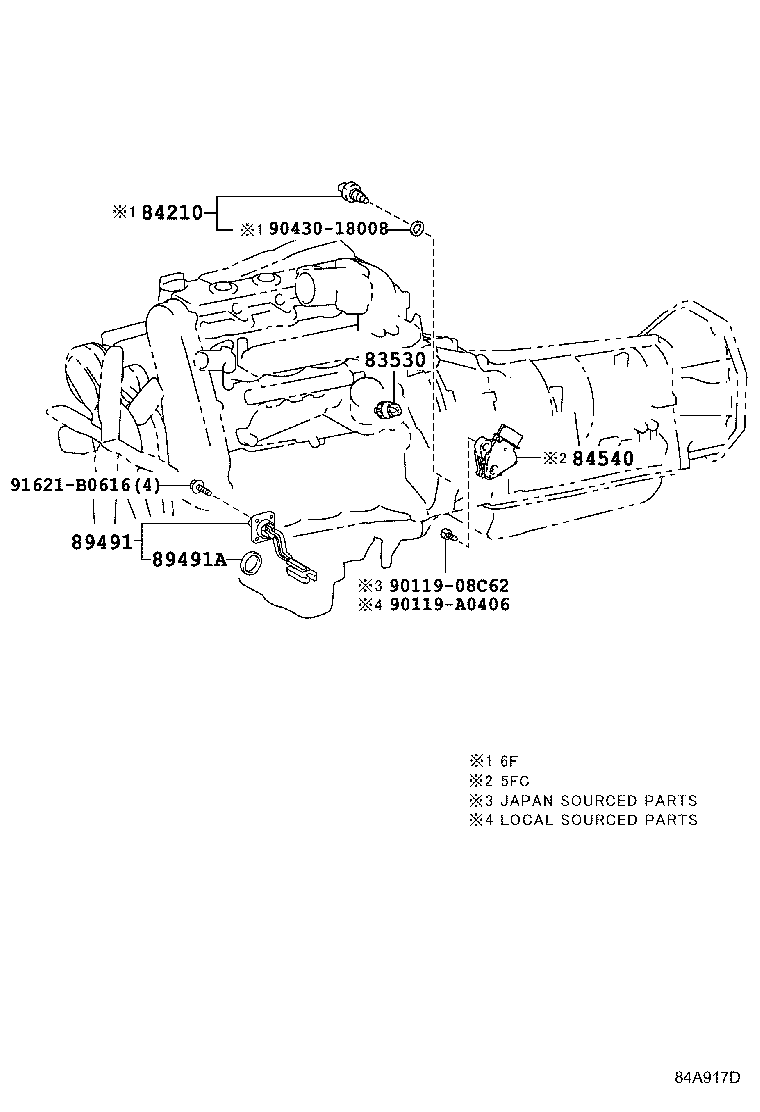

ILLUST NO. 1 OF10(0908-1506)KDJ150
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDJ150..6F..GCC |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60080 |
KDJ150..6F..GCC |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDJ150..6F..GCC |
1 | ||
| Common parts | ||||
| 90119-08C62 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 91621-B0616 | ||||
ILLUST NO. 7 OF10(0908- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-48210 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60270 |
KDJ150..6F..GCC |
1 | ||
| 84140-48210 |
KDJ150..6F..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60230 |
KDJ150..6F..GCC FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-48210 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60270 |
KDJ150..6F..GCC |
1 | ||
| 84140-48210 |
KDJ150..6F..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 84140-60230 |
KDJ150..6F..GCC FRONT FOG LAMP-WITH |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-60070B1 |
GRJ150,KDJ150..GCC VX PACKAGE&CRUISE CONTROL-WITH,SILVER,TRIM0#,1# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60150B1 |
GRJ150,KDJ150..GCC VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
KDJ150..6F..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE),SILVER,TRIM0#,1# |
1 | ||
| 84250-60150B1 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150..ARL,GCC;GRJ150..6F..GEN;KDJ150..RHD..GEN;KDJ150..5FC..GCC;KDJ150..6F..(ARL,GCC) VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
KDJ150..6F..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150,KDJ150..GCC VX PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60160B1 |
GRJ150..ARL;GRJ150..6F..GEN;KDJ150..RHD..GEN;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&CRUISE CONTROL-WITH&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR),SILVER,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH,GRAY,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER,GRAY,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH,GRAY,TRIM0#,1# |
1 | ||
| 84250-60180B0 |
TRJ150..RHD;KDJ150..6F..GCC AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER,GRAY,TRIM0#,1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-47020 |
GRJ150,KDJ150..GCC VX PACKAGE&CRUISE CONTROL-WITH |
1 | ||
| 84307-47020 |
KDJ150..GCC;GRJ150..5FC..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84307-47020 |
GRJ150..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
KDJ150..GCC;GRJ150..5FC..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84307-47020 |
GRJ150..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&SRS AIR BAG-W(*DRP&KNEE&CURTAIN(RR NO.1&NO.2 SEAT))&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84307-47020 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+MULTI+9SPEAKER |
1 | ||
| 84307-47020 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-47020 |
TRJ150..RHD;KDJ150..6F..GCC AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+MULTI+6SPEAKER |
1 | ||
| 84307-47020 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 84307-60020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48180 |
KDJ150..6F..GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48180 |
KDJ150..6F..GCC |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
KDJ150..6F..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-48010 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
KDJ150..6F..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 89235-48010 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 2 OF10(0908- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-48020 |
GRJ150,KDJ150,LJ150,TRJ15# HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-58010 |
TRJ150..RHD;KDJ150..6F..GCC HEAD LAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 94150-80600 | ||||
ILLUST NO. 6 OF10(0908-1308)LHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60020 |
KDJ150..6F..GCC |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60020 |
KDJ150..6F..GCC |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60170 |
KDJ150..6F..GCC |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60240 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..GCC VX WOODY LE.PACK.+VX COSM,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..GCC VX WOODY LE.PACK.+VX COSM,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60240 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751-60240 |
GRJ150,KDJ150..GCC VX WOODY LE.PACK.+VX COSM,RH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..GCC VX WOODY LE.PACK.+VX COSM,LH |
1 | ||
| 84751-60250 |
GRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,LH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60140 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85530-60150 |
GRJ150,KDJ150..ARL,GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33060 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82711-48040 | ||||
ILLUST NO. 4 OF10(0908- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60130 |
KDJ150..6F..GCC |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48030 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60070 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-6A110 |
KDJ150..6F..GCC |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60160 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-60010 |
KDJ150..6F..GCC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KDJ150..6F..GCC |
1 | ||
| 859A1 - COMPUTER, DRIVING SUPPORT SWITCH CONTROL | ||||
| 859A1-60010 |
GRJ150,KDJ150..6F..GCC VX PACKAGE |
1 | ||
| 859A1-60010 |
KDJ150..6F..GCC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACKMONITOR-WITH(WITH/GUIDE) |
1 | ||
| 859A1-60010 |
GRJ150..ARL;GRJ150..6F..GEN;KDJ150..6F..GCC;KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH |
1 | ||
| 859A1-60010 |
GRJ150..ARL;GRJ150..6F..GEN;KDJ150..6F..GCC;KDJ150..RHD..GEN VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 859A1-60010 |
KDJ150..6F..GCC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&BACKMONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 859A1-60010 |
KDJ150..6F..GCC TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD+BLUETOOTH+EXTRA+6SPEAKER&BACK MONITOR-WITH |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
KDJ150..6F..GCC |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-60S00 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60S20 |
GRJ150,KDJ150..6F..GCC |
1 | ||
| 89220-60S70 |
GRJ150,KDJ150..6F..GCC VX-L PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60S70 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89220-60S00 |
GRJ150,KDJ150..6F..GCC VX-L PACKAGE&SIDE STEP-WITH(STEP LAMP)&SPEEDOMETER-OPTITRON(KM/H) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60080 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE |
1 | ||
| 89227-60080 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE |
1 | ||
| 89271A - COMPUTER, STABILIZER CONTROL | ||||
| 89271-60030 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..5FC VX-L PACKAGE |
1 | ||
| 89271-60030 |
GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60270 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-35030 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150..GCC VX PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89690-60010 |
GRJ150,KDJ150..GCC |
1 | ||
| 89681-60020 |
GRJ150,KDJ150 VX-L PACKAGE&CRUISE CONTROL-WITH&AVS-WITH(W/REAR AIR SUSPENSION)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 89681-60020 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH |
1 | ||
| 89681-60020 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 89681-60020 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-60060 |
KDJ150..LHD;GRJ150..6F..GCC;GRJ150..LHD..5FC VX PACKAGE |
1 | ||
| 89940-60040 |
KDJ150..LHD;GRJ150..LHD..5FC VX-L PACKAGE |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 93381-15008 | ||||
| 94120-41000 | ||||
| 94150-80600 | ||||
ILLUST NO.10 OF10(0908- )GDJ150,GRJ150,KDJ150,LJ150,TRJ150
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60530 |
TRJ150..RHD;KDJ150..6F..GCC FUEL TANK-WITH(SUB TANK) |
1 | ||
| 83320-60520 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-60540 |
TRJ150..RHD;KDJ150..6F..GCC FUEL TANK-WITH(SUB TANK) |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-60010 |
KDJ150..6F..GCC |
1 | ||
| 84947B - COVER, SWITCH | ||||
| 84947-60020 |
KDJ150..6F..GCC |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90430-18008 | ||||
| Linked diagrams | ||||
| 6761 | ||||
ILLUST NO. 9 OF10(0908- )GDJ150,GRJ150,KDJ150,LJ150,TRJ150
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
KDJ150..6F..GCC |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
KDJ150..6F..GCC |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60060A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60060B0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60060A0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60060B0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60080A0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60080B0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60080A0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60080B0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60080A0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84190-60080B0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60140B0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84656-60140A0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60140B0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
1 | ||
| 84656-60140A0 |
KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60030C0 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK |
2 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-24040 |
KDJ150..6F..GCC VX-L PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-24040 |
KDJ150..6F..GCC VX-L PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-24040 |
KDJ150..6F..GCC VX-L PACKAGE |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-60160A0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85530-60160B0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080B2 |
TRJ150..RHD;KDJ150..6F..GCC MD.GRAY,TRIM1# |
1 | ||
| 85535-35080A0 |
TRJ150..RHD;KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60060B0 |
GRJ150,KDJ150,TRJ150..ARL,GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60060A0 |
GRJ150,KDJ150,TRJ150..ARL,GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60040A0 |
TRJ150..RHD;KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 85536-60040B0 |
TRJ150..RHD;KDJ150..6F..GCC MD.GRAY,TRIM1# |
1 | ||
| 85536-60100B0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60100A0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60060B0 |
GRJ150,KDJ150,TRJ150..ARL,GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60060A0 |
GRJ150,KDJ150,TRJ150..ARL,GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85536-60040A0 |
TRJ150..RHD;KDJ150..6F..GCC IVORY,TRIM0# |
1 | ||
| 85536-60040B0 |
TRJ150..RHD;KDJ150..6F..GCC MD.GRAY,TRIM1# |
1 | ||
| 85536-60100B0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),MD.GRAY,TRIM1# |
1 | ||
| 85536-60100A0 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),IVORY,TRIM0# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60070 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60070 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90901-48003 | ||||
ILLUST NO. 3 OF10(0908-1308)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..6F..GCC |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1KDFTV..KDJ150..6F..GCC |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDJ150..6F..GCC |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,DRIVER SIDE J/B |
1 | ||
| 90982-08301 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
GRJ150,KDJ150,LJ150,TRJ15# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08302 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
GRJ150,KDJ150,LJ150,TRJ15# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
GRJ150,KDJ150,LJ150,TRJ15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08274 |
GRJ150,KDJ150,LJ150,TRJ15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
GRJ150,KDJ150,LJ150,TRJ15# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
GRJ150,KDJ150,LJ150,TRJ15# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ150,KDJ150,LJ150,TRJ15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ150,KDJ150,LJ150,TRJ15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GRJ150,KDJ150,LJ150,TRJ15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ150,KDJ150,LJ150,TRJ15# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRJ150,KDJ150,LJ150,TRJ15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRJ150,KDJ150,LJ150,TRJ15# 10A,MINI FUSE,RED |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60090 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60060 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60070 |
KDJ150,LJ150 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60360 |
KDJ150..LHD |
1 | ||
| 82662-60510 |
KDJ150..6F..GCC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-60380 |
KDJ150..LHD VX PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..LHD HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..LHD FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..LHD VX-L PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82662-60380 |
KDJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60080 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-60100 |
KDJ150..LHD VX PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82663-60100 |
KDJ150..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82663-60100 |
KDJ150..LHD VX-L PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82663-60100 |
KDJ150..LHD HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82663-60100 |
KDJ150..LHD FRONT FOG LAMP-WITH |
1 | ||
| 82663-60100 |
KDJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 82663-60100 |
KDJ150..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60040 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-60030 |
KDJ150..LHD VX PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82742-60030 |
KDJ150..LHD VX-L PACKAGE&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82742-60030 |
KDJ150..LHD FRONT FOG LAMP-WITH |
1 | ||
| 82742-60030 |
KDJ150..GCC VX-L PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82742-60030 |
KDJ150..LHD HEAD LAMP CLEANER-WITH |
1 | ||
| 82742-60030 |
KDJ150..GCC VX PACKAGE&FRONT FOG LAMP-WITH |
1 | ||
| 82742-60030 |
KDJ150..LHD HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150,TRJ155 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
TRJ150..RHD;KDJ150..6F..GCC |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
KDJ150..6F..GCC |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90987-02027 |
KDJ150..6F..GCC FUEL TANK-WITH(SUB TANK) |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORYCONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..6F..GCC ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..6F..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
TRJ150..RHD;KDJ150..6F..GCC ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN |
1 | ||
| Common parts | ||||
| 82712-60850 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
ILLUST NO. 5 OF10(0908-1308)LHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-33050 |
TRJ150..RHD;KDJ150..6F..GCC HEAD LAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
KDJ150..6F..GCC |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-60020 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE |
1 | ||
| 84170-60020 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 83160-60020 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60300 |
GRJ150,KDJ150..GCC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60300 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD |
1 | ||
| 84332-60300 |
GRJ150,KDJ150..GCC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60320 |
KDJ150..GCC;GRJ150..5FC..GCC VX PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60320 |
GRJ150,KDJ150..LHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 83160-60020 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 84332-60300 |
GRJ150,KDJ150..GCC VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60300 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD |
1 | ||
| 84332-60300 |
GRJ150,KDJ150..GCC VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60320 |
KDJ150..GCC;GRJ150..5FC..GCC VX PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84332-60320 |
GRJ150,KDJ150..LHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60070 |
KDJ150..6F..GCC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60160 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&BACK MONITOR-WITH(AROUND MONITOR) |
1 | ||
| 84870-60160 |
GRJ150,KDJ150..6F..GCC VX PACKAGE |
1 | ||
| 84870-60160 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&BACK MONITOR-WITH |
1 | ||
| 84870-60160 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR) |
1 | ||
| 84870-60160 |
GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC) VX-L PACKAGE&BACK MONITOR-WITH(WITH/GUIDE) |
1 | ||
| 84870-60160 |
TRJ150..RHD;KDJ150..6F..GCC TX-L PACKAGE |
1 | ||
| 84870-60170 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60040 |
KDJ150..6F..GCC |
1 | ||
| 84975-60020 |
GRJ150..LHD..6F;KDJ150..6F..GCC VX PACKAGE |
1 | ||
| 84975-60020 |
GRJ150..6F..GEN;KDJ150..6F..GCC VX-L PACKAGE |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48070 |
TRJ150..RHD;KDJ150..6F..GCC |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30060 |
GRJ150,KDJ150 |
1 | ||
| 89611-30062 |
GRJ150,KDJ150..GCC |
1 | ||
| 89611-30061 |
GRJ150,KDJ150 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
