KDJ150L-GKFEYV (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Oct 2011
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV..LHD..6F

Click highlighted areas on diagram

12V 2.7KW

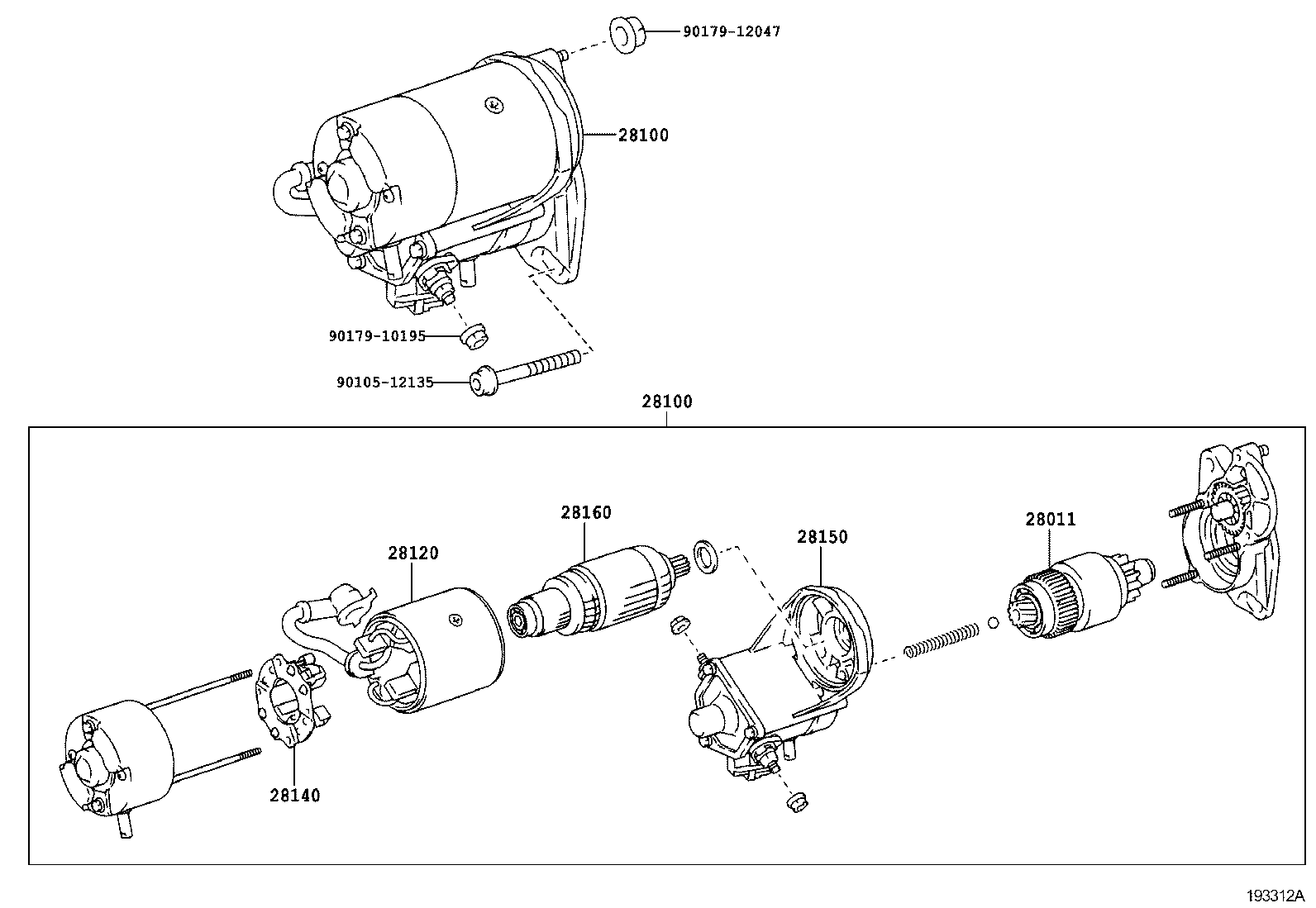

diagram 28011 28100 28100 28120 28140 28150 28160 9010512135 9017910195 9017912047
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-67030

1KDFTV..KDJ150..6F..GCC

 1
28100 - STARTER ASSY
28100-67051

1KDFTV..KDJ150..6F..GCC

12V 2.2KW

 1
28100-67050

1KDFTV..KDJ150

12V 2.2KW

 1
28100 - STARTER ASSY
28100-67051

1KDFTV..KDJ150..6F..GCC

12V 2.2KW

 1
28100-67050

1KDFTV..KDJ150

12V 2.2KW

 1
28120 - YOKE ASSY, STARTER
28120-64040

1KDFTV..KDJ150..6F..GCC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040

1KDFTV..KDJ150..6F..GCC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-67050

1KDFTV..KDJ150..6F..GCC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV..KDJ150..6F..GCC

 1
Common parts
90105-12135
90179-10195
90179-12047

(0908- )1KDFTV

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28100 28100 28120 28140 28150 28160 9009964040 9010512053 9010512135 9017908204 9017912047 9017912047 9671119006
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-67030

1KDFTV..KDJ150..6F..GCC

 1
28100 - STARTER ASSY
28100-67051

1KDFTV..KDJ150..6F..GCC

12V 2.2KW

 1
28100-67050

1KDFTV..KDJ150

12V 2.2KW

 1
28100 - STARTER ASSY
28100-67051

1KDFTV..KDJ150..6F..GCC

12V 2.2KW

 1
28100-67050

1KDFTV..KDJ150

12V 2.2KW

 1
28120 - YOKE ASSY, STARTER
28120-64040

1KDFTV..KDJ150..6F..GCC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040

1KDFTV..KDJ150..6F..GCC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-67050

1KDFTV..KDJ150..6F..GCC

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV..KDJ150..6F..GCC

 1
Common parts
90099-64040
90105-12053
90105-12135
90179-08204
90179-12047
96711-19006
