8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KDJ150L-GKAEY (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013

Engine 1KDFTV

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

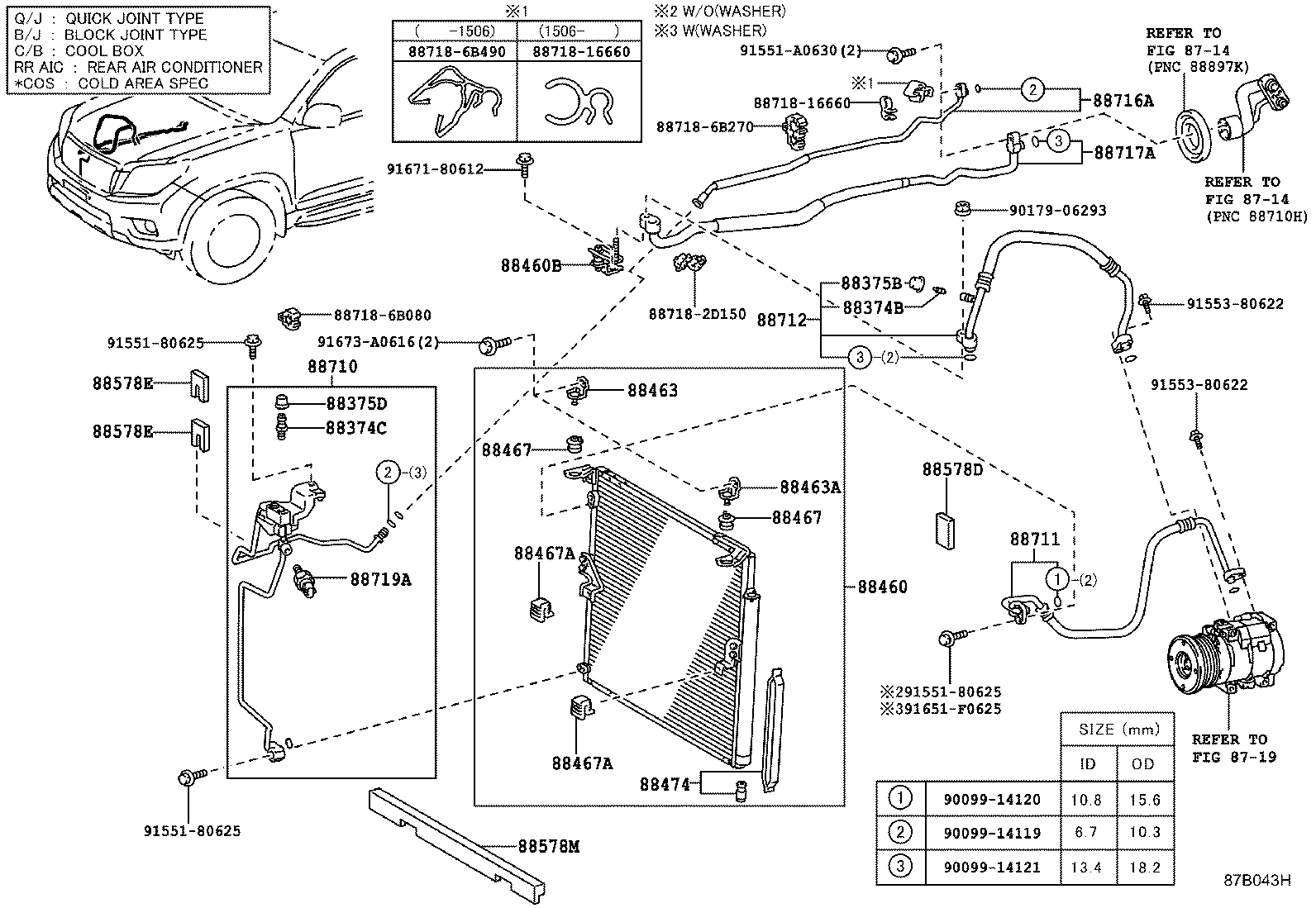

ILLUST NO. 2 OF 3(0908-1506)KDJ150..ARL,GEN ; (1506- )KDJ150..LHD

Click highlighted areas on diagram

FRONT(Q/J & W/O(REAR))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716-6C330	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-6C530	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B190	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88717-6B190	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-6B220	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88718-16660
88718-2D140
88718-2D150
88718-6B080
88718-6B270
88718-6B490
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

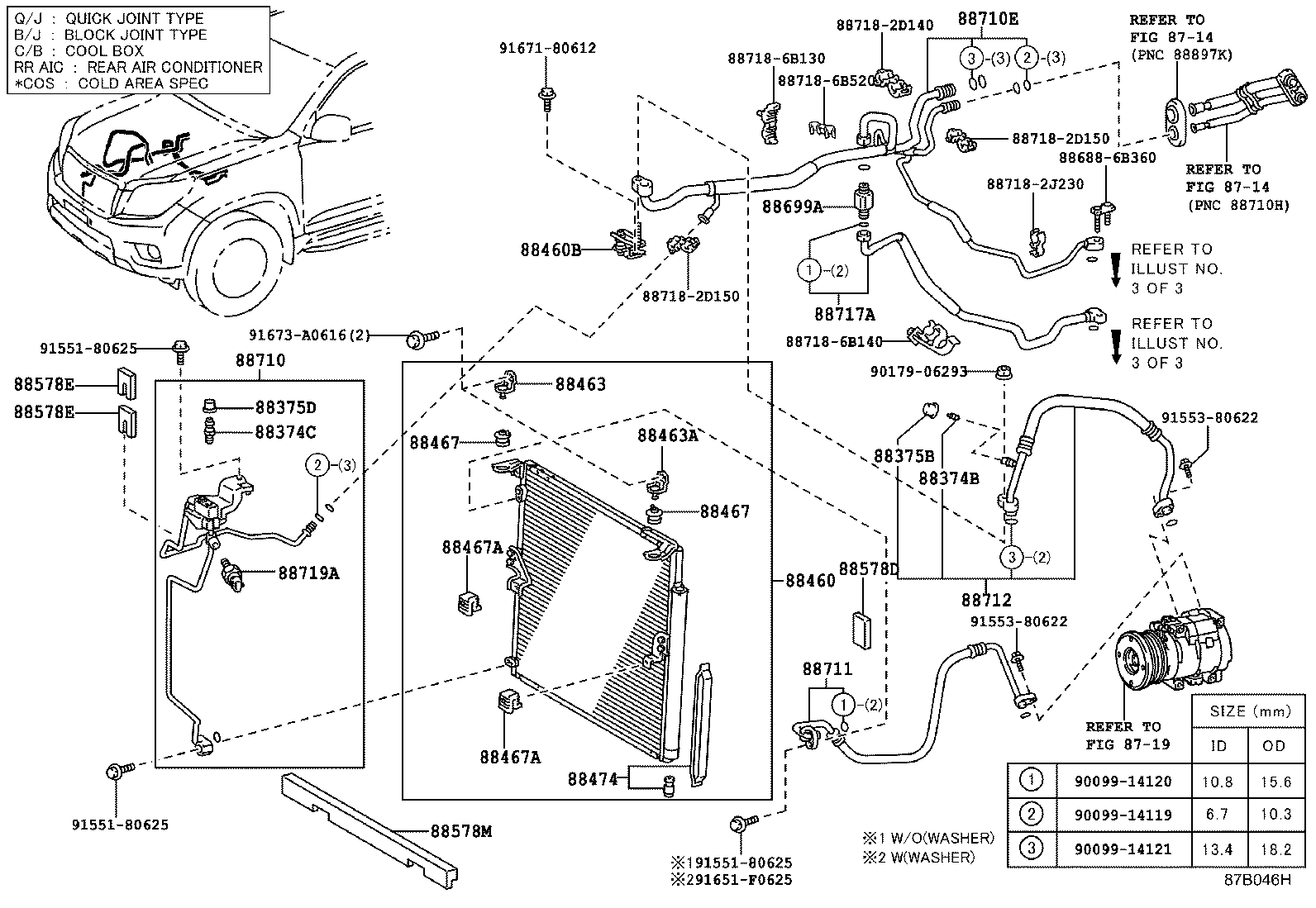

ILLUST NO. 2 OF 3(0908-1506)KDJ150..ARL,GEN ; (1506- )KDJ150..RHD

Click highlighted areas on diagram

FRONT(B/J & W/O(REAR))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716-6C330	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-6C530	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B190	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-6B220	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88718-16660
88718-2D150
88718-6B080
88718-6B270
88718-6B490
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

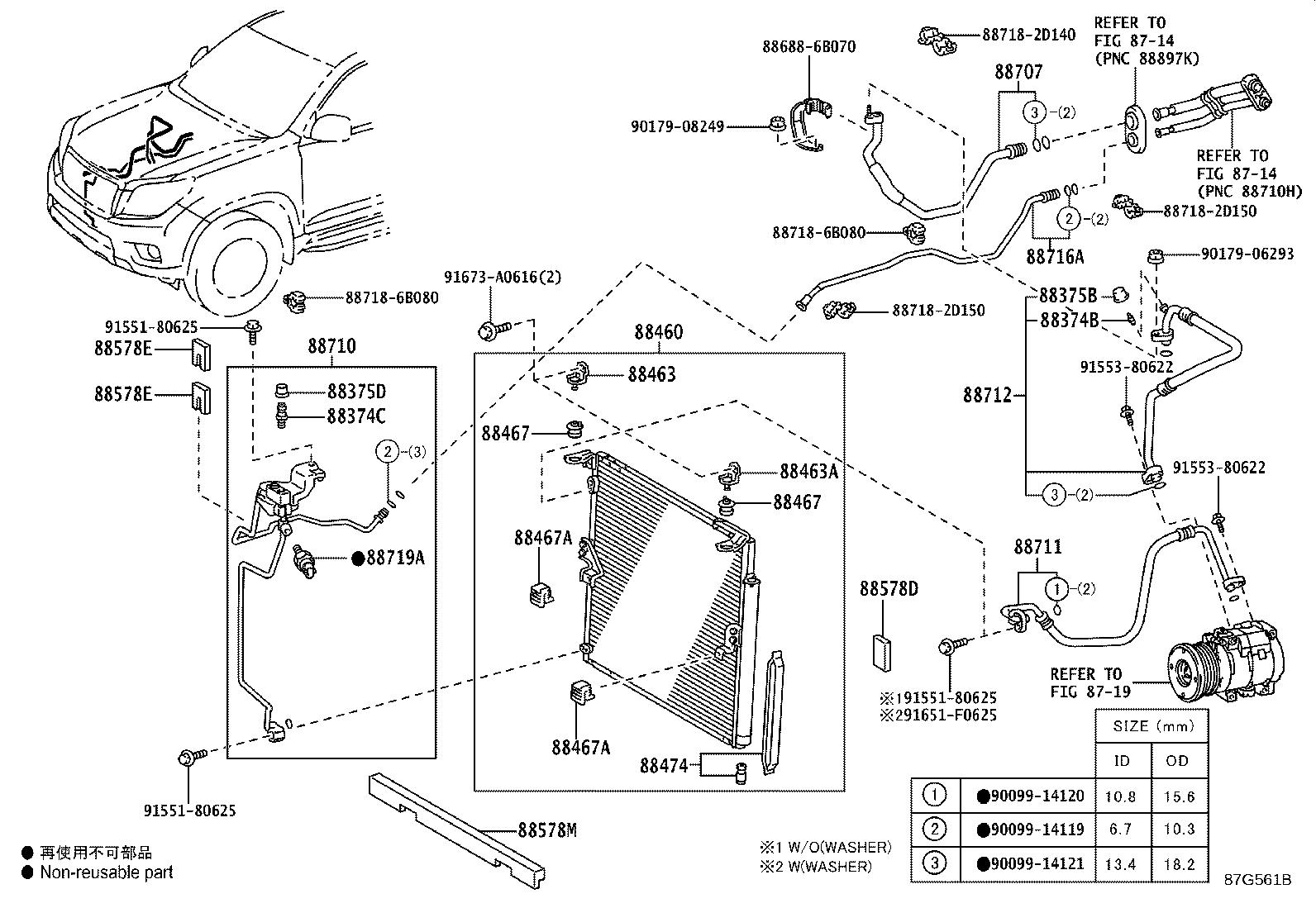

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

Click highlighted areas on diagram

FRONT(Q/J & *COS)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88707 - PIPE SUB-ASSY, SUCTION
88707-60200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716-6C330	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-6C530	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B070
88718-2D140
88718-2D150
88718-6B080
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..LHD

Click highlighted areas on diagram

FRONT(Q/J & W(C/B))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88699A - VALVE, AIR
88699-60010	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88699-60010	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60D40	GRJ150..GEN;KDJ150..5FC..GEN;KDJ150..LHD..6F..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88710-60D40	GRJ150..GEN;KDJ150..LHD..6F;KDJ150..5FC..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B190	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-6B220	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B360
88718-2D140
88718-2D150
88718-2J230
88718-6B130
88718-6B140
88718-6B520
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..RHD

Click highlighted areas on diagram

FRONT(B/J & W(C/B))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88699A - VALVE, AIR
88699-60010	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88699-60010	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60D40	GRJ150..GEN;KDJ150..5FC..GEN;KDJ150..LHD..6F..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88710-60D40	GRJ150..GEN;KDJ150..LHD..6F;KDJ150..5FC..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B190	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-6B220	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B360
88718-16660
88718-2D150
88718-2J230
88718-6B130
88718-6B140
88718-6B490
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

Click highlighted areas on diagram

FRONT(Q/J & *COS & W(C/B))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88716-6C470	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716-6C330	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88716-6C530	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88716-60900	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88716-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6B190	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B190	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B200	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 10/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 12/2011	1
88717-60910	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	10/2011 - 12/2011	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-60A10	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	01/2012 - 08/2013	1
88717-6B220	GRJ150,KDJ150..5FC..(ARL,GEN);GRJ150,KDJ150,LJ150,TRJ150..LHD..(4FC,5F,6F)..GEN	08/2009 - 08/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B070
88688-6B360
88718-16660
88718-2D140
88718-2D150
88718-2J230
88718-6B080
88718-6B140
88718-6B150
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..LHD

Click highlighted areas on diagram

FRONT(Q/J & W(RR AIC))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60A90	GRJ150,KDJ150..5FC;GRJ150,KDJ150,TRJ150..LHD..(4FC,5F,6F) AIR CONDITIONER-DUAL(AUTO)	08/2009 - 02/2010	1
88710-60A91	GRJ150,KDJ150..5FC;GRJ150,KDJ150,TRJ150..LHD..(4FC,5F,6F) AIR CONDITIONER-DUAL(AUTO)	02/2010 - 08/2013	1
88710-60A91	GRJ150..GEN;KDJ150..LHD..6F;KDJ150..5FC..GEN AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B360
88718-2D140
88718-2D150
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..RHD

Click highlighted areas on diagram

FRONT(B/J & W(RR AIC))

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88374C - VALVE, SERVICE, NO.2
88374-30010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88460 - CONDENSER ASSY, COOLER
88460-60420	KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN	08/2009 - 08/2013	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6B140	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	2
88474 - DRYER, COOLER
88474-17010	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60461	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	1
88578-60460	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	1
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578E - PACKING, COOLER PIPE, NO.2
88578-60470	GRJ150,KDJ150,LJ150,TRJ15#	08/2009 - 08/2011	2
88578-60471	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	09/2011 - 08/2013	2
88578M - PACKING, COOLING PIPE, NO.3
88578-60480	TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155	08/2009 - 08/2013	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60A60	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60A90	GRJ150,KDJ150..5FC;GRJ150,KDJ150,TRJ150..LHD..(4FC,5F,6F) AIR CONDITIONER-DUAL(AUTO)	08/2009 - 02/2010	1
88710-60A91	GRJ150,KDJ150..5FC;GRJ150,KDJ150,TRJ150..LHD..(4FC,5F,6F) AIR CONDITIONER-DUAL(AUTO)	02/2010 - 08/2013	1
88710-60A91	GRJ150..GEN;KDJ150..LHD..6F;KDJ150..5FC..GEN AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	10/2011 - 08/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88711-60840	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 08/2013	1
88711-60890	KDJ150..ARL,GEN	08/2009 - 08/2013	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	08/2009 - 06/2011	1
88712-6A450	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	07/2011 - 08/2013	1
88712-6A461	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO)	07/2011 - 08/2013	1
88712-6A460	KDJ150..LHD..GEN COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO)	08/2009 - 06/2011	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
Common parts
88688-6B360
88718-2D150
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91551-A0630
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W(COOL BOX))

Part #	Description	Period	Qty
88712C - HOSE, SUCTION
88712-6A500	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88712-6A500	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88716-6C580	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716-6C550	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B240	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B250	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88717-6B260	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
Common parts
88578-60260
88688-6A680
88688-6A690
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W(REAR *AIC) & W/O(COOL BOX))

Part #	Description	Period	Qty
88712C - HOSE, SUCTION
88712-6A500	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88712-6A500	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88716-6C580	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-6C550	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716-6C550	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B240	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B250	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88717-6B260	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
Common parts
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
94151-80641
Linked diagrams
8714

ILLUST NO. 1 OF 3(0908- )

Click highlighted areas on diagram

W(CONDENSER FAN)

Part #	Description	Period	Qty
16793C - LABEL, COOLING FAN CAUTION
16793-28020	1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC	08/2009 - 01/2012	1
16793-38010	1KDFTV..KDJ150	01/2012 - 08/2013	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-60030	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88454A - SHROUD, FAN
88454-60070	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 01/2012	1
88454-60071	KDJ150	01/2012 - 08/2013	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-34010	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 08/2013	1
88590 - BLOWER ASSY, W/SHROUD
88590-60100	KDJ150..ARL,GEN;KDJ150..5FC..GCC	08/2009 - 12/2011	1
88590-60101	KDJ150	01/2012 - 08/2013	1
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

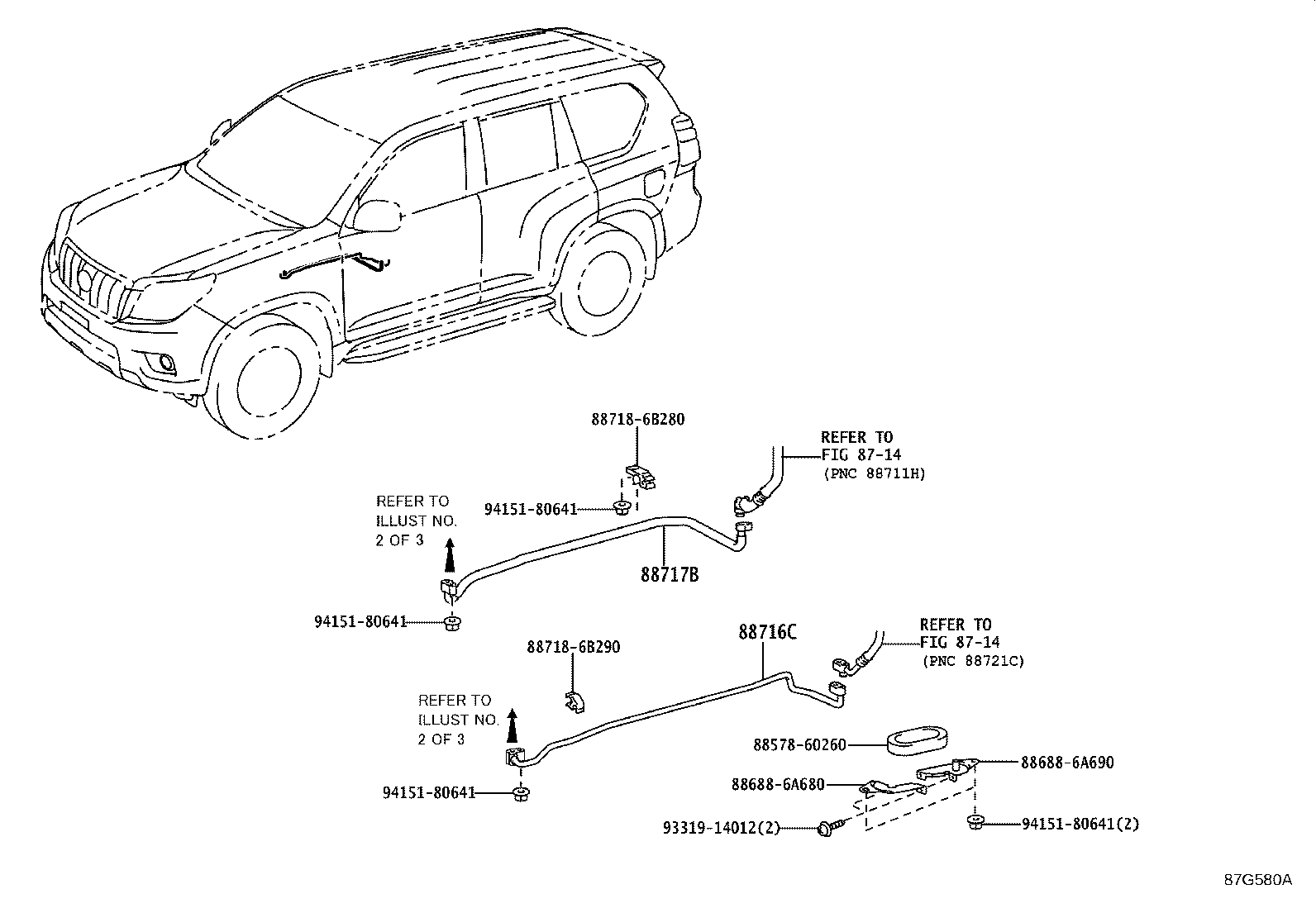

ILLUST NO. 3 OF 3(0908- )

Click highlighted areas on diagram

REAR(W/O(REAR *AIC) & W(COOL BOX))

Part #	Description	Period	Qty
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6C570	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88716-6C580	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88716-6C560	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6B240	GRJ150,KDJ150..GEN AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH	08/2009 - 10/2011	1
88717-6B240	GRJ150,KDJ150..GEN COOL BOX-WITH	10/2011 - 08/2013	1
88717-6B250	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)	08/2009 - 08/2013	1
88717-6B260	GRJ150;TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH	08/2009 - 08/2013	1
Common parts
88578-60260
88688-6A680
88688-6A690
88718-6B280
88718-6B290
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 1 OF 3(1708- )

Click highlighted areas on diagram

CONDENSER FAN

Part #	Description	Period	Qty	Price
Common parts
82711-2B640
88897-60170
88897-60180
88897-60200
90099-04117
90099-04119
90119-06192

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,W/O(REAR)

Part #	Description	Period	Qty	Price
Common parts
88718-16660
88718-2D140
88718-2D150
88718-6B080
88718-6B270
88718-6B490
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,COLD AREA SPEC & W/O(REAR)

Part #	Description	Period	Qty	Price
Common parts
88688-6B070
88718-2D140
88718-2D150
88718-6B080
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,W(COOL BOX)

Part #	Description	Period	Qty	Price
Common parts
88688-6B360
88718-2D140
88718-2D150
88718-2J230
88718-6B130
88718-6B140
88718-6B520
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,COLD AREA SPEC & W(REAR)

Part #	Description	Period	Qty	Price
Common parts
88688-6B070
88688-6B360
88718-16660
88718-2D140
88718-2D150
88718-2J230
88718-6B080
88718-6B140
88718-6B150
90099-14119
90099-14120
90099-14121
90179-06293
90179-08249
91551-80625
91553-80622
91651-F0625
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,W(RR AIC) OR W(C/B & RR AIC)

Part #	Description	Period	Qty	Price
Common parts
88688-6B360
88718-2D140
88718-2D150
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

Click highlighted areas on diagram

FRONT,W(SCX) & W/O(REAR)

Part #	Description	Period	Qty	Price
Common parts
88718-2D140
88718-2D150
90099-14119
90099-14120
90099-14121
90179-06293
91551-80625
91553-80622
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W/O(REAR *AIC) & W(COOL BOX))

Part #	Description	Period	Qty	Price
Common parts
88578-60260
88688-6A680
88688-6A690
88718-6B280
88718-6B290
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W(REAR *AIC & COOL BOX)

Part #	Description	Period	Qty	Price
Common parts
88578-60260
88688-6A680
88688-6A690
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
93319-14012
94151-80641
Linked diagrams
8714

ILLUST NO. 3 OF 3(1708- )

Click highlighted areas on diagram

REAR,W(REAR *AIC) & W/O(COOL BOX)

Part #	Description	Period	Qty	Price
Common parts
88688-6B220
88718-2J230
88718-6B280
88718-6B290
88718-6B300
88718-6B310
88718-6B400
90099-14119
90099-14120
90099-14121
91551-A0630
94151-80641
Linked diagrams
8714

KDJ150L-GKAEY (2009)

ILLUST NO. 2 OF 3(0908-1506)KDJ150..ARL,GEN ; (1506- )KDJ150..LHD

ILLUST NO. 2 OF 3(0908-1506)KDJ150..ARL,GEN ; (1506- )KDJ150..RHD

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..LHD

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..RHD

ILLUST NO. 2 OF 3(0908- )KDJ150..GEN

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..LHD

ILLUST NO. 2 OF 3(0908-1506)KDJ150 ; (1506- )KDJ150..RHD

ILLUST NO. 3 OF 3(0908- )

ILLUST NO. 3 OF 3(0908- )

ILLUST NO. 1 OF 3(0908- )

ILLUST NO. 3 OF 3(0908- )

ILLUST NO. 1 OF 3(1708- )

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 2 OF 3(1708- )KDJ150..LHD

ILLUST NO. 3 OF 3(1708- )

ILLUST NO. 3 OF 3(1708- )

ILLUST NO. 3 OF 3(1708- )

Part Price Details
