KDJ150L-GKAEY (2009)
Toyota Land Cruiser Prado
Production
Aug 2009
-
Aug 2013
Engine
1KDFTV
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )5FC

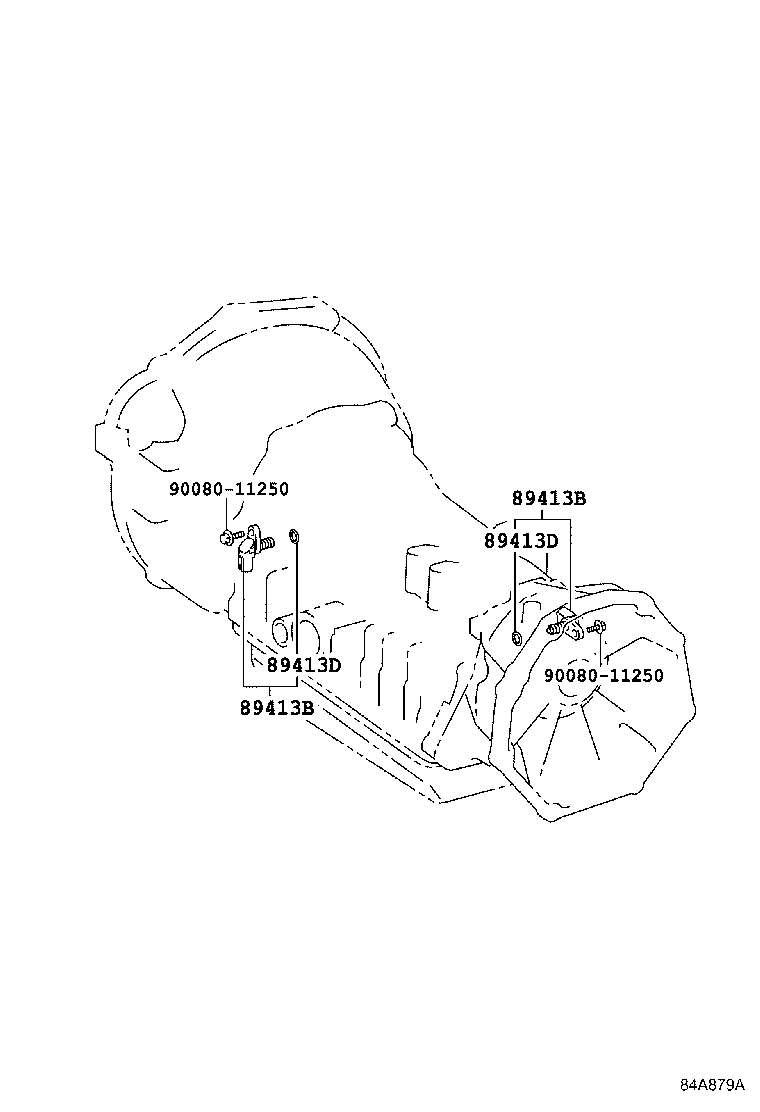

Click highlighted areas on diagram
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-0C010 |
GRJ150,KDJ150..5FC (L) |
2 | ||
| 89413-32010 |
GRJ150,KDJ150..5FC |
2 | ||
| 89413-32010 |
GRJ150,KDJ150..5FC (J) |
2 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-0C010 |
GRJ150,KDJ150..5FC (L) |
2 | ||
| 89413-32010 |
GRJ150,KDJ150..5FC |
2 | ||
| 89413-32010 |
GRJ150,KDJ150..5FC (J) |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
GRJ150,KDJ150..5FC |
2 | ||
| 89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
GRJ150,KDJ150..5FC |
2 | ||
| Common parts | ||||
| 90080-11250 | ||||
(1708- )5FC

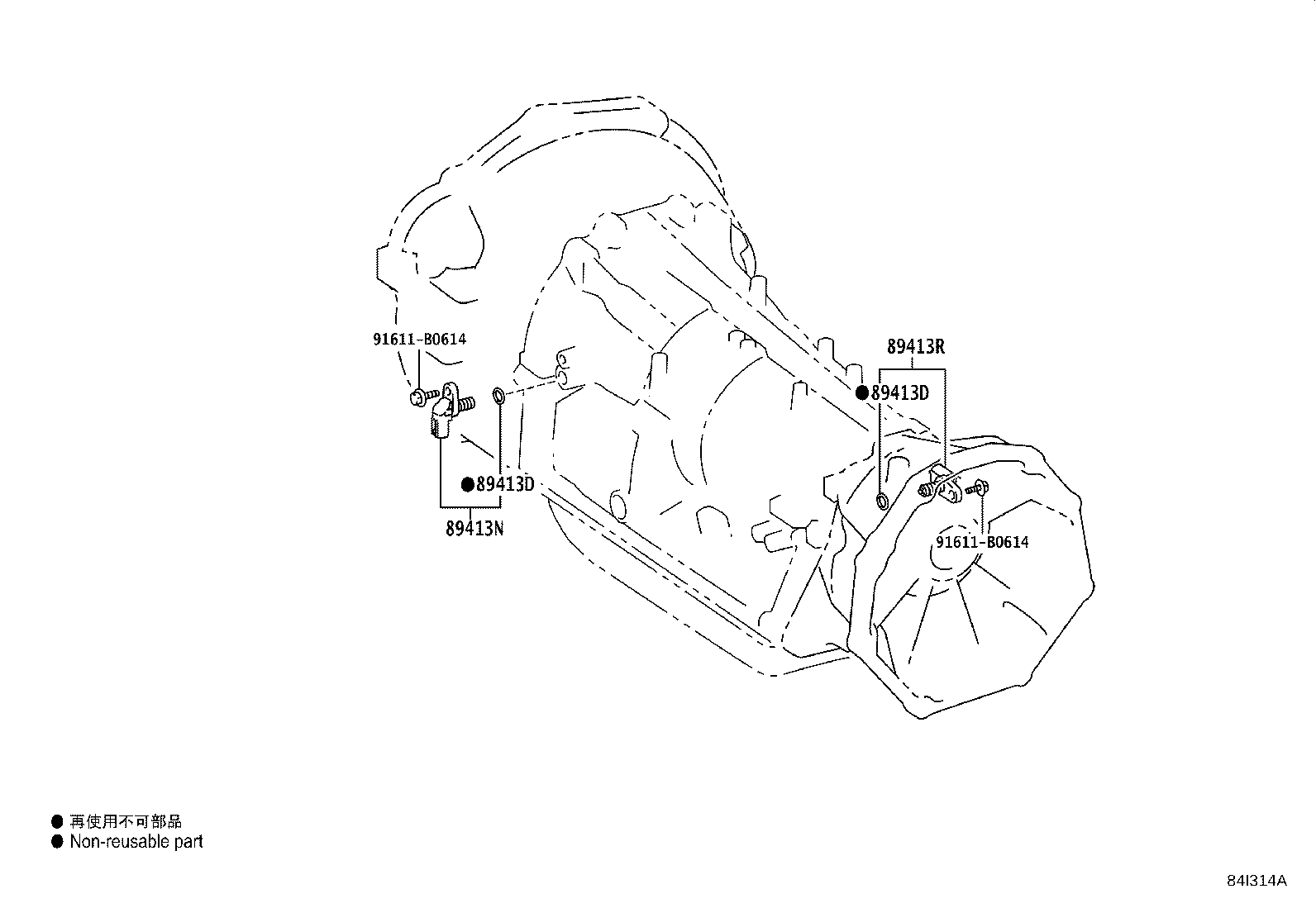

Click highlighted areas on diagram
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-B0614 | ||||
