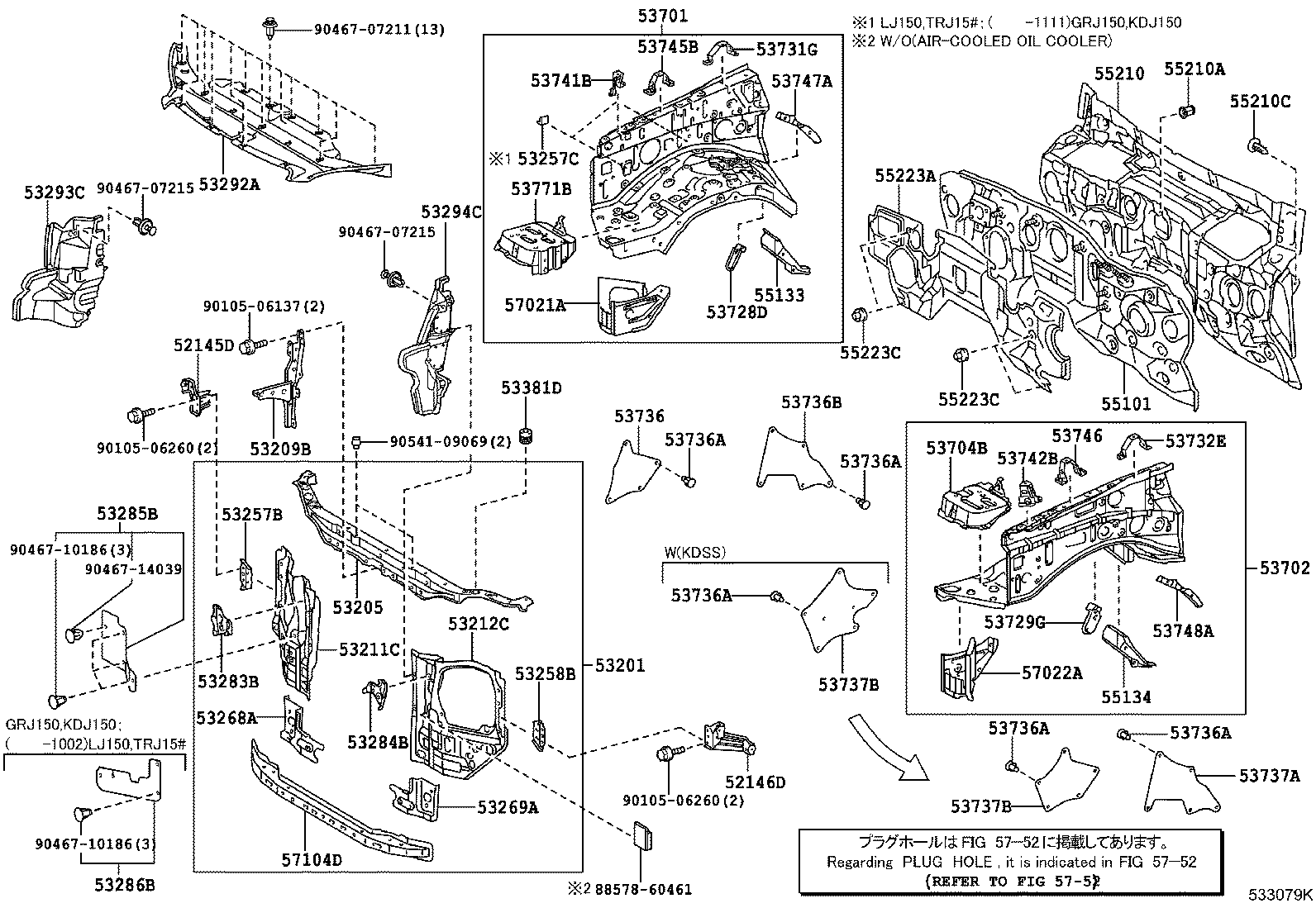

KDJ150L-GKAEY (2009)
Toyota Land Cruiser Prado
(0908-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52145D - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 53803-60080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 53804-60060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-60170 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-60141 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53209-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-60241 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53211-60240 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-60200 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53212-60201 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53257C - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2 | ||||
| 53257-35030 |
GRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
2 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53257-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-35040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-35040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH | ||||
| 53283-60050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH | ||||
| 53284-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-60110 |
GRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-60080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-60091 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53293-60090 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-60100 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53294-60101 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 90541-15004 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-60720 |
GRJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 53701-60C70 |
GRJ150,KDJ150 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-6A300 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53702-60A50 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-35082 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53704-35082 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53728D - BRACKET, FENDER APRON, RH | ||||
| 53728-35060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53729G - BRACKET, FENDER APRON, LH | ||||
| 53728-35060 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53728-35060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53731G - REINFORCEMENT, FRONT FENDER APRON, RH | ||||
| 53731-60080 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53732E - REINFORCEMENT, FRONT FENDER APRON, LH | ||||
| 53732-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53732-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53735-35150 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
21 | ||
| 90467-10186 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
21 | ||
| 90467-10186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
19 | ||
| 90467-10186 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
21 | ||
| 90467-10186 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
21 | ||
| 90467-10186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
19 | ||
| 90467-10186 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
21 | ||
| 90467-10186 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
21 | ||
| 90467-10186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
19 | ||
| 90467-10186 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
21 | ||
| 90467-10186 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
21 | ||
| 90467-10186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
19 | ||
| 90467-10186 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
21 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
21 | ||
| 90467-10186 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
21 | ||
| 90467-10186 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
19 | ||
| 90467-10186 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
21 | ||
| 53736B - SEAL, FRONT FENDER APRON TO FRAME, NO.1 RH | ||||
| 53886-60030 |
KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN |
1 | ||
| 53737A - SEAL, FRONT FENDER APRON TO FRAME, NO.1 LH | ||||
| 53886-60030 |
TRJ150..LHD;LJ150,TRJ155;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53736-60130 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
1 | ||
| 53736-35150 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53736-60130 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
1 | ||
| 53736-60130 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53736-60130 |
GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
1 | ||
| 53736-35150 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53736-60130 |
GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE |
1 | ||
| 53736-60130 |
GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53742-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-60050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53746-60060 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53746-60060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-60020 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-60010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53748-60010 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53771B - SUPPORT, BATTERY CARRIER, RH | ||||
| 53703-35042 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-60D20 |
GRJ150,KDJ150,TRJ15#..LHD..ATM |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-60060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55134-60070 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-60240 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN |
1 | ||
| 55210A - CLIP | ||||
| 90467-06155 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
2 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60390 |
KDJ150..LHD |
1 | ||
| 55223-60391 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN |
1 | ||
| 55223C - CLIP | ||||
| 90467-06206C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
4 | ||
| 90467-06169 |
GRJ150,KDJ150,LJ150,TRJ15# |
4 | ||
| 55223C - CLIP | ||||
| 90467-06206C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
4 | ||
| 90467-06169 |
GRJ150,KDJ150,LJ150,TRJ15# |
4 | ||
| 57021A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-35060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 57022A - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-35050 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 57022-35050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-35061 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| Common parts | ||||
| 88578-60461 | ||||
| 90105-06137 | ||||
| 90105-06260 | ||||
| 90467-07211 | ||||
| 90467-07215 | ||||
| 90467-10186 | ||||
| 90467-14039 | ||||
| 90541-09069 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88578-60550 | ||||
| 90105-06137 | ||||
| 90105-06260 | ||||
| 90467-07217 | ||||
| 90467-07220 | ||||
| 90467-10186 | ||||
| 90467-14039 | ||||
| 90541-09069 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(1708- )LHD
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
