KDJ150L-GKAEY (2009)
Toyota Land Cruiser Prado
(0908- )

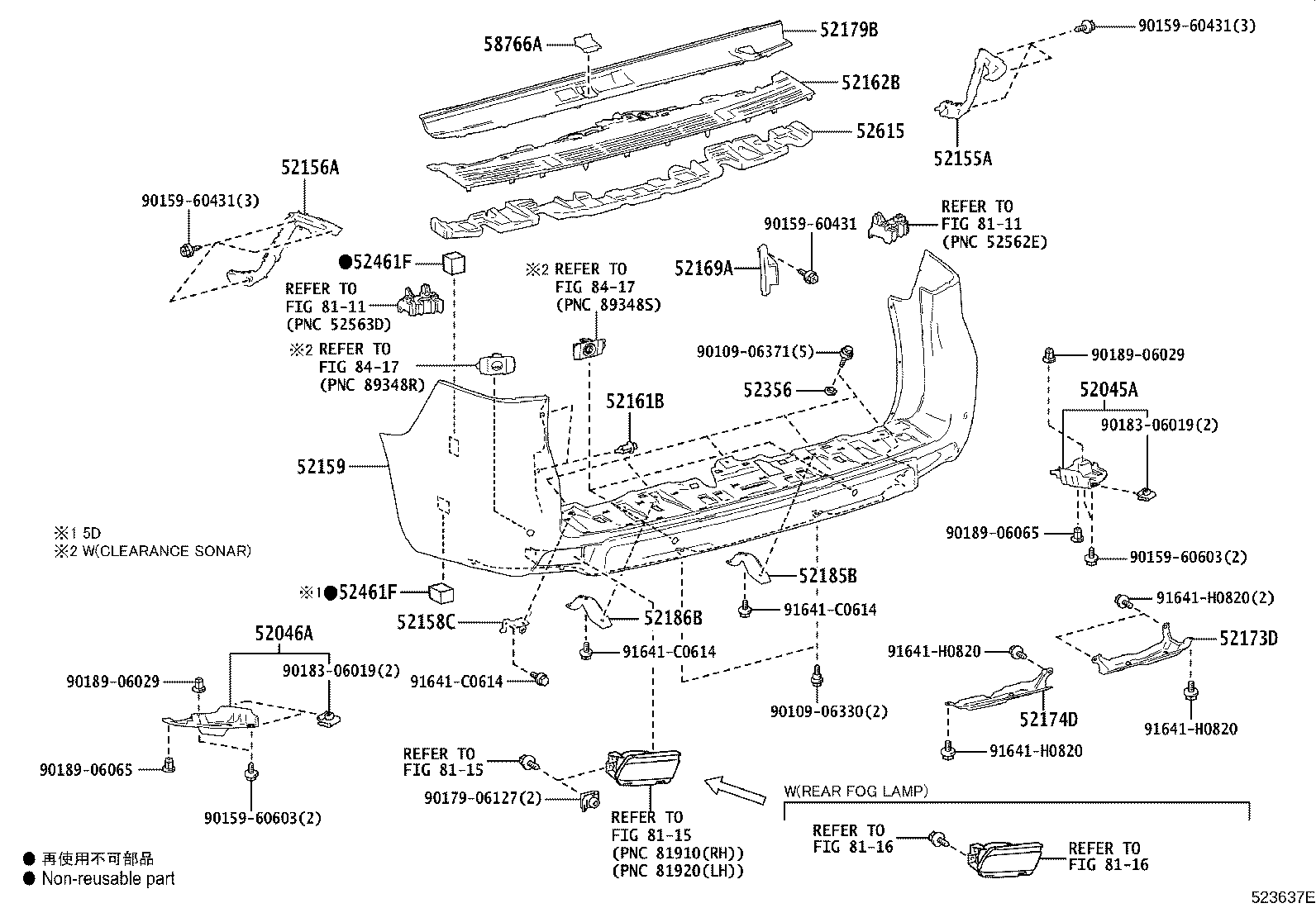

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52045A - PROTECTOR SUB-ASSY, REAR BUMPER, RH | ||||
| 58723-60020 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 52046A - PROTECTOR SUB-ASSY, REAR BUMPER, LH | ||||
| 58724-60020 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52151-60150 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-60080 |
GRJ150,KDJ150,LJ150,TRJ150 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-60080 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-60070 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-60971 |
GRJ150,KDJ150,LJ150,TRJ150 PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 52159-60970 |
GRJ150,KDJ150,LJ150,TRJ150 PAINT REQ. |
1 | ||
| 52159-60971 |
GRJ150,KDJ150..GEN PAINT REQ.,REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52159-60971 |
GRJ150,KDJ150,LJ150,TRJ150..GEN PAINT REQ.,REAR FOG LAMP-WITH&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 52159-60971 |
GRJ150,KDJ150..5FC;GRJ150,KDJ150..6F..(GCC,GEN) PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-60050 |
GRJ150,KDJ150,LJ150,TRJ15# DARK GRAY |
1 | ||
| 52162-60090 |
GRJ150,KDJ150,LJ150,TRJ15# BLACK |
1 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52169-60080 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52169-60080C0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 BLACK |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52179B - PLATE, REAR BUMPER BAR | ||||
| 52179-60050 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52179-60080 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-60100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-60100 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-60050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
5 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-60040 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-60040 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-60040 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-60040 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
4 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-60050 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 58766A - COVER, JACK BOX HOLE | ||||
| 58766-60030 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 58766-60020 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90109-06371 | ||||
| 90159-60393 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| 90189-06145 | ||||
| 91641-C0614 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 7652 | ||||
| 8111 | ||||
| 8115 | ||||
| 8116 | ||||
| 8417 | ||||

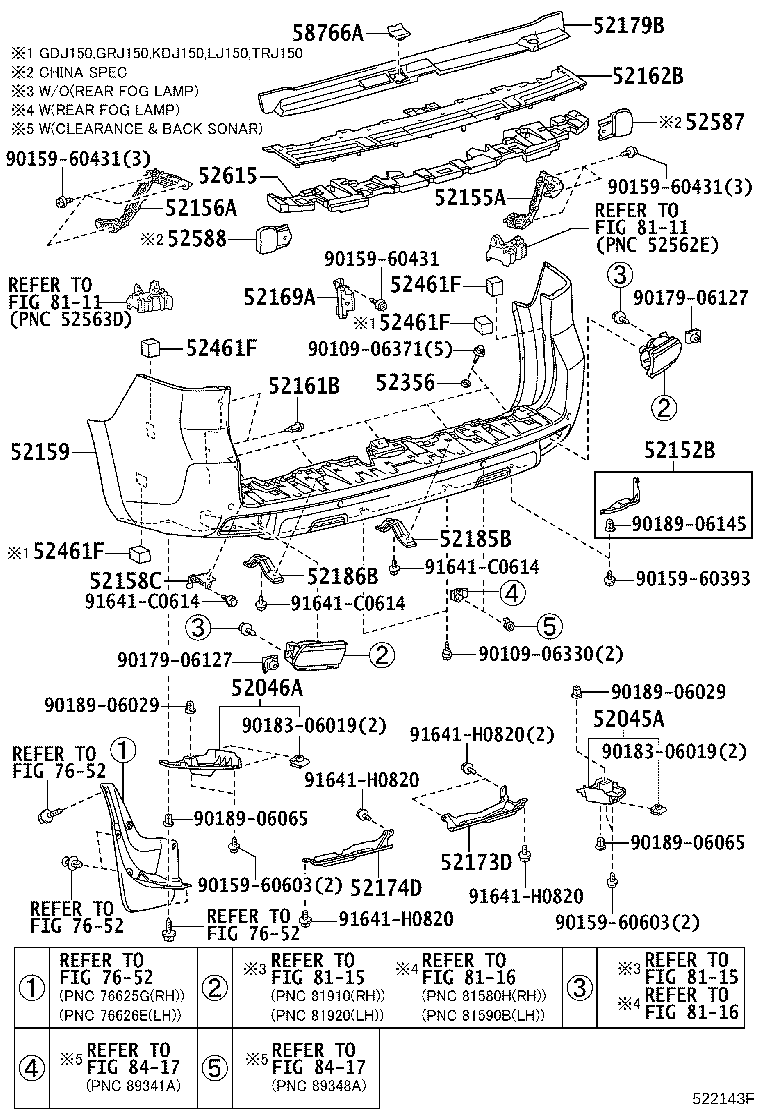

(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06330 | ||||
| 90109-06371 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| 91641-C0614 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 8111 | ||||
| 8115 | ||||
| 8116 | ||||
| 8417 | ||||
