KDJ150L-GKAEY (2009)
Toyota Land Cruiser Prado
Production
Aug 2009
-
Aug 2013
Engine
1KDFTV
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )5FC

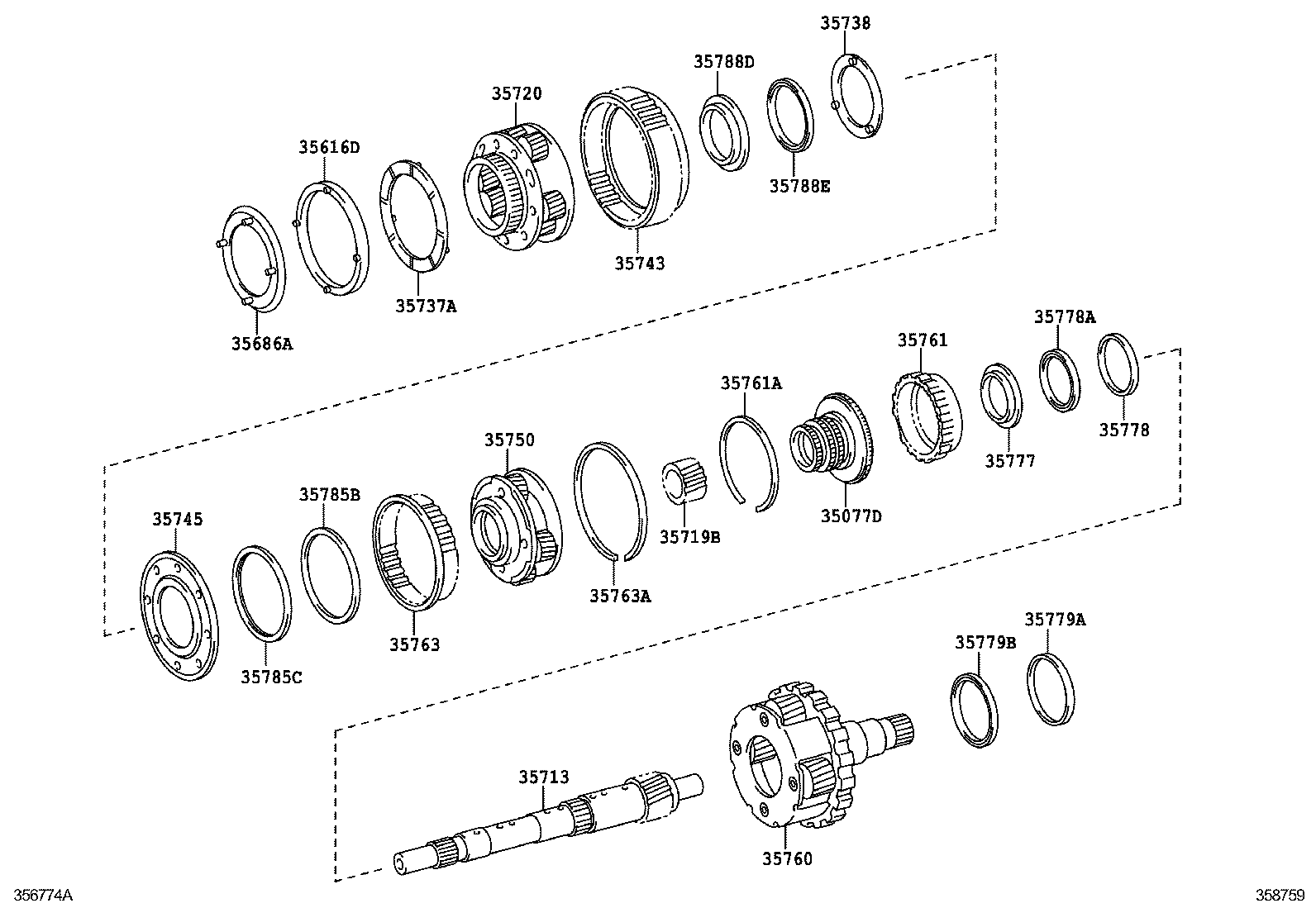

Click highlighted areas on diagram
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-60010 |
GRJ150,KDJ150..5FC |
1 | ||
| 35616D - WASHER, CLUTCH DRUM THRUST | ||||
| 35616-60010 |
GRJ150,KDJ150..5FC |
1 | ||
| 35686A - WASHER, CLUTCH DRUM THRUST, NO.2 | ||||
| 35686-60010 |
GRJ150,KDJ150..5FC |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-60050 |
KDJ150..5FC |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-60050 |
GRJ150,KDJ150..5FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-60070 |
KDJ150..5FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-60030 |
GRJ150,KDJ150..5FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-60030 |
KDJ150..5FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-60060 |
GRJ150,KDJ150..5FC |
1 | ||
| 35745 - FLANGE, FRONT PLANETARY RING GEAR | ||||
| 35745-60010 |
GRJ150,KDJ150..5FC |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-60010 |
GRJ150,KDJ150..5FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-60061 |
KDJ150..5FC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-60040 |
KDJ150..5FC |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-99073 |
KDJ150..5FC |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-60020 |
GRJ150,KDJ150..5FC |
1 | ||
| 35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR) | ||||
| 90520-99076 |
GRJ150,KDJ150..5FC |
1 | ||
| 35777 - RACE, THRUST BEARING, NO.7 | ||||
| 35777-60010 |
KDJ150..5FC |
1 | ||
| 35778 - RACE, THRUST BEARING, NO.8 | ||||
| 35778-60010 |
KDJ150..5FC |
1 | ||
| 35778A - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-32010 |
KDJ150..5FC |
1 | ||
| 35779A - RACE, THRUST BEARING, NO.9 | ||||
| 35779-60011 |
KDJ150..5FC |
1 | ||
| 35779B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-43007 |
KDJ150..5FC |
1 | ||
| 35785B - RACE, THRUST BEARING, NO.4 | ||||
| 35785-60010 |
KDJ150..5FC |
1 | ||
| 35785C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-55004 |
KDJ150..5FC |
1 | ||
| 35788D - RACE, THRUST BEARING, NO.3 | ||||
| 35788-60010 |
KDJ150..5FC |
1 | ||
| 35788E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-44005 |
KDJ150..5FC |
1 | ||
(1708- )5FC
Click highlighted areas on diagram
A750F
| Part # | Description | Qty | Price |
|---|
