KDJ150L-GKAEY (2009)
Toyota Land Cruiser Prado
ILLUST NO. 1 OF 2(0908- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30150 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30150 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-51501 |
1KDFTV..KDJ150 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-51501 |
1KDFTV..KDJ150 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30090 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-52501 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-52501 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16361 - FAN | ||||
| 16361-67020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30300 |
1KDFTV..KDJ150..5FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-31570 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
2 | ||
| 16445-50380 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-31570 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
2 | ||
| 16445-50380 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-31570 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
2 | ||
| 16445-50380 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-31570 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
2 | ||
| 16445-50380 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-51010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16475-37010 |
1KDFTV..KDJ150 |
1 | ||
| 16417 - COCK | ||||
| 16417-51030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16418 - PACKING | ||||
| 16418-51030 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-30300 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-30300 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16460-30300 |
1KDFTV..KDJ150..5FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-30300 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-30040 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16470-30041 |
1KDFTV..KDJ150 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50381 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.2 |
4 | ||
| 16547-50380 |
1KDFTV..KDJ150 NO.2 |
4 | ||
| 16547-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC NO.1 |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-50370 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-30100 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30100 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-30040 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| Common parts | ||||
| 87124-37080 | ||||
| 90179-06185 | ||||
| 90179-06293 | ||||
| 90468-10034 | ||||
| 91631-B0616 | ||||
| 91671-A0622 | ||||
| 91673-80845 | ||||
| Linked diagrams | ||||
| 1709 | ||||

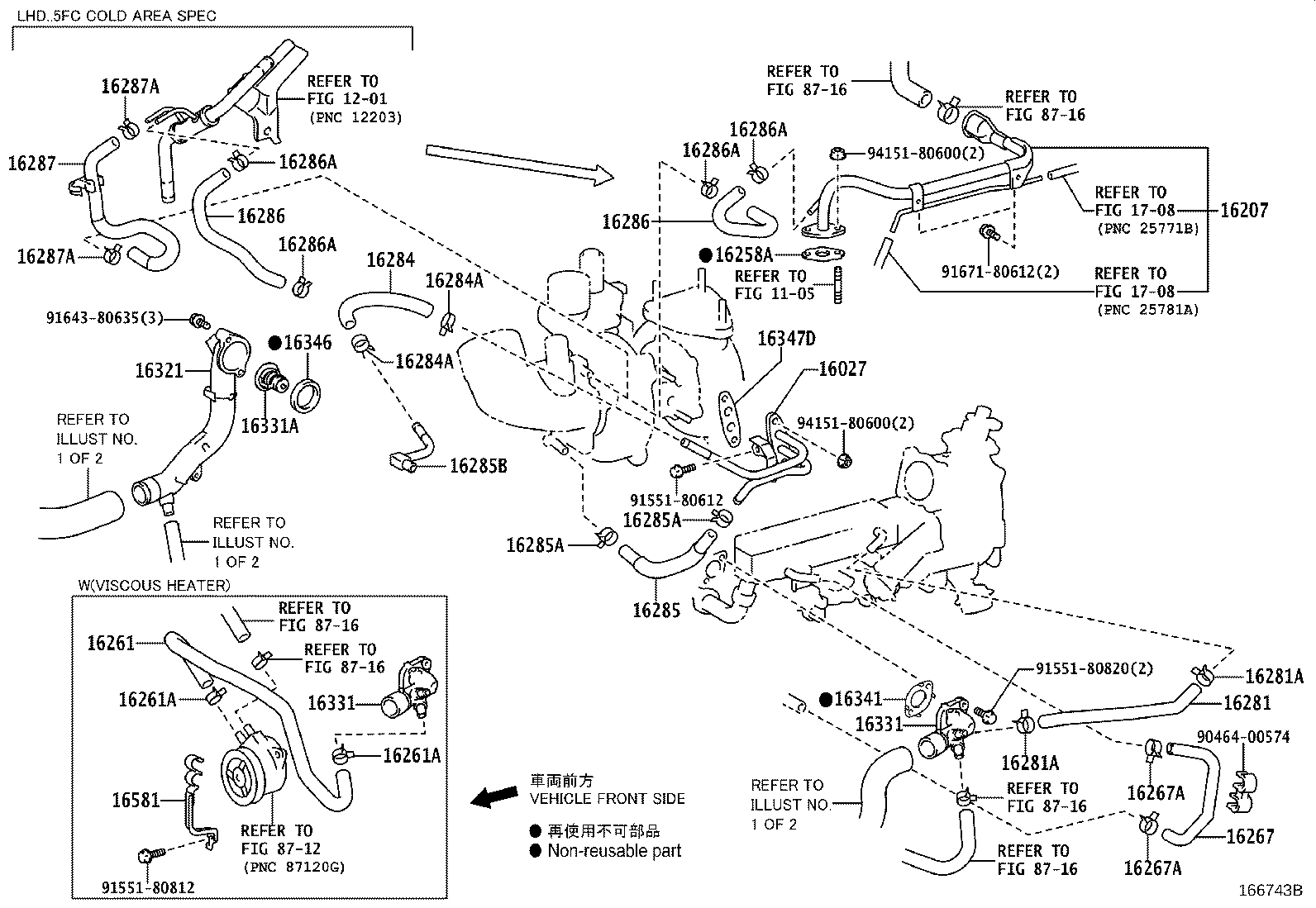

ILLUST NO. 2 OF 2(0908- )1KDFTV..GEN
FOR EURO 4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30110 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30130 |
1KDFTV..KDJ150 |
1 | ||
| 16207-30131 |
1KDFTV..KDJ150 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-30160 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30090 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30060 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30071 |
1KDFTV..KDJ150 |
1 | ||
| 16285-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16285-30071 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30071 |
1KDFTV..KDJ150 |
1 | ||
| 16285-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16285-30071 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-08029 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286-30120 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16286-30051 |
1KDFTV..KDJ150 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286-30120 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16286-30051 |
1KDFTV..KDJ150 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30061 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16287-30060 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13128 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-13128 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-30033 |
1KDFTV..KDJ150 |
1 | ||
| 16321-30080 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16304-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16304-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KDFTV..KDJ150 |
1 | ||
| 16346-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC (J) |
1 | ||
| 16346-0K010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC (L) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30200 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1201 | ||||
| 1708 | ||||
| 8712 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(0908- )1KDFTV..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30110 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30130 |
1KDFTV..KDJ150 |
1 | ||
| 16207-30131 |
1KDFTV..KDJ150 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30130 |
1KDFTV..KDJ150 |
1 | ||
| 16207-30131 |
1KDFTV..KDJ150 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-30160 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30071 |
1KDFTV..KDJ150 |
1 | ||
| 16285-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16285-30071 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30071 |
1KDFTV..KDJ150 |
1 | ||
| 16285-30070 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16285-30071 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-08029 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286-30120 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16286-30051 |
1KDFTV..KDJ150 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30050 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16286-30120 |
1KDFTV..KDJ150..LHD..5FC..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16286-30051 |
1KDFTV..KDJ150 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-13128 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-30033 |
1KDFTV..KDJ150 |
1 | ||
| 16321-30080 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16304-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-30050 |
1KDFTV..KDJ150..GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16304-30010 |
1KDFTV..KDJ150..GEN ENGINE-FOR EURO 4 CONFORMITY |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KDFTV..KDJ150 |
1 | ||
| 16346-67010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC (J) |
1 | ||
| 16346-0K010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC (L) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-30200 |
1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1708 | ||||
| 8712 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1708- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-37080 | ||||
| 90179-06185 | ||||
| 90179-06293 | ||||
| 90468-10034 | ||||
| 91631-B0616 | ||||
| 91671-A0622 | ||||
| 91673-80845 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(1708- )1KDFTV..GEN
EURO 4 CONFORMITY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1201 | ||||
| 1708 | ||||
| 8712 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1708- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1708 | ||||
| 8712 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
