KDJ150L-GKAEY (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV

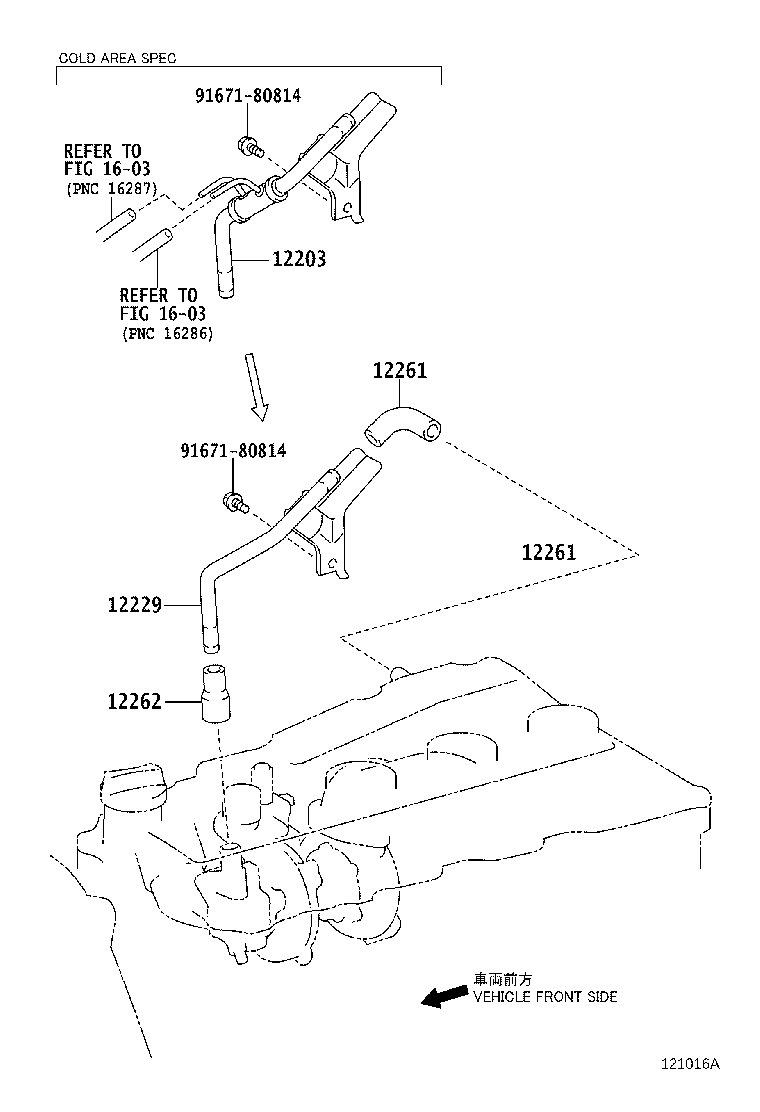

Click highlighted areas on diagram

diagram 12203 12229 12261 12261 12262 1603 1603 9167180814 9167180814
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-30101

1KDFTV..KDJ150..LHD..5FC..GEN

KAZAKHSTAN,GEORGIA,AZORES SPEC&ENGINE-FOR EURO 4 CONFORMITY

 1
12203-30100

1KDFTV..KDJ150..LHD..GEN

KAZAKHSTAN,GEORGIA,AZORES SPEC

 1
12229 - PIPE, VENTILATION
12229-30040

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12261 - HOSE, VENTILATION
12261-30040

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12261 - HOSE, VENTILATION
12261-30040

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12262 - HOSE, VENTILATION, NO.2
12262-30040

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
Common parts
91671-80814
Linked diagrams
1603

(1708- )1KDFTV

Click highlighted areas on diagram

diagram 12203 12229 12261 12262 1603 1603 9167180814 9167180814
Part # Description Qty Price
Common parts
91671-80814
Linked diagrams
1603
