KDJ150L-GKAEY (2009)

Toyota Land Cruiser Prado

Production Aug 2009 - Aug 2013
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

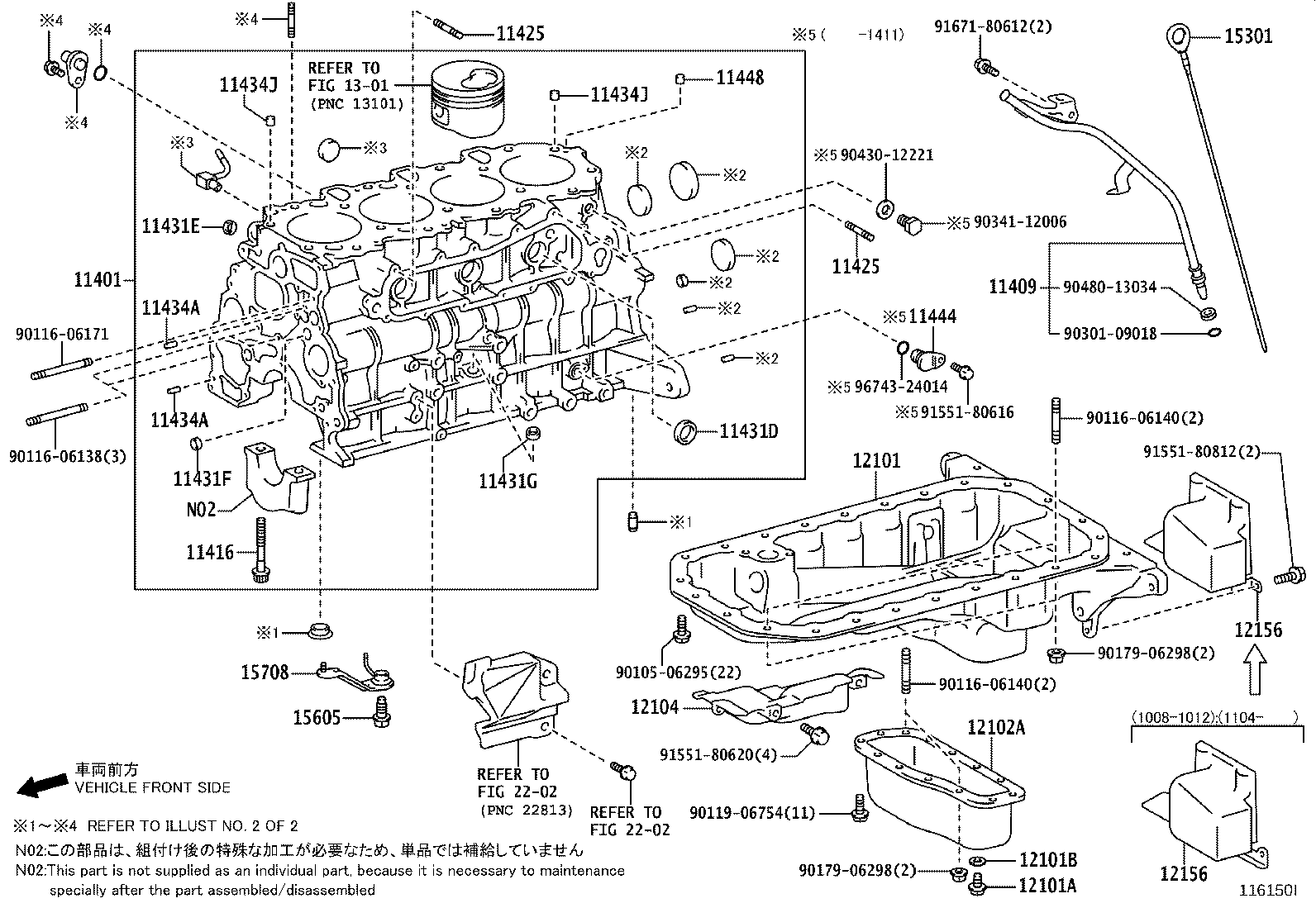

ILLUST NO. 1 OF 2(0908- )1KDFTV

Click highlighted areas on diagram

diagram 11401 11409 11416 11425 11425 11431D 11431E 11431F 11431G 11434A 11434A 11434J 11434J 11444 11448 12101 12101A 12101B 12102A 12104 12156 12156 1301 15301 15605 15708 2202 2202 9010506295 9011606138 9011606140 9011606140 9011606171 9011906754 9017906298 9017906298 9030109018 9034112006 9043012221 9048013034 9155180616 9155180620 9155180812 9167180612 9674324014
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39878

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-30090

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02113

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06171

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11425 - BOLT, STUD(FOR OIL FILTER)
90116-06171

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-35004

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-62000

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11431G - PLUG, TIGHT
90331-14006

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

L=18,OD=8

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

L=18,OD=8

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11444 - PLUG, HOLE
11444-67020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-67010

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12101 - PAN SUB-ASSY, OIL
12101-30080

1KDFTV..KDJ150

 1
12101-30081

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-30020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12104 - COVER SUB-ASSY, OIL PAN, NO.1
12104-30010

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12156 - INSULATOR, OIL PAN
12156-30020

1KDFTV..KDJ150

 1
12156-30010

1KDFTV..KDJ150

 1
12156-30010

1KDFTV..KDJ150

 1
12156-30020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12156 - INSULATOR, OIL PAN
12156-30020

1KDFTV..KDJ150

 1
12156-30010

1KDFTV..KDJ150

 1
12156-30010

1KDFTV..KDJ150

 1
12156-30020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-66020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-17030

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-30011

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 4
Common parts
90105-06295
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90301-09018
90341-12006
90430-12221
90480-13034
91551-80616
91551-80620
91551-80812
91671-80612
96743-24014
Linked diagrams
1301
2202

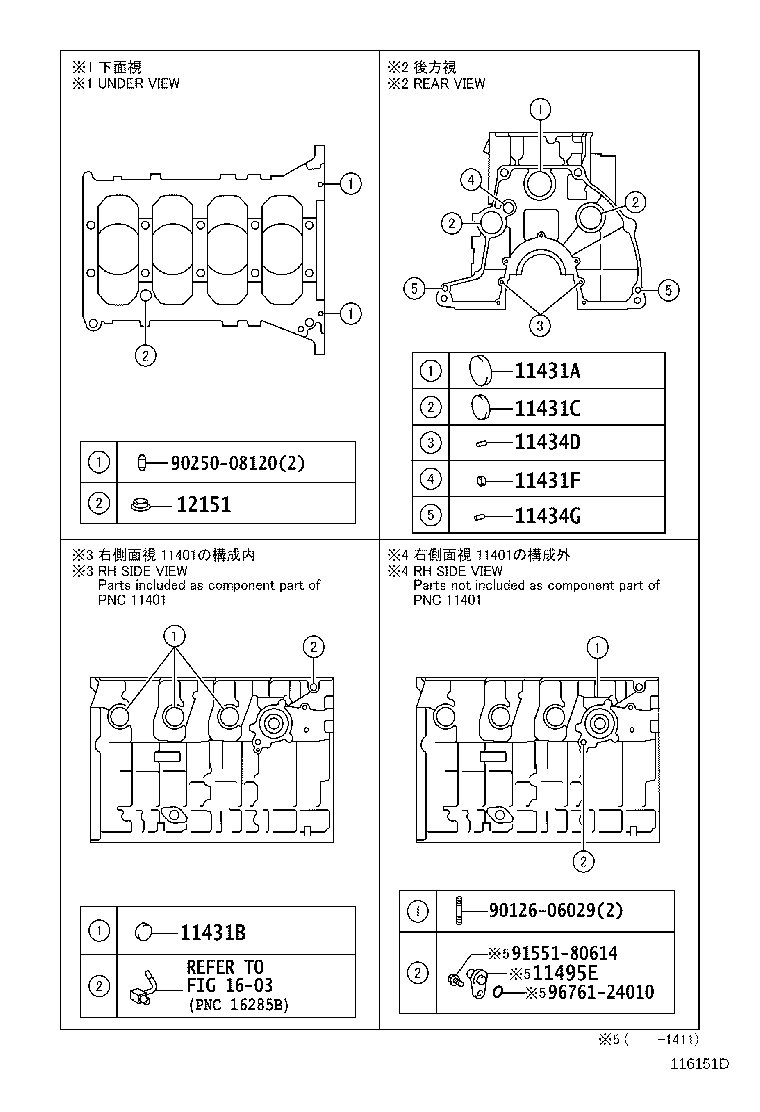

ILLUST NO. 2 OF 2(0908- )1KDFTV

Click highlighted areas on diagram

diagram 11431A 11431B 11431C 11431F 11434D 11434G 11495E 12151 1603 9012606029 9025008120 9155180614 9676124010
Part # Description Qty Price
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 2
11495E - PLUG, PLATE
11495-30010

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
12151 - GASKET, OIL PAN
12151-30020

1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC

 1
Common parts
90126-06029
90250-08120
91551-80614
96761-24010
Linked diagrams
1603

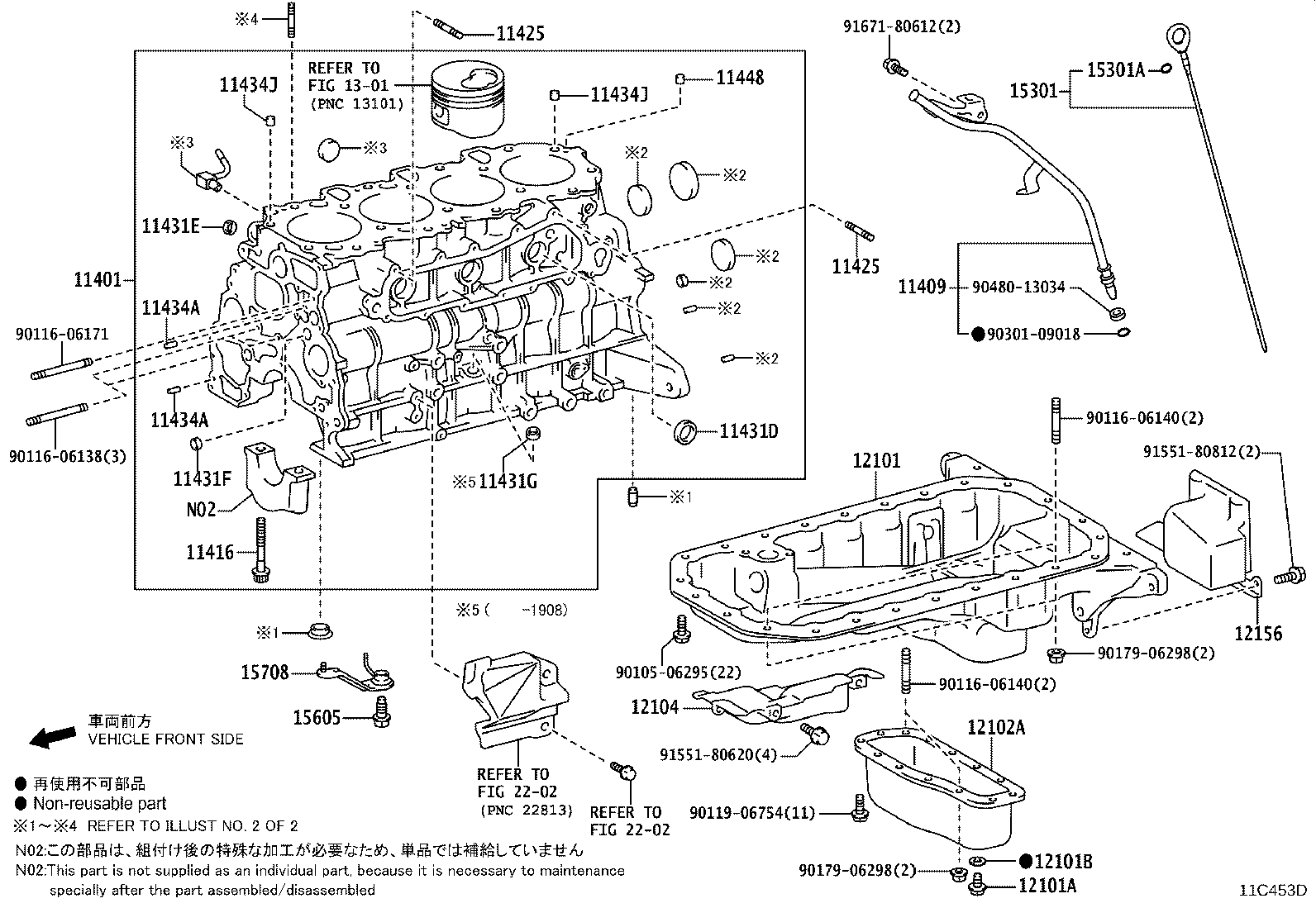

ILLUST NO. 1 OF 2(1708- )1KDFTV

Click highlighted areas on diagram

diagram 11401 11409 11416 11425 11425 11431D 11431E 11431F 11431G 11434A 11434A 11434J 11434J 11448 12101 12101A 12101B 12102A 12104 12156 1301 15301 15301A 15605 15708 2202 2202 9010506295 9011606138 9011606140 9011606140 9011606171 9011906754 9017906298 9017906298 9030109018 9048013034 9155180620 9155180812 9167180612
Part # Description Qty Price
Common parts
90105-06295
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90301-09018
90480-13034
91551-80620
91551-80812
91671-80612
Linked diagrams
1301
2202

ILLUST NO. 2 OF 2(1708- )1KDFTV

Click highlighted areas on diagram

diagram 11431A 11431B 11431C 11431F 11434D 11434G 12151 1603 9012606029 9025008120
Part # Description Qty Price
Common parts
90126-06029
90250-08120
Linked diagrams
1603
