KDJ120R-GKAEYQ (2006)

Toyota Land Cruiser Prado

Production Aug 2006 - Aug 2009
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )1KDFTV

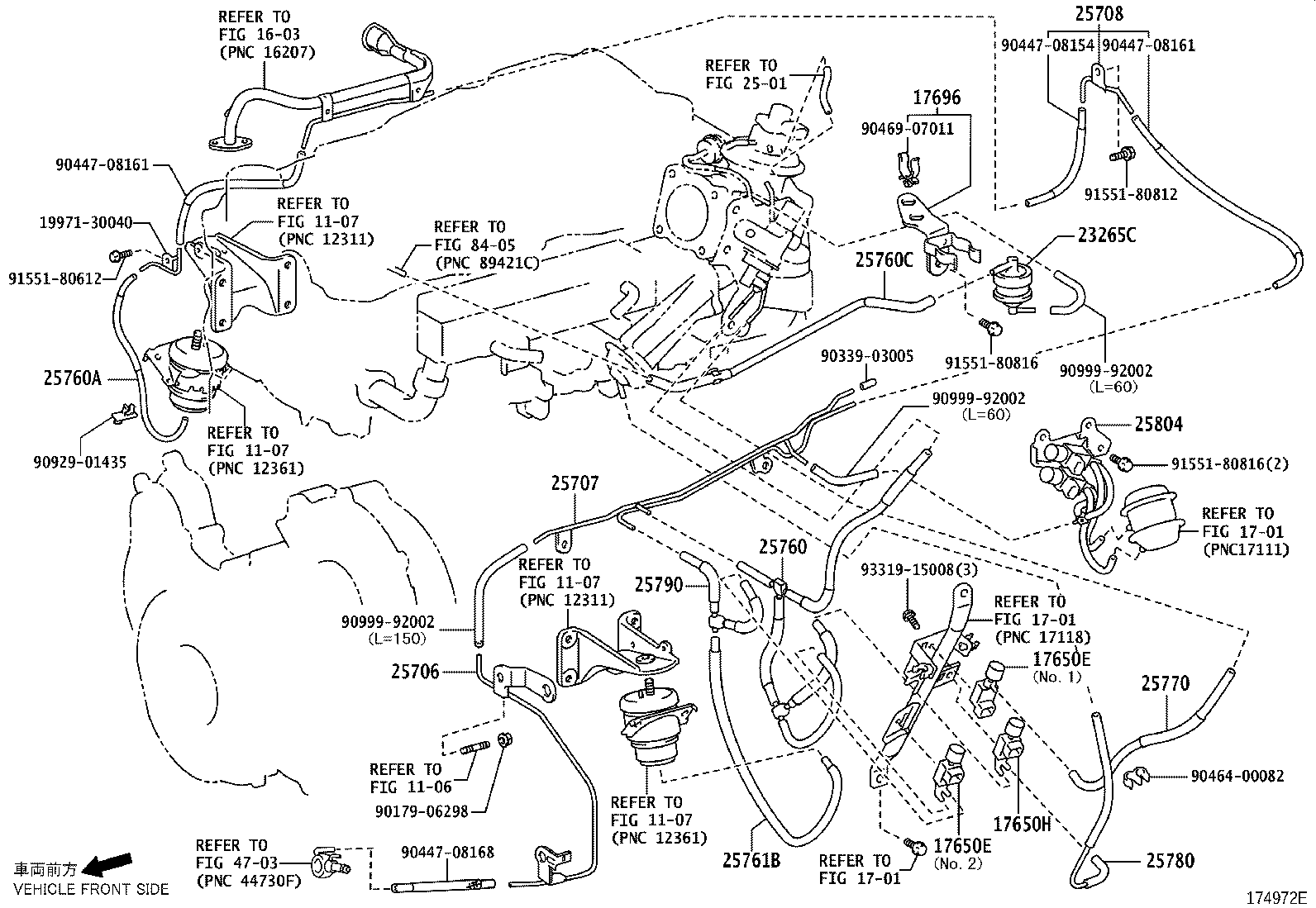

Click highlighted areas on diagram

diagram 1106 1107 1107 1107 1107 1603 1701 1701 1701 17650E 17650E 17650H 17696 1997130040 23265C 2501 25706 25707 25708 25760 25760A 25760C 25761B 25770 25780 25790 25804 4703 8405 9017906298 9033903005 9044708154 9044708161 9044708161 9044708168 9046400082 9046907011 9092901435 9099992002 9099992002 9099992002 9155180612 9155180812 9155180816 9155180816 9331915008
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12089

1KDFTV..KDJ120

NO.2

 1
90910-12184

1KDFTV..KDJ120

NO.1

 1
17650E - VALVE, VACUUM SWITCHING
90910-12089

1KDFTV..KDJ120

NO.2

 1
90910-12184

1KDFTV..KDJ120

NO.1

 1
17650H - VALVE, VACUUM SWITCHING
90910-12093

1KDFTV..KDJ120

 1
17696 - BRACKET, GAS FILTER
17696-30020

1KDFTV..KDJ120

 1
23265C - FILTER, GAS
90917-11044

1KDFTV..KDJ120

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30010

1KDFTV..KDJ120

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30010

1KDFTV..KDJ120

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25708-30030

1KDFTV..KDJ120

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-30100

1KDFTV..KDJ120

 1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-46120

1KDFTV..KDJ120

 1
25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25760-30070

1KDFTV..KDJ120

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-30020

1KDFTV..KDJ120

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-30030

1KDFTV..KDJ120

 1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-30020

1KDFTV..KDJ120

 1
25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25790-30010

1KDFTV..KDJ120

 1
25804 - VALVE SET, VACUUM CONTROL
25804-30010

1KDFTV..KDJ120

 1
Common parts
19971-30040
90179-06298
90339-03005
90447-08154
90447-08161
90447-08168
90464-00082
90469-07011
90929-01435
90999-92002
91551-80612
91551-80812
91551-80816
93319-15008
