GRJ152L-GKTGHC (2015)

Toyota Land Cruiser Prado

Production Sep 2015 - Jun 2020
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(1711- )

Click highlighted areas on diagram

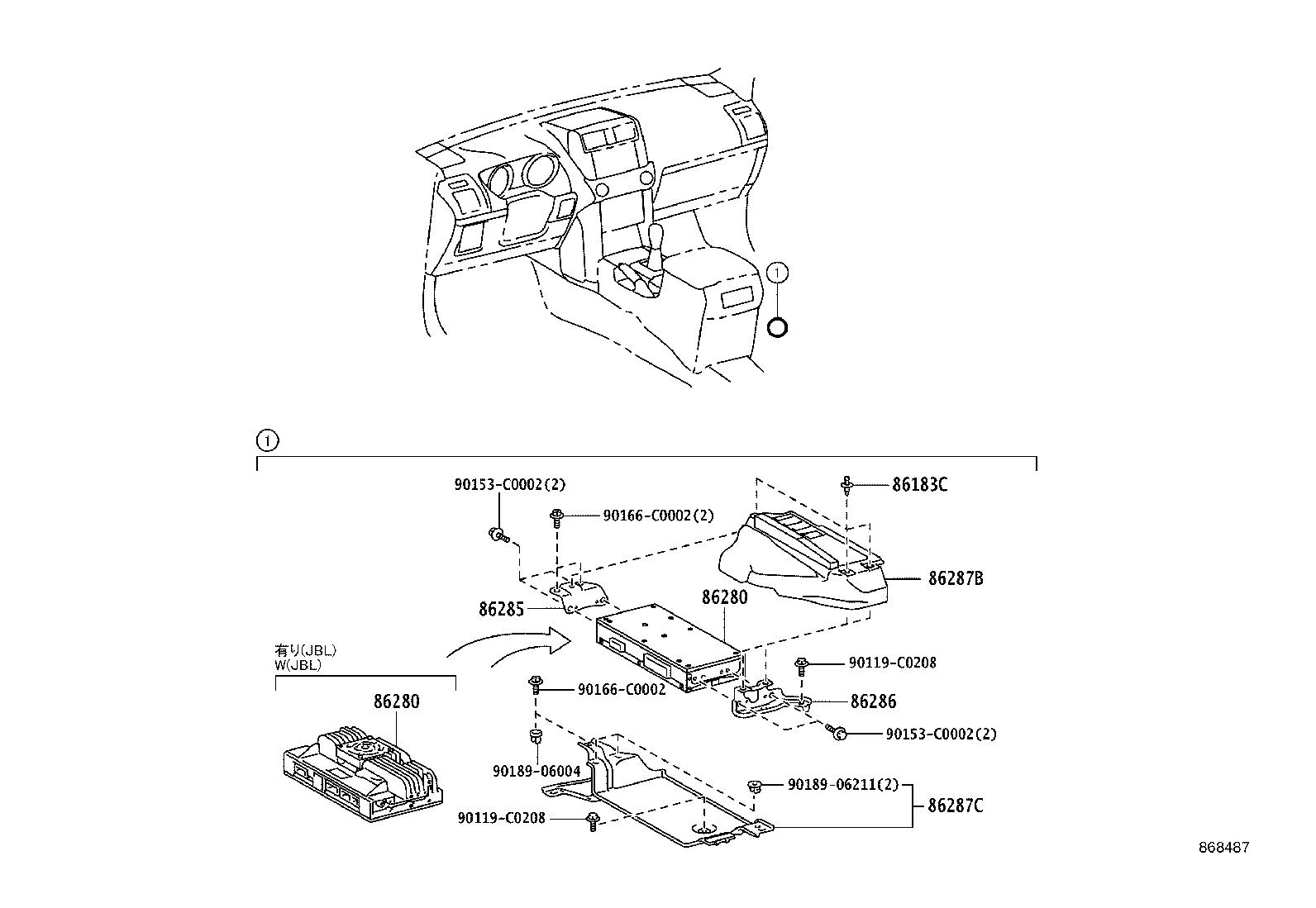

AUDIO AMP(VERTICAL MOUNT)

diagram 86183C 86280 86280 86285 86286 86287B 86287C 90119C0208 90119C0208 90153C0002 90153C0002 90166C0002 90166C0002 9018906004 9018906211
Part # Description Qty Price
86183C - CLIP, AUDIO RACK
90467-07076C7

GRJ152..VX

BLACK

 3
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0G050

GRJ152..VX

AUDIO-AVN & JBL & 14SPEAKER

 1
86280-0G060

GRJ152..VX

VX NAVI PACKAGE

 1
86280-0G030

GRJ152

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0G050

GRJ152..VX

AUDIO-AVN & JBL & 14SPEAKER

 1
86280-0G060

GRJ152..VX

VX NAVI PACKAGE

 1
86280-0G030

GRJ152

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60210

GRJ152..VX

 1
86285-60240

GRJ152..VX

VX NAVI PACKAGE

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-60160

GRJ152..VX

VX NAVI PACKAGE

 1
86286-60120

GRJ152..VX

 1
86287B - COVER, AMPLIFIER
86287-60150

GRJ152..VX

 1
86287C - COVER, AMPLIFIER NO.2
86287-60130

GRJ152..VX

 1
Common parts
90119-C0208
90153-C0002
90166-C0002
90189-06004
90189-06211

ILLUST NO. 2 OF 4(1711- )

Click highlighted areas on diagram

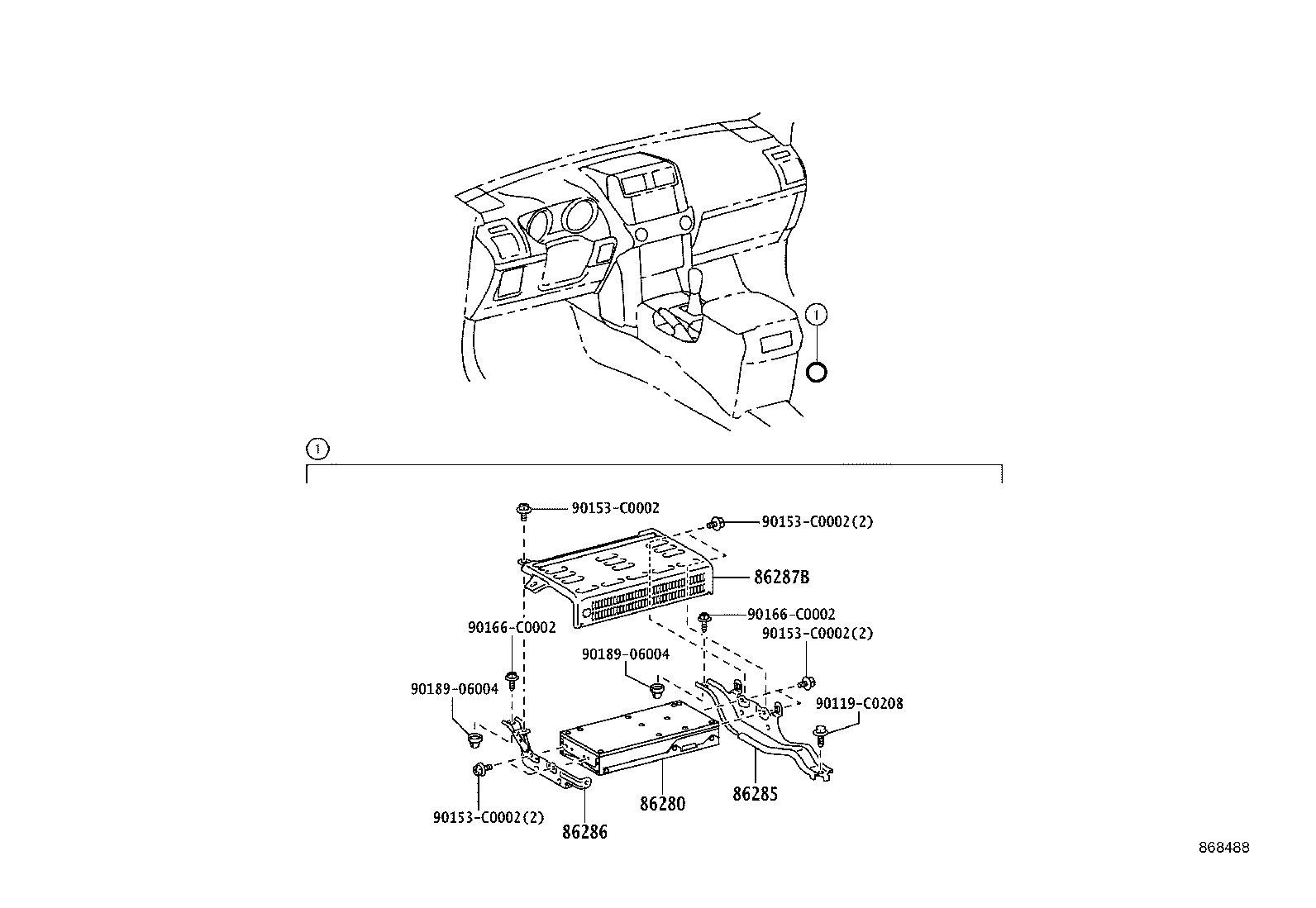

AUDIO AMP(HORIZONTAL MOUNT)

diagram 86280 86285 86286 86287B 90119C0208 90153C0002 90153C0002 90153C0002 90153C0002 90166C0002 90166C0002 9018906004 9018906004
Part # Description Qty Price
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0G050

GRJ152..VX

AUDIO-AVN & JBL & 14SPEAKER

 1
86280-0G060

GRJ152..VX

VX NAVI PACKAGE

 1
86280-0G030

GRJ152

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60210

GRJ152..VX

 1
86285-60240

GRJ152..VX

VX NAVI PACKAGE

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-60160

GRJ152..VX

VX NAVI PACKAGE

 1
86286-60120

GRJ152..VX

 1
86287B - COVER, AMPLIFIER
86287-60150

GRJ152..VX

 1
Common parts
90119-C0208
90153-C0002
90166-C0002
90189-06004

ILLUST NO. 1 OF 4(1711- )

Click highlighted areas on diagram

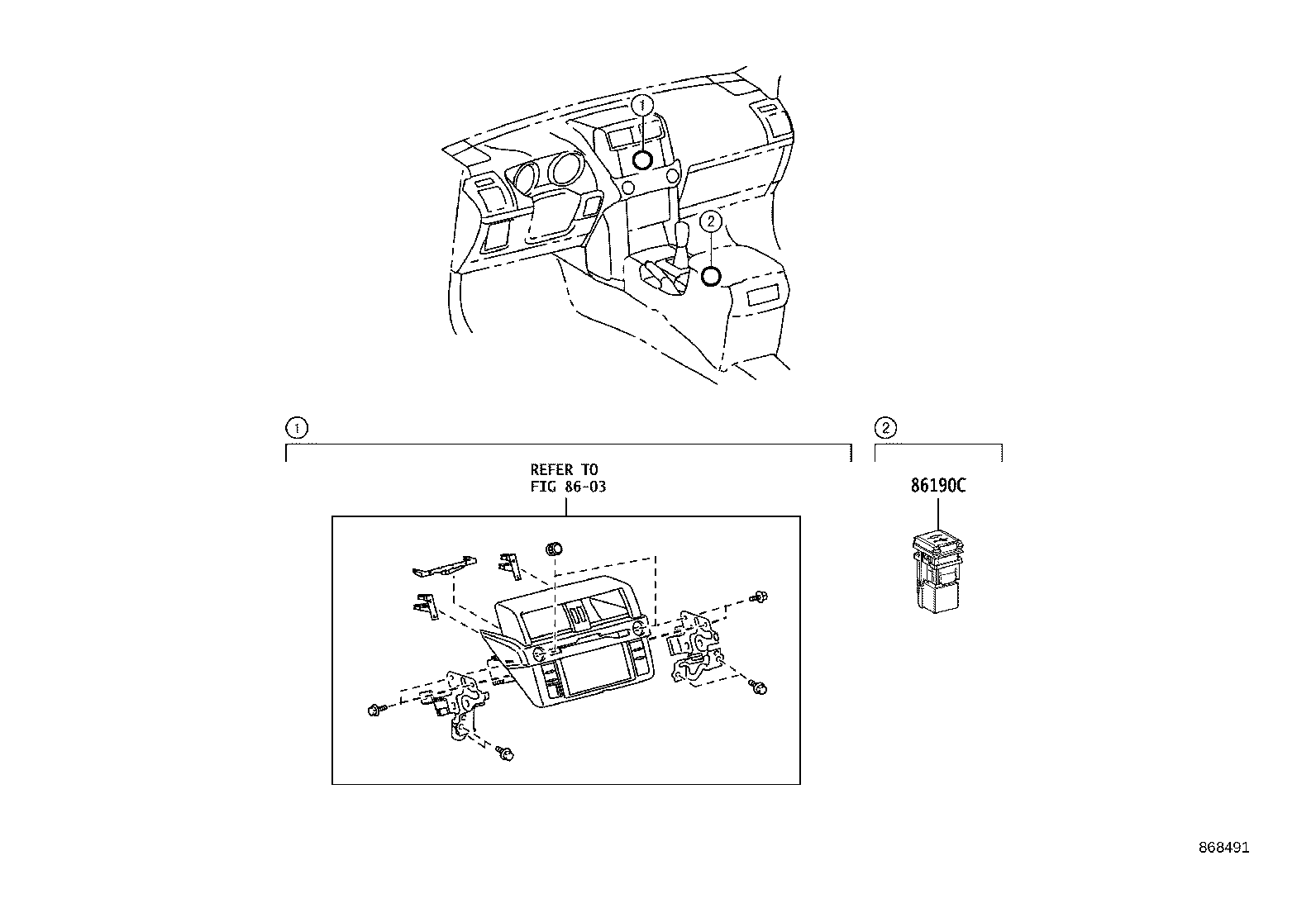

AUDIO UNIT & USB JACK

diagram 8603 86190C
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12040

GRJ152

 1
Linked diagrams
8603
