GRJ152L-GKTEHC (2015)
Toyota Land Cruiser Prado
Production
Sep 2015
-
Jun 2020
Engine
7GRFKS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )GRJ152

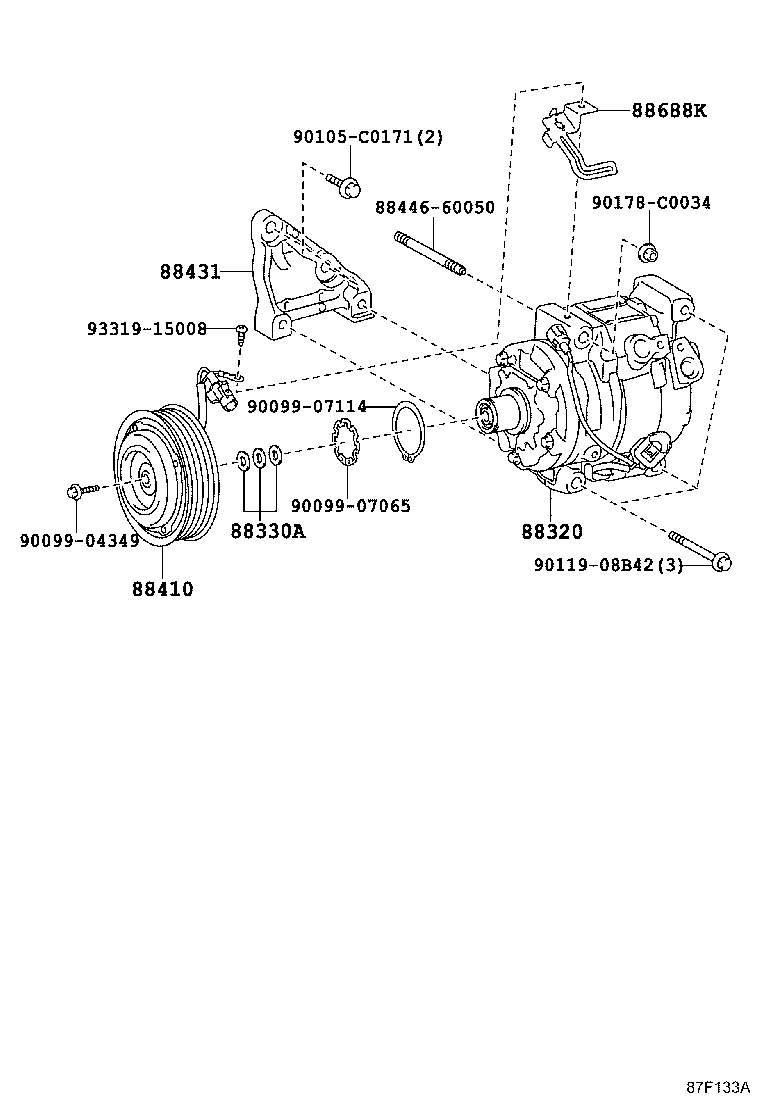

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60A02 |
GRJ152..TX REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 88320-60A01 |
GRJ152,TRJ152..TX |
1 | ||
| 88320-60A02 |
GRJ152 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GRJ152 |
1 | ||
| 88335-14020 |
GRJ152,TRJ152 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60A01 |
GRJ152,TRJ152 |
1 | ||
| 88410-60450 |
GRJ152 |
1 | ||
| 88410-60450 |
GRJ152,TRJ152 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0G010 |
GRJ152 |
1 | ||
| 88431-0G010 |
GRJ152 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-6B260 |
GRJ152,TRJ152 |
1 | ||
| 88688-6B260 |
GRJ152 |
1 | ||
| Common parts | ||||
| 88446-60050 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-C0171 | ||||
| 90119-08B42 | ||||
| 90178-C0034 | ||||
| 93319-15008 | ||||
