GRJ152L-GKTEHC (2015)
Toyota Land Cruiser Prado

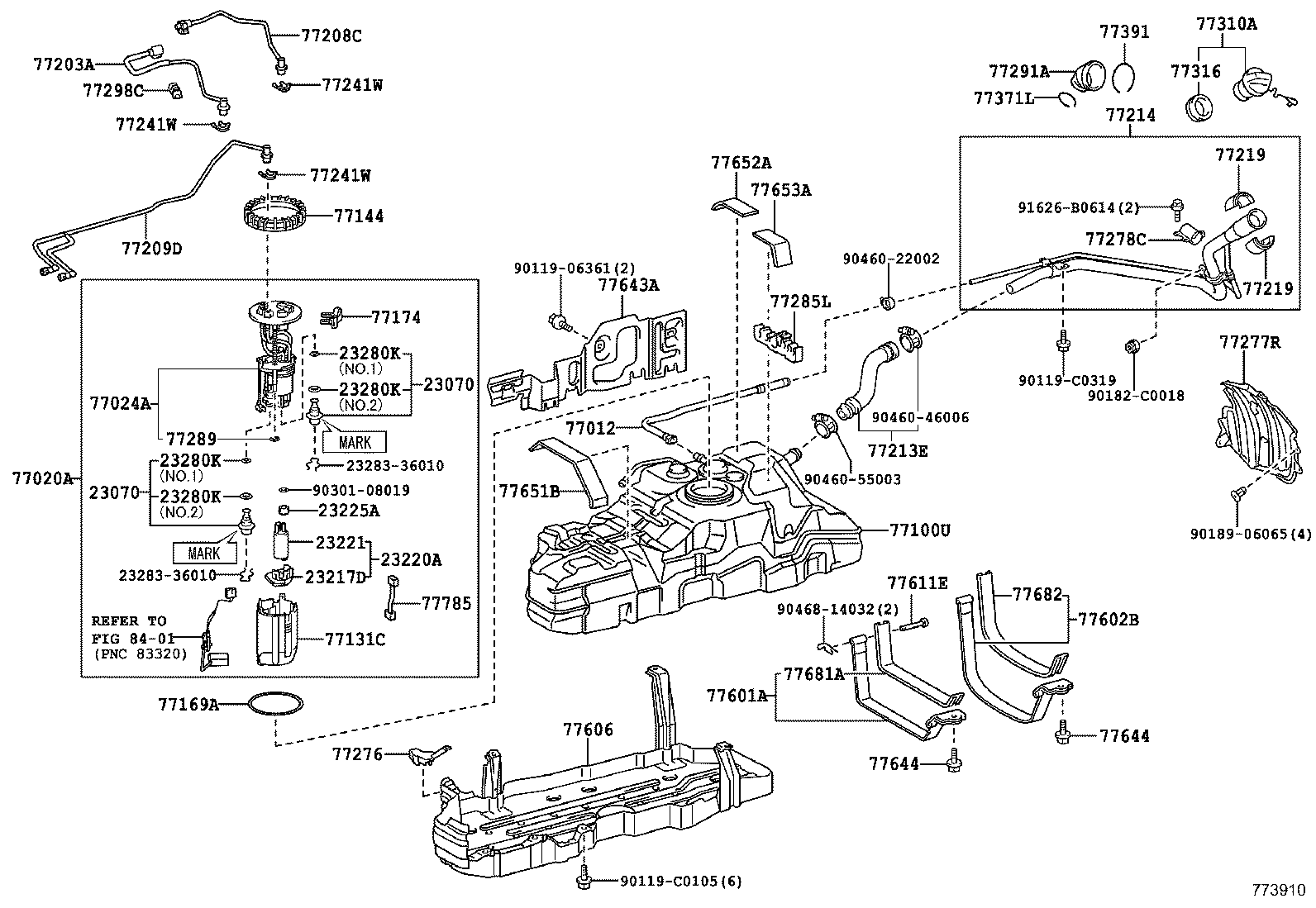

ILLUST NO. 1 OF 3(1509- )GRJ152
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
7GRFKS..GRJ152 MARK 23070-36010 |
1 | ||
| 23070-31030 |
7GRFKS..GRJ152 MARK 23070-31030 |
1 | ||
| 23070-31030 |
7GRFKS..GRJ152 MARK 23070-31030 |
1 | ||
| 23070-36010 |
7GRFKS..GRJ152 MARK 23070-36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
7GRFKS..GRJ152 MARK 23070-36010 |
1 | ||
| 23070-31030 |
7GRFKS..GRJ152 MARK 23070-31030 |
1 | ||
| 23070-31030 |
7GRFKS..GRJ152 MARK 23070-31030 |
1 | ||
| 23070-36010 |
7GRFKS..GRJ152 MARK 23070-36010 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
7GRFKS..GRJ152 |
1 | ||
| 23217-31080 |
7GRFKS..GRJ152 |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31330 |
7GRFKS..GRJ152 |
1 | ||
| 23220-31330 |
7GRFKS..GRJ152 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
7GRFKS..GRJ152 |
1 | ||
| 23221-31130 |
7GRFKS..GRJ152 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
7GRFKS..GRJ152 |
1 | ||
| 23225-31010 |
7GRFKS..GRJ152 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 90301-15024 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 90301-04013 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-0G030 |
GRJ152 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-60601 |
GRJ152 |
1 | ||
| 77020-60600 |
GRJ152 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60340 |
GRJ152 |
1 | ||
| 77024-60480 |
GRJ152 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-0G020 |
GRJ152 |
1 | ||
| 77001-0G020 |
GRJ152 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-60160 |
GRJ152 |
1 | ||
| 77131-60210 |
GRJ152 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-35010 |
GRJ152 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
GRJ152 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-60040 |
GRJ152 |
1 | ||
| 77174-60040 |
GRJ152 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-0G010 |
GRJ152 |
1 | ||
| 77203-0G010 |
GRJ152 |
1 | ||
| 77208C - TUBE SUB-ASSY, FUEL RETURN, NO.4 | ||||
| 77208-0G010 |
GRJ152 |
1 | ||
| 77208-0G010 |
GRJ152 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0G030 |
GRJ152 |
1 | ||
| 77209-0G030 |
GRJ152 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0G020 |
GRJ152 |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-0G010 |
GRJ152,TRJ152 |
1 | ||
| 77210-0G010 |
GRJ152 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52040 |
GRJ152 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52040 |
GRJ152 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ152 |
3 | ||
| 77241-33011 |
GRJ152 |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ152 |
3 | ||
| 77241-33011 |
GRJ152 |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ152 |
3 | ||
| 77241-33011 |
GRJ152 |
3 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-35040 |
GRJ152 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-0G010 |
GRJ152 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77277-0G020 |
GRJ152 |
1 | ||
| 77277-0G020 |
GRJ152,TRJ152 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35620 |
GRJ152 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GRJ152 |
1 | ||
| 77289-52090 |
GRJ152 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0G020 |
GRJ152 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-60100 |
GRJ152 |
1 | ||
| 77298-60100 |
GRJ152 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0F010 |
GRJ152 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0F020 |
GRJ152 |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-35010 |
GRJ152 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12060 |
GRJ152 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60420 |
GRJ152 |
1 | ||
| 77601-60420 |
GRJ152,TRJ152 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60120 |
GRJ152 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0G011 |
GRJ152 |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ152 |
2 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-0G010 |
GRJ152 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GRJ152 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GRJ152 |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0G010 |
GRJ152 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-0G010 |
GRJ152 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-0G010 |
GRJ152 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-60210 |
GRJ152 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-35041 |
GRJ152 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-60070 |
GRJ152 |
1 | ||
| 77785-60070 |
GRJ152 |
1 | ||
| Common parts | ||||
| 23283-36010 | ||||
| 90119-06361 | ||||
| 90119-C0105 | ||||
| 90119-C0319 | ||||
| 90182-C0018 | ||||
| 90189-06065 | ||||
| 90301-08019 | ||||
| 90460-22002 | ||||
| 90460-46006 | ||||
| 90460-55003 | ||||
| 90468-14032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

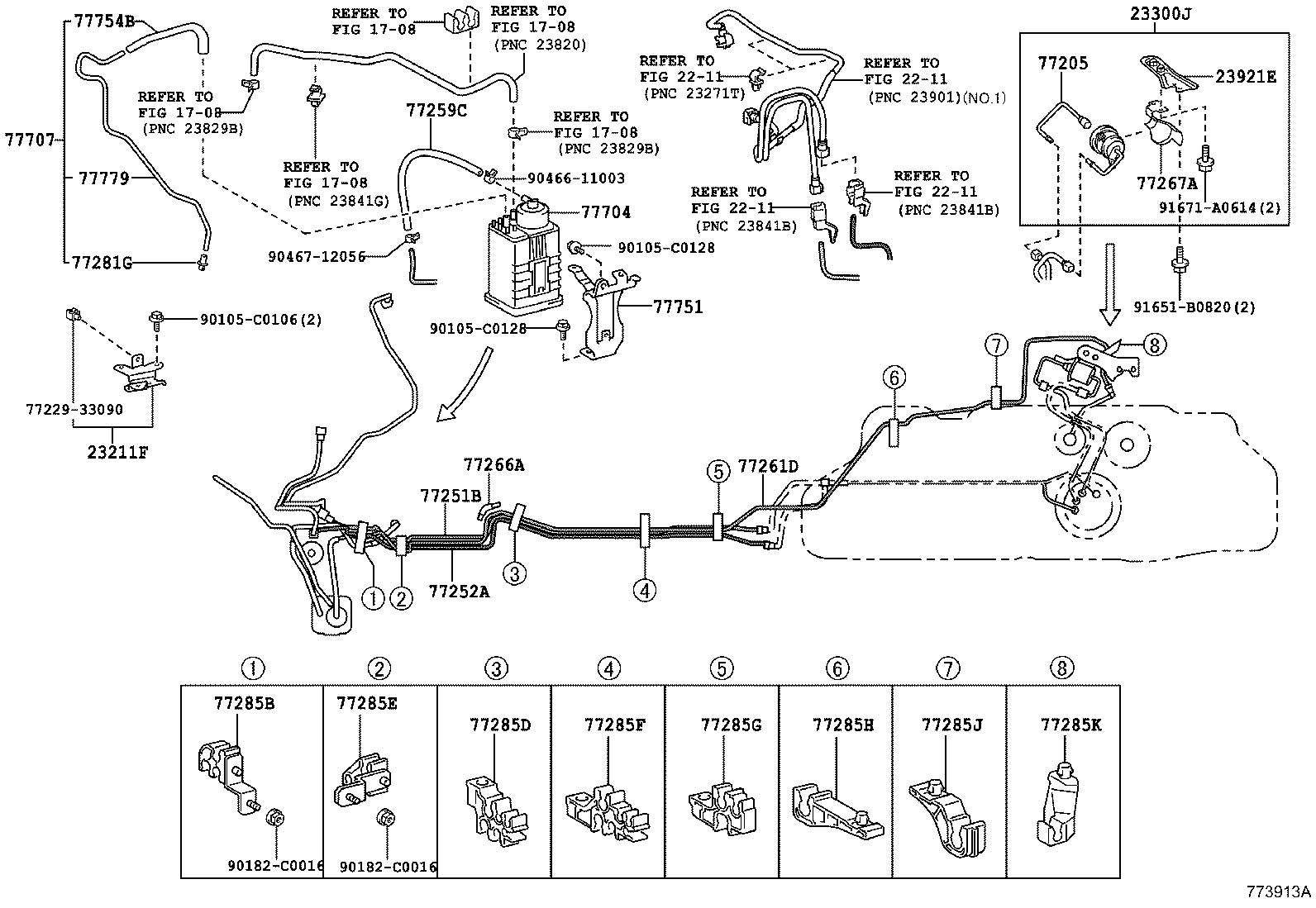

ILLUST NO. 2 OF 3(1509-1906)GRJ152
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23211F - BRACKET | ||||
| 23264-31011 |
7GRFKS..GRJ152 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23310-31030 |
7GRFKS..GRJ152 |
1 | ||
| 23310-31031 |
7GRFKS..GRJ152 |
1 | ||
| 23310-31031 |
7GRFKS..GRJ152 |
1 | ||
| 23921E - SUPPORT, FUEL FILTER | ||||
| 23921-30060 |
7GRFKS..GRJ152 |
1 | ||
| 23921-31060 |
7GRFKS..GRJ152 |
1 | ||
| 23921-31060 |
7GRFKS..GRJ152 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60C90 |
GRJ152 |
1 | ||
| 77205-60C90 |
GRJ152 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0G030 |
GRJ152 |
1 | ||
| 77251-0G030 |
GRJ152 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-0G010 |
GRJ152 |
1 | ||
| 77252-0G010 |
GRJ152 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95333-06040 |
GRJ152 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0G030 |
GRJ152 |
1 | ||
| 77261-0G030 |
GRJ152 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60160 |
GRJ152 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60170 |
GRJ152 |
1 | ||
| 77266-60170 |
GRJ152 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60430 |
GRJ152 |
1 | ||
| 16581-25050 |
GRJ152 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35631 |
GRJ152 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35670 |
GRJ152 |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35641 |
GRJ152 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35680 |
GRJ152 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35690 |
GRJ152 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35700 |
GRJ152 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35710 |
GRJ152 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0G010 |
GRJ152 |
1 | ||
| 77285-0G010 |
GRJ152 |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-63010 |
GRJ152 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-0G010 |
GRJ152 |
1 | ||
| 77707-60070 |
GRJ152 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0G010 |
GRJ152 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-60380 |
GRJ152 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-0G010 |
GRJ152 |
1 | ||
| 77779-0G010 |
GRJ152 |
1 | ||
| Common parts | ||||
| 77229-33090 | ||||
| 90105-C0106 | ||||
| 90105-C0128 | ||||
| 90182-C0016 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 91651-B0820 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

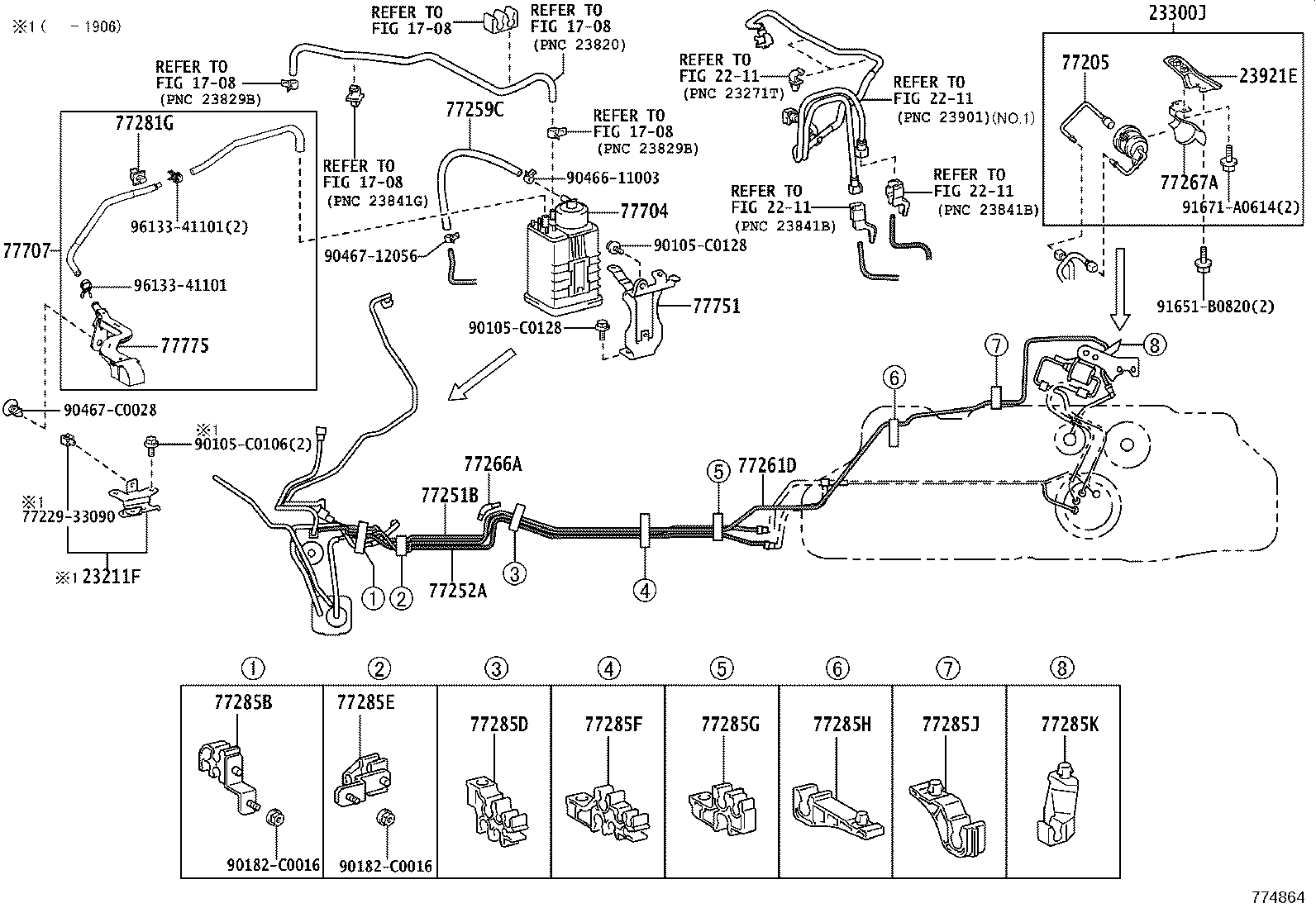

ILLUST NO. 2 OF 3(1906- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23211F - BRACKET | ||||
| 23264-31011 |
7GRFKS..GRJ152 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23310-31030 |
7GRFKS..GRJ152 |
1 | ||
| 23310-31031 |
7GRFKS..GRJ152 |
1 | ||
| 23310-31031 |
7GRFKS..GRJ152 |
1 | ||
| 23921E - SUPPORT, FUEL FILTER | ||||
| 23921-30060 |
7GRFKS..GRJ152 |
1 | ||
| 23921-31060 |
7GRFKS..GRJ152 |
1 | ||
| 23921-31060 |
7GRFKS..GRJ152 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60C90 |
GRJ152 |
1 | ||
| 77205-60C90 |
GRJ152 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0G030 |
GRJ152 |
1 | ||
| 77251-0G030 |
GRJ152 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-0G010 |
GRJ152 |
1 | ||
| 77252-0G010 |
GRJ152 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 95333-06040 |
GRJ152 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0G030 |
GRJ152 |
1 | ||
| 77261-0G030 |
GRJ152 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60160 |
GRJ152 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60170 |
GRJ152 |
1 | ||
| 77266-60170 |
GRJ152 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60430 |
GRJ152 |
1 | ||
| 16581-25050 |
GRJ152 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35631 |
GRJ152 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35670 |
GRJ152 |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35641 |
GRJ152 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35680 |
GRJ152 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35690 |
GRJ152 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35700 |
GRJ152 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35710 |
GRJ152 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0G010 |
GRJ152 |
1 | ||
| 77285-0G010 |
GRJ152 |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-63010 |
GRJ152 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-0G010 |
GRJ152 |
1 | ||
| 77707-60070 |
GRJ152 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0G010 |
GRJ152 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-60050 |
GRJ152 |
1 | ||
| Common parts | ||||
| 77229-33090 | ||||
| 90105-C0106 | ||||
| 90105-C0128 | ||||
| 90182-C0016 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 90467-C0028 | ||||
| 91651-B0820 | ||||
| 91671-A0614 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
