GRJ152L-GKTEHC (2015)
Toyota Land Cruiser Prado
Production
Sep 2015
-
Jun 2020
Engine
7GRFKS
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

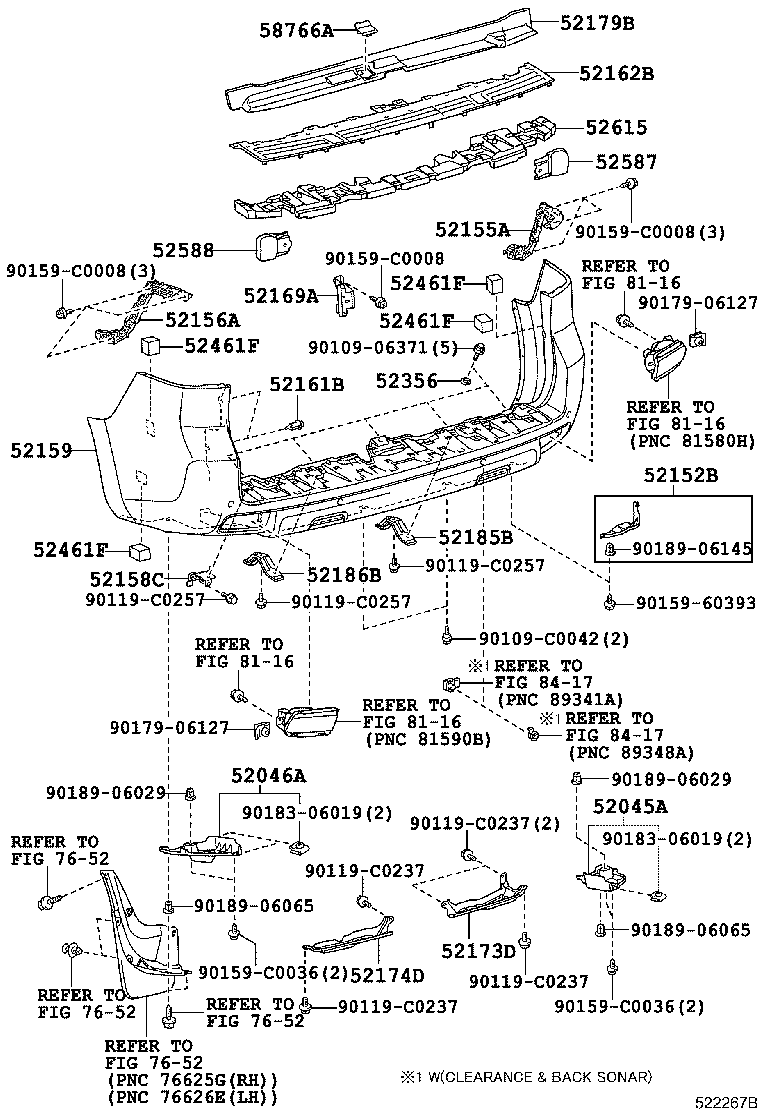

(1005-1711)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0G010 |
GRJ152 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0G010 |
GRJ152 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-0G010 |
GRJ152 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0G905 |
GRJ152..TX TX-L PACKAGE |
1 | ||
| 52154-60040 |
GRJ152..TX |
1 | ||
| 52159-0G905 |
GRJ152..TX TX-L NAVI PACKAGE&AUDIO-AVN & JBL & 14SPEAKER |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GRJ152 |
2 | ||
| 52161-02040 |
GRJ152 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-0G010 |
GRJ152 |
1 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52169-0G010 |
GRJ152 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-0G020 |
GRJ152 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-0G020 |
GRJ152 |
1 | ||
| 52179B - PLATE, REAR BUMPER BAR | ||||
| 52179-0G010 |
GRJ152 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-0G010 |
GRJ152 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-0G010 |
GRJ152 |
1 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-0G010 |
GRJ152 |
5 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-0G010 |
GRJ152 |
1 | ||
| 58766A - COVER, JACK BOX HOLE | ||||
| 58766-60020 |
GRJ152 |
1 | ||
| Common parts | ||||
| 90109-06371 | ||||
| 90109-C0042 | ||||
| 90119-C0237 | ||||
| 90119-C0257 | ||||
| 90159-60393 | ||||
| 90159-C0008 | ||||
| 90159-C0036 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| 90189-06145 | ||||
| Linked diagrams | ||||
| 7652 | ||||
| 8116 | ||||
| 8417 | ||||

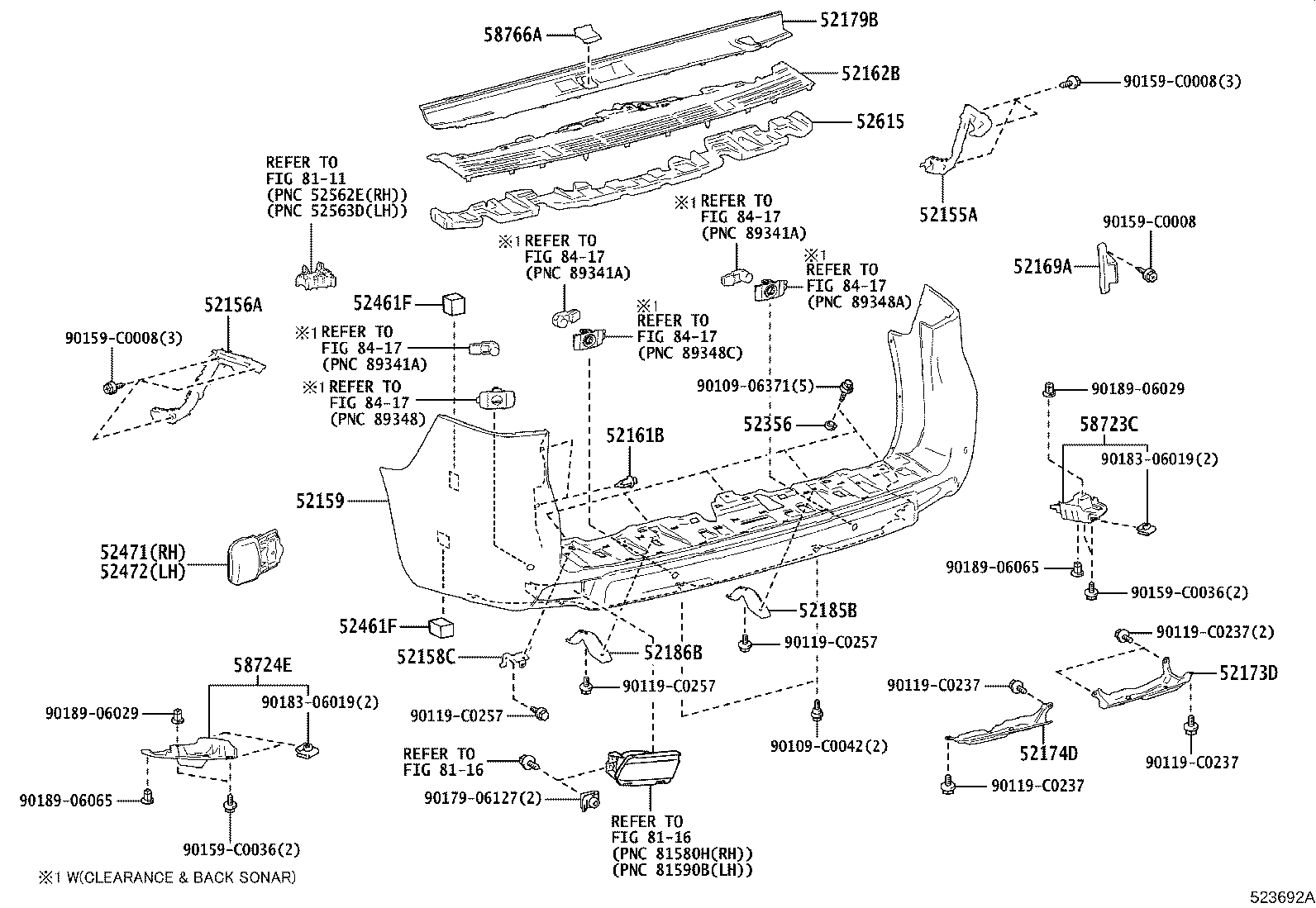

(1711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0G010 |
GRJ152 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0G010 |
GRJ152 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-0G010 |
GRJ152 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0G905 |
GRJ152..TX TX-L PACKAGE |
1 | ||
| 52154-60040 |
GRJ152..TX |
1 | ||
| 52159-0G905 |
GRJ152..TX TX-L NAVI PACKAGE&AUDIO-AVN & JBL & 14SPEAKER |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GRJ152 |
2 | ||
| 52161-02040 |
GRJ152 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-0G010 |
GRJ152 |
1 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52169-0G010 |
GRJ152 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-0G020 |
GRJ152 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-0G020 |
GRJ152 |
1 | ||
| 52179B - PLATE, REAR BUMPER BAR | ||||
| 52179-0G010 |
GRJ152 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-0G010 |
GRJ152 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-0G010 |
GRJ152 |
1 | ||
| 52356 - CUSHION, REAR BUMPER STEP | ||||
| 52356-0G010 |
GRJ152 |
5 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-0G020 |
GRJ152 |
4 | ||
| 52471 - RETAINER, REAR BUMPER GUARD, RH | ||||
| 52471-60010 |
GRJ152 |
1 | ||
| 52472 - RETAINER, REAR BUMPER GUARD, LH | ||||
| 52471-60010 |
GRJ152 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-0G010 |
GRJ152 |
1 | ||
| 58723C - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 | ||||
| 58723-0G010 |
GRJ152 |
1 | ||
| 58724E - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 | ||||
| 58724-0G010 |
GRJ152 |
1 | ||
| 58766A - COVER, JACK BOX HOLE | ||||
| 58766-60020 |
GRJ152 |
1 | ||
| Common parts | ||||
| 90109-06371 | ||||
| 90109-C0042 | ||||
| 90119-C0237 | ||||
| 90119-C0257 | ||||
| 90159-C0008 | ||||
| 90159-C0036 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
| 90189-06029 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 8111 | ||||
| 8116 | ||||
| 8417 | ||||
