GRJ152L-GKTEHC (2015)

Toyota Land Cruiser Prado

Production Sep 2015 - Jun 2020
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

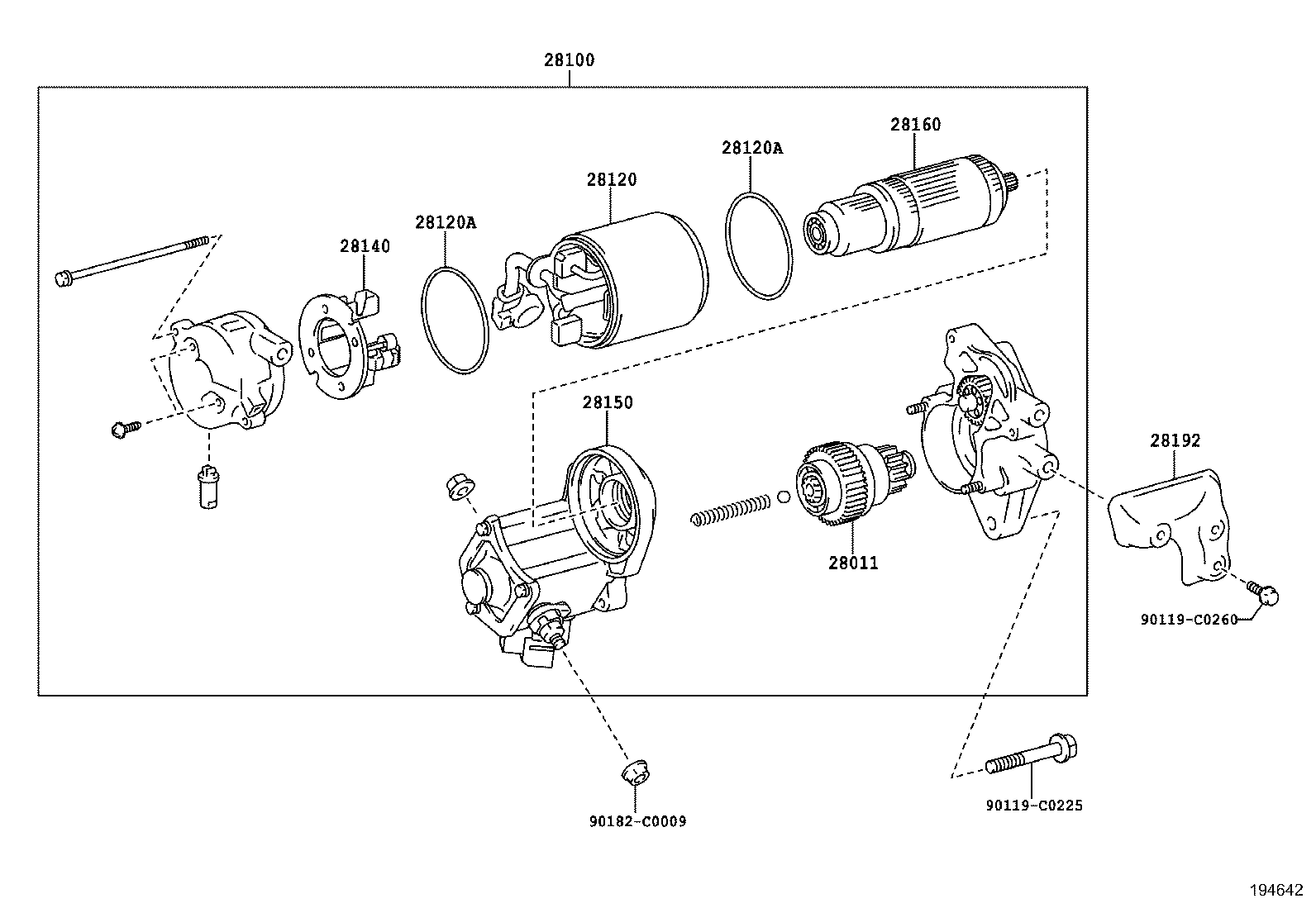

(1509-1711)7GRFKS

Click highlighted areas on diagram

12V 1.4KW

diagram 28011 28100 28120 28120A 28120A 28140 28150 28160 28192 90119C0225 90119C0260 90182C0009
Part # Description Qty Price
28100 - STARTER ASSY
28100-0P100

7GRFKS..GRJ152

12V 1.4KW,(L)

 1
28100-31250

7GRFKS..GRJ152

12V 1.8KW

 1
28120 - YOKE ASSY, STARTER
28120-31250

7GRFKS..GRJ152

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-31250

7GRFKS..GRJ152

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-31250

7GRFKS..GRJ152

 1
28160 - ARMATURE ASSY, STARTER
28160-31250

7GRFKS..GRJ152

 1
28192 - COVER, STARTER
28192-31040

7GRFKS..GRJ152

 1
28192-31041

7GRFKS..GRJ152

 1
28192-31060

7GRFKS..GRJ152

 1
Common parts
90119-C0225
90119-C0260
90182-C0009

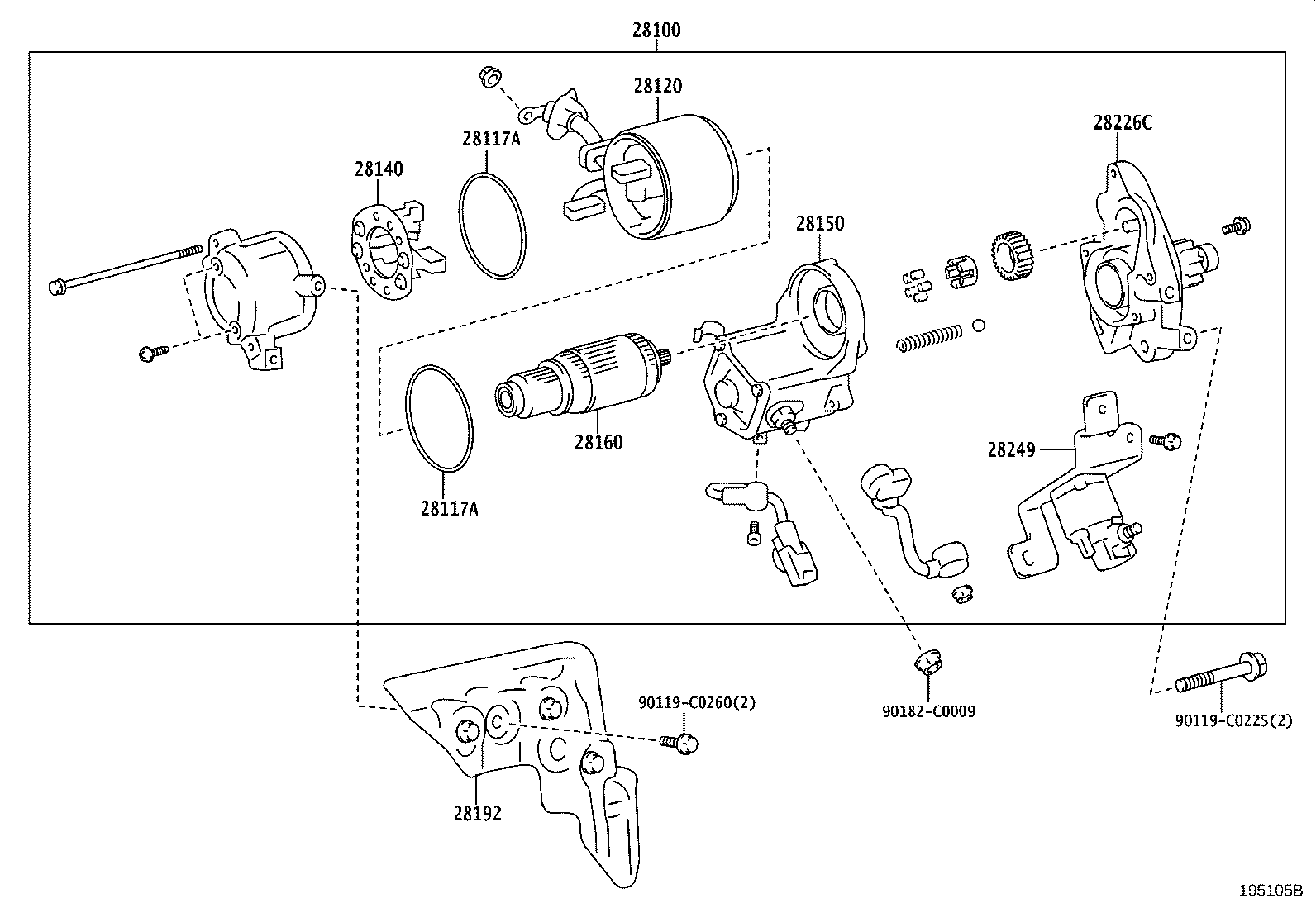

(1711- )

Click highlighted areas on diagram

12V 1.8KW

diagram 28100 28117A 28117A 28120 28140 28150 28160 28192 28226C 28249 90119C0225 90119C0260 90182C0009
Part # Description Qty Price
28100 - STARTER ASSY
28100-0P100

7GRFKS..GRJ152

12V 1.4KW,(L)

 1
28100-31250

7GRFKS..GRJ152

12V 1.8KW

 1
28117A - SEAL, RUBBER
28117-31250

7GRFKS..GRJ152

 2
28117A - SEAL, RUBBER
28117-31250

7GRFKS..GRJ152

 2
28120 - YOKE ASSY, STARTER
28120-31250

7GRFKS..GRJ152

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-31250

7GRFKS..GRJ152

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-31250

7GRFKS..GRJ152

 1
28160 - ARMATURE ASSY, STARTER
28160-31250

7GRFKS..GRJ152

 1
28192 - COVER, STARTER
28192-31040

7GRFKS..GRJ152

 1
28192-31041

7GRFKS..GRJ152

 1
28192-31060

7GRFKS..GRJ152

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-31250

7GRFKS..GRJ152

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-31180

7GRFKS..GRJ152

 1
Common parts
90119-C0225
90119-C0260
90182-C0009
