GRJ152L-GKTEHC (2015)
Toyota Land Cruiser Prado

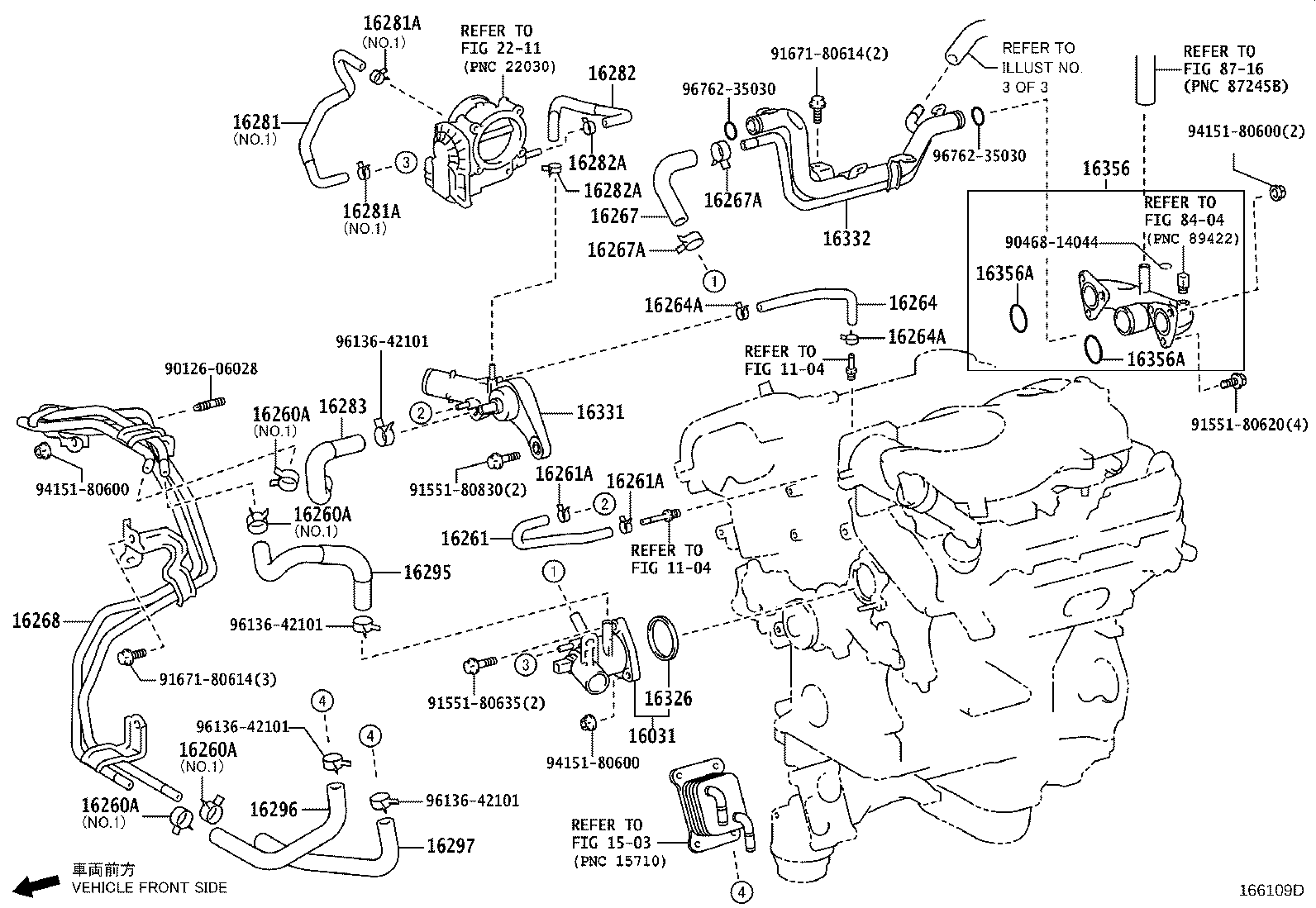

ILLUST NO. 2 OF 3(1509- )7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31051 |
7GRFKS..GRJ152 |
1 | ||
| 16031-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16031-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 96136-52201 |
7GRFKS..GRJ152 |
4 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31021 |
7GRFKS..GRJ152 |
1 | ||
| 16261-31021 |
7GRFKS..GRJ152 |
1 | ||
| 16261-31022 |
7GRFKS..GRJ152 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31170 |
7GRFKS..GRJ152 |
1 | ||
| 16264-0P080 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16264-0P080 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16264-31171 |
7GRFKS..GRJ152 |
1 | ||
| 16264-31170 |
7GRFKS..GRJ152 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16267-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16267-31150 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16267-31150 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0P050 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16268-0P050 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16268-31060 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16268-31060 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16281-31090 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16281-31090 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-31090 |
7GRFKS..GRJ152 |
1 | ||
| 16282-31090 |
7GRFKS..GRJ152 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31060 |
7GRFKS..GRJ152 |
1 | ||
| 16283-31060 |
7GRFKS..GRJ152 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-31040 |
7GRFKS..GRJ152 |
1 | ||
| 16295-31040 |
7GRFKS..GRJ152 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-31110 |
7GRFKS..GRJ152 |
1 | ||
| 16296-31110 |
7GRFKS..GRJ152 |
1 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31080 |
7GRFKS..GRJ152 |
1 | ||
| 16297-31080 |
7GRFKS..GRJ152 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16326-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31260 |
7GRFKS..GRJ152 |
1 | ||
| 16331-31260 |
7GRFKS..GRJ152 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-31030 |
7GRFKS..GRJ152 |
1 | ||
| 16332-31030 |
7GRFKS..GRJ152 |
1 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16356-31050 |
7GRFKS..GRJ152 |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16326-31040 |
7GRFKS..GRJ152 |
2 | ||
| 16326-31040 |
7GRFKS..GRJ152 |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16326-31040 |
7GRFKS..GRJ152 |
2 | ||
| 16326-31040 |
7GRFKS..GRJ152 |
2 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90468-14044 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| 96762-35030 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1503 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||

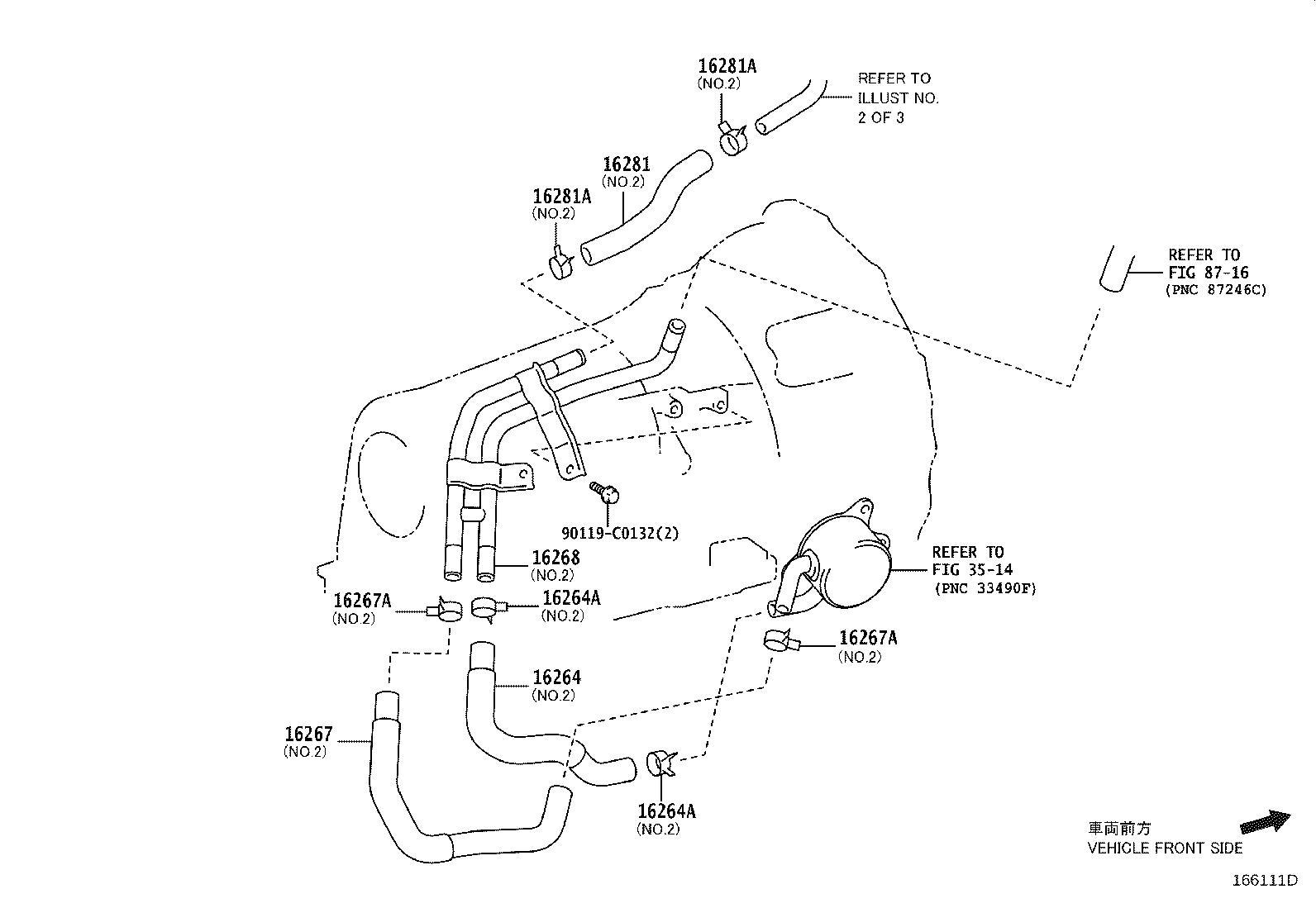

ILLUST NO. 3 OF 3(1509- )7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31170 |
7GRFKS..GRJ152 |
1 | ||
| 16264-0P080 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16264-0P080 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16264-31171 |
7GRFKS..GRJ152 |
1 | ||
| 16264-31170 |
7GRFKS..GRJ152 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96137-41301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16267-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16267-31150 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16267-31150 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 96136-52501 |
7GRFKS..GRJ152 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0P050 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16268-0P050 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16268-31060 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16268-31060 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16281-31090 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281-0P100 |
7GRFKS..GRJ152 NO.2 |
1 | ||
| 16281-31090 |
7GRFKS..GRJ152 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-42501 |
7GRFKS..GRJ152 NO.2 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| 96136-41501 |
7GRFKS..GRJ152 NO.1 |
2 | ||
| Common parts | ||||
| 90119-C0132 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8716 | ||||

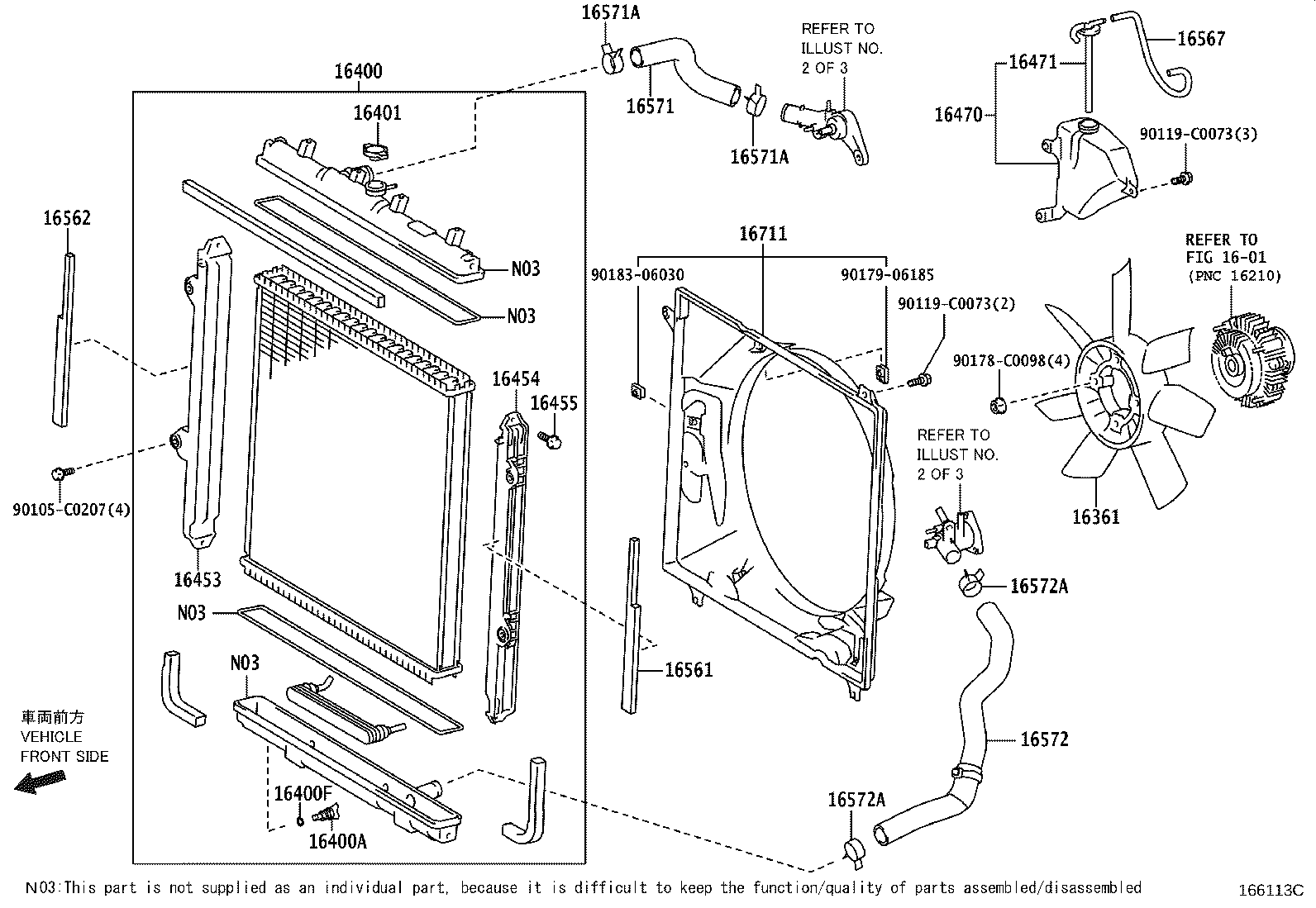

ILLUST NO. 1 OF 3(1509- )7GRFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-31060 |
7GRFKS..GRJ152 |
1 | ||
| 16361-31060 |
7GRFKS..GRJ152 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16400-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-0H290 |
7GRFKS..GRJ152 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
7GRFKS..GRJ152 |
1 | ||
| 16492-0P460 |
7GRFKS..GRJ152 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0P170 |
7GRFKS..GRJ152 |
1 | ||
| 16401-0P170 |
7GRFKS..GRJ152 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16453-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16454-0P210 |
7GRFKS..GRJ152 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
7GRFKS..GRJ152 |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0P070 |
7GRFKS..GRJ152 |
1 | ||
| 16470-0P070 |
7GRFKS..GRJ152 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P070 |
7GRFKS..GRJ152 |
1 | ||
| 16405-0P070 |
7GRFKS..GRJ152 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0P100 |
7GRFKS..GRJ152 |
1 | ||
| 16561-0P100 |
7GRFKS..GRJ152 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-0P050 |
7GRFKS..GRJ152 |
1 | ||
| 16562-0P050 |
7GRFKS..GRJ152 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-31020 |
7GRFKS..GRJ152 |
1 | ||
| 16567-31020 |
7GRFKS..GRJ152 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0P240 |
7GRFKS..GRJ152 |
1 | ||
| 16571-0P240 |
7GRFKS..GRJ152 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0P370 |
7GRFKS..GRJ152 |
1 | ||
| 16572-0P370 |
7GRFKS..GRJ152 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 96136-44301 |
7GRFKS..GRJ152 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P360 |
7GRFKS..GRJ152 |
1 | ||
| 16711-0P360 |
7GRFKS..GRJ152 |
1 | ||
| Common parts | ||||
| 90105-C0207 | ||||
| 90119-C0073 | ||||
| 90178-C0098 | ||||
| 90179-06185 | ||||
| 90183-06030 | ||||
| Linked diagrams | ||||
| 1601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
