GRJ150R-GKAEKQ (2013)
Toyota Land Cruiser Prado

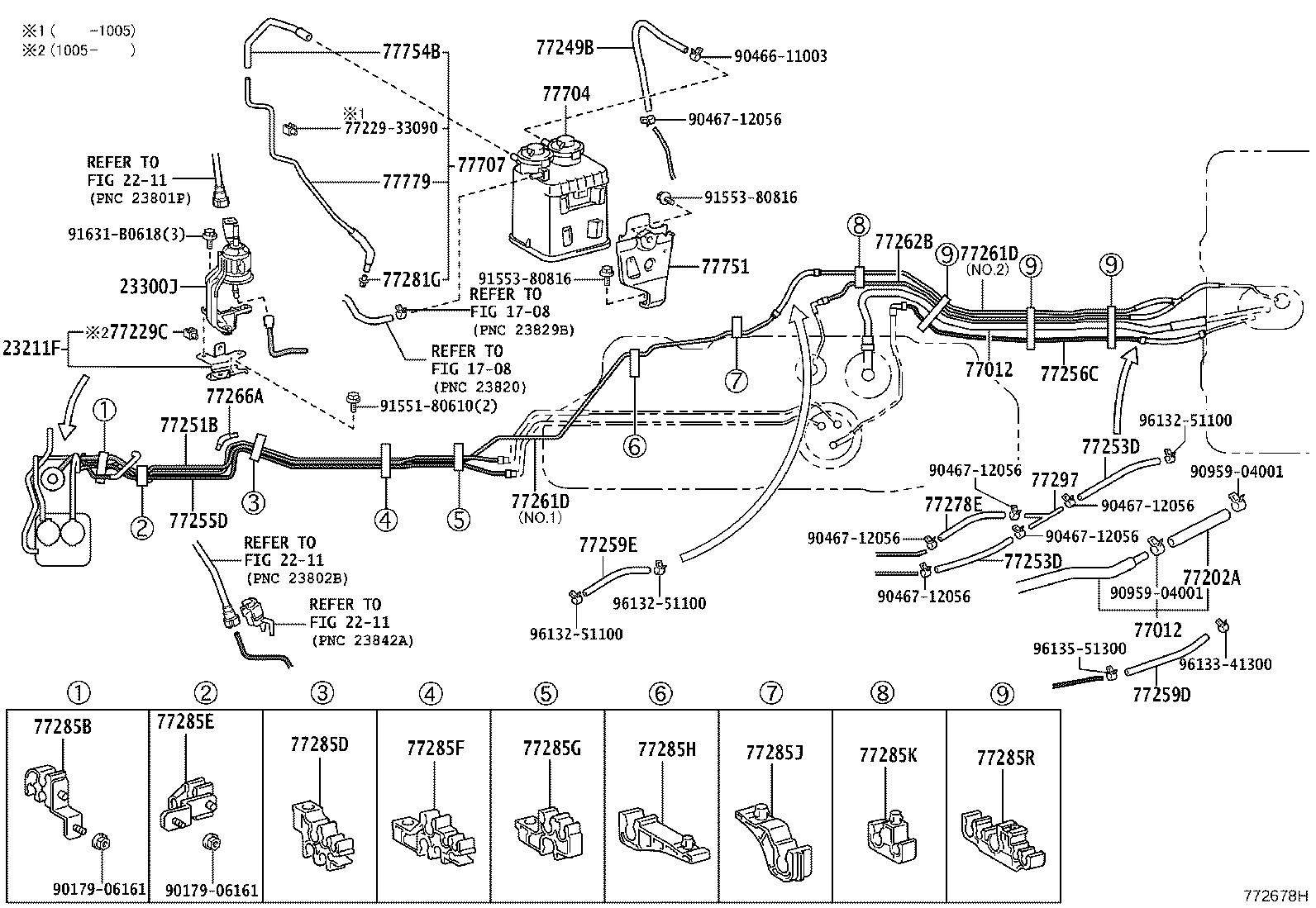

ILLUST NO. 2 OF 3(0908-1506)GRJ150
FUEL TUBE,W(SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23211F - BRACKET | ||||
| 23264-31010 |
1GRFE,2TRFE..GRJ150,TRJ15# |
1 | ||
| 23264-31011 |
1GRFE,2TRFE..GRJ150,TRJ15# |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31160 |
2TRFE..TRJ150..LHD;1GRFE,2TRFE..GRJ150,TRJ155 |
1 | ||
| 23300-31160 |
1GRFE,2TRFE..GRJ150,TRJ15# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-60210 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77012-60200 |
GRJ150,KDJ150,LJ150,TRJ150 |
1 | ||
| 77012-60200 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 77012-60210 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-60210 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77012-60200 |
GRJ150,KDJ150,LJ150,TRJ150 |
1 | ||
| 77012-60200 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 77012-60210 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13010 |
TRJ150..GEN;GRJ150,KDJ150,LJ150 L=100,FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95313-13011 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN L=100,FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33090 |
GRJ150,TRJ15# |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06030 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95333-06040 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 95333-06030 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95333-06040 |
GRJ150,TRJ15# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-6A340 |
GRJ150,TRJ150 |
1 | ||
| 77205-6A340 |
GRJ150;TRJ150..LHD |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95333-06020 |
TRJ150..GEN;GRJ150,KDJ150,LJ150 FUEL TANK-WITH(SUB TANK) |
2 | ||
| 95333-06020 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
2 | ||
| 77253D - HOSE, FUEL | ||||
| 95333-06020 |
TRJ150..GEN;GRJ150,KDJ150,LJ150 FUEL TANK-WITH(SUB TANK) |
2 | ||
| 95333-06020 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
2 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60B80 |
GRJ150 |
1 | ||
| 77255-60B80 |
GRJ150 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77255-60B70 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77255-60B70 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 95338-08022 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95338-08022 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 95333-06030 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95333-06030 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60420 |
GRJ150 |
1 | ||
| 77261-60450 |
GRJ150 FUEL TANK-WITH(SUB TANK),NO.1 |
1 | ||
| 77261-60430 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK),NO.2 |
1 | ||
| 77261-60430 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK),NO.2 |
1 | ||
| 77261-60450 |
GRJ150 FUEL TANK-WITH(SUB TANK),NO.1 |
1 | ||
| 77261-60420 |
GRJ150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60420 |
GRJ150 |
1 | ||
| 77261-60450 |
GRJ150 FUEL TANK-WITH(SUB TANK),NO.1 |
1 | ||
| 77261-60430 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK),NO.2 |
1 | ||
| 77261-60430 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK),NO.2 |
1 | ||
| 77261-60450 |
GRJ150 FUEL TANK-WITH(SUB TANK),NO.1 |
1 | ||
| 77261-60420 |
GRJ150 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-60290 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77262-60290 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60160 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77266-60160 |
GRJ150,TRJ15# |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06020 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 95333-06020 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60430 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77281-60430 |
GRJ150,TRJ15# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35631 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77285-35631 |
GRJ150,TRJ15# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35670 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 77285-35670 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35641 |
GRJ150,TRJ15# |
1 | ||
| 77285-35641 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35680 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 77285-35680 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35690 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 77285-35690 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35700 |
GRJ150;TRJ150..LHD |
1 | ||
| 77285-35700 |
GRJ150,TRJ150 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35710 |
GRJ150;TRJ150..LHD |
1 | ||
| 77285-35710 |
GRJ150,TRJ150 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35610 |
TRJ150..GEN;GRJ150,KDJ150,LJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77285-35610 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35620 |
GRJ150;TRJ150..GEN FUEL TANK-WITH(SUB TANK) |
3 | ||
| 77285-35620 |
GRJ150;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
3 | ||
| 77297 - CONNECTOR, FUEL TUBE | ||||
| 77297-60030 |
GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77297-60030 |
TRJ150..GEN;GRJ150,KDJ150,LJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-63010 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77704-60330 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77704-63010 |
GRJ150,TRJ15# |
1 | ||
| 77704-60330 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-60041 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77707-60040 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77707-60051 |
GRJ150,TRJ15# |
1 | ||
| 77707-60050 |
GRJ150,TRJ15# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60290 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77751-60290 |
GRJ150,TRJ15# |
1 | ||
| 77751-60340 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77751-60340 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-60370 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77754-60380 |
GRJ150,TRJ15# |
1 | ||
| 77754-60380 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 77754-60370 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60080 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77779-60081 |
GRJ150 FUEL TANK-WITH(SUB TANK) |
1 | ||
| 77779-60070 |
GRJ150,TRJ15# |
1 | ||
| 77779-60071 |
GRJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 77229-33090 | ||||
| 90179-06161 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 90959-04001 | ||||
| 91551-80610 | ||||
| 91553-80816 | ||||
| 91631-B0618 | ||||
| 96132-51100 | ||||
| 96133-41300 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
