GRJ150L-GKTEKV (2015)
Toyota Land Cruiser Prado

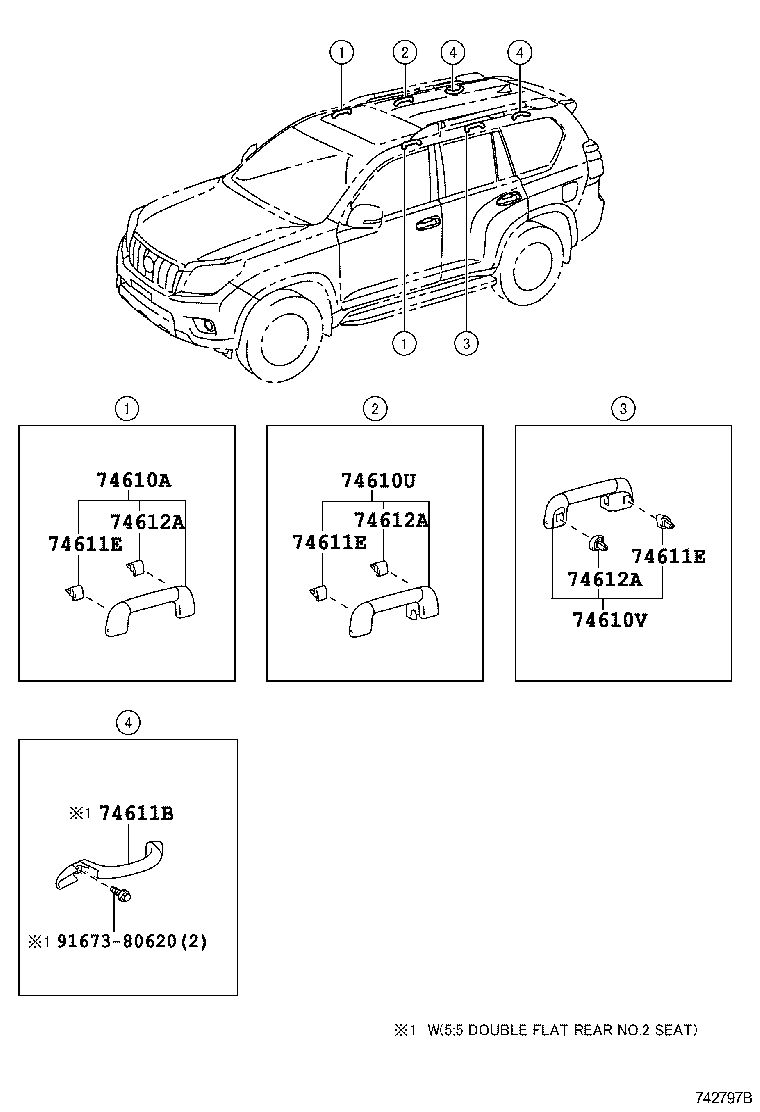

ILLUST NO. 2 OF 3(0908- )

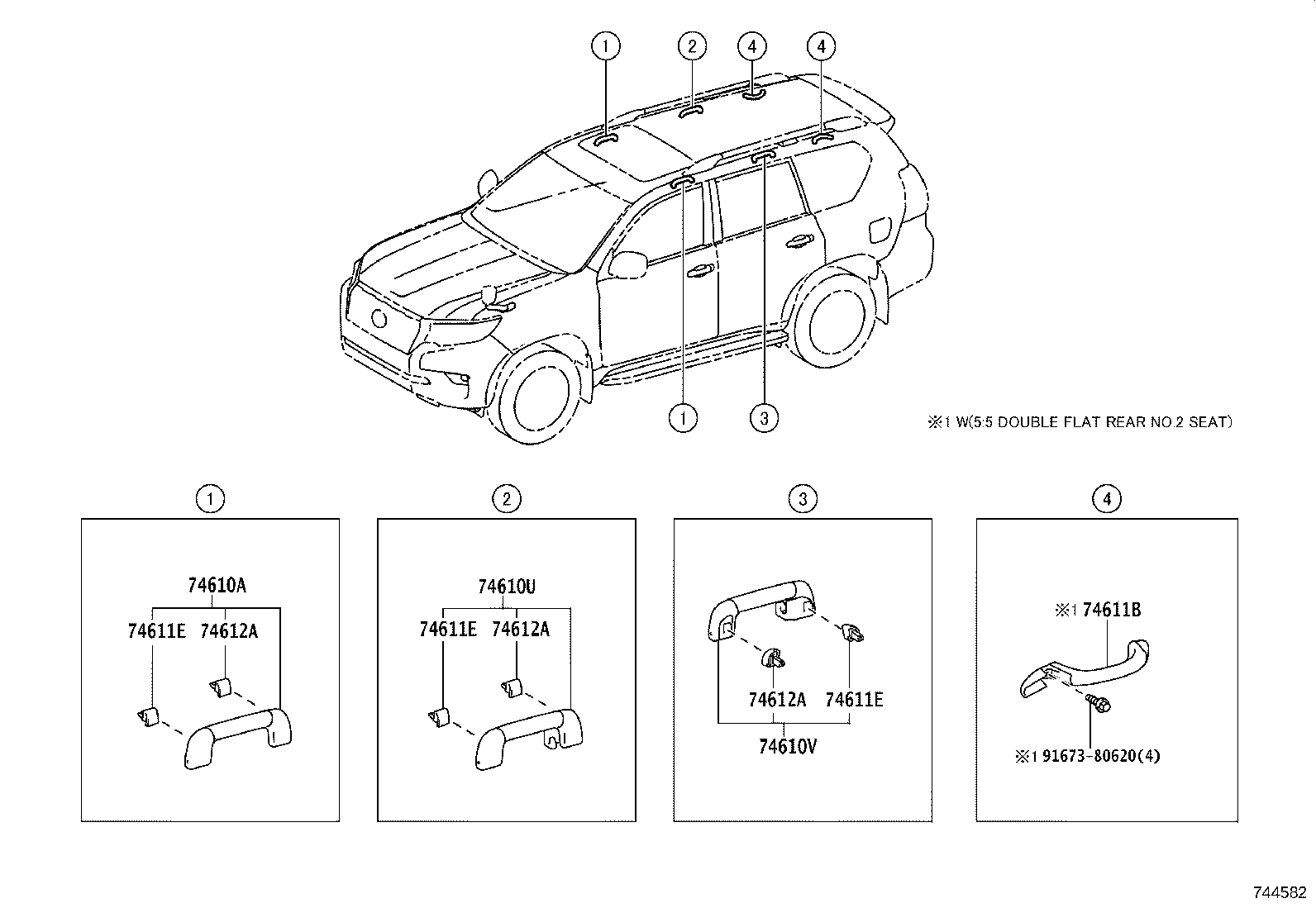

ASSIST GRIP(ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30240A1 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74610-30240B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74610-30240A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74610-30240B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-30320B2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
1 | ||
| 74610-30320A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
1 | ||
| 74610-30320A2 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
1 | ||
| 74610-30320B2 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
1 | ||
| 74610V - GRIP ASSY, ASSIST | ||||
| 74610-30330B2 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
1 | ||
| 74610-30330B2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
1 | ||
| 74610-30330A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
1 | ||
| 74610-30330A2 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-48010B2 |
GRJ150,KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
2 | ||
| 74611-48010A0 |
GRJ150,KDJ150..6F..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
2 | ||
| 74611-48010A0 |
GRJ150,KDJ150..6F..GCC MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
2 | ||
| 74611-48010B2 |
GRJ150,KDJ150..6F..GCC MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
2 | ||
| 74611-48010A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74611-48010A0 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),IVORY,TRIM0# |
2 | ||
| 74611-48010A0 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 74611-48010B2 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH,LT.GRAY,TRIM1# |
2 | ||
| 74611-48010B2 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM1# |
2 | ||
| 74611-48010B2 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH&SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM1# |
2 | ||
| 74611-48010A0 |
KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74611-48010B2 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),LT.GRAY,TRIM1# |
2 | ||
| 74611-48010B2 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,LT.GRAY,TRIM1# |
2 | ||
| 74611-48010B2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74611-48010A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC SRS AIR BAG-WITH(*DRP&KNEE&CURTAIN(REAR NO.1 SEAT)),IVORY,TRIM0# |
2 | ||
| 74611-48010A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74611-60050A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| 74611-60050B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74611-60050B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74611-60050A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| 74611-60050B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74611-60050B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74611-60050A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| 74611-60050B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74611-60050B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74612-60100B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74612-60100E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74612-60100A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74612-60100B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74612-60100E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74612-60100A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
4 | ||
| 74612-60100B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
4 | ||
| 74612-60100E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
4 | ||
| 74612-60100A8 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
4 | ||
| Common parts | ||||
| 91673-80620 | ||||
ILLUST NO. 3 OF 3(0908- )
ASSIST GRIP(DOOR & SIDE TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-35010A0 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
2 | ||
| 74603-35010A0 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
2 | ||
| 74603-35010B1 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010B1 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010A0 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74603-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74603-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74603-35010A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
2 | ||
| 74603-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010B1 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010B1 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
2 | ||
| 74603-35010A1 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
2 | ||
| 74603-35010A1 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
2 | ||
| 74603-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
2 | ||
| 74603-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
2 | ||
| 74603-35010C0 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 74603-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
2 | ||
| 74603-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
2 | ||
| 74603-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74222-60160B0 |
GRJ150,KDJ150..6F..(ARL,GCC) LEATHER PACKAGE (STEERING & SHIFT KNOB),SILVER,TRIM0#,1# |
2 | ||
| 74222-60160B0 |
GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,SILVER,TRIM0#,1# |
2 | ||
| 74222-60160B0 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC LEATHER SEAT PACKAGE,SILVER,TRIM0#,1# |
2 | ||
| 74222-60150B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC GRAY,TRIM0#,1# |
2 | ||
| 74222-60170 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
2 | ||
| 74222-60171 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-60010B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74680-60010A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74680-60010B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74680-60010A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74680-60020B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC LT.GRAY,TRIM1# |
2 | ||
| 74680-60020A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
2 | ||
| 74680-60020A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| 74680-60020B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74221-60160B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC GRAY,TRIM0#,1# |
2 | ||
| 74221-60170B0 |
GRJ150,KDJ150..6F..(ARL,GCC) LEATHER SEAT PACKAGE,SILVER,TRIM0#,1# |
2 | ||
| 74221-60170B0 |
GRJ150,KDJ150..6F..(ARL,GCC) LEATHER PACKAGE (STEERING & SHIFT KNOB),SILVER,TRIM0#,1# |
2 | ||
| 74221-60170B0 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC LEATHER SEAT PACKAGE,SILVER,TRIM0#,1# |
2 | ||
| 74221-60180 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
2 | ||
| 74221-60181 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74615-60040B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74615-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74615-60040A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74615-60040B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74615-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74615-60040A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60040B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74616-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74616-60040A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74616-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60040B0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| 74616-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74616-60040A0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
2 | ||
| 74616-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-35010A0 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A0 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A1 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010C0 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-35010A0 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
GRJ150,KDJ150..6F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
GRJ150,KDJ150..6F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A0 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010A0 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
TRJ150..LHD;GRJ150..ARL,GCC;KDJ150..5FC..GCC;KDJ150,LJ150..ARL,GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,IVORY,TRIM0# |
4 | ||
| 74617-35010B1 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010B1 |
LJ150;TRJ150..LHD;KDJ150..ARL;GRJ150..ARL,GCC;KDJ150..5FC..GCC AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,MD.GRAY,TRIM1# |
4 | ||
| 74617-35010A1 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010A1 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010C0 |
GRJ150..6FC..GCC;KDJ150..LHD..5FC;KDJ150,TRJ150..(5F,6F,6FC)..GEN PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010A1 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,FLAXEN,TRIM0# |
4 | ||
| 74617-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC PACKAGE TRAY TRIM & TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..GCC;TRJ150..5F..GCC AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM;KDJ150,TRJ150..(5F,6F,6FC)..GEN AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74637 - PLUG, ASSIST GRIP, NO.2 RH | ||||
| 74637-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC LT.GRAY,TRIM1# |
2 | ||
| 74637-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| 74637-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74637-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
2 | ||
| 74637 - PLUG, ASSIST GRIP, NO.2 RH | ||||
| 74637-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC LT.GRAY,TRIM1# |
2 | ||
| 74637-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| 74637-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74637-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
2 | ||
| 74638 - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74638-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
2 | ||
| 74638-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC LT.GRAY,TRIM1# |
2 | ||
| 74638-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74638-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| 74638 - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74638-60040A0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC IVORY,TRIM0# |
2 | ||
| 74638-60040B0 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC LT.GRAY,TRIM1# |
2 | ||
| 74638-60040B0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74638-60040A2 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
2 | ||
| Common parts | ||||
| 91631-60622 | ||||
| 93381-16028 | ||||

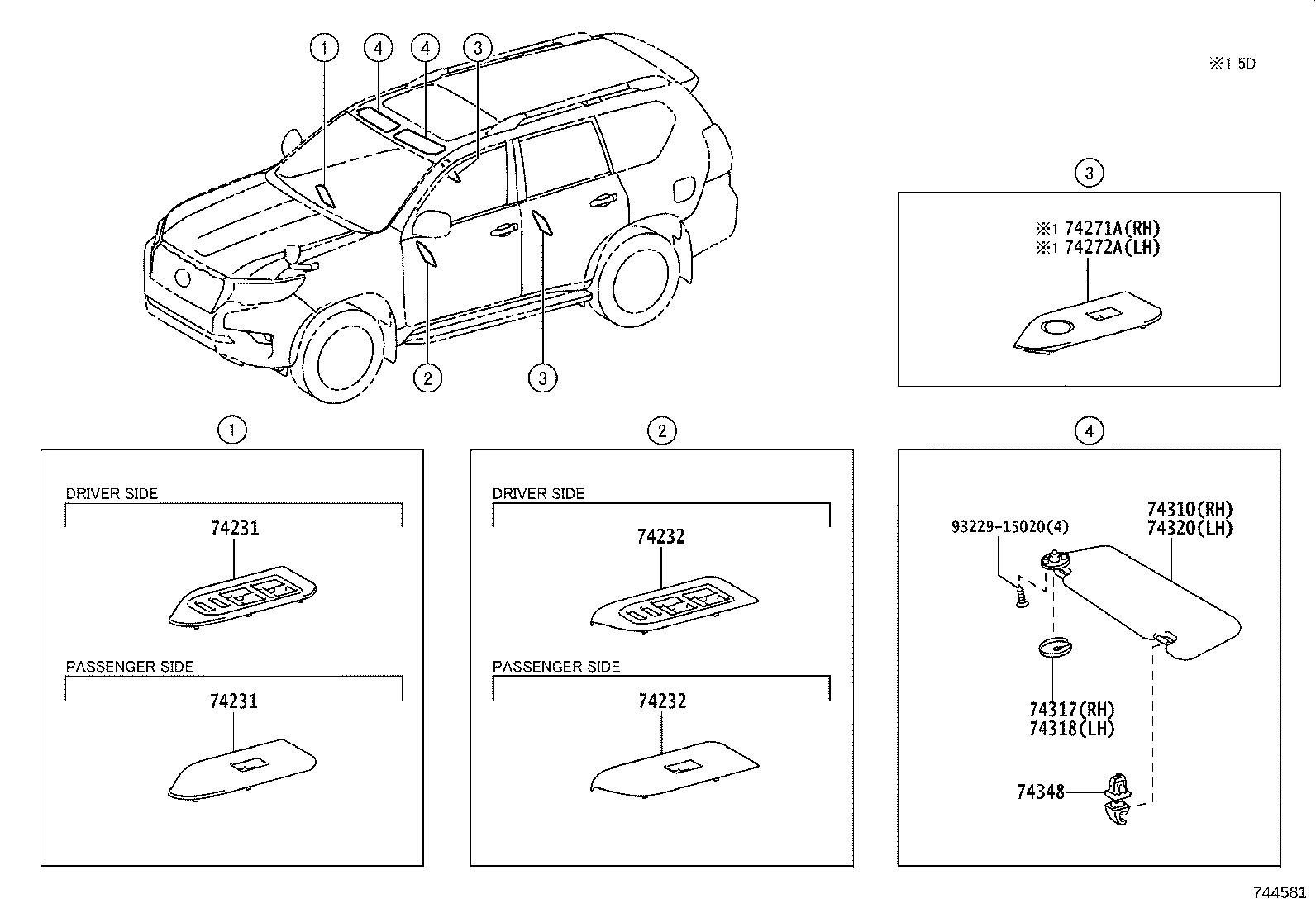

ILLUST NO. 1 OF 3(0908- )
ARMREST & VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74231-60630 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ15#..LHD |
1 | ||
| 74231-60670 |
GRJ150..LHD;KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74231-60670 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60630C0 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD BLACK |
1 | ||
| 74231-60830 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74231-60830 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60650 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74231-60630 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ15#..LHD |
1 | ||
| 74231-60670 |
GRJ150..LHD;KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74231-60670 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60630C0 |
GRJ150,KDJ150,LJ150,TRJ15#..LHD BLACK |
1 | ||
| 74231-60830 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74231-60830 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74231-60830 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60600 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ150..LHD |
1 | ||
| 74232-60640 |
GRJ150..LHD;KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74232-60640 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60790 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74232-60600C0 |
GRJ150,KDJ150,LJ150,TRJ150..LHD BLACK |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74232-60790 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74232-60620 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60600 |
KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN;GRJ150,LJ150,TRJ150..LHD |
1 | ||
| 74232-60640 |
GRJ150..LHD;KDJ150..LHD..5FC;KDJ150..LHD..6F..GEN VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74232-60640 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74232-60790 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74232-60600C0 |
GRJ150,KDJ150,LJ150,TRJ150..LHD BLACK |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74232-60790 |
KDJ150..LHD;GRJ150..6F..GEN;GRJ150..LHD..6FC VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74232-60790 |
GRJ150,KDJ150..ATM..GCC VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-60250 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74271-60250 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74271-60260 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74271-60260 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74271-60230 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 74271-60270 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74271-60280 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74271-60240C0 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER,BLACK |
1 | ||
| 74271-60380 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74271-60230C0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 BLACK |
1 | ||
| 74271-60380 |
KDJ150..RHD..5FC;GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74271-60380 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74271-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74271-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74271-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-60250 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE |
1 | ||
| 74272-60260 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74272-60250 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB) |
1 | ||
| 74272-60260 |
GRJ150,KDJ150..6F..GCC VX PACKAGE&LEATHER PACKAGE (STEERING & SHIFT KNOB)&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74272-60230 |
TRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
1 | ||
| 74272-60270 |
GRJ150..LHD..6F;KDJ150..6F..GEN;GRJ150,KDJ150..5FC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER |
1 | ||
| 74272-60280 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE&LEATHER SEAT PACKAGE&AUDIO(FOR OVERSEAS MARKET)-NAVIGATION+DVD-CH+BLUETOOTH+JBL+14SP |
1 | ||
| 74272-60240C0 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&VX PACKAGE(*LES) & SHIFT KNOB(LEATHER)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER,BLACK |
1 | ||
| 74272-60380 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74272-60240C0 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER,BLACK |
1 | ||
| 74272-60230C0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 BLACK |
1 | ||
| 74272-60380 |
KDJ150..RHD..5FC;GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 74272-60380 |
GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..LHD..ATM VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO) |
1 | ||
| 74272-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX-L PACKAGE&VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74272-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&*471(*LES) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74272-60390 |
GDJ150,GRJ150,KDJ150..ATM..(ARL,GCC) VX PACKAGE&*471(*FAS) & SHIFT KNOB(LEATHER,*WOO)&AUDIO(FOR OVERSEAS MARKET)-AVN(JBL) & 14SPEAKER |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-60D00B1 |
GRJ150,KDJ150..6F..GCC VX PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74310-60D00A2 |
GRJ150,KDJ150..6F..GCC VX PACKAGE,IVORY,TRIM0# |
1 | ||
| 74310-60D00B1 |
KDJ150..5FC..GCC;GRJ150,TRJ15#..GCC TX-L PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74310-60D00A2 |
KDJ150..5FC..GCC;GRJ150,TRJ15#..GCC TX-L PACKAGE,IVORY,TRIM0# |
1 | ||
| 74310-60C90A1 |
KDJ150..5FC..GCC;GRJ150,TRJ15#..GCC IVORY,TRIM0# |
1 | ||
| 74310-60C90B1 |
KDJ150..5FC..GCC;GRJ150,TRJ15#..GCC LT.GRAY,TRIM1# |
1 | ||
| 74310-60D00A2 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE,IVORY,TRIM0# |
1 | ||
| 74310-60D00B1 |
GRJ150..GCC;KDJ150..5FC..GCC VX-L PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74310-60J40A1 |
GRJ150..GCC FLAXEN,TRIM0# |
1 | ||
| 74310-60J40B0 |
GRJ150..GCC LT.GRAY,TRIM2# |
1 | ||
| 74310-60J41A1 |
GRJ150..GCC TRIM0# |
1 | ||
| 74310-60J41B0 |
GRJ150..GCC TRIM2# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
1 | ||
| 74317-60020E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
1 | ||
| 74317-60040A0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
1 | ||
| 74317-60020B1 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020E0 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
1 | ||
| 74317-60020B1 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
1 | ||
| 74317-60020B1 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
1 | ||
| 74317-60040A0 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60C80B1 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74320-60C80A2 |
GRJ150,KDJ150..6F..(ARL,GCC) VX PACKAGE,IVORY,TRIM0# |
1 | ||
| 74320-60C60A1 |
KDJ150..5FC..GCC;KDJ150,LJ150..RHD;GRJ150,TRJ15#..ARL,GCC IVORY,TRIM0# |
1 | ||
| 74320-60C60B1 |
KDJ150..5FC..GCC;KDJ150,LJ150..RHD;GRJ150,TRJ15#..ARL,GCC LT.GRAY,TRIM1# |
1 | ||
| 74320-60C80A2 |
GRJ150..6F..GCC;KDJ150..RHD..5FC;KDJ150..5FC..GCC;KDJ150..RHD..6F..GEN;GRJ150..5FC..(ARL,GCC) VX-L PACKAGE,IVORY,TRIM0# |
1 | ||
| 74320-60C80A2 |
KDJ150..5FC..GCC;KDJ150,LJ150..RHD;GRJ150,TRJ15#..ARL,GCC TX-L PACKAGE,IVORY,TRIM0# |
1 | ||
| 74320-60C80B1 |
KDJ150..5FC..GCC;KDJ150,LJ150..RHD;GRJ150,TRJ15#..ARL,GCC TX-L PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74320-60C80B1 |
GRJ150..6F..GCC;KDJ150..RHD..5FC;KDJ150..5FC..GCC;KDJ150..RHD..6F..GEN;GRJ150..5FC..(ARL,GCC) VX-L PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 74320-60C80A3 |
GRJ150..GCC FLAXEN,TRIM0# |
1 | ||
| 74320-60C80B1 |
GRJ150..GCC LT.GRAY,TRIM2# |
1 | ||
| 74320-60C81A3 |
GRJ150..GCC TRIM0# |
1 | ||
| 74320-60C81B1 |
GRJ150..GCC TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040A7 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
2 | ||
| 74348-33040E1 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
2 | ||
| 74348-33040B1 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# LT.GRAY,TRIM2# |
2 | ||
| 74348-33040B1 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 93229-15020 | ||||
ILLUST NO. 1 OF 3(1708- )
ARMREST & VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93229-15020 | ||||
ILLUST NO. 2 OF 3(1708- )
ASSIST GRIP(ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91673-80620 | ||||
ILLUST NO. 3 OF 3(1708- )
ASSIST GRIP(DOOR & SIDE TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91631-60622 | ||||
| 93381-16028 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
