GRJ150L-GKTEKV (2015)
Toyota Land Cruiser Prado

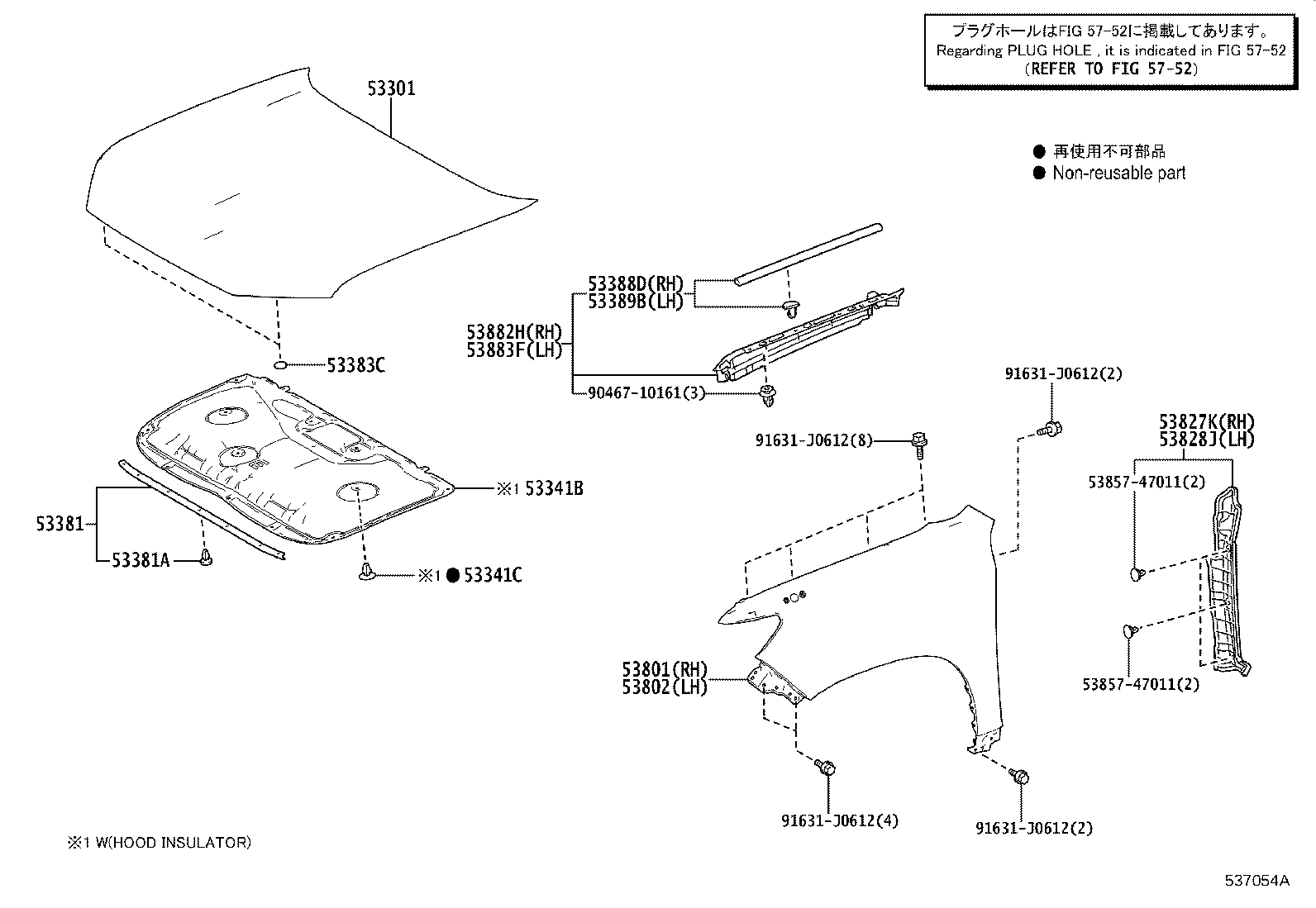

ILLUST NO. 1 OF 2(0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60630 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53301-60630 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-60370 |
TRJ150..LHD;GRJ150,TRJ155 |
1 | ||
| 53341-60370 |
GRJ150..LHD..6FC VX-L PACKAGE |
1 | ||
| 53341-60370 |
GRJ150..6F..GEN;GRJ150,TRJ150..LHD..(5F,6FC) VX PACKAGE |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GRJ150..6F..GEN;GRJ150,TRJ150..LHD..(5F,6FC) VX PACKAGE |
11 | ||
| 90467-09050 |
GRJ150..LHD..6FC VX-L PACKAGE |
11 | ||
| 90467-09050 |
TRJ150..LHD;KDJ150..ARL;GRJ150,TRJ155;KDJ150..5FC..GCC |
11 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60140 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53381-60140 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
7 | ||
| 90467-08011 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
7 | ||
| 53383C - SEAL, HOOD TO COWL TOP | ||||
| 90950-06124 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 90950-06096 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53388-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53389-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-60A90 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53811-60A90 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-60C10 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53812-60C10 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53827-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-60060 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53828-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53807-60110 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53807-60110 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53808-60090 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53808-60090 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 53857-47011 | ||||
| 90467-08108 | ||||
| 90467-10161 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7552 | ||||

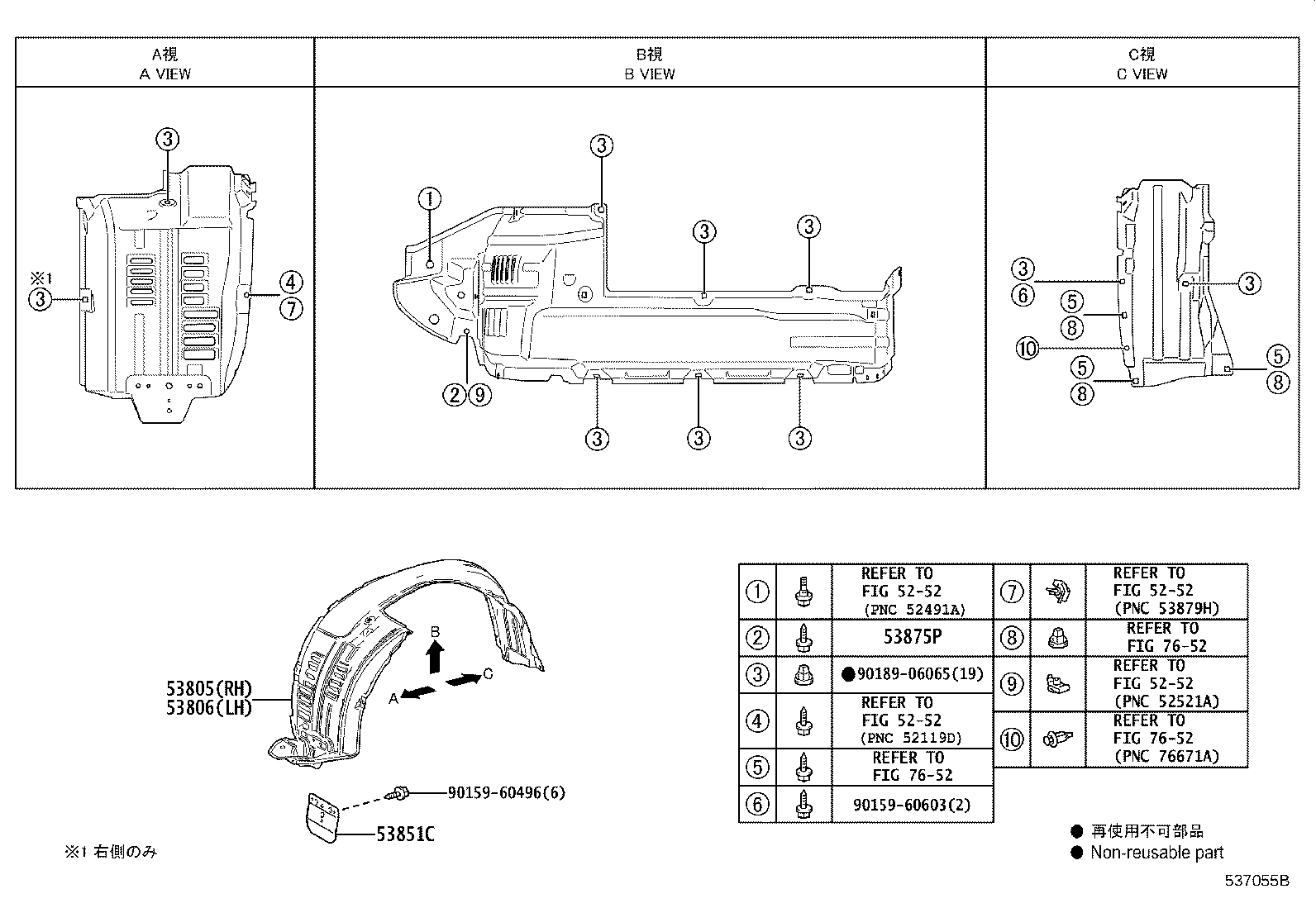

ILLUST NO. 2 OF 2(0908- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-60040 |
GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53805-60080 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53806-60040 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-60200 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 53851-60200 |
TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60215 |
GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90159-60215 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7652 | ||||

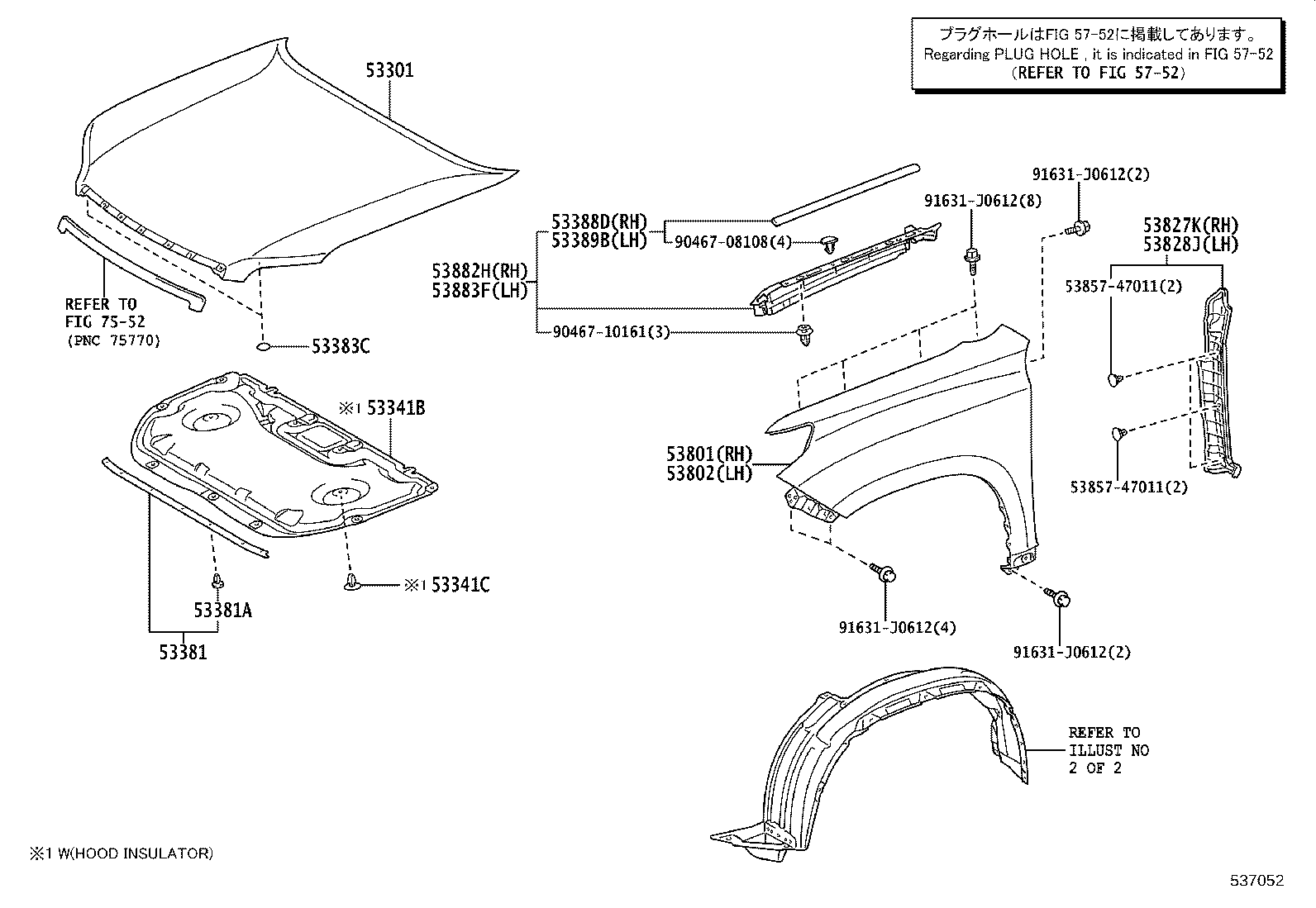

ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53857-47011 | ||||
| 90467-10161 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1708- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 7652 | ||||
