GRJ150L-GKTEKV (2015)
Toyota Land Cruiser Prado
(1506- )GRJ150,TRJ15#..6FC
AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

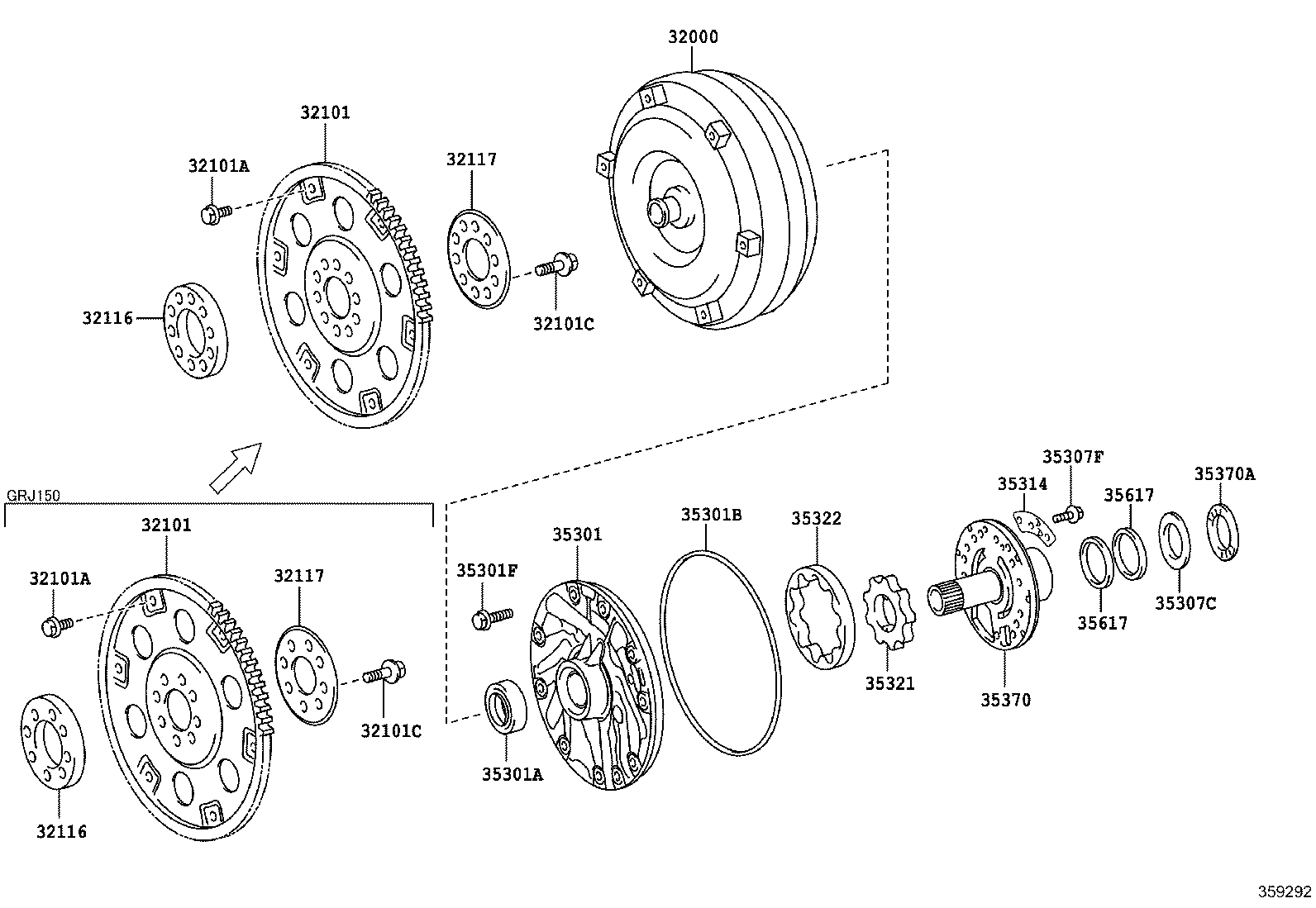

| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-71060 |
GRJ150..6FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-60060 |
GRJ150..6FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-60060 |
GRJ150..6FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09026 |
GRJ150,TRJ15#..ATM *9-1.25PX12.8-9,BLACK |
1 | ||
| 90119-09027 |
GRJ150,TRJ15#..6FC *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 90119-09027 |
GRJ150,TRJ15#..ATM *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 90119-09026 |
GRJ150,TRJ15#..6FC *9-1.25PX12.8-9,BLACK |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09026 |
GRJ150,TRJ15#..ATM *9-1.25PX12.8-9,BLACK |
1 | ||
| 90119-09027 |
GRJ150,TRJ15#..6FC *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 90119-09027 |
GRJ150,TRJ15#..ATM *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 90119-09026 |
GRJ150,TRJ15#..6FC *9-1.25PX12.8-9,BLACK |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10543 |
GRJ150..6FC *10-1.25PX22-15 |
8 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10543 |
GRJ150..6FC *10-1.25PX22-15 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-60050 |
GRJ150..6FC |
1 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-60050 |
GRJ150..6FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60060 |
GRJ150..6FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60060 |
GRJ150..6FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-71010 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38101 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-60010 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
GDJ150,GRJ150,TRJ15#..6FC *8-1.25PX35-35 |
10 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-71070 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
GDJ150,GRJ150,TRJ15#..6FC |
10 | ||
| 35314 - PLATE, FRONT OIL PUMP | ||||
| 35314-71010 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-71010 |
GDJ150,GRJ150,TRJ15#..6FC T=9.977-9.983 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-71010 |
GDJ150,GRJ150,TRJ15#..6FC T=9.977-9.983 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-71010 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT) | ||||
| 90374-71002 |
GDJ150,GRJ150,TRJ15#..6FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GDJ150,GRJ150,TRJ15#..6FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GDJ150,GRJ150,TRJ15#..6FC |
2 | ||
(1708- )GRJ150,TRJ15#..6FC
AC60F
| Part # | Description | Qty | Price |
|---|
