GRJ150L-GKTEK (2015)

Toyota Land Cruiser Prado

Production Jun 2015 - Aug 2017
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )GRJ150..6FC

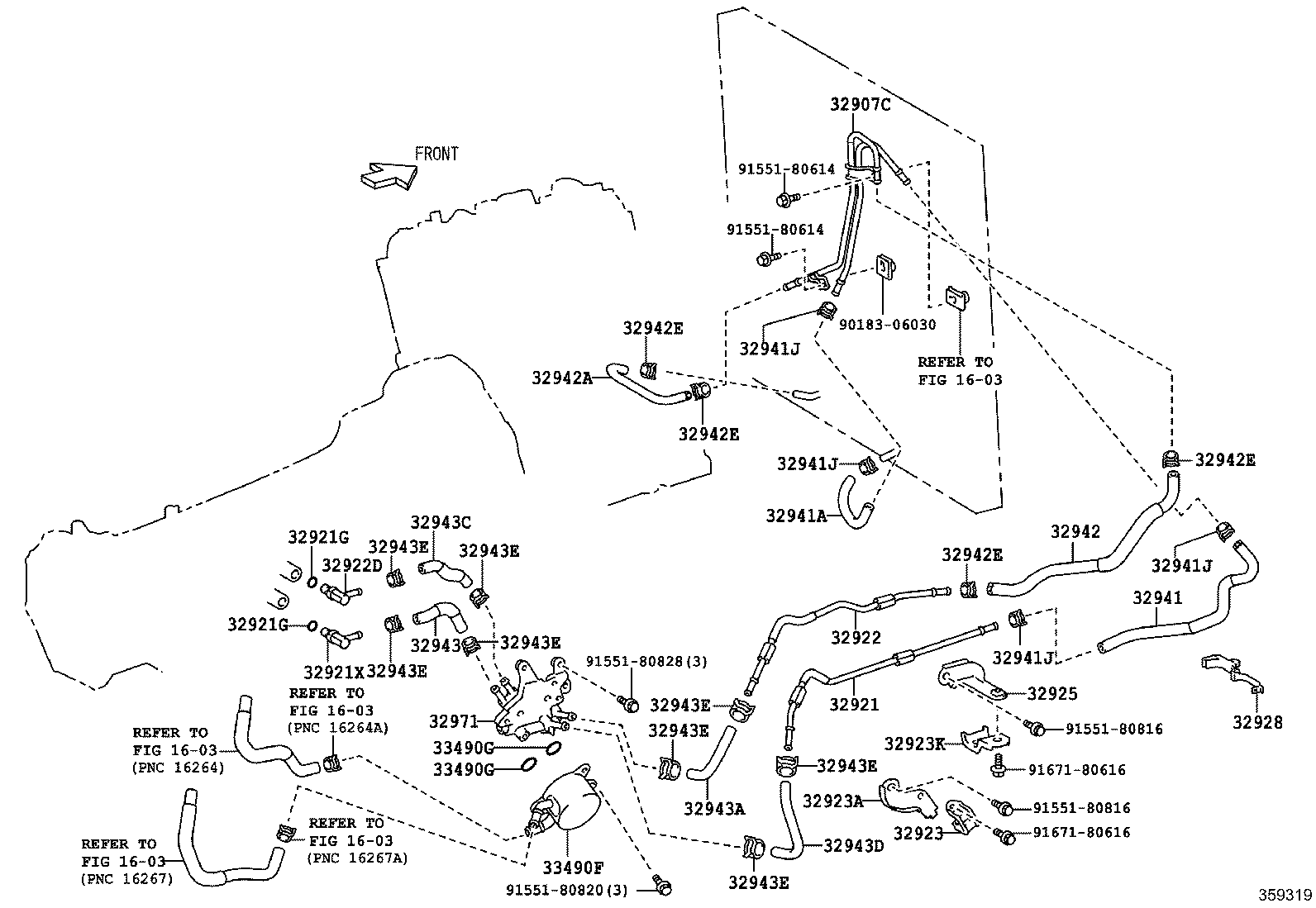

Click highlighted areas on diagram

AC60F W/O(ATF WARMER)

diagram 1603 32907C 32907D 32910 32913 32913 32921 32921G 32921G 32921X 32922 32922D 32923B 32923K 32928 32941 32941J 32941J 32942 32942E 32942E 32943 32943 32943A 32943B 32943B 32943C 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32943E 32948 9011906336 9011906336 9011906336 9011906336 9018306030 9155180614 9155180614 9155180816 9155180816 9161660616 9161660616 91621J0612
Part # Description Qty Price
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-60330

GRJ150..6FC

 1
32907-60310

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32907-60340

GRJ150..6FC

 1
32910 - COOLER ASSY, OIL
32910-60180

GRJ150..6FC

 1
32913 - BRACKET, OIL COOLER
32913-60260

GRJ150..6FC

NO.1

 1
32913-60270

GRJ150..6FC

NO.2

 1
32913 - BRACKET, OIL COOLER
32913-60260

GRJ150..6FC

NO.1

 1
32913-60270

GRJ150..6FC

NO.2

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-60480

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32921-60460

GRJ150..6FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GRJ150,KDJ150,TRJ15#..ATM

 2
90301-11030

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GRJ150,KDJ150,TRJ15#..ATM

 2
90301-11030

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009

GDJ150,GRJ150,TRJ15#..6FC

 1
90407-14034

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-60490

GRJ150..6FC

 1
32922-60510

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009

GDJ150,GRJ150,TRJ15#..6FC

 1
90407-14034

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32909-60260

GRJ150..6FC

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32909-60250

GRJ150..6FC

 1
32928-60190

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-34030

GDJ150,GRJ150,KDJ150..ATM

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32942-60560

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32941-60400

GRJ150..6FC

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GRJ150,TRJ15#..ATM

 2
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 2
90466-16004

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GRJ150,TRJ15#..ATM

 2
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 2
90466-16004

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32941-60400

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32942-60560

GRJ150..6FC

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 2
90466-16004

GRJ150,TRJ15#..ATM

 2
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 4
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDJ150,GRJ150,KDJ150,TRJ15#..ATM

 2
90466-16004

GRJ150,TRJ15#..ATM

 2
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 4
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-60740

GRJ150..6FC

 2
32943-60650

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-60740

GRJ150..6FC

 2
32943-60650

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
32943-60700

GRJ150..6FC

 1
32943-60670

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60750

GRJ150..6FC

NO.1

 1
32943-60760

GRJ150..6FC

NO.2

 1
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60750

GRJ150..6FC

NO.1

 1
32943-60760

GRJ150..6FC

NO.2

 1
32943C - HOSE, TRANSMISSION OIL COOLER, NO.3
32943-60660

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 1
32943-60730

GRJ150..6FC

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004

GRJ150..6FC

 12
90466-16004

GRJ150..6FC..GEN

ENGINE-FOR EURO 5 CONFORMITY

 8
32948 - SEAL, OIL COOLER TUBE
32948-60020

GRJ150..6FC

 1
Common parts
90119-06336
90183-06030
91551-80614
91551-80816
91616-60616
91621-J0612
Linked diagrams
1603

(1506- )GRJ150..6FC..GEN
