GRJ150L-GKFEKV (2017)
Toyota Land Cruiser Prado
(1708- )

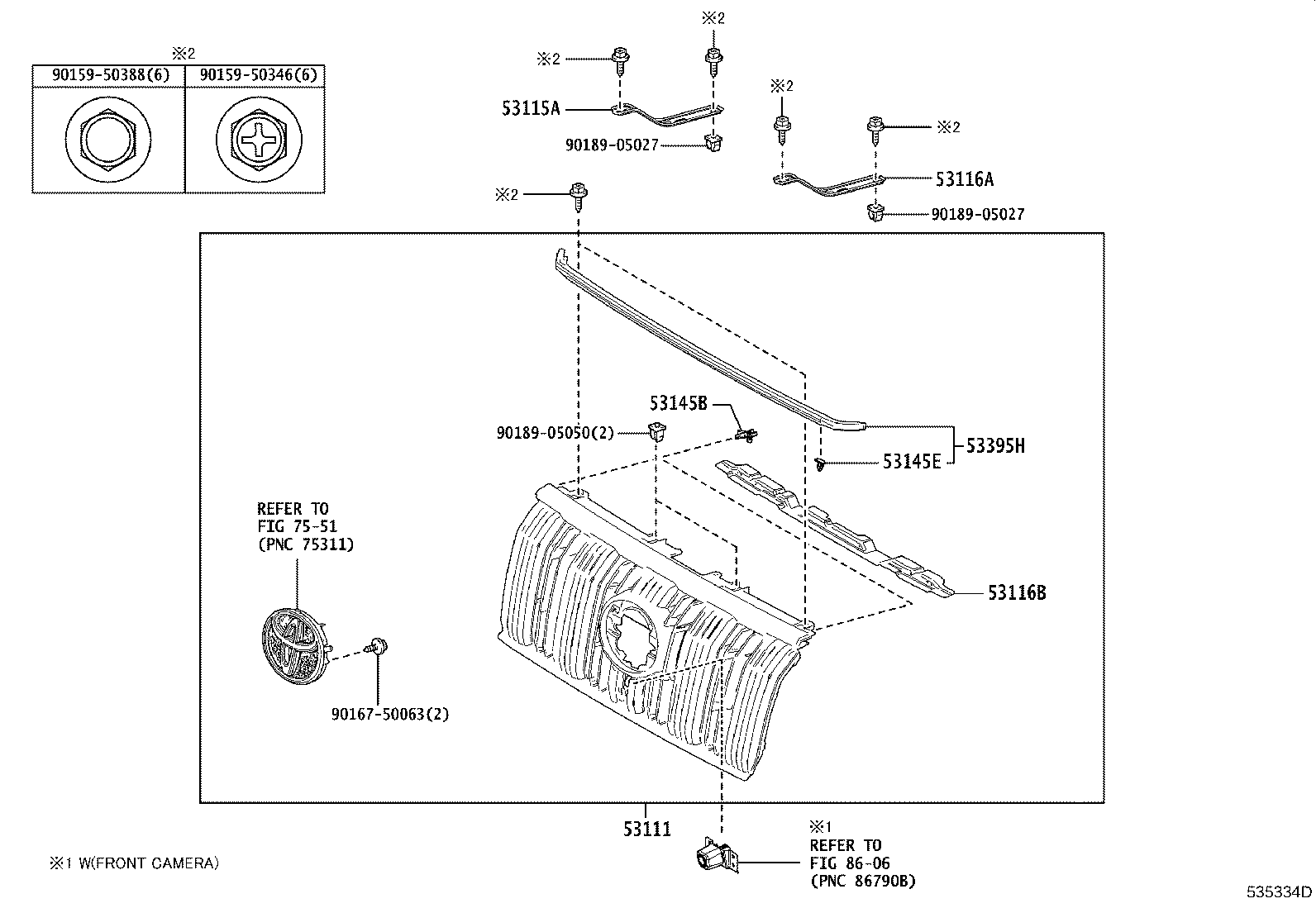

W/O(MILLIMETER WAVE RADAR SENSOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60E90 |
GRJ150..ARL,GCC,SA |
1 | ||
| 53101-60K20 |
GRJ150..ARL,GCC,SA NO PAINT REQ. |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53115-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53116B - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-12010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 53145E - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
13 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 90159-50346 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90189-05027 | ||||
| 90189-05050 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8606 | ||||
(1708- )

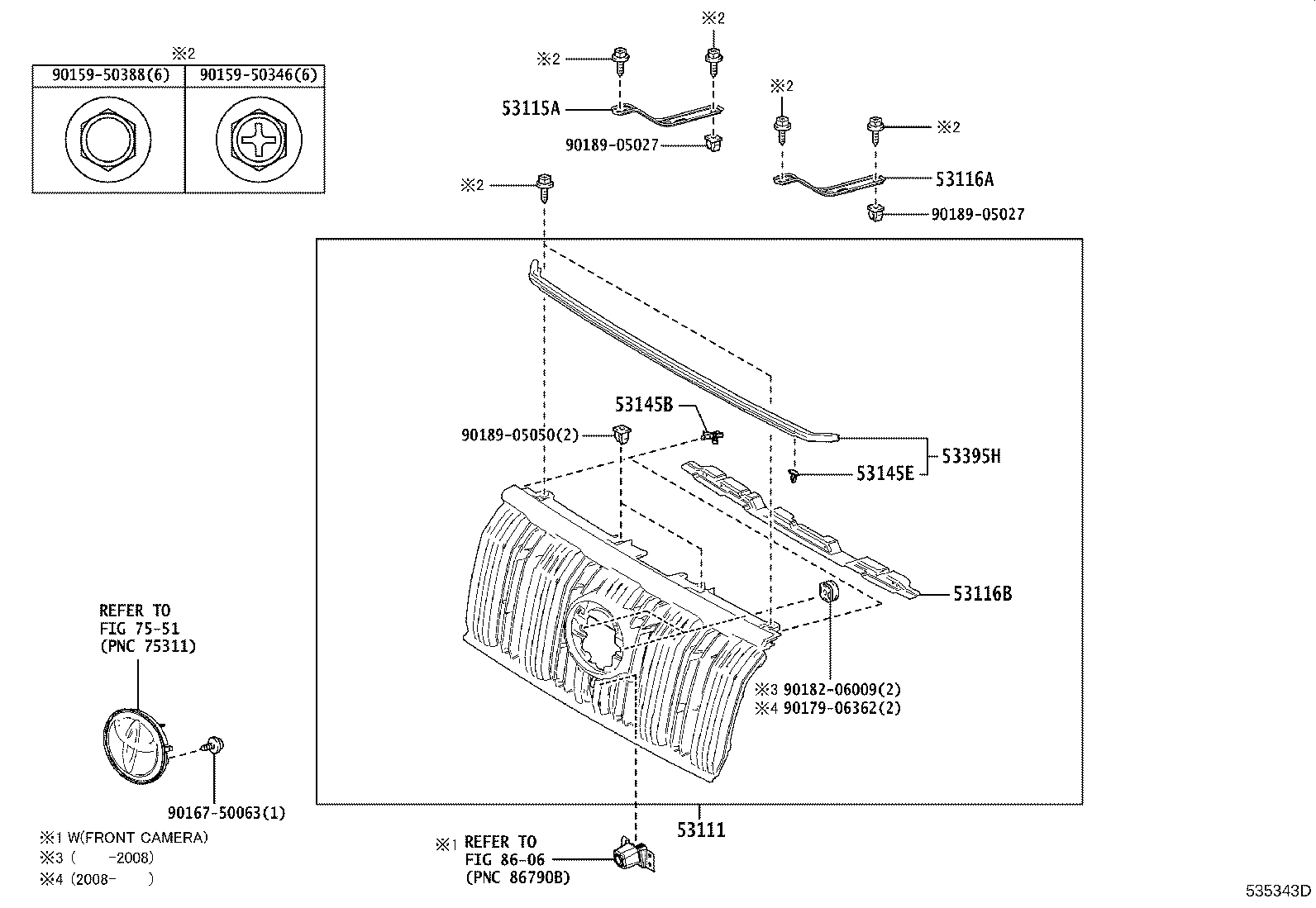

W(MILLIMETER WAVE RADAR SENSOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60E90 |
GRJ150..ARL,GCC,SA |
1 | ||
| 53101-60K20 |
GRJ150..ARL,GCC,SA NO PAINT REQ. |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53115-60060 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53116B - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-12010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 53145E - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
13 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 90159-50346 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90179-06362 | ||||
| 90182-06009 | ||||
| 90189-05027 | ||||
| 90189-05050 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8606 | ||||
