GRJ150L-GKFEKV (2017)
Toyota Land Cruiser Prado
Production
Aug 2017
-
Sep 9999
Engine
1GRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )

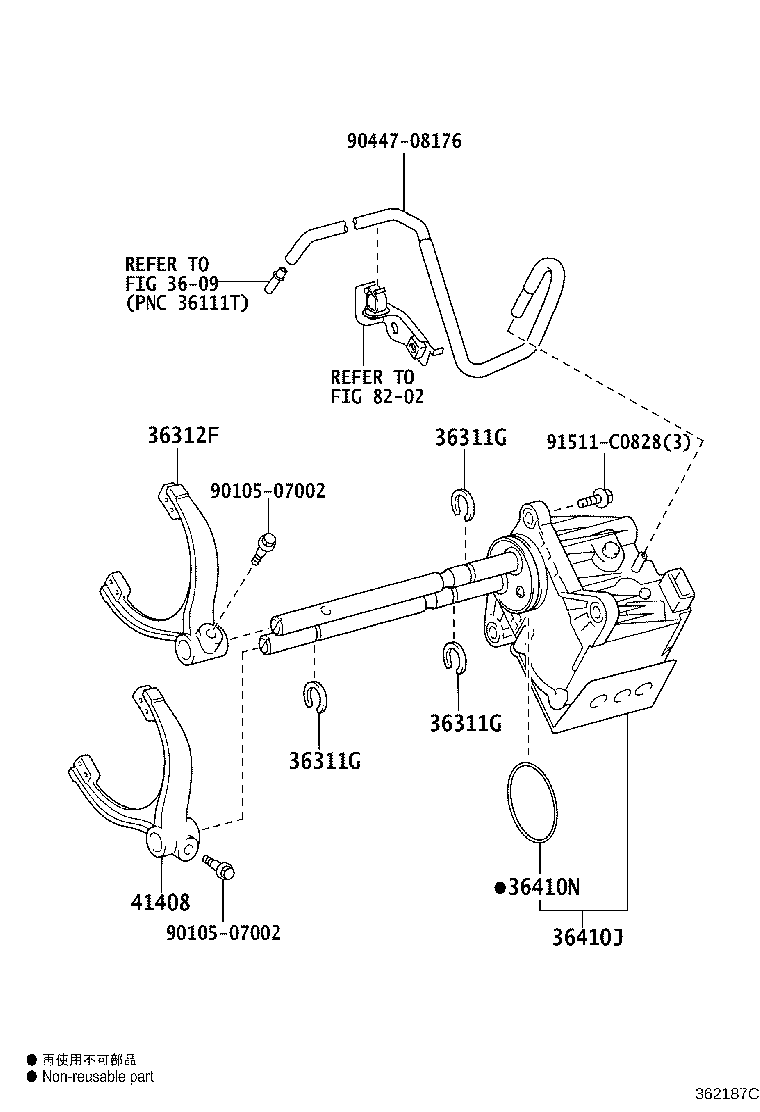

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-07002 | ||||
| 90447-08176 | ||||
| 91511-C0828 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 8202 | ||||
(1708- )

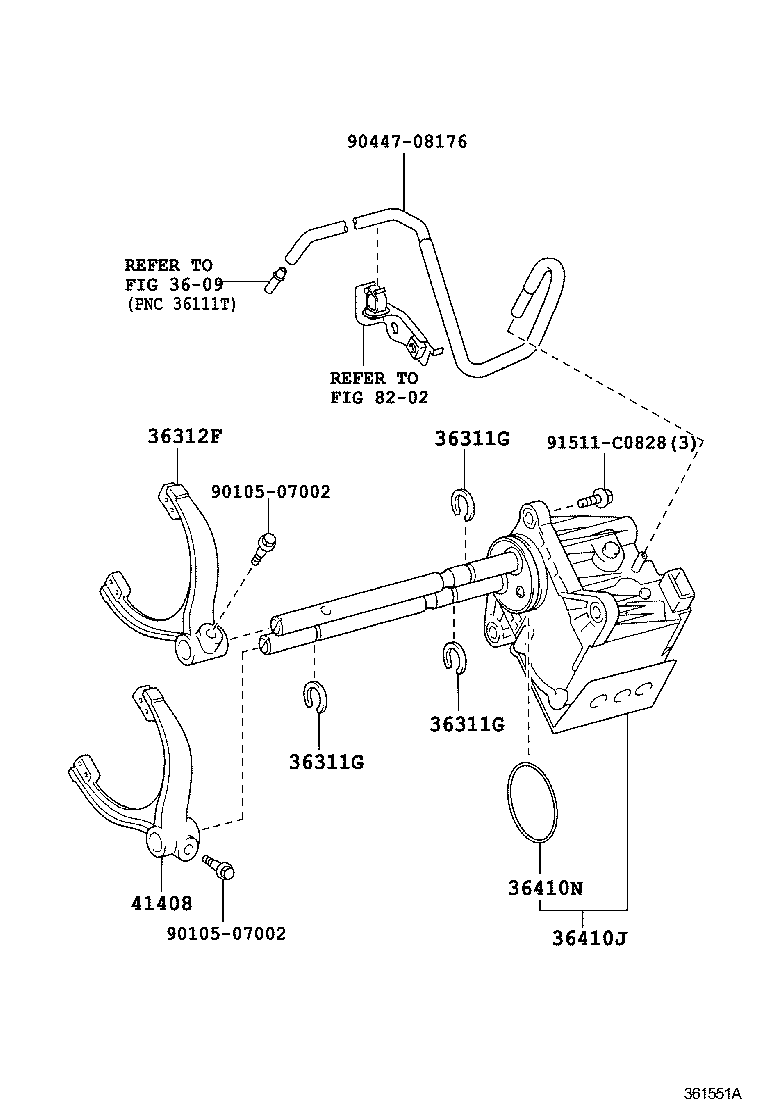

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
3 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-35011 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-60093 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
1 | ||
| 36410N - RING, O (FOR TRANSFER SHIFT ACTUATOR) | ||||
| 90301-56009 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60021 |
GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 90105-07002 | ||||
| 90447-08176 | ||||
| 91511-C0828 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 8202 | ||||
