GRJ150L-GKFEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )GRJ150..6F

Click highlighted areas on diagram

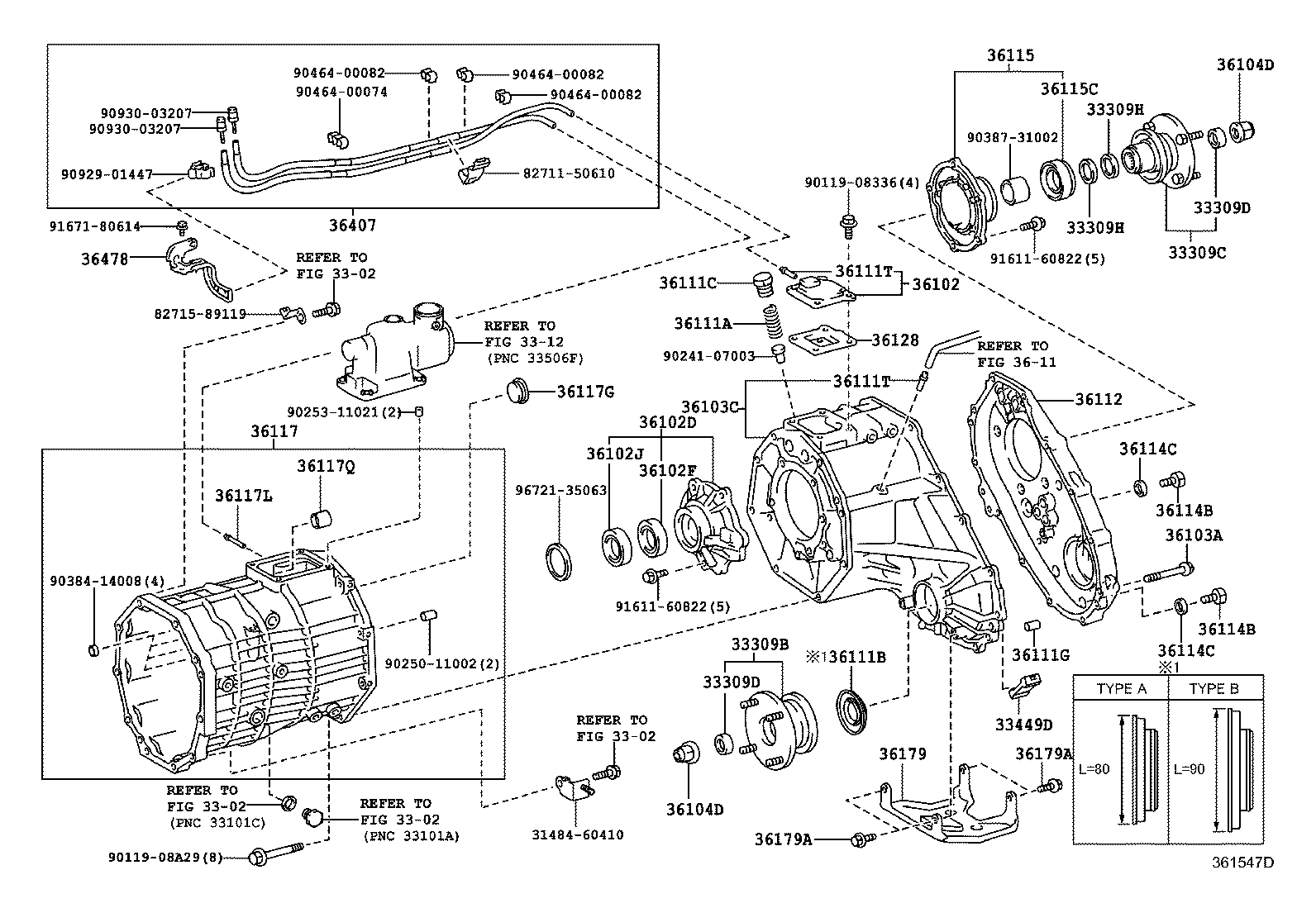

diagram 3148460410 3302 3302 3302 3302 3312 33309B 33309C 33309D 33309D 33309H 33309H 33449D 36102 36102D 36102F 36102J 36103A 36103C 36104D 36104D 3611 36111A 36111B 36111C 36111G 36111T 36111T 36112 36114B 36114B 36114C 36114C 36115 36115C 36117 36117G 36117L 36117Q 36128 36179 36179A 36179A 36407 36478 8271150610 8271589119 9011908336 9011908A29 9024107003 9025011002 9025311021 9038414008 9038731002 9046400074 9046400082 9046400082 9046400082 9092901447 9093003207 9093003207 9161160822 9161160822 9167180614 9672135063
Part # Description Qty Price
Common parts
31484-60410
82711-50610
82715-89119
90119-08336
90119-08A29
90241-07003
90250-11002
90253-11021
90384-14008
90387-31002
90464-00074
90464-00082
90929-01447
90930-03207
91611-60822
91671-80614
96721-35063
Linked diagrams
3302
3312
3611

(1708- )GRJ150..6F

Click highlighted areas on diagram

diagram 3148460410 3302 3302 3302 3302 3312 33309B 33309C 33309D 33309D 33309H 33309H 33449D 36102 36102D 36102F 36102J 36103A 36103C 36104D 36104D 3611 36111A 36111B 36111C 36111G 36111T 36111T 36112 36114B 36114B 36114C 36114C 36115 36115C 36117 36117G 36117L 36117Q 36128 36179 36179A 36179A 36407 36478 8271150610 8271589119 9011908336 9011908A29 9024107003 9025011002 9025311021 9038414008 9038731002 9046400074 9046400082 9046400082 9046400082 9092901447 9093003207 9093003207 9161160822 9161160822 9167180614 9672135063
Part # Description Qty Price

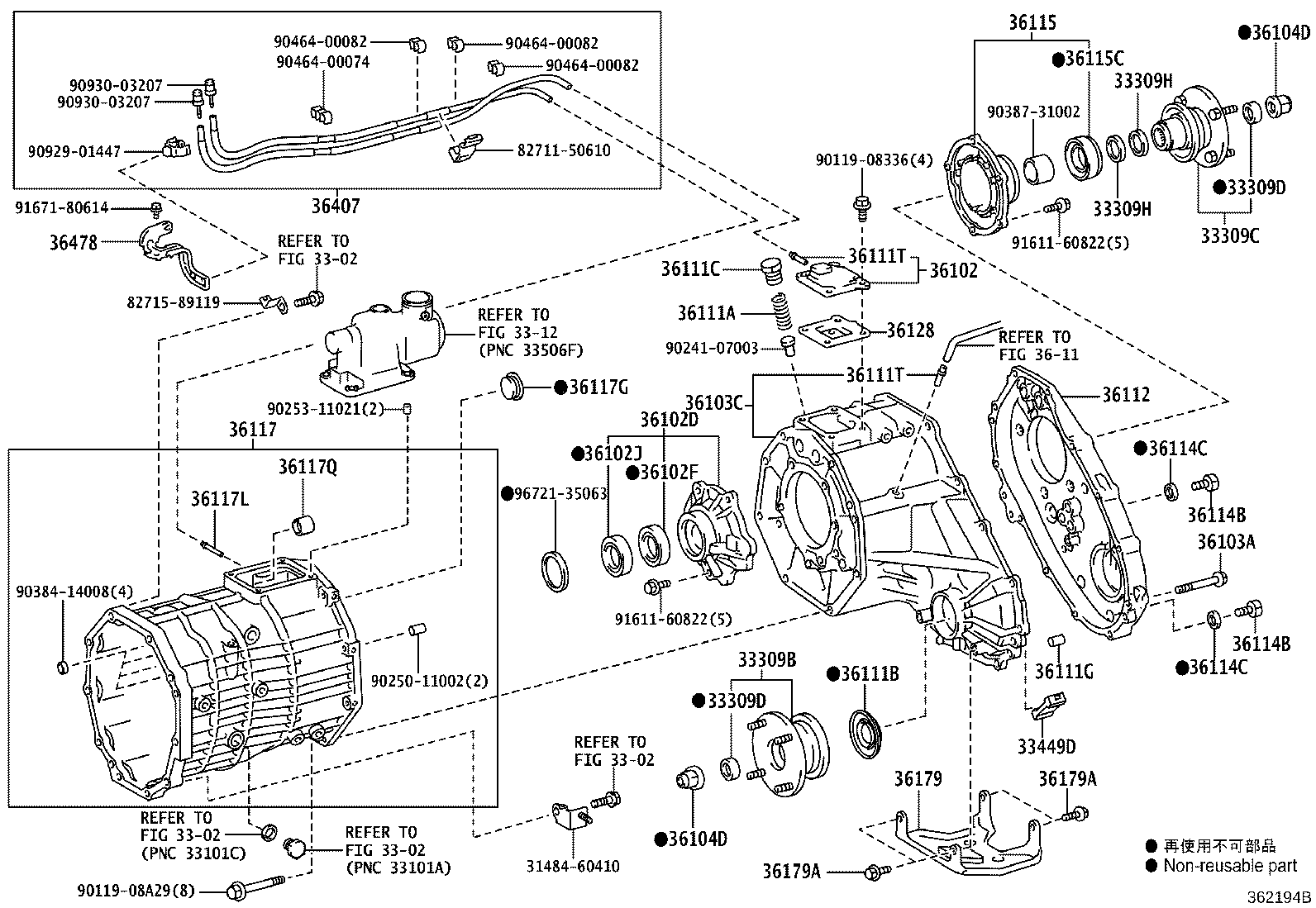

33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35113

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

PNC 36111B=TYPE B

 1
33309-35112

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

PNC 36111B=TYPE B

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35120

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

N=31,OD=38

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

N=31,OD=38

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-35040

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35080

GDJ150,GRJ150..6F..(GCC,GEN)

 1
36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
90311-43008

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-43007

GDJ150,GRJ150..6F..(GCC,GEN)

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

*8-1.25PX55-30

 12
36103C - CASE, TRANSFER, FRONT
36103-35070

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36111A - SPRING, COMPRESSION (FOR TRANSFER CASE)
90501-20091

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41017

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

L=14,OD=10

 2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36112 - CASE, TRANSFER, REAR
36112-35090

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 2
36115 - HOUSING, TRANSFER EXTENSION
36105-35050

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
90311-41020

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36117 - ADAPTER, TRANSFER
33102-60140

GRJ150..6F

 1
36117G - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
90341-32003

GDJ150,GRJ150..6F..(GCC,GEN)

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36117Q - BEARING, NEEDLE ROLLER(FOR TRANSFER ADAPTER)
90364-18011

GDJ150,GRJ150..6F..(GCC,GEN)

 1
36128 - DEFLECTOR, BREATHER OIL
36128-35060

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-60030

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
91611-G0820

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 4
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
91611-G0820

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 4
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-60220

GRJ150..6F

 1
36478 - BRACKET, TRANSFER BREATHER
36478-60060

GRJ150..6F

 1
