GRJ150L-GKFEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )GRJ150..6F

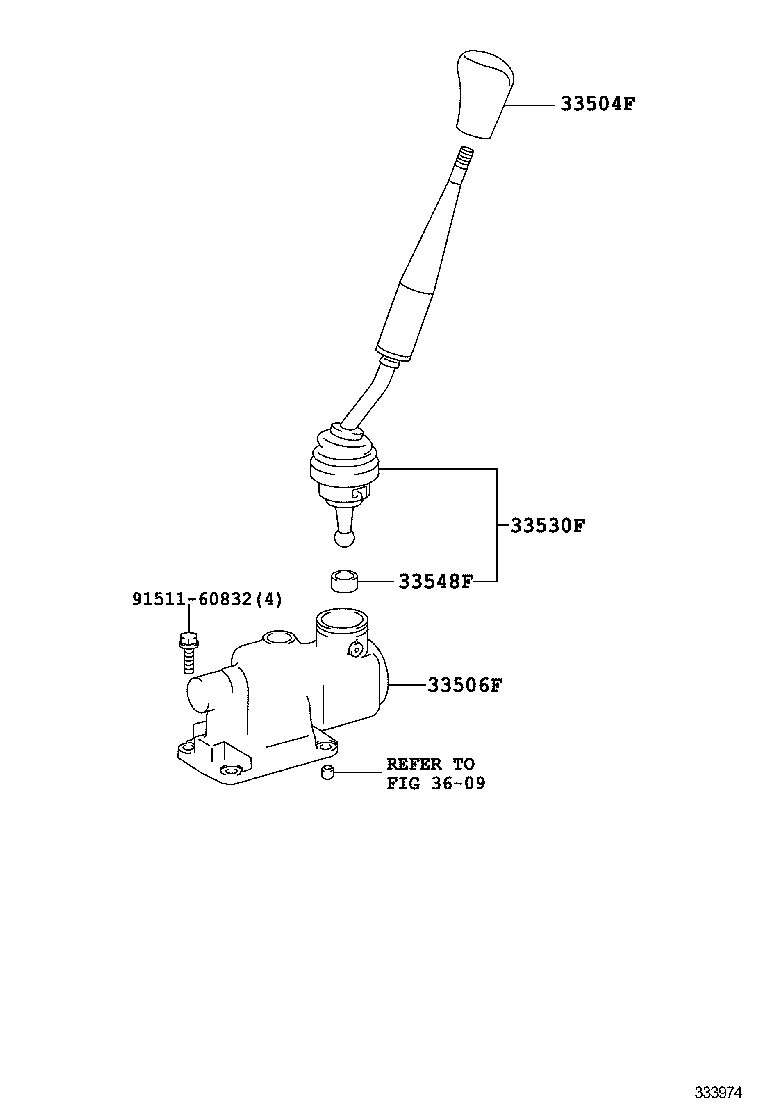

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 3609 9151160832
Part # Description Qty Price
Common parts
91511-60832
Linked diagrams
3609

(1708- )GRJ150..6F

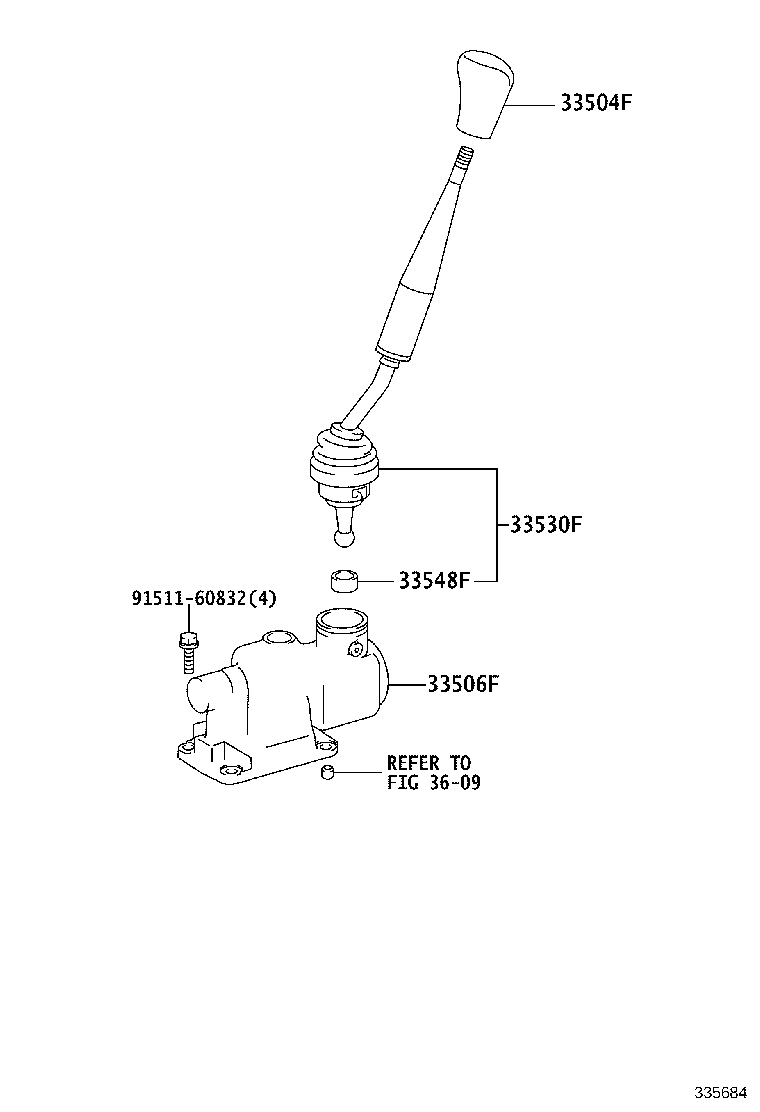

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 3609 9151160832
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60520C0

GRJ150..6F..GCC

BLACK,TRIM2#

 1
33504-60520E0

GRJ150..6F..GCC

ORCHID BROWN,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-60010

GRJ150..6F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60680

GRJ150..6F

 1
33530-60681

GRJ150..6F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-22020

GRJ150..6F

 1
Common parts
91511-60832
Linked diagrams
3609
