GRJ150L-GKFEKV (2017)
Toyota Land Cruiser Prado
ILLUST NO. 2 OF 2(0908- )GRJ150..LHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-06012 | ||||
| 90179-08054 | ||||
| 90461-12450 | ||||
| 90461-12451 | ||||
| 90468-08035 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91671-80814 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 3609 | ||||
| 4708 | ||||
| 7751 | ||||

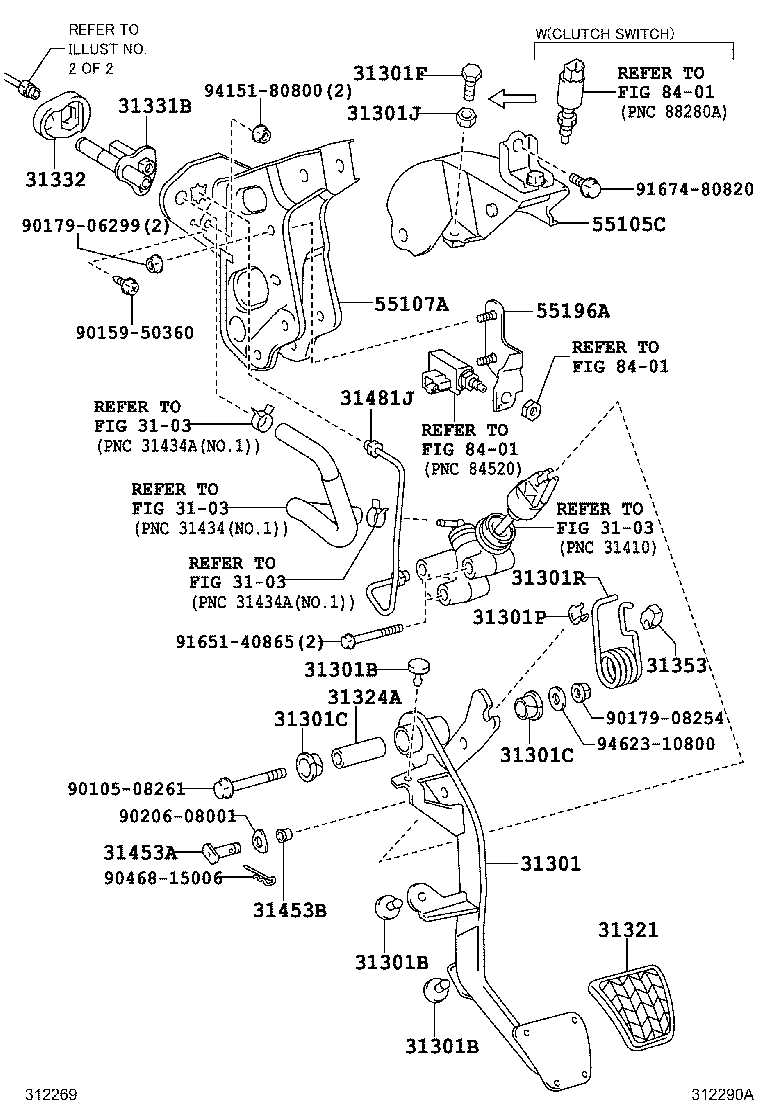

ILLUST NO. 1 OF 2(0908- )LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08261 | ||||
| 90159-50360 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90206-08001 | ||||
| 90468-15006 | ||||
| 91651-40865 | ||||
| 91674-80820 | ||||
| 94151-80800 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8401 | ||||

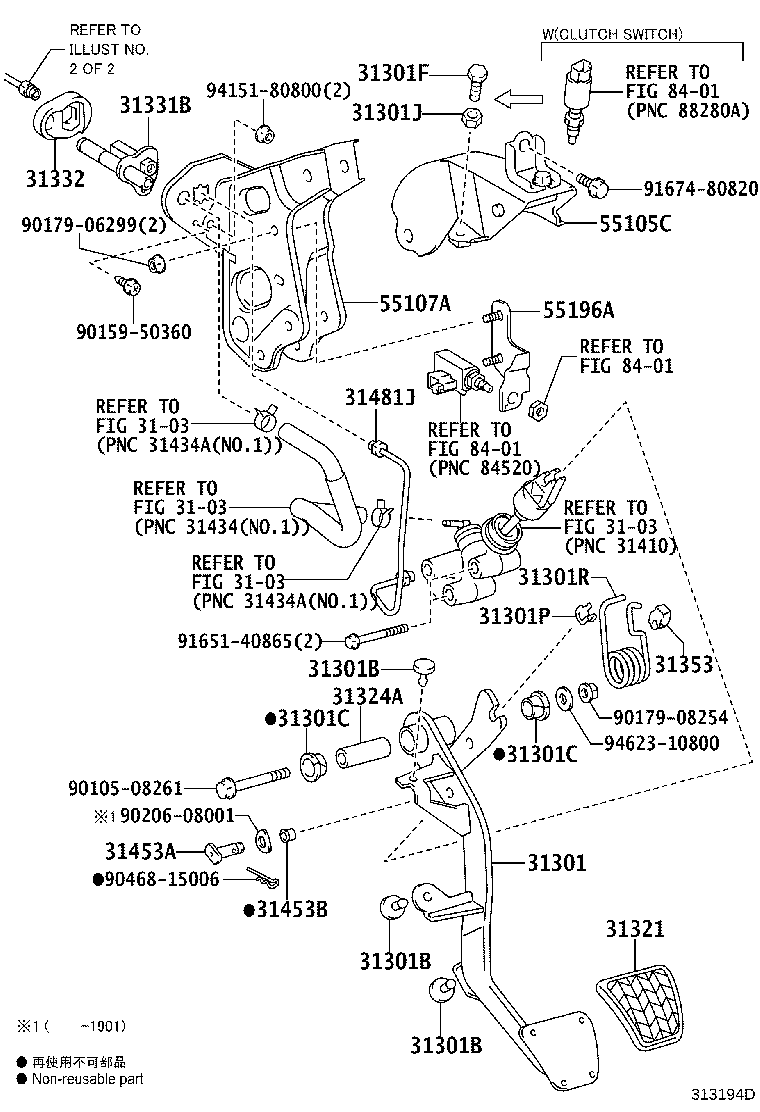

ILLUST NO. 1 OF 2(1708- )LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60320 |
GDJ150,GRJ150..LHD..6F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GRJ150,LJ150..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
GRJ150,LJ150..MTM |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03125 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-08160 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
1 | ||
| 31331B - WAY, CLUTCH PEDAL SUPPORT | ||||
| 31331-60010 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 31332 - GROMMET, CLUTCH PEDAL SUPPORT | ||||
| 31332-60010 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-T0002 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) L=31.9 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GDJ150,GRJ150,LJ150,TRJ150..MTM..(GCC,GEN) |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-6A050 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE | ||||
| 55105-60010 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60190 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-35020 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90159-50360 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90206-08001 | ||||
| 90468-15006 | ||||
| 91651-40865 | ||||
| 91674-80820 | ||||
| 94151-80800 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8401 | ||||

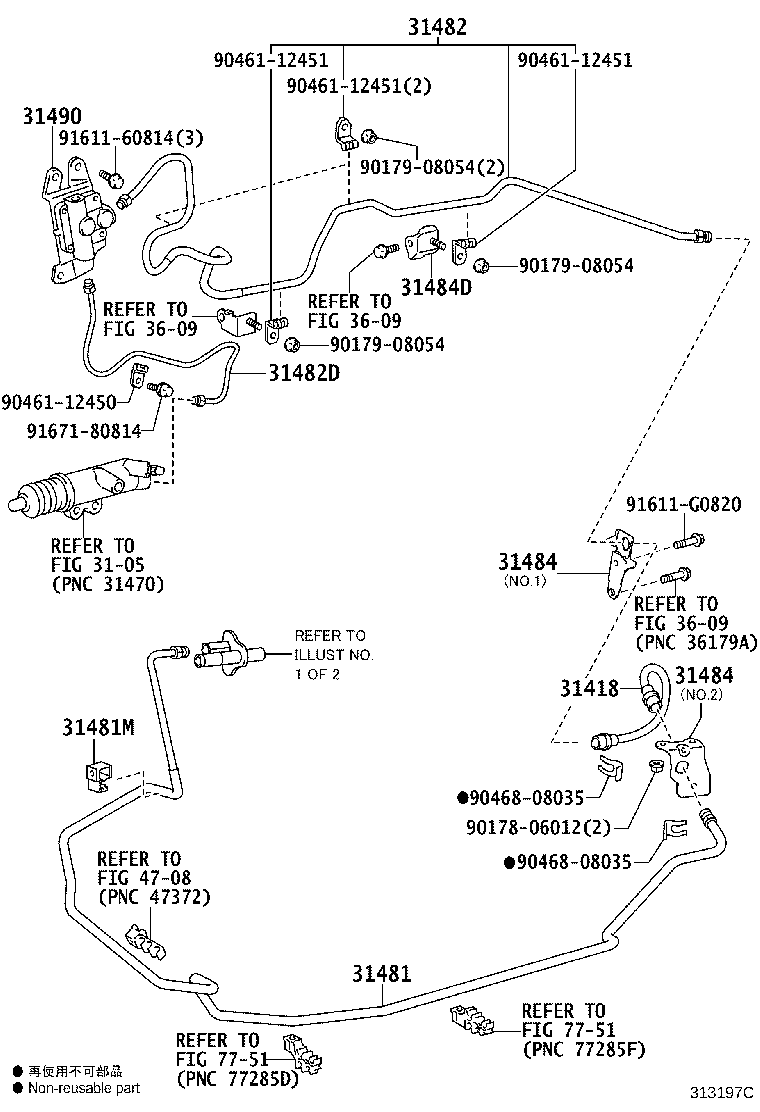

ILLUST NO. 2 OF 2(1708- )GRJ150..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02G14 |
GRJ150..6F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60B00 |
GRJ150..6F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
GDJ150,GRJ150,LJ150,TRJ150..LHD..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60240 |
GRJ150..6F |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-60300 |
GRJ150..6F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60231 |
GRJ150..6F NO.2 |
1 | ||
| 31484-60360 |
GRJ150..6F NO.1 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60231 |
GRJ150..6F NO.2 |
1 | ||
| 31484-60360 |
GRJ150..6F NO.1 |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-60280 |
GRJ150..6F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60170 |
GRJ150..6F |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90179-08054 | ||||
| 90461-12450 | ||||
| 90461-12451 | ||||
| 90468-08035 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91671-80814 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 3609 | ||||
| 4708 | ||||
| 7751 | ||||
