GRJ150L-GKFEKV (2017)

Toyota Land Cruiser Prado

Production Aug 2017 - Sep 9999
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1GRFE

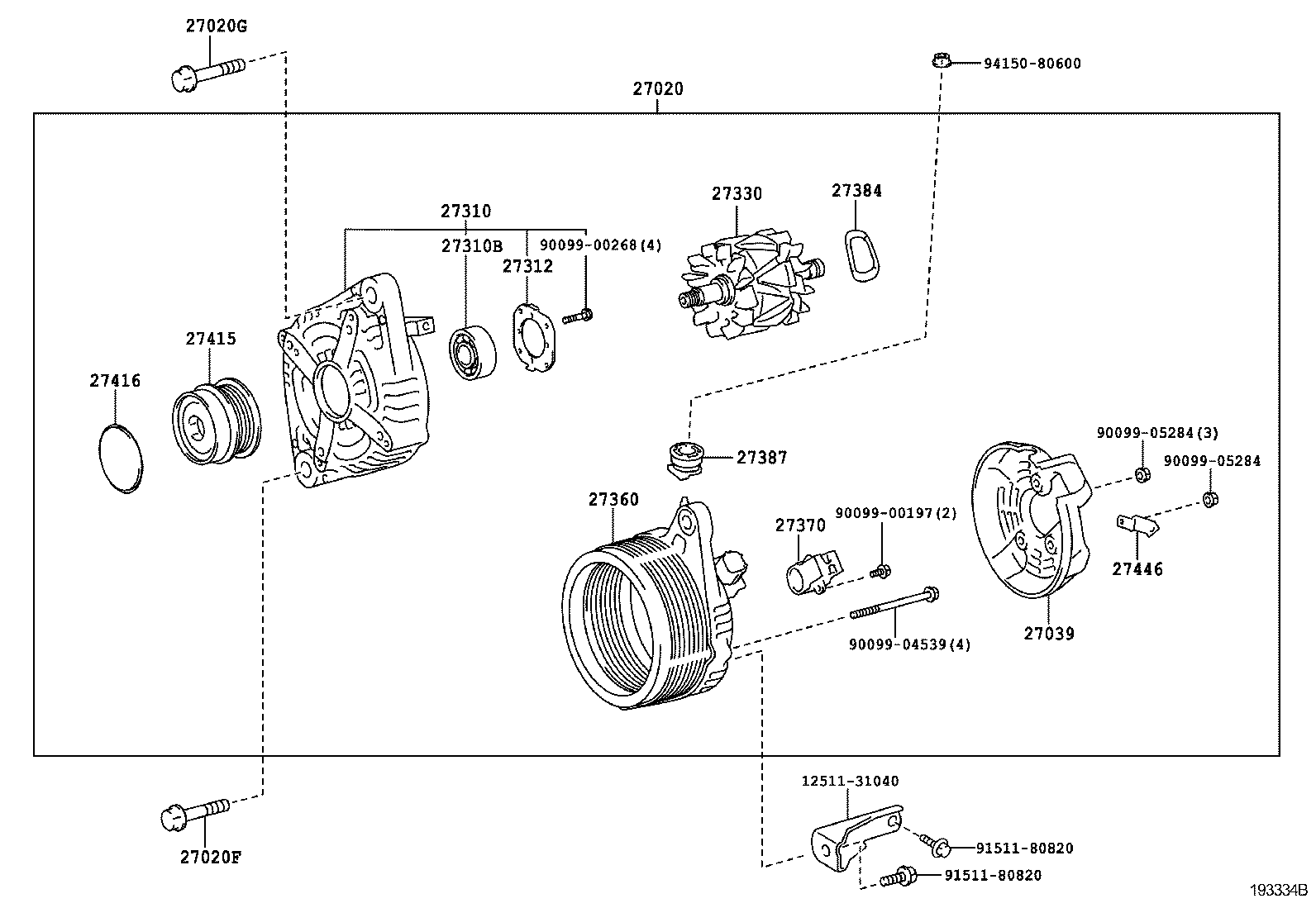

Click highlighted areas on diagram

12V 100A,130A

diagram 1251131040 27020 27020F 27020G 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 27446 9009900197 9009900268 9009904539 9009905284 9009905284 9151180820 9151180820 9415080600
Part # Description Qty Price
Common parts
12511-31040
90099-00197
90099-00268
90099-04539
90099-05284
91511-80820
94150-80600

(1708- )1GRFE

Click highlighted areas on diagram

12V 100A,130A

diagram 1251131040 27020 27020F 27020G 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 27446 9009900197 9009900268 9009904539 9009905284 9009905284 9151180820 9151180820 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31270

1GRFE..GRJ150..GCC

12V 100A,AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)

 1
27060-31260

1GRFE..GRJ150..LHD

12V 100A

 1
27060-31270

1GRFE..GRJ150..GCC

12V 100A,AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
91552-81040

1GRFE,2TRFE..GRJ150,TRJ15#

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91552-81070

1GRFE..GRJ150

 1
27039 - COVER, ALTERNATOR REAR END
27039-31390

1GRFE..GRJ150

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31430

1GRFE..GRJ150

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1G#,1KDFTV,2TRFE..GDJ150,GRJ150,KDJ150,TRJ15#

 1
27312 - PLATE, RETAINER
27312-72100

1G#,1KDFTV,2TRFE..GDJ150,GRJ150,KDJ150,TRJ15#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-23130

1GRFE..GRJ150..GCC

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)

 1
27330-23130

1GRFE..GRJ150..GCC

AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)

 1
27330-30070

1KDFTV..KDJ150;1GRFE..GRJ150..LHD

 1
27360 - COIL ASSY, ALTERNATOR
27360-31520

1GRFE..GRJ150..LHD

 1
27360-31540

1GRFE..GRJ150..GCC

AIR CONDITIONER-DUAL(MANUAL),W(*RR AIR DUCT=PNC 87217G)

 1
27360-31540

1GRFE..GRJ150..GCC

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1G#..GDJ150,GRJ150

 1
27384 - WASHER
27384-50030

1GRFE,1KDFTV..GRJ150,KDJ150

 1
27387 - INSULATOR, TERMINAL
27387-20130

1G#,1KDFTV,2TRFE..GDJ150,GRJ150,KDJ150,TRJ15#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W131

1GRFE..GRJ150

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

1GRFE,2TRFE..GRJ150,TRJ15#

 1
27446 - CLIP, ALTERNATOR CORD
27446-31390

1GRFE..GRJ150

 1
Common parts
12511-31040
90099-00197
90099-00268
90099-04539
90099-05284
91511-80820
94150-80600
