GRJ125L-GJPGKV (2003)

Toyota Land Cruiser Prado

Production Jan 2003 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1GRFE..LHD

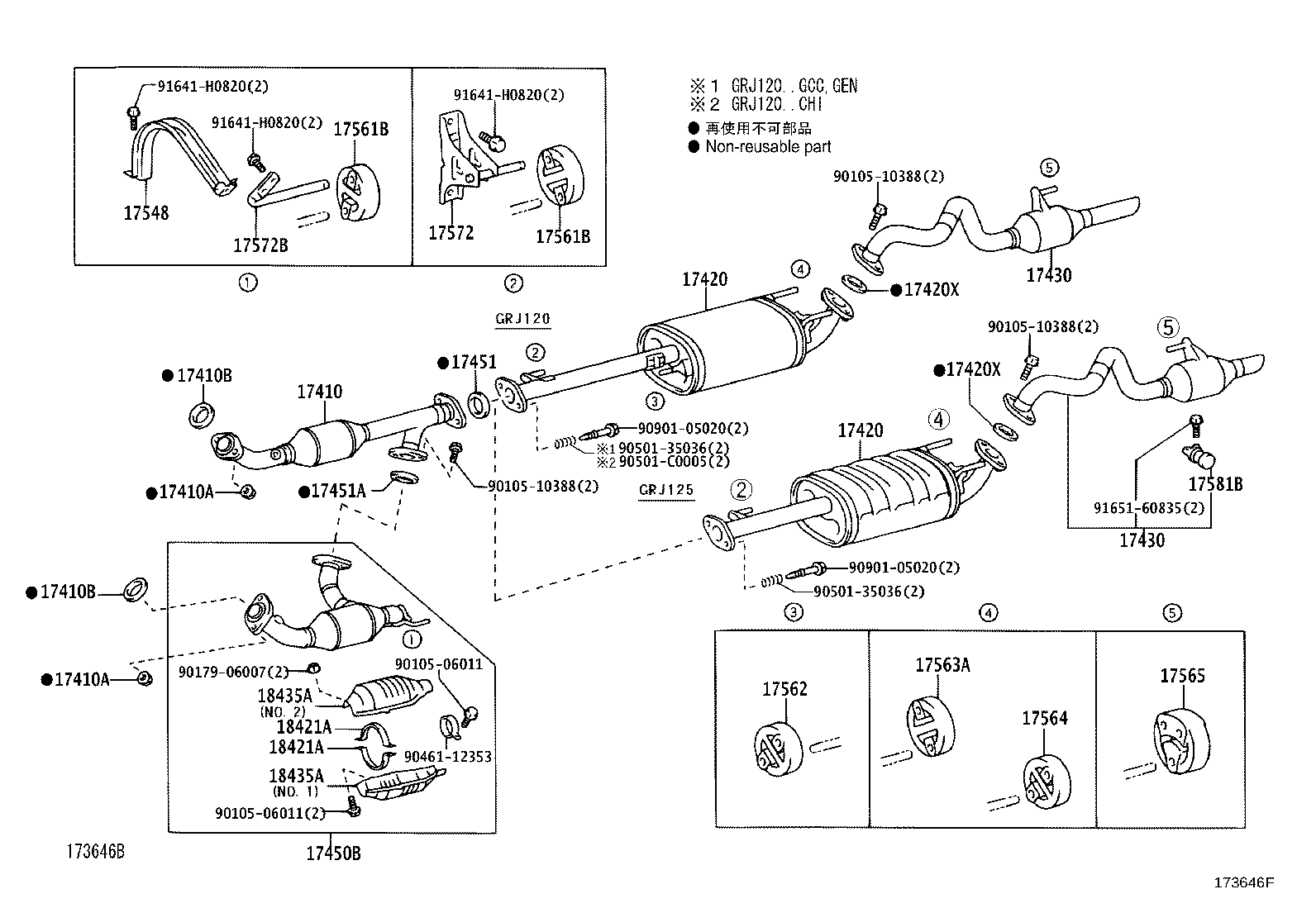

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17420 17420 17420X 17420X 17430 17430 17450B 17451 17451A 17548 17561B 17561B 17562 17563A 17564 17565 17572 17572B 17581B 18421A 18421A 18435A 18435A 9010506011 9010506011 9010510388 9010510388 9010510388 9017906007 9046112353 9050135036 9050135036 90501C0005 9090105020 9090105020 91641H0820 91641H0820 91641H0820 9165160835
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GRFE..GRJ12#..ARL,GCC,GEN

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GRFE..GRJ12#..ARL,GCC,GEN

 4
17410B - GASKET, EXHAUST PIPE
90917-06089

1GRFE..GRJ12#..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06089

1GRFE..GRJ12#..ARL,GCC,GEN

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-31080

1GRFE..GRJ125..4FC

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-31080

1GRFE..GRJ125..4FC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06072

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31420

1GRFE..GRJ125..4FC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31420

1GRFE..GRJ125..4FC

 1
17451 - GASKET, EXHAUST PIPE
17451-74051

1GRFE,1K#,5LE,3RZFE..GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06083

1GRFE..GRJ12#..ARL,GCC,GEN

 1
17548 - BRACKET, EXHAUST PIPE STOPPER
17548-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-46040

1GRFE,1KZTE,5LE,3RZFE,2TRFE..GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-46040

1GRFE,1KZTE,5LE,3RZFE,2TRFE..GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17561-73020

1GRFE,3RZFE..GRJ12#,RZJ12#..(4FC,5F)..(ARL,GCC,GEN)

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-50140

1KDFTV..KDJ120;1GRFE,1KZTE,5LE,3RZFE..GRJ12#,KZJ120,LJ12#,RZJ12#..(4FC,5F)..(ARL,GCC,GEN)

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-31070

1GRFE..GRJ12#..ARL,GCC,GEN

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-50090

1GRFE..GRJ125

 1
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75010

3RZFE..RZJ120..ARL;1GRFE..GRJ12#..GCC,GEN

 2
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75010

3RZFE..RZJ120..ARL;1GRFE..GRJ12#..GCC,GEN

 2
Common parts
90105-06011
90105-10388
90179-06007
90461-12353
90501-35036
90501-C0005
90901-05020
91641-H0820
91651-60835
