Toyota Land cruiser prado GRJ125 TRANSFER CASE & EXTENSION HOUSING

Manufacturers Home
Toyota
GR
LAND CRUISER PRADO
GRJ125L-GJAGKV (2004)
3609 - TRANSFER CASE & EXTENSION HOUSING

GRJ125L-GJAGKV (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009

Engine 1GRFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0408- )GX..5FC..CHI ; (0408- )GRJ12#..5FC..ARL,GCC,GEN

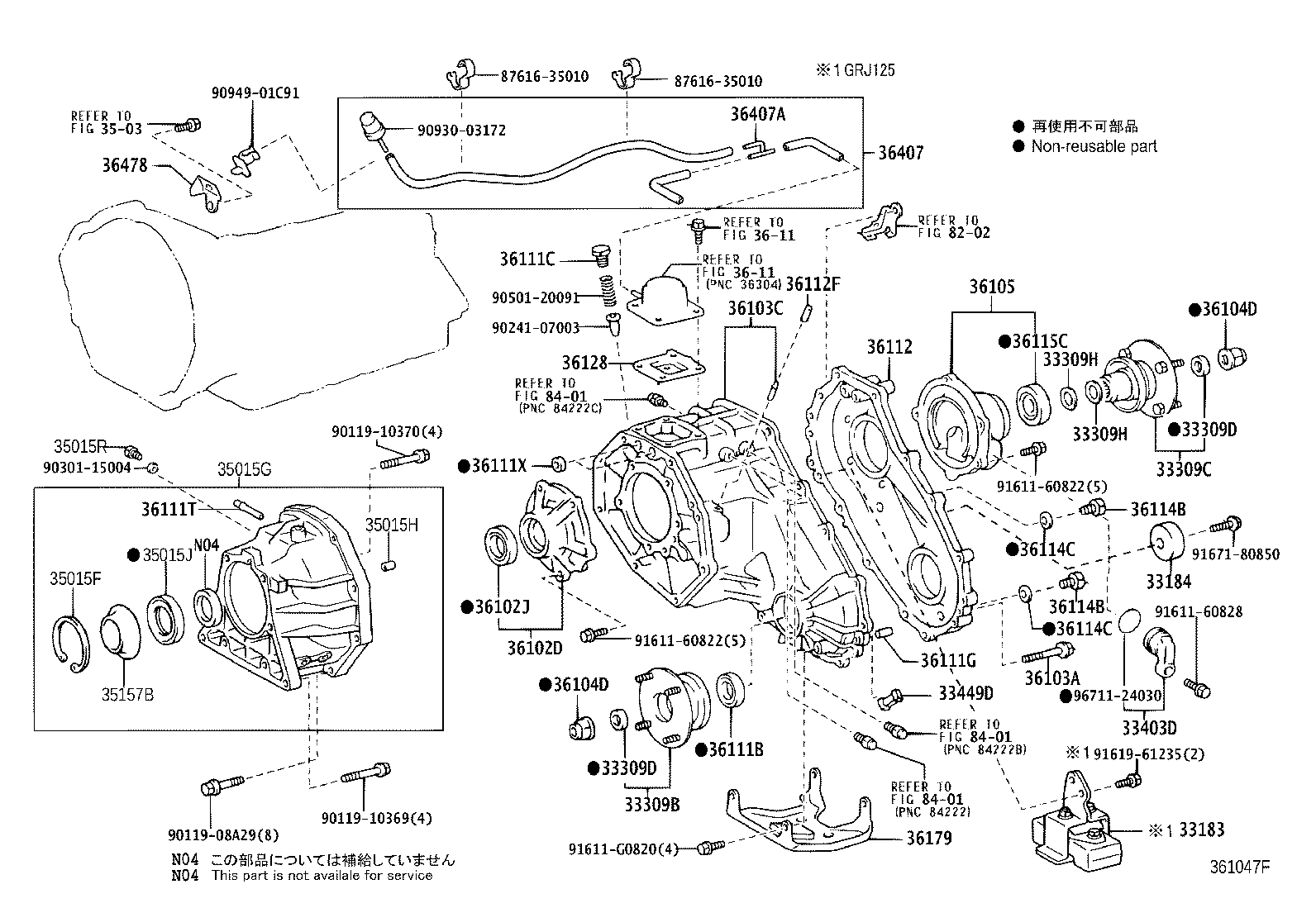

Click highlighted areas on diagram

Part #	Description	Period	Qty
33183 - DAMPER, TRANSFER DYNAMIC
33183-60030	GRJ125	09/2002 - 08/2004	1
33183-60030	GRJ125,LJ12#..5F,5FC	09/2002 - 12/2999	1
33184 - WEIGHT, DYNAMIC DAMPER
33184-60020	GRJ120..ATM..(ARL,GCC,GEN);GRJ125,KDJ120,KZJ120,RZJ12#,TRJ12#	09/2002 - 12/2999	1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2008	1
33309-35111	GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	07/2008 - 08/2009	1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35120	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN N=31,OD=38	09/2002 - 12/2999	2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN N=31,OD=38	09/2002 - 12/2999	2
33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN) ABS-WITH	09/2002 - 12/2999	1
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER)
90521-72001	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35015G - ADAPTER, TRANSFER, REAR
35015-35120	GRJ12#..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35015H - PIN, RING(FOR TRANSFER CASE)
90250-11003	GRJ12#,KDJ120,KZJ120,TRJ12#..ATM..(ARL,GCC,GEN)	08/2004 - 08/2009	2
35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
90311-43007	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)	09/2002 - 08/2009	1
35015R - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPT
90341-18059	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL
35157-60010	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)	09/2002 - 08/2009	1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35060	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F,5FC)..(ARL,GCC,GEN)	09/2002 - 12/2999	1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-43008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F,5FC)..(ARL,GCC,GEN)	09/2002 - 12/2999	1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN *8-1.25PX55-30	09/2002 - 12/2999	12
36103C - CASE, TRANSFER, FRONT
36103-60350	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60040	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41012	KDJ120..5FC;GRJ12#,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	09/2006 - 07/2008	1
90311-41010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 09/2006	1
90311-41013	KDJ120..5FC;GRJ12#,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	07/2008 - 12/2999	1
36111C - PLUG (FOR TRANSFER CASE)
90341-14012	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=14,OD=10	09/2002 - 12/2999	2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90311-15008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36112 - CASE, TRANSFER, REAR
36112-60180	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36112F - CAP, TRANSFER, REAR CASE
90339-04024	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-35020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-60120	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 12/2999	1
36407A - WAY, 3(FOR TRANSFER BREATHER HOSE)
90413-04008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36478 - BRACKET, TRANSFER BREATHER
36478-60010	RZJ12#..4FC;GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
Common parts
87616-35010
90119-08A29
90119-10369
90119-10370
90241-07003
90301-15004
90501-20091
90930-03172
90949-01C91
91611-60822
91611-60828
91611-G0820
91619-61235
91671-80850
96711-24030
Linked diagrams
3503
3611
8202
8401

(0408- )GRJ12#..5FC..ARL,GCC,GEN ; (0606-)VX..CHI

Click highlighted areas on diagram

W(ABS & VSC & ACTIVE TRC)

Part #	Description	Period	Qty
33183 - DAMPER, TRANSFER DYNAMIC
33183-60030	GRJ125	09/2002 - 08/2004	1
33183-60030	GRJ125,LJ12#..5F,5FC	09/2002 - 12/2999	1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35110	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 07/2008	1
33309-35111	GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	07/2008 - 08/2009	1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35120	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN N=31,OD=38	09/2002 - 12/2999	2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35030	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN N=31,OD=38	09/2002 - 12/2999	2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER)
90521-72001	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35015G - ADAPTER, TRANSFER, REAR
35015-35120	GRJ12#..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35015H - PIN, RING(FOR TRANSFER CASE)
90250-11003	GRJ12#,KDJ120,KZJ120,TRJ12#..ATM..(ARL,GCC,GEN)	08/2004 - 08/2009	2
35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
90311-43007	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)	09/2002 - 08/2009	1
35015R - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPT
90341-18059	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 08/2009	1
35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL
35157-60010	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)	09/2002 - 08/2009	1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35060	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F,5FC)..(ARL,GCC,GEN)	09/2002 - 12/2999	1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-43008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F,5FC)..(ARL,GCC,GEN)	09/2002 - 12/2999	1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN *8-1.25PX55-30	09/2002 - 12/2999	12
36103C - CASE, TRANSFER, FRONT
36103-60350	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60040	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41012	KDJ120..5FC;GRJ12#,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	09/2006 - 07/2008	1
90311-41010	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 09/2006	1
90311-41013	KDJ120..5FC;GRJ12#,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	07/2008 - 12/2999	1
36111C - PLUG (FOR TRANSFER CASE)
90341-14012	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN L=14,OD=10	09/2002 - 12/2999	2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 08/2009	1
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90311-15008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36112 - CASE, TRANSFER, REAR
36112-60180	GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-35020	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-60120	GRJ12#,KDJ120..5FC..(ARL,GCC,GEN)	08/2004 - 12/2999	1
36407A - WAY, 3(FOR TRANSFER BREATHER HOSE)
90413-04008	GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
36478 - BRACKET, TRANSFER BREATHER
36478-60010	RZJ12#..4FC;GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN	09/2002 - 12/2999	1
Common parts
87616-35010
90119-08A29
90119-10369
90119-10370
90241-07003
90301-15004
90387-31002
90501-20091
90930-03172
90949-01C91
91611-60822
91611-G0820
91619-61235
Linked diagrams
3503
3611
8202
8401
