GRJ125L-GJAGKV (2004)
Toyota Land Cruiser Prado

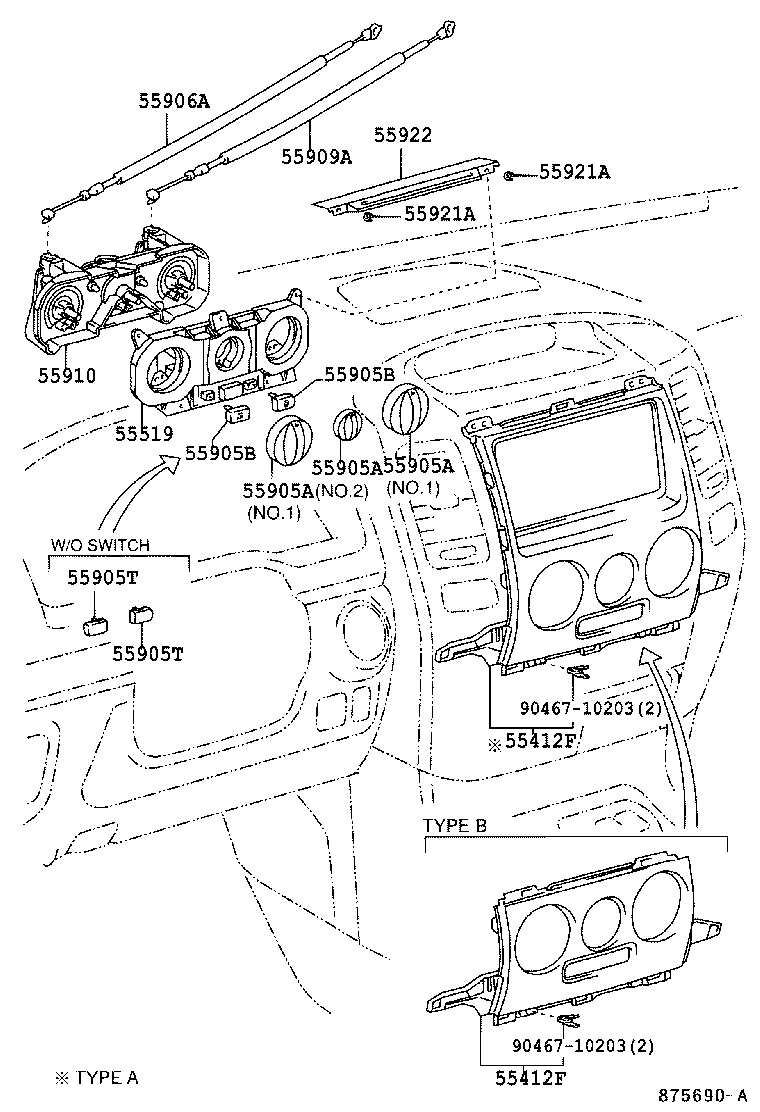

ILLUST NO. 1 OF 5(0209- )
FRONT CONTROL-AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60240 |
GRJ12#,KZJ120..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,TYPE B:REFER ILLUST. |
1 | ||
| 55412-60250 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60240 |
GRJ12#,KZJ120..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,TYPE B:REFER ILLUST. |
1 | ||
| 55412-60250 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-60632 |
GRJ12#..GCC AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP |
1 | ||
| 55900-6A142 |
GRJ12#..GCC |
1 | ||
| 55900-60633 |
GRJ12#..GCC AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,P/N LABEL=5590060633 |
1 | ||
| 55900-6A143 |
GRJ12#..GCC P/N LABEL=559006A143 |
1 | ||
| 55900-60E00 |
GRJ12#..GCC |
1 | ||
| 55900-60634 |
GRJ12#..GCC AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,P/N LABEL=5590060634 |
1 | ||
| 55900-6A144 |
GRJ12#..GCC P/N LABEL=559006A144 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-60020 |
GRJ12#..GCC |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-60020 |
GRJ12#..GCC |
2 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-60010 |
GRJ12#..GCC |
1 | ||
| 83911E - ORNAMENT, CLOCK | ||||
| 83911-60010 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-60622 |
GRJ12#..GCC |
1 | ||
| 88650-60C20 |
GRJ12#..GCC |
1 | ||
| 88650-60623 |
GRJ12#..VX..(ARL,GCC) |
1 | ||
| 88650-60624 |
GRJ12#..VX..(ARL,GCC) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 90467-10203 | ||||
| 93540-14012 | ||||
ILLUST NO. 1 OF 5(0209- )
FRONT CONTROL-MANUAL AIR CODITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60240 |
GRJ12#,KZJ120..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,TYPE B:REFER ILLUST. |
1 | ||
| 55412-60250 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60240 |
GRJ12#,KZJ120..GCC,GEN AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,TYPE B:REFER ILLUST. |
1 | ||
| 55412-60250 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60540 |
GRJ12#,KZJ120..GCC,GEN FRONT DEF |
1 | ||
| 55905-60550 |
GRJ12#,KZJ120..GCC,GEN OFF |
1 | ||
| 55905-60530 |
GRJ12#,KZJ120..GCC,GEN REAR DEF |
1 | ||
| 55905-60560 |
GRJ12#,KZJ120..GCC,GEN AUTO |
1 | ||
| 55905-60570 |
GRJ12#,KZJ120..GCC,GEN RECIRC/FRESH |
1 | ||
| 55905-60580 |
GRJ12#,KZJ120..GCC,GEN MODE |
1 | ||
| 55905-60590 |
GRJ12#,KZJ120..GCC,GEN A/C |
1 | ||
| 55905-60600 |
GRJ12#,KZJ120..GCC,GEN DUAL |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-60020 |
GRJ12#..GCC |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-60020 |
GRJ12#..GCC |
2 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-60010 |
GRJ12#..GCC |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
ILLUST NO. 2 OF 5(0209- )
REAR HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
GRJ12#..GCC 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..GCC 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| 90010-05101 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V1.12W,W/GREEN CAP,T=4.2,FRONT |
5 | ||
| 90010-05136 |
GRJ12#..(5FC,6F)..GCC;GRJ12#,KDJ120,KZJ120..VX..(ARL,GEN) 14V 1.12W,W(CAP),T=4.8,FRONT |
3 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 90206-11012 | ||||

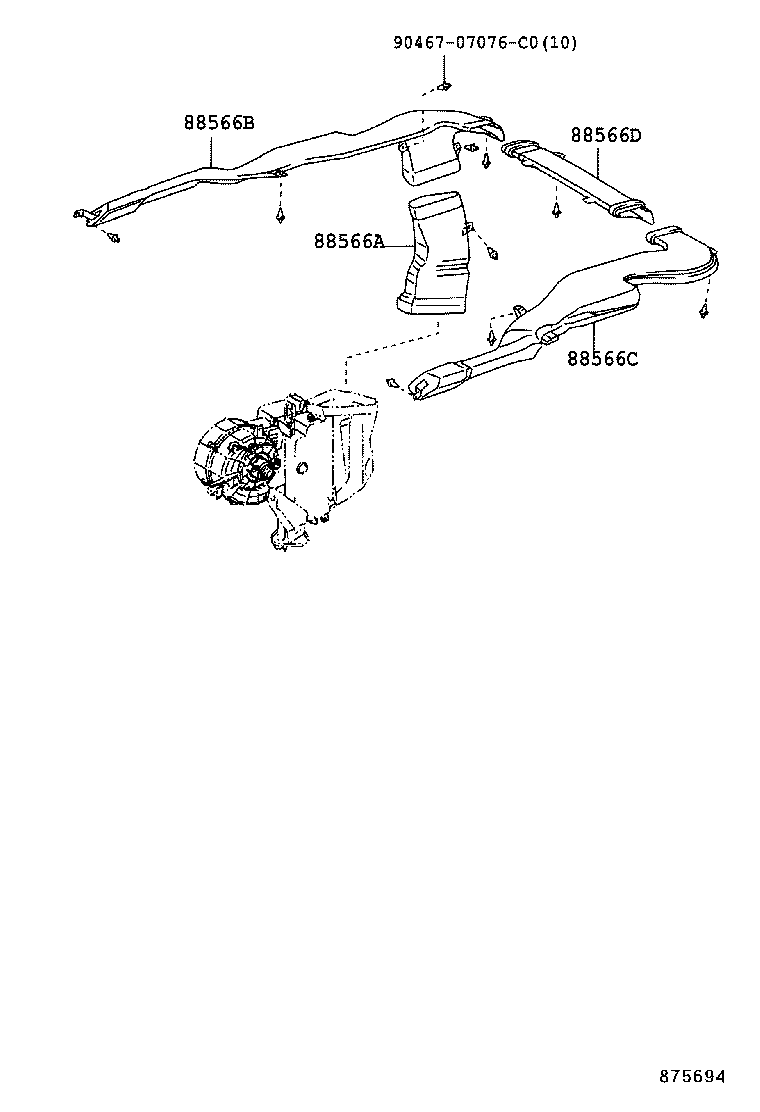

ILLUST NO. 4 OF 5(0209- )
REAR COOLER AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-07076C0 | ||||
ILLUST NO. 5 OF 5(0209- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-47021 |
GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
ILLUST NO. 3 OF 5(0209- )LHD
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60100 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1# |
2 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1# |
2 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60140 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60090 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-60010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60100 |
GRJ12#,KZJ120,LJ12#,RZJ12# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55961-60060C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) BLACK,TRIM1#,NO.1 |
1 | ||
| 55961-60060E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SANDAL WOOD,TRIM0#,NO.1 |
1 | ||
| 55971-60080 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55961-60060C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) BLACK,TRIM1#,NO.1 |
1 | ||
| 55961-60060E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SANDAL WOOD,TRIM0#,NO.1 |
1 | ||
| 55971-60080 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-60050 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 55962-60050C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) BLACK,TRIM1#,NO.1 |
1 | ||
| 55962-60050E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SANDAL WOOD,TRIM0#,NO.1 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-60050 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) NO.2 |
1 | ||
| 55962-60050C0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) BLACK,TRIM1#,NO.1 |
1 | ||
| 55962-60050E0 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) SANDAL WOOD,TRIM0#,NO.1 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-60030 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-35330 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-35340 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-35020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 87215-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 87216 - DUCT, HEATER INTERIOR AIR (TO REAR) | ||||
| 87216-35010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90183-05094 | ||||
| 90468-06080 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
