GRJ125L-GJAGKV (2004)
Toyota Land Cruiser Prado
ILLUST NO. 2 OF 8(0209- )

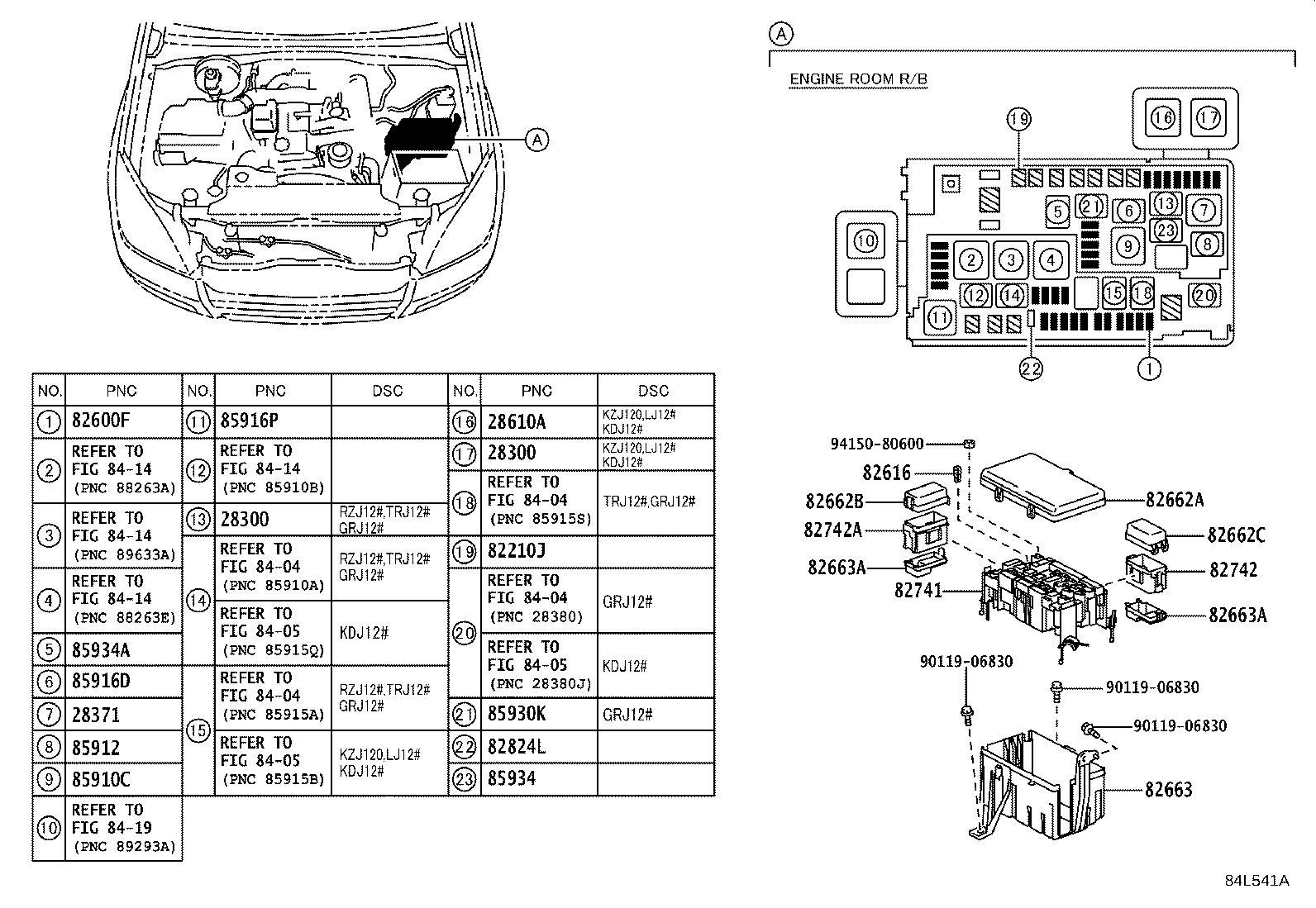

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31090 |
1GRFE..GRJ12#..ARL,GCC,GEN |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-60020 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER) |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8505 | ||||
ILLUST NO. 4 OF 8(0209- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09011 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09011 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-60150 |
GRJ12#,RZJ12#,TRJ12#..GCC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69015 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-60020 |
GRJ12#,KZJ120,RZJ12#,TRJ12#..ATM..(GCC,GEN) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02022 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 90987-02027 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02022 |
GRJ12#,KZJ120,RZJ125..ARL,GCC W/MOON ROOF |
1 | ||
| 90987-02027 |
GRJ12#,KDJ120,KZJ120,TRJ125..ARL,GCC W/MOON ROOF |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 90987-02027 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-40278 | ||||
| 90159-50138 | ||||
| 91511-B0614 | ||||
| 91631-B0610 | ||||
| 91635-G0618 | ||||
| 93315-14012 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 8(0209- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60080 |
RZJ120..ARL;GRJ12#,KDJ120,KZJ120..ARL,GCC,GEN |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60270 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10490 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 14V 0.84W |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60080 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 90010-01061 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN) 14V0.84W,W/GREEN CAP,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60110 |
GRJ12#,KZJ120..GCC,GEN LEATHER & BLACK WOOD STEERING PACKAGE,RH |
1 | ||
| 84751-60110 |
GRJ12#,KZJ120..GCC,GEN W(*LEP1) & LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60120 |
GRJ12#,KZJ120..GCC,GEN LEATHER & BLACK WOOD STEERING PACKAGE,LH |
1 | ||
| 84751-60120 |
GRJ12#,KZJ120..GCC,GEN W(*LEP1) & LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60110 |
GRJ12#,KZJ120..GCC,GEN LEATHER & BLACK WOOD STEERING PACKAGE,RH |
1 | ||
| 84751-60110 |
GRJ12#,KZJ120..GCC,GEN W(*LEP1) & LEATHER SEAT PACKAGE,RH |
1 | ||
| 84751-60120 |
GRJ12#,KZJ120..GCC,GEN LEATHER & BLACK WOOD STEERING PACKAGE,LH |
1 | ||
| 84751-60120 |
GRJ12#,KZJ120..GCC,GEN W(*LEP1) & LEATHER SEAT PACKAGE,LH |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01061 |
GRJ12#,KZJ120..GCC,GEN 14V0.84W,W/GREEN CAP,W(*LEP1) & LEATHER SEAT PACKAGE |
2 | ||
| 90010-01061 |
GRJ12#,KZJ120..GCC,GEN 14V0.84W,W/GREEN CAP,LEATHER & BLACK WOOD STEERING PACKAGE |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01061 |
GRJ12#,KZJ120..GCC,GEN 14V0.84W,W/GREEN CAP,W(*LEP1) & LEATHER SEAT PACKAGE |
2 | ||
| 90010-01061 |
GRJ12#,KZJ120..GCC,GEN 14V0.84W,W/GREEN CAP,LEATHER & BLACK WOOD STEERING PACKAGE |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN OUTSIDE RR VIEW MIRROR-REMOTE CONTROLER W/RETRA CHROME |
1 | ||
| 84870-34010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-60010 |
KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 84988J - BULB, DOWNHILL ASSIST CONTROL SWITCH | ||||
| 90010-01061 |
KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60050C0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN BLACK,TRIM0#,1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
KZJ120,TRJ12#;GRJ125,LJ12#..5F,5FC;GRJ120..(5FC,6F)..(ARL,GCC,GEN) |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||
| 8419 | ||||
ILLUST NO. 6 OF 8(0209- )LHD
IGNITION & COMBINATION SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20560 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH |
1 | ||
| 84140-20560 |
RZJ125..GCC;TRJ120..LHD..GEN;GRJ12#,KZJ120,TRJ125..GCC,GEN FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84140-20560 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84140-26140 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 84140-20560 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84140-20560 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84140-20560 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84140-20560 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH |
1 | ||
| 84140-20560 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE& CURTAIN |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-58010C0 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,BLACK,TRIM1# |
1 | ||
| 84247-58010C0 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84247-58010E1 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84247-58010E1 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84247-58020C0 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84247-58020E1 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84247-58020E1 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84247-58020C0 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-58010C0 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84258-58010C0 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,BLACK,TRIM1# |
1 | ||
| 84258-58010C0 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84258-58010E1 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84258-58010C0 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,BLACK,TRIM1# |
1 | ||
| 84258-58010E1 |
GRJ12#,KZJ120..GCC,GEN CRUISE CONTROL-WITH&SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84258-58010E1 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84258-58010E1 |
GRJ12#,KZJ120..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-AM/FM/SW1/SW2/CDCHANGER 6SP,SANDAL WOOD,TRIM0# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33090 |
RZJ125..GCC;GRJ12#,KZJ120..LHD FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84306-33090 |
RZJ120..GEN;GRJ12#,KZJ120,LJ12#,RZJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84306-33090 |
GRJ12#,KZJ120,LJ12#,RZJ12#..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-33090 |
RZJ12#..GCC;GRJ12#,KZJ120..LHD FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-60080 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-60080 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-60080 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-60080 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84306-60080 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84306-60080 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE& CURTAIN |
1 | ||
| 84306-60080 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84306-60080 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26860 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 84310-6A780 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH |
1 | ||
| 84310-6B210 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B170 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B210 |
RZJ125..GCC;TRJ120..LHD..GEN;GRJ12#,KZJ120,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310-6B170 |
RZJ125..GCC;TRJ120..LHD..GEN;GRJ12#,KZJ120,TRJ125..GCC,GEN FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310-6B600 |
GRJ12#..5FC..(GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-60A60 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310-6B600 |
GRJ12#..5FC..(GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310-60A60 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6A790 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH |
1 | ||
| 84310-6B860 |
GRJ12#..5FC..(GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&SRS AIR BAG-DRIVER & PASSENGER & SIDE &CURTAIN |
1 | ||
| 84310-60D60 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER) |
1 | ||
| 84310-6B860 |
GRJ12#..5FC..(GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B080 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B080 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE& CURTAIN |
1 | ||
| 84310-6B100 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84310-6B570 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B100 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84310-6B570 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH |
1 | ||
| 84312-26010 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER) |
1 | ||
| 84312-26010 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..GCC,GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26530 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 84652-35521 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-35521 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH |
1 | ||
| 84652-35521 |
RZJ125..GCC;TRJ120..LHD..GEN;GRJ12#,KZJ120,TRJ125..GCC,GEN SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84652-35521 |
RZJ12#..GCC;GRJ12#,KZJ120,TRJ12#..LHD..(GCC,GEN) FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-35521 |
RZJ125..GCC;TRJ120..LHD..GEN;GRJ12#,KZJ120,TRJ125..GCC,GEN FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84652-60811 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH |
1 | ||
| 84652-60810 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-60810 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84652-60811 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84652-60811 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-60811 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER) |
1 | ||
| 84652-60811 |
GRJ12#,TRJ12#..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-60811 |
GRJ12#..5FC..GCC ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)&WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 84652-60811 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84652-60811 |
GRJ12#,TRJ125..GCC WITH(HEAD LAMP CLEANER)&FRONT FOG LAMP-WITH&SRS AIR BAG-DRIVER & PASSENGER & SIDE& CURTAIN |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-33020 |
GRJ12#..5FC..(GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),P/N LABEL=8924533020 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(0209- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050A0 |
GRJ12#,KZJ120..GCC,GEN IVORY,TRIM0# |
1 | ||
| 84920-60050B2 |
GRJ12#,KZJ120..GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050A0 |
GRJ12#,KZJ120..GCC,GEN IVORY,TRIM0# |
1 | ||
| 84920-60050B2 |
GRJ12#,KZJ120..GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 7151 | ||||

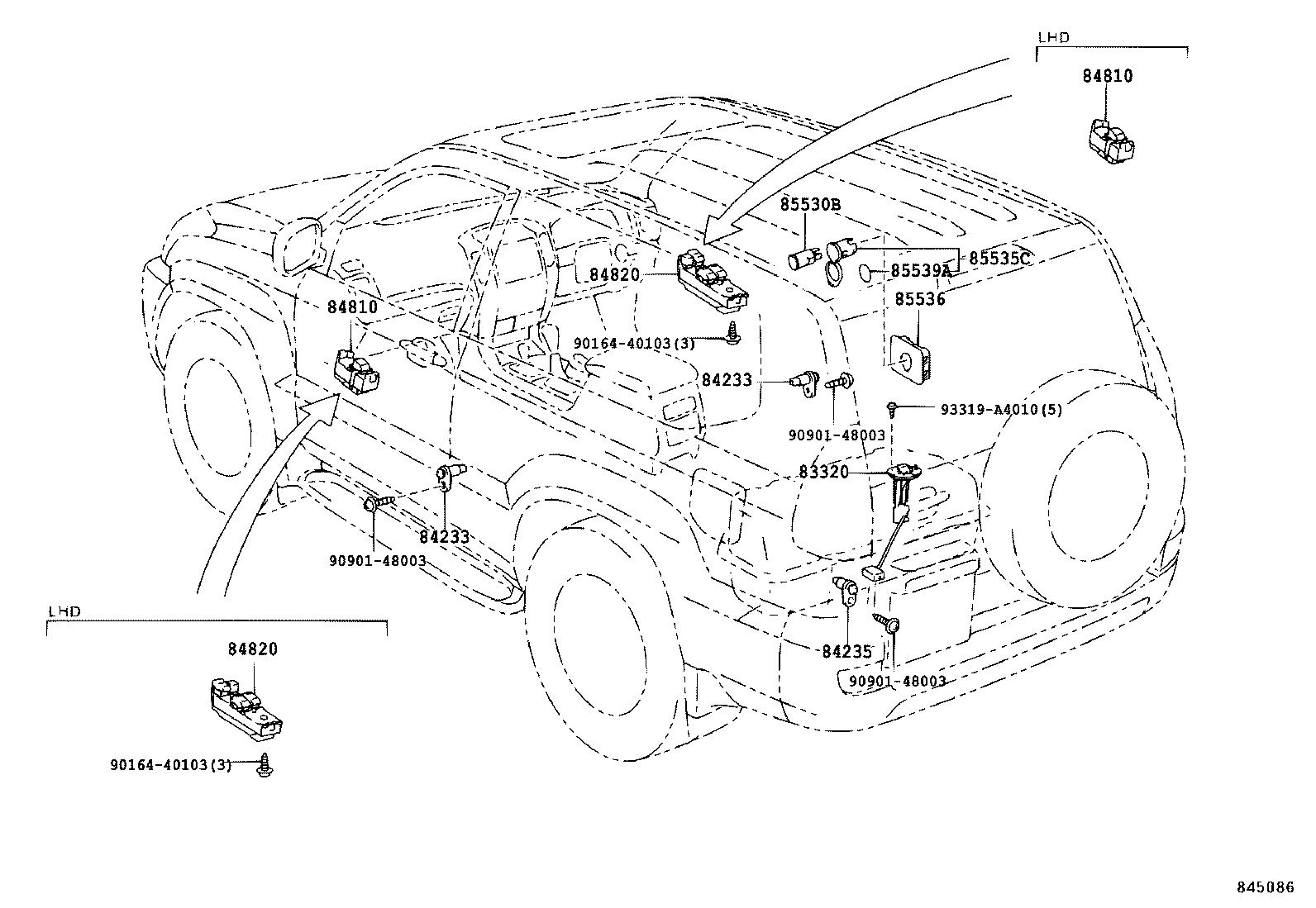

ILLUST NO. 8 OF 8(0209- )GRJ125,LJ125,RZJ125,TRJ125
DOOR,ROOF & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60470 |
GRJ125,LJ125,RZJ125,TRJ125 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-60050 |
GRJ125,RZJ125..GCC |
1 | ||
| 84030-60053 |
GRJ125,TRJ125..GCC |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-60050 |
GRJ125,RZJ125..GCC |
1 | ||
| 84030-60053 |
GRJ125,TRJ125..GCC |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-60040 |
GRJ125,RZJ125..GCC |
1 | ||
| 84040-60042 |
GRJ125,TRJ125..GCC |
1 | ||
| 84040-60043 |
GRJ125,TRJ125..GCC |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-60040 |
GRJ125,RZJ125..GCC |
1 | ||
| 84040-60042 |
GRJ125,TRJ125..GCC |
1 | ||
| 84040-60043 |
GRJ125,TRJ125..GCC |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60100A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 85535-60100B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60020B0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN MD.GRAY,TRIM1# |
1 | ||
| 85536-60020A0 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN IVORY,TRIM0# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
ILLUST NO. 3 OF 8(0209- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE,3RZFE,2TRFE..GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1GRFE,1KZTE..GRJ12#,KZJ120..GCC,GEN LEATHER & BLACK WOOD STEERING PACKAGE |
1 | ||
| 90987-02025 |
1GRFE,1KZTE..GRJ12#,KZJ120..GCC,GEN W(*LEP1) & LEATHER SEAT PACKAGE |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08274 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
GRJ12#,KZJ120,RZJ12#..ARL,GCC,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08283 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08203 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
GRJ12#,KZJ120,RZJ12#..ARL,GCC,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08286 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08286 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09011 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60340 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 82662-60331 |
GRJ12#,KZJ120,LJ12#..ARL,GCC,GEN |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-3D150 |
GRJ12#,KDJ120,KZJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 82662-3D150 |
GRJ120..VX..5F;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35090 |
KDJ120;GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 82663-35090 |
GRJ12#..ARL,GCC,GEN |
2 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-35100 |
GRJ12#,KDJ120..5FC..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 82663-35100 |
KZJ120;GRJ12#,KDJ120..(5FC,6F)..(ARL,GCC,GEN) ABS-WITH |
2 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-35100 |
GRJ12#,KDJ120..5FC..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 82663-35100 |
KZJ120;GRJ12#,KDJ120..(5FC,6F)..(ARL,GCC,GEN) ABS-WITH |
2 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35110 |
KDJ120;GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 82741-35110 |
GRJ12#..ARL,GCC,GEN |
2 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-35050 |
KDJ120;GRJ12#,KZJ120..(4FC,5F)..(ARL,GCC,GEN) ABS-WITH |
1 | ||
| 82742-35050 |
GRJ12#..ARL,GCC,GEN ABS-WITH |
2 | ||
| 82742-35050 |
GRJ12#..5FC..(ARL,GCC,GEN) ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
RZJ12#..ARL,GCC;GRJ12#,KDJ120,KZJ120,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02022 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN FRONT FOG LAMP-WITH |
1 | ||
| 90987-02027 |
GRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN FRONT FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06830 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
