GRJ125L-GJAGKV (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

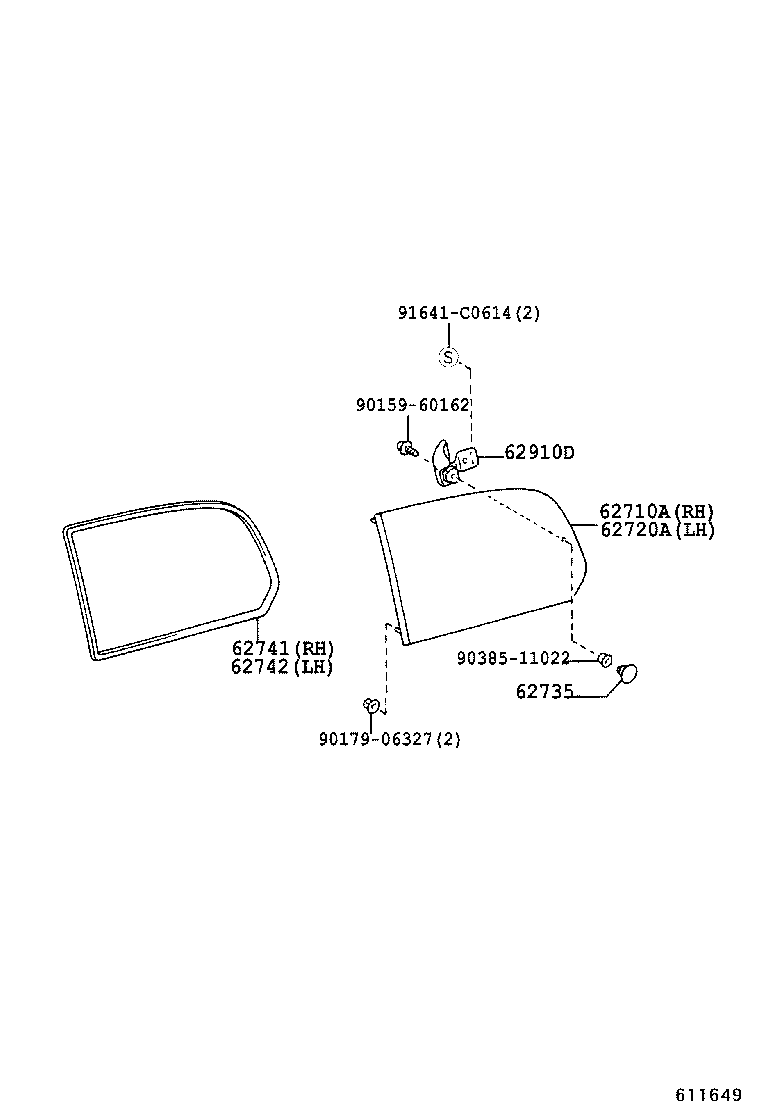

Click highlighted areas on diagram

diagram 62710A 62720A 62735 62741 62742 62910D 9015960162 9017906327 9038511022 91641C0614
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-6A100

GRJ125,LJ125,RZJ125,TRJ125

*TT,T=4.0,DK.GRAY

 1
62710-6A080

TRJ125;GRJ125,RZJ125..GCC

*UVCTT,T=4.0,GREEN

 1
62735 - RETAINER, QUARTER WINDOW HINGE
62735-28040

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

 2
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-60120

GRJ125,LJ125,RZJ125

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-60110

GRJ125,LJ125,RZJ125

 1
62910D - LOCK ASSY, QUARTER WINDOW
62910-60060B0

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

MD.GRAY,TRIM1#

 2
62910-60060A0

GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN

IVORY,TRIM0#

 2
Common parts
90159-60162
90179-06327
90385-11022
91641-C0614
