GRJ125L-GJAGKV (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )ATM..ARL,GCC,GEN

Click highlighted areas on diagram

A340F,A343F,A750F

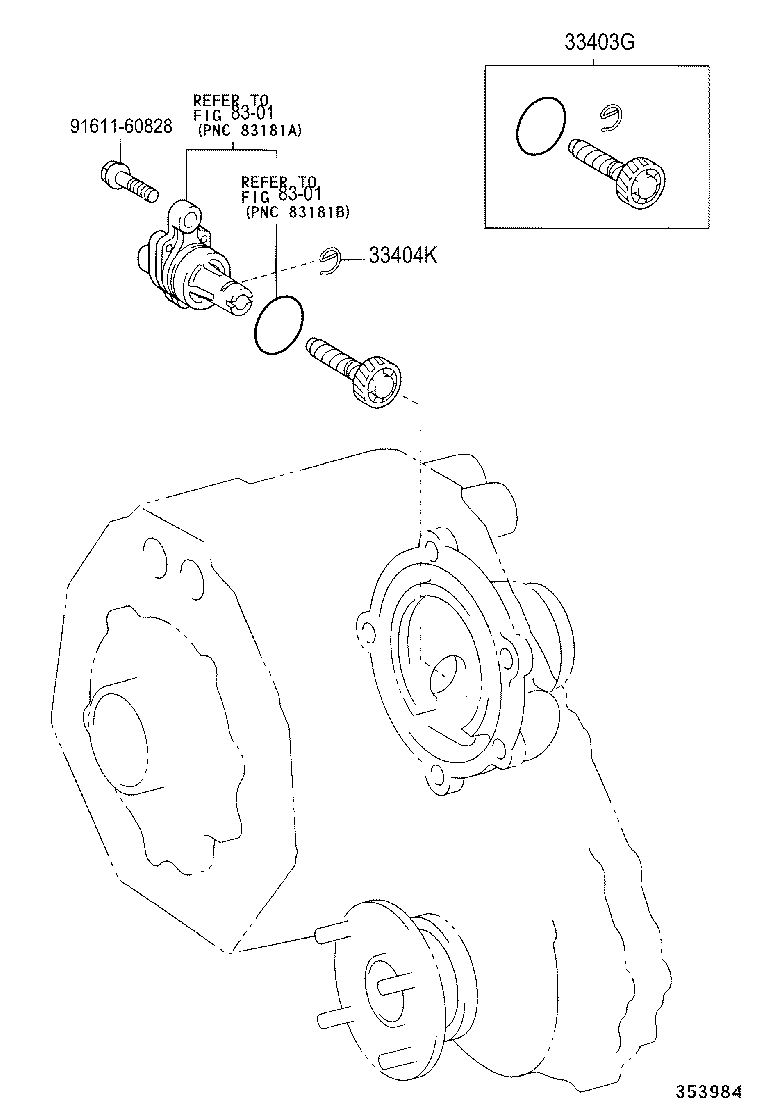

diagram 33403G 33404K 8301 8301 9161160828
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39585

GRJ12#..5FC..(ARL,GCC,GEN)

N=28,MARK 28:11

 1
33403-39585

GRJ12#..5FC..(ARL,GCC,GEN)

N=28,MARK 28:11,ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KZJ120..4FC..ARL;GRJ12#,KDJ120..ATM..(ARL,GCC,GEN)

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
90468-12005

GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ATM..(ARL,GCC,GEN)

 1
Common parts
91611-60828
Linked diagrams
8301
