GRJ120R-GKMEKQ (2003)

Toyota Land Cruiser Prado

Production Jan 2003 - Aug 2004
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0408)GRJ120..5F

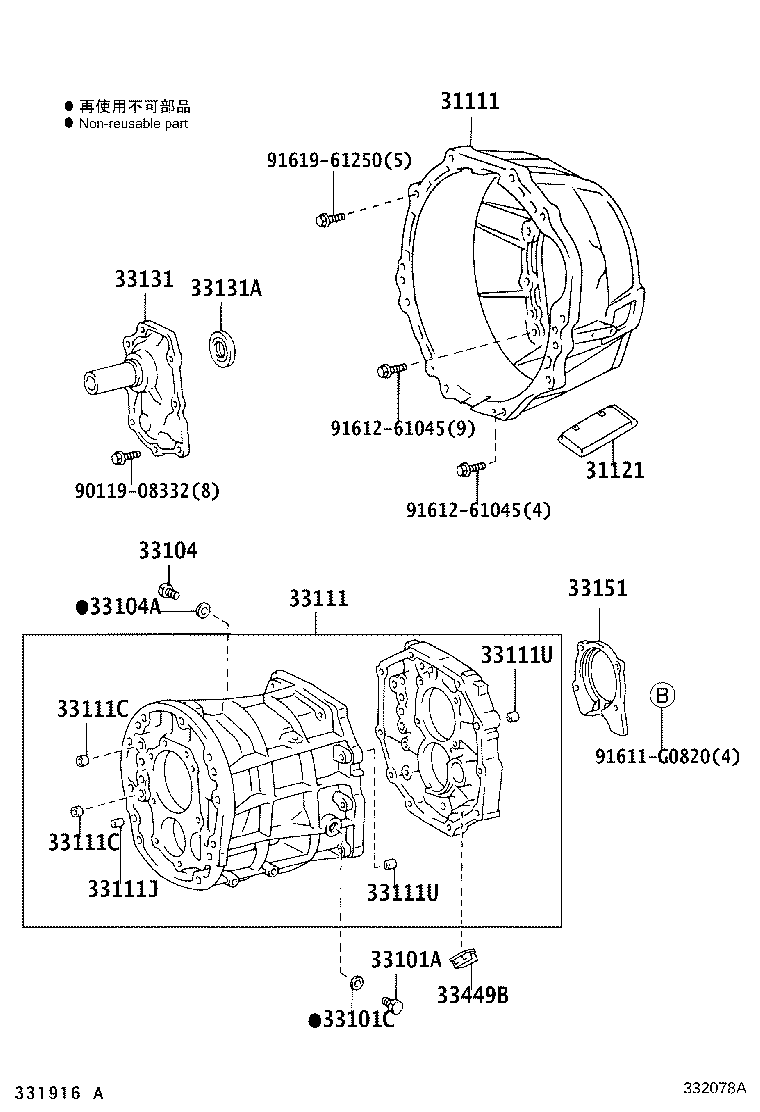

Click highlighted areas on diagram

R150

diagram 31111 31121 33101A 33101C 33104 33104A 33111 33111C 33111C 33111J 33111U 33111U 33131 33131A 33151 33449B 9011908332 91611G0820 9161261045 9161261045 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-60350

GRJ120..5F

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-60060

GRJ120..5F

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

GRJ120,KZJ120,RZJ12#,TRJ12#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-60040

GRJ120,KZJ120,TRJ12#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GRJ120,KZJ120,TRJ12#..5F

OD=14

 1
96411-41800

GRJ120,KZJ120,TRJ12#..5F

OD=18

 3
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GRJ120,KZJ120,TRJ12#..5F

OD=14

 1
96411-41800

GRJ120,KZJ120,TRJ12#..5F

OD=18

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GRJ120,KZJ120,TRJ12#..5F

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GRJ120,KZJ120,TRJ12#..5F

L=14,OD=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GRJ120,KZJ120,TRJ12#..5F

L=14,OD=15

 4
33131 - RETAINER, BEARING, FRONT(MTM)
33131-60080

GRJ120..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

GRJ120,KZJ120,TRJ12#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

GRJ120,KZJ120,TRJ12#..5F

 1
33449B - MAGNET, TRANSMISSION
33449-35030

GRJ120,KZJ120,TRJ12#..5F

 1
Common parts
90119-08332
91611-G0820
91612-61045
91619-61250
