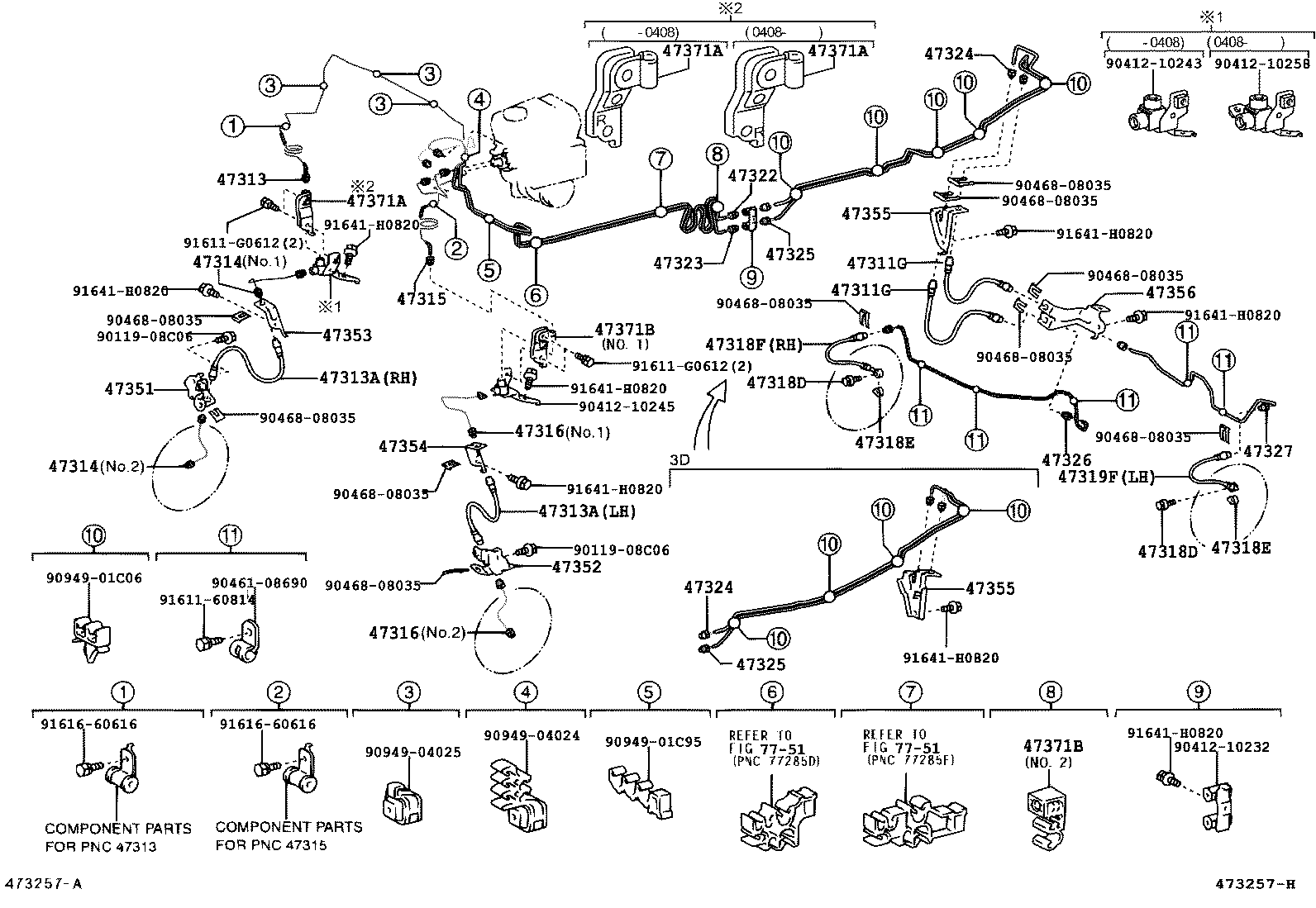

GRJ120L-GKPGKV (2003)
Toyota Land Cruiser Prado
(0301- )GRJ125..5FC ; (0301- )GRJ120..LHD..VX..4FC,5F,5FC
W(ABS & VSC & ACTIVE TRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D40 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
2 | ||
| 90947-02D40 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 90947-02D39 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D40 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
2 | ||
| 90947-02D40 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
2 | ||
| 90947-02D39 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-3D181 |
GRJ12#..LHD..VX TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47313-3D171 |
GRJ12#,KZJ120,RZJ12#,TRJ12#..LHD..(GCC,GEN) ABS-WITH |
1 | ||
| 47313-60381 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D35 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D35 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35320 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47314-35310 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35320 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47314-35310 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35451 |
GRJ12#,KZJ120,RZJ12#,TRJ12#..LHD..(GCC,GEN) ABS-WITH |
1 | ||
| 47315-35461 |
GRJ12#..LHD..VX TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47315-60501 |
GRJ12#,KZJ120,LJ12#,RZJ12#,TRJ12#..LHD..(GCC,GEN) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35270 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 47316-35280 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35270 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 47316-35280 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D31 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D32 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-3D080 |
GRJ12#..LHD..VX TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47322-3D070 |
GRJ12#,KZJ120,RZJ12#,TRJ12#..LHD..(GCC,GEN) ABS-WITH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35270 |
GRJ12#..LHD..VX TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47323-35260 |
GRJ12#,KZJ120,RZJ12#,TRJ12#..LHD..(GCC,GEN) ABS-WITH |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35310 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47324-35310 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47324-60340 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35310 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47324-35310 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47324-60340 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60300 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47325-35390 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47325-35390 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60300 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47325-35390 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47325-35390 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-35120 |
GRJ12#;KZJ120..ARL TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47326-35120 |
GRJ12#,KZJ120,RZJ12# ABS-WITH |
1 | ||
| 47326-60320 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47326-35130 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47326-35130 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ12#..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-35090 |
GRJ12#,KZJ120,RZJ12# ABS-WITH |
1 | ||
| 47327-35100 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47327-35100 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ12#..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47327-35090 |
GRJ12#;KZJ120..ARL TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47327-60150 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35350 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35390 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-35140 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-35120 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47355-35130 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47355-60170 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47355-35130 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47355-35130 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ120..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47355-60170 |
GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN |
1 | ||
| 47355-35130 |
GRJ120,KDJ120,KZJ120,RZJ120,TRJ120..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-35010 |
GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN ABS-WITH |
1 | ||
| 47356-35010 |
GRJ120..VX..5F;KZJ120..4FC..ARL;GRJ12#..4FC..(ARL,GCC,GEN) TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60150 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60150 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60150 |
GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47371-60160 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.2 |
1 | ||
| 47371-60160 |
GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN NO.1 |
1 | ||
| Common parts | ||||
| 90119-08C06 | ||||
| 90412-10232 | ||||
| 90412-10243 | ||||
| 90412-10245 | ||||
| 90412-10258 | ||||
| 90461-08690 | ||||
| 90468-08035 | ||||
| 90949-01C06 | ||||
| 90949-01C95 | ||||
| 90949-04024 | ||||
| 90949-04025 | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
| 91616-60616 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 7751 | ||||
