GRJ120L-GKPGKV (2003)

Toyota Land Cruiser Prado

Production Jan 2003 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

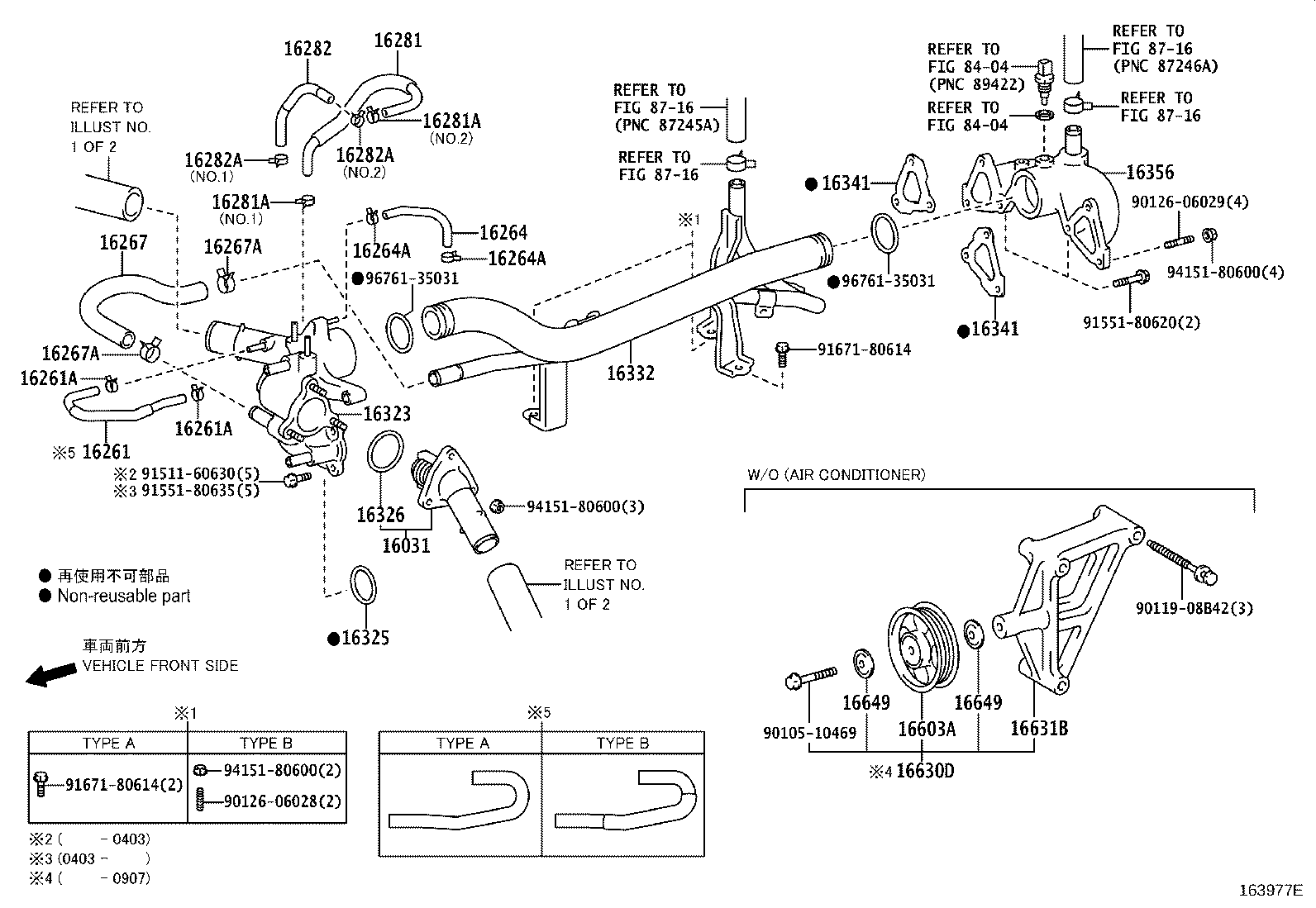

ILLUST NO. 2 OF 2(0301- )1GRFE

Click highlighted areas on diagram

diagram 16031 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16281 16281A 16281A 16282 16282A 16282A 16323 16325 16326 16332 16341 16341 16356 16603A 16630D 16631B 16649 16649 8404 8404 8716 8716 8716 8716 9010510469 9011908B42 9012606028 9012606029 9151160630 9155180620 9155180635 9167180614 9167180614 9415180600 9415180600 9415180600 9676135031 9676135031
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-31011

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16031-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-31011

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13073

1GRFE..GRJ12#..ARL,GCC,GEN

NO.1

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13073

1GRFE..GRJ12#..ARL,GCC,GEN

NO.1

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-13073

1GRFE..GRJ12#..ARL,GCC,GEN

NO.1

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-13073

1GRFE..GRJ12#..ARL,GCC,GEN

NO.1

 1
16323 - HOUSING, WATER INLET
16323-31021

1GRFE..GRJ120..5F..GCC;1GRFE..GRJ12#..(4FC,5FC,6F)..(ARL,GCC)

 1
16323-31020

1GRFE..GRJ120..5F..GCC;1GRFE..GRJ12#..4FC..(ARL,GCC)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16341 - GASKET, WATER OUTLET
16341-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 2
16341 - GASKET, WATER OUTLET
16341-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 2
Common parts
90105-10469
90119-08B42
90126-06028
90126-06029
91511-60630
91551-80620
91551-80635
91671-80614
94151-80600
96761-35031
Linked diagrams
8404
8716

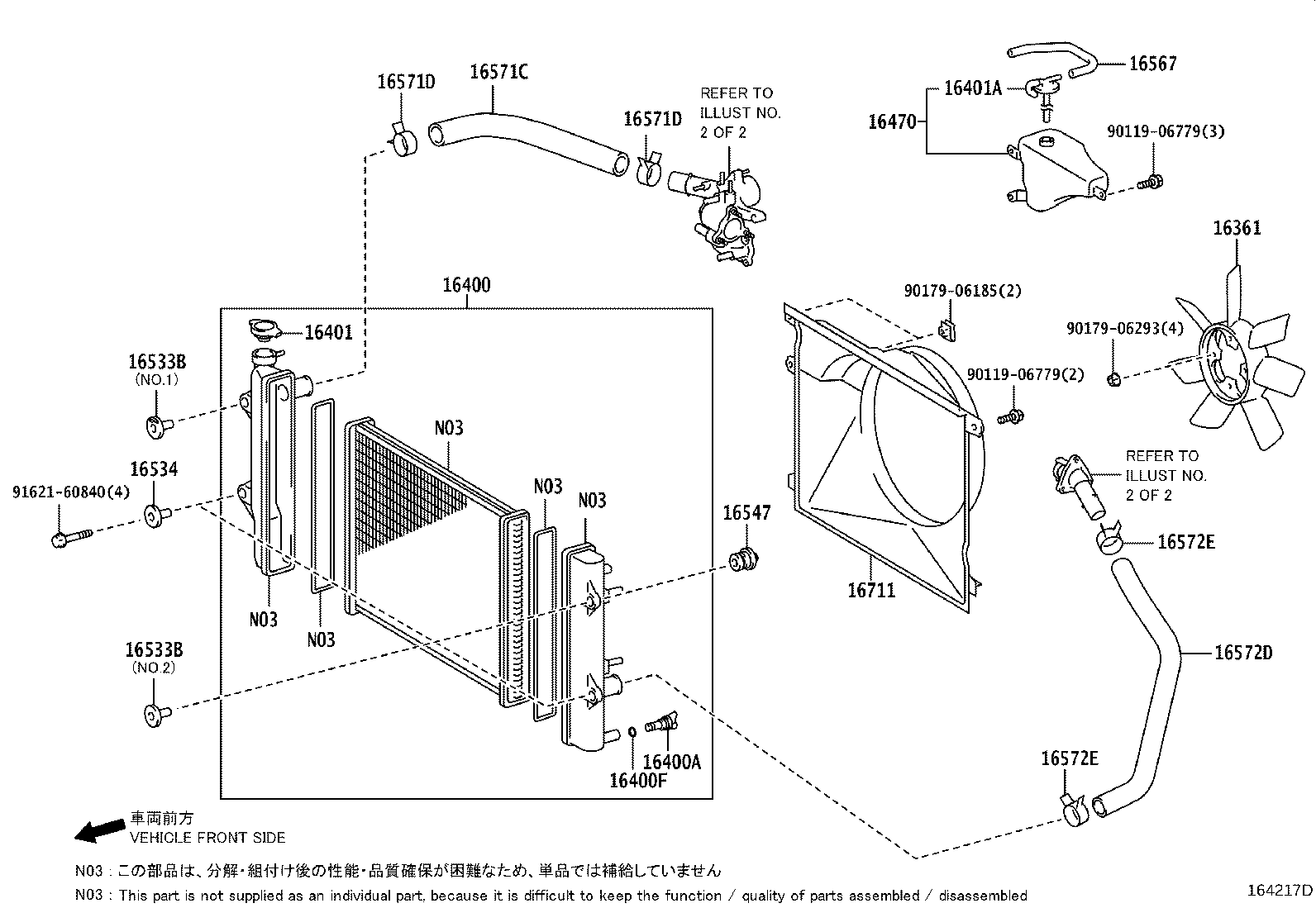

ILLUST NO. 1 OF 2(0301- )1GRFE

Click highlighted areas on diagram

diagram 16361 16400 16400A 16400F 16401 16401A 16470 16533B 16533B 16534 16547 16567 16571C 16571D 16571D 16572D 16572E 16572E 16711 9011906779 9011906779 9017906185 9017906293 9162160840
Part # Description Qty Price
16361 - FAN
16361-31060

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
23322-54010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16405-50051

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-50140

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-31010

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16571C - HOSE, RADIATOR, NO.1
16571-31130

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16572D - HOSE, RADIATOR, NO.2
16572-31170

1GRFE..GRJ12#..ARL,GCC,GEN

 1
16711 - SHROUD, FAN
16711-31200

1GRFE..GRJ12#..ARL,GCC,GEN

 1
Common parts
90119-06779
90179-06185
90179-06293
91621-60840
