GRJ120L-GKMGKV (2003)
Toyota Land Cruiser Prado
Production
Jan 2003
-
Aug 2004
Engine
1GRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )GRJ12#

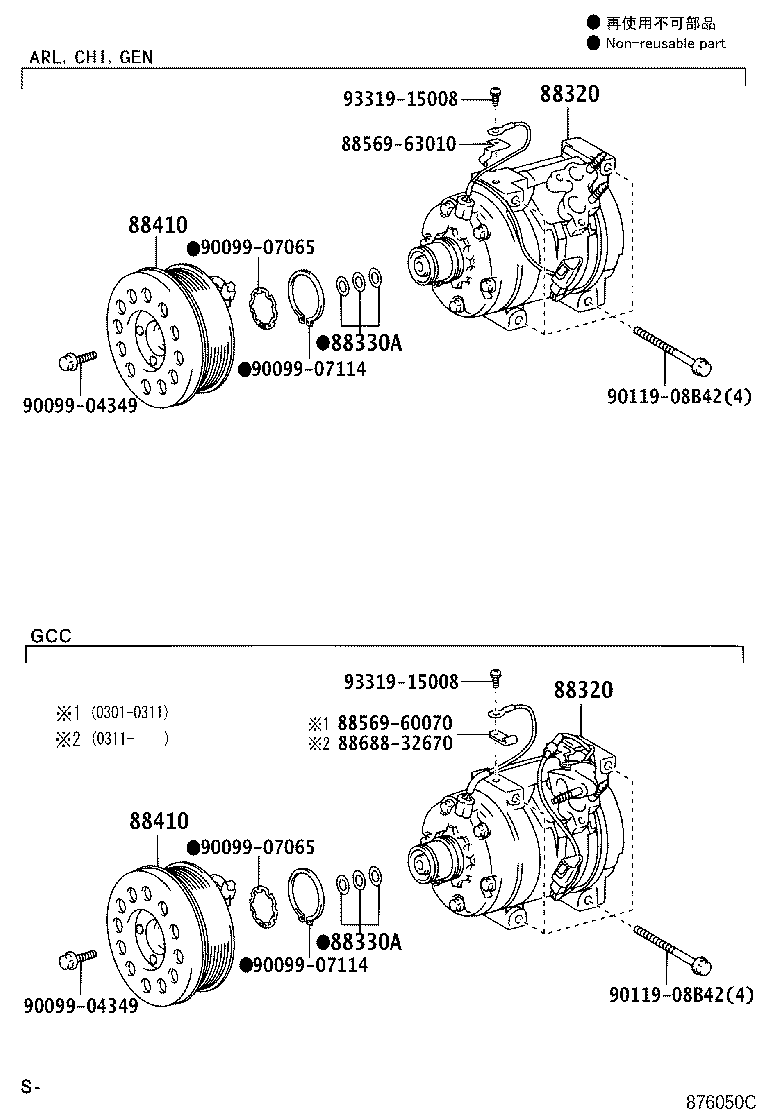

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A020 |
GRJ12#..GCC |
1 | ||
| 88320-6A030 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A140 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A200 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A130 |
GRJ12#..GCC |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-6A020 |
GRJ12#..GCC |
1 | ||
| 88320-6A030 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A140 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A200 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88320-6A130 |
GRJ12#..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35430 |
GRJ12#..GCC |
1 | ||
| 88410-6A020 |
GRJ12#..GCC |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35430 |
GRJ12#..GCC |
1 | ||
| 88410-6A020 |
GRJ12#..GCC |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 88569-63010 | ||||
| 88688-32670 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
